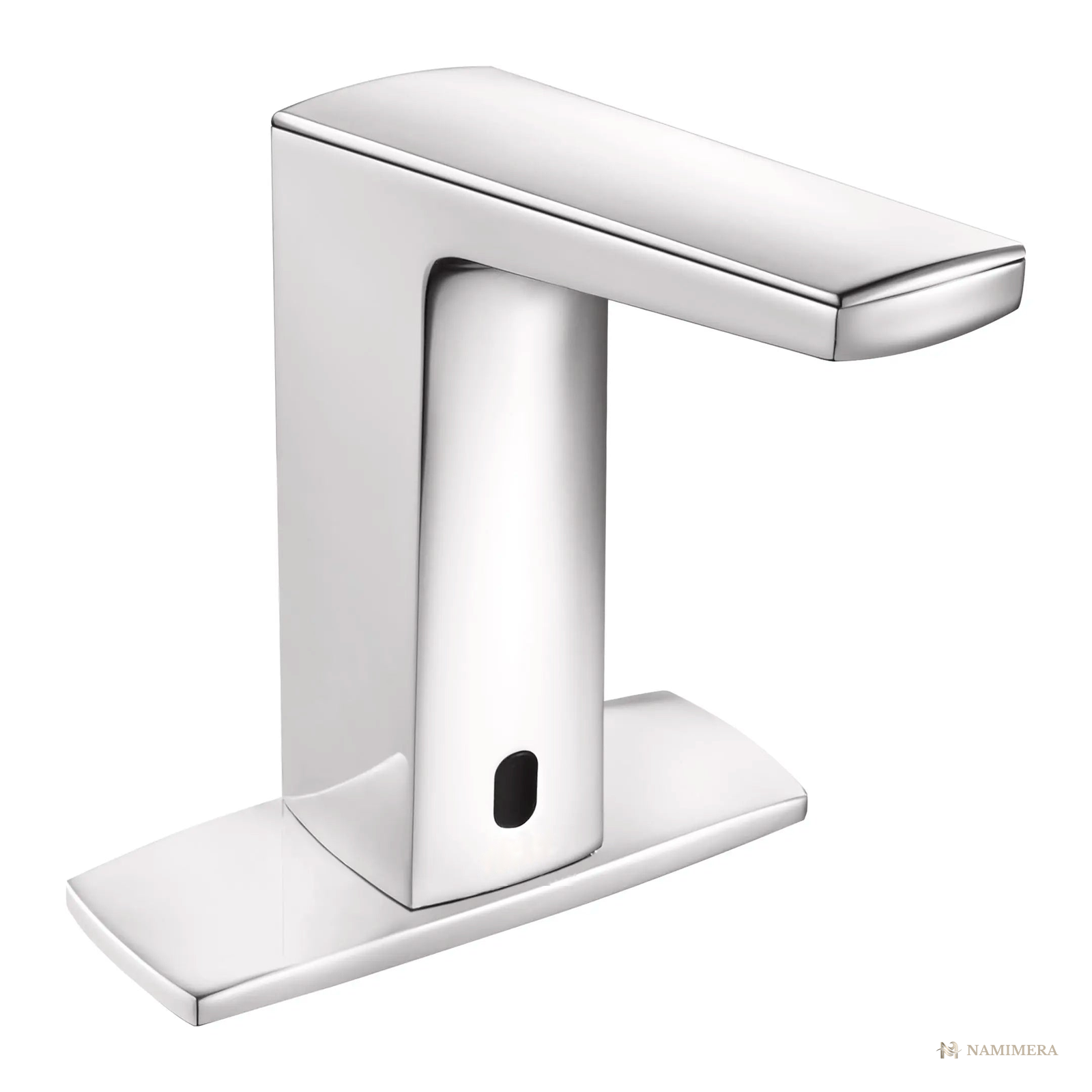

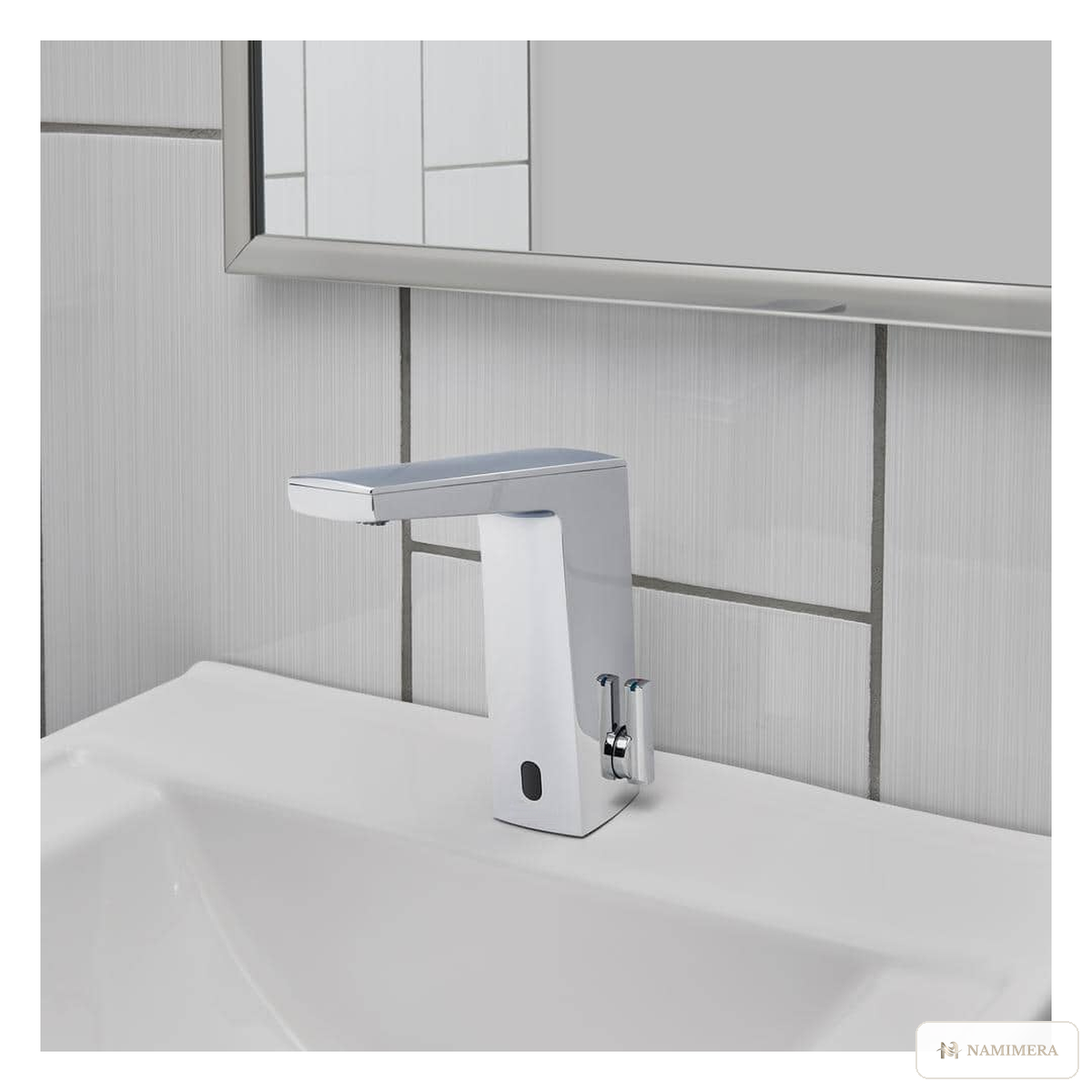

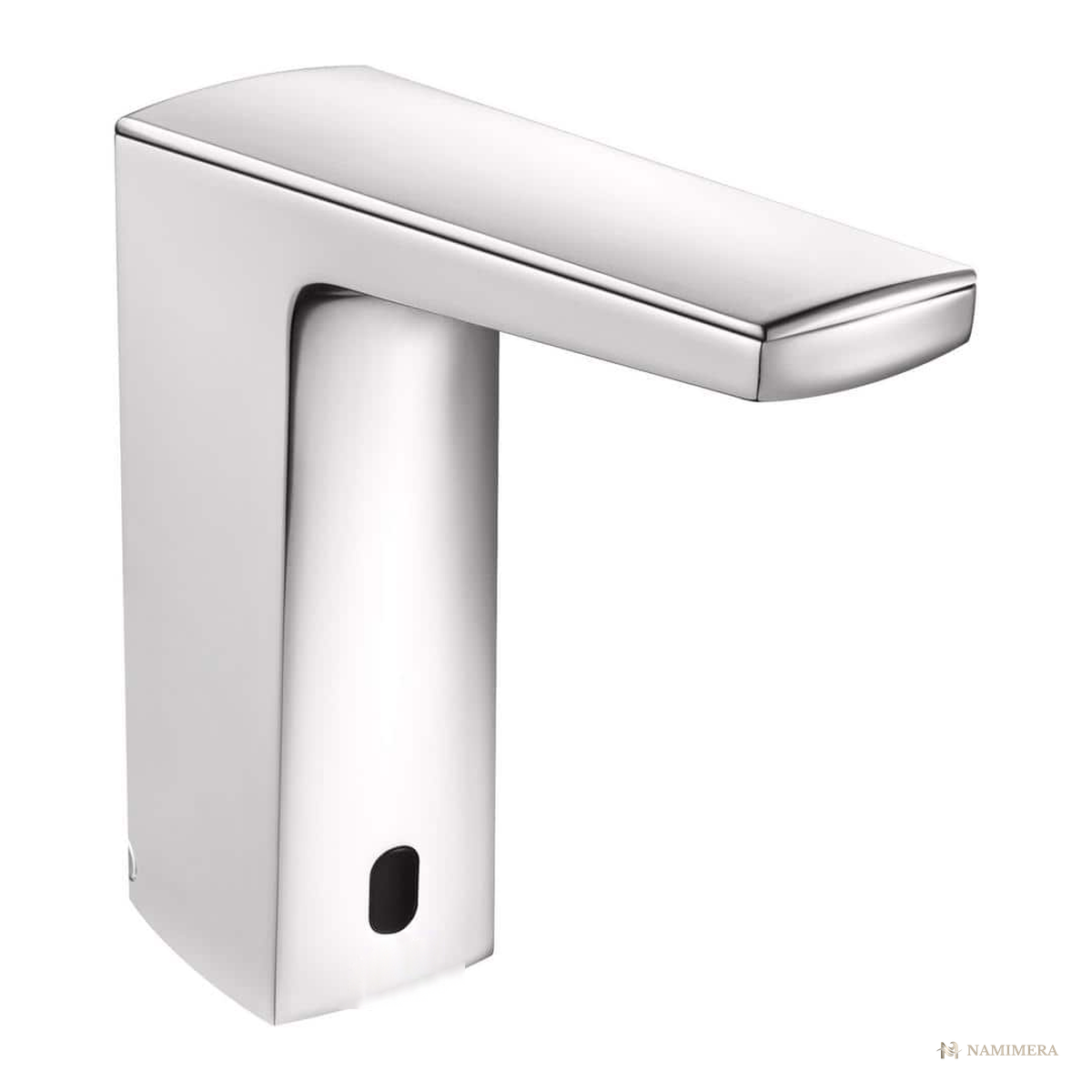

Namimera Commercial Touchless Bathroom Faucet with Thermostatic Shut-Off, 0.5 GPM, Polished Chrome
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
This facility-ready product summary covers an AC-powered touchless single-hole lavatory faucet with 0.5 GPM vandal-resistant multi-laminar spray, ASSE 1070 thermostatic shut-off, a 6.62 in. spout with 5.5 in. reach, and above-deck mixing, helping facility programs move from review to release with fewer scope gaps.
Highlights
- Touchless proximity operation limits germ spread in public restrooms
- 0.5 GPM pressure-compensating, vandal-resistant multi-laminar spray
- Integral thermostatic safety shut-off, ASSE 1070 certified
- Above-deck mixing with removable handle and adjustable hot limit stop
- All electronics in the spout; no control box below deck
- Fail-safe solenoid closes automatically on power loss
- Automatic periodic purge cycle flushes stagnant water
- AC power kit quoted separately: plug-in, hard-wired, or battery options
Specification Table
| Flow rate | 0.5 GPM pressure-compensating spray |
| Activation | Proximity sensor, AC powered; power kit quoted separately |
| Safety shut-off | Integral thermostatic, ASSE 1070 certified |
| Mixing | Above-deck, removable handle, hot limit stop |
| Mounting | Single hole, vandal-resistant single post |
| Spout height | 6.62 in. deck to spout outlet |
| Spout reach | 5.5 in. from base center |
| Overall height | 7.5 in. |
| Water pressure range | 20 to 120 psi |
| Supply connections | Dual inlets, 24 in. flexible supplies, 3/8 in. compression |
| Max deck thickness | 1.5 in. |
| Certifications | ASSE 1070; lead content 0.25 percent or less |
| Warranty | 5-year limited warranty |
Included Equipment
- Touchless faucet body with integrated sensor and solenoid
- Removable above-deck mixing handle with cover plug
- Pre-installed 24 in. flexible inlet hoses with filter assemblies
- Check valves on dual inlets
- Mounting hardware; power kit and deck plate quoted separately
Installation Notes
- A power kit is required and not included; plug-in, hard-wired, and battery options are confirmed during quote review.
- Confirm a single-hole layout; optional deck plates cover 4 in. or 8 in. center layouts and are quoted separately.
- Water pressure must fall between 20 and 120 psi; verify stops and filters before install.
- The faucet installs from the top and all serviceable parts are accessible from above deck.
- Review the final configuration and accessory bundle during quote review before order release.
Warranty and Support
- Published warranty coverage: 5-year limited warranty
- Replacement sensors, solenoids, filters, and mixing handles are supported through quote review
- Final warranty registration and coverage documents are confirmed during quote review
Frequently Asked Questions
Is the power kit included?
No. The published configuration requires a separate power kit; plug-in AC, hard-wired AC, long-life battery, and battery backup options are confirmed during quote review.
What keeps users from getting scalded?
An integral thermostatic safety shut-off, certified to ASSE 1070, limits hot water temperature without a separate mixing valve.
Does it work during a power outage?
The solenoid closes automatically on power loss so the faucet fails safe and shut. An optional battery backup keeps AC-powered units running and is quoted separately.
Is it suitable for residential use?
It is a commercial-grade lavatory faucet; the published specification summary supports residential use where a 0.5 GPM public-restroom flow is acceptable.
Documents
- Type Touchless Bathroom Faucet
- SKU NM-PLB-BF-SHT05A-PC-PC
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
