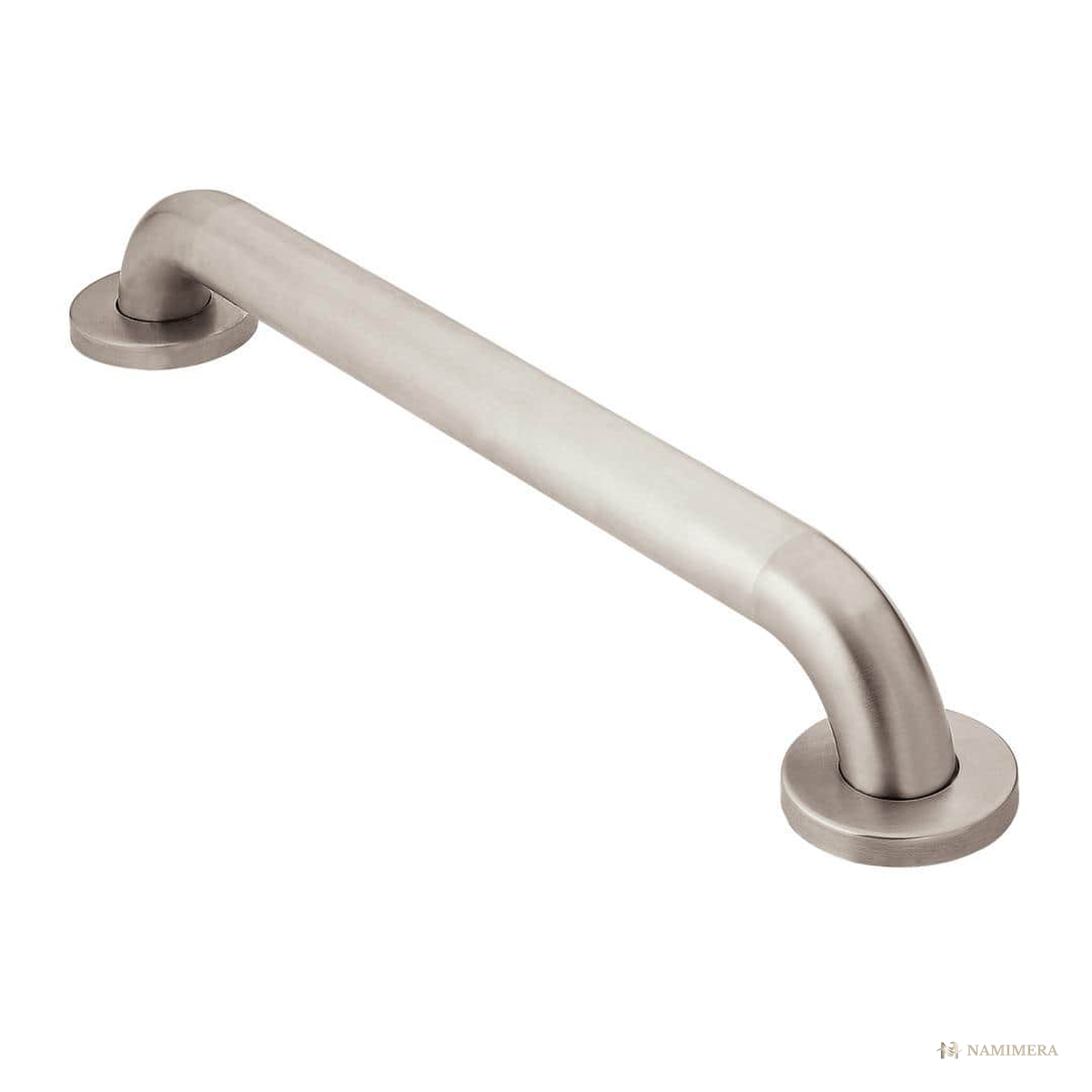

Namimera Concealed Screw Grab Bar, ADA Compliant, 1-1/4 in. Diameter, 24 in., Peened Stainless Steel
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
This contractor-ready product summary covers straight 1-1/4 in. diameter stainless steel grab bars in 12, 24, and 36 in. lengths with a manufacturer-stated 500 lb capacity, ADA-compliant geometry, 3 in. wall projection, and concealed screw mounting, helping accessibility programs move from review to release with fewer scope gaps.
Highlights
- Manufacturer-stated 500 lb weight capacity across all lengths
- Complies with ADA specifications; tested to ANSI and CSA standards per manufacturer data
- 1-1/4 in. bar diameter with 3 in. projection from the finished wall

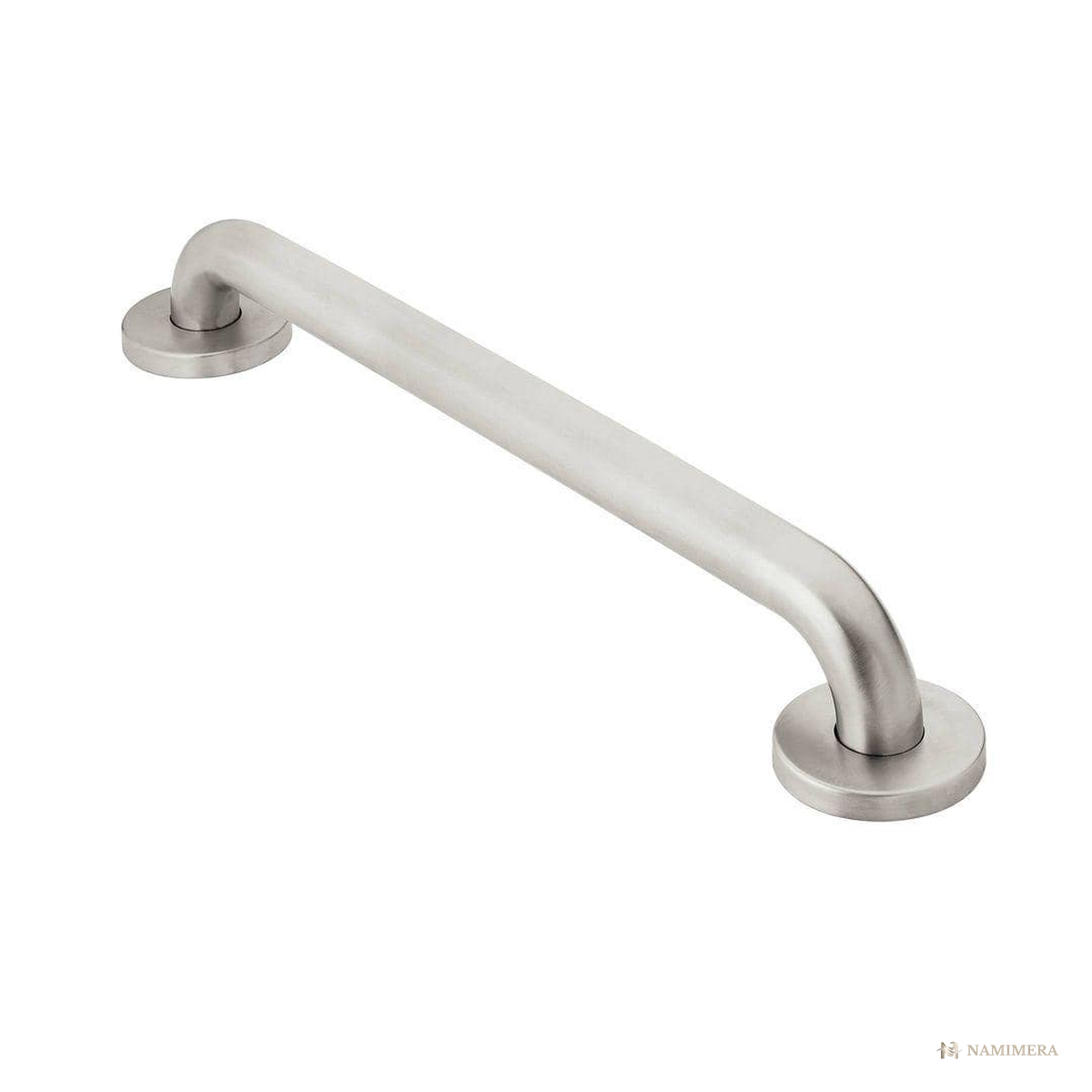

- 12 in., 24 in., and 36 in. center-to-center lengths cover tub, shower, and toilet placements
- 20-gauge 304 stainless steel tubing resists corrosion in wet areas
- Peened texture on 12 and 24 in. bars adds slip resistance for wet grip
- Concealed screw flanges hide fasteners for a clean finished look
- Mounts into studs at any angle; hollow-wall anchor system available separately
Specification Table
| Lengths | 12 in., 24 in., 36 in. center to center |
| Bar diameter | 1-1/4 in. |
| Projection | 3 in. from wall |
| Weight capacity | 500 lb, manufacturer stated |
| Compliance | ADA specifications; ANSI and CSA tested, manufacturer stated |
| Material | 20-gauge 304 stainless steel |

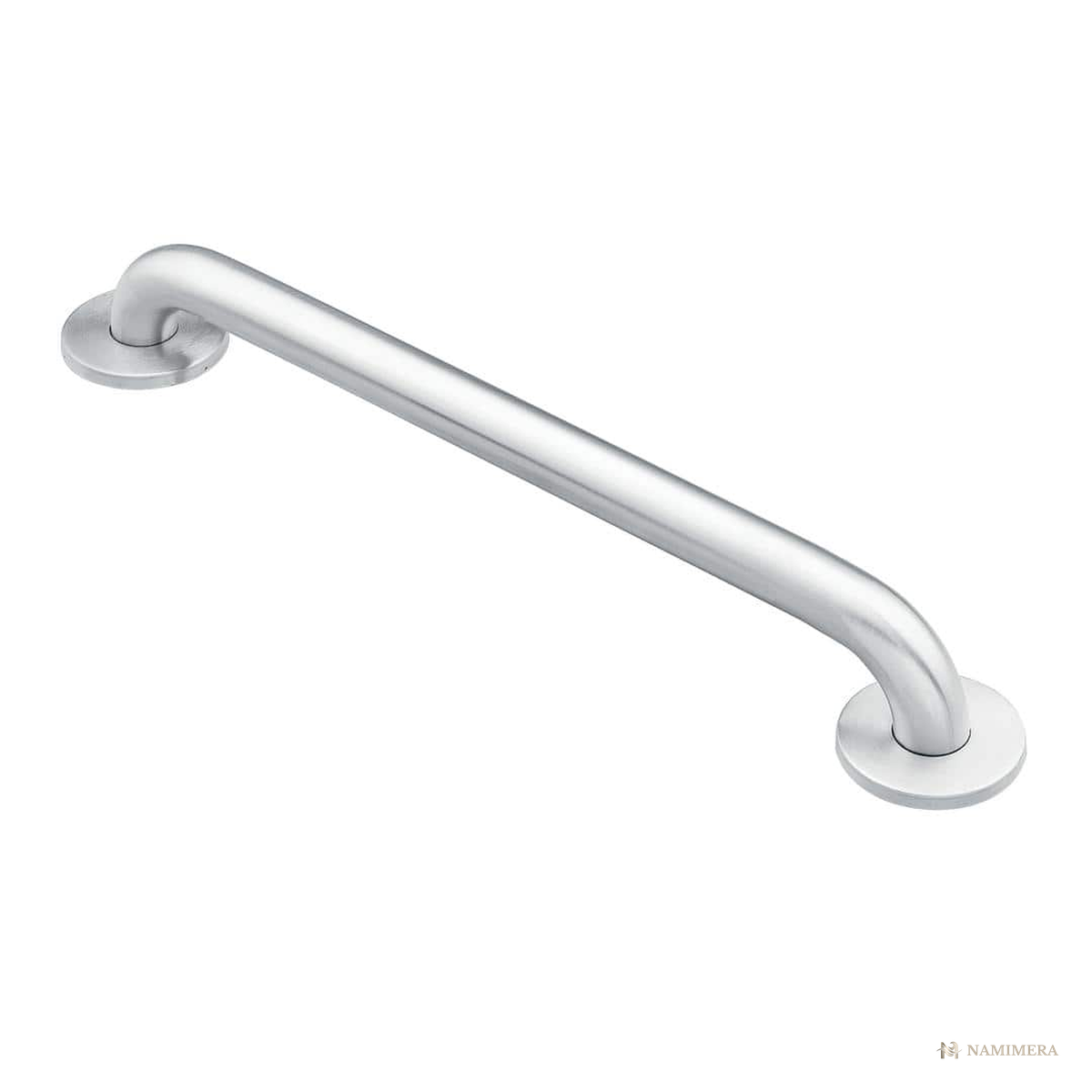

| Finish | Peened slip-resistant stainless (12, 24 in.); satin stainless (36 in.) |
| Mounting | Concealed screw wall mount, installs into studs at any angle |
| Overall length | Nominal length plus approximately 3.25 in. |
| Warranty | Limited lifetime warranty |
Included Equipment
- Grab bar with concealed screw flanges
- Mounting template
- Wood screws for stud installation
- Snap-on flange covers
- Installation instructions
Installation Notes
- Fasten into wood studs or approved blocking; the published 500 lb rating applies to stud-mounted installations.
- For hollow-wall locations, use the compatible anchor system, which carries a lower 300 lb rating per its published data.

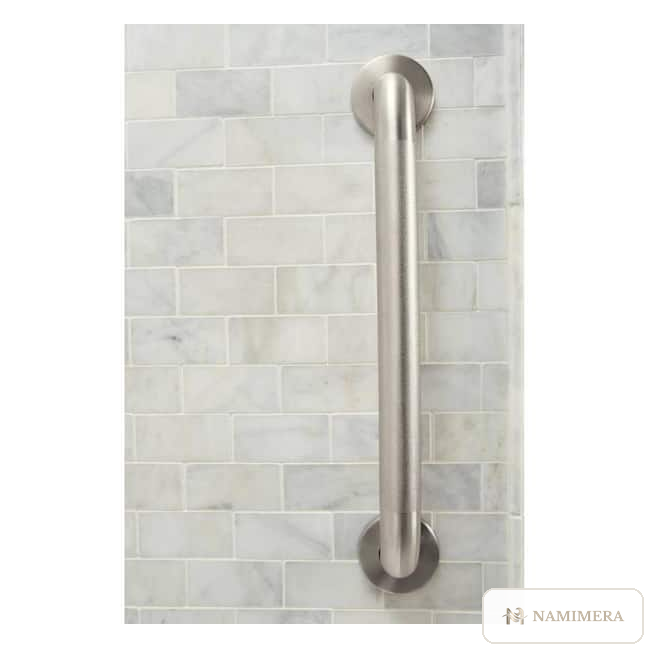

- Position per local accessibility code; horizontal, vertical, and angled orientations are supported by the any-angle mounting design.
- Drill starter holes, mount with the supplied 2 in. screws, and snap the flange covers into place.
- Review the final length, finish selection, and accessory bundle during quote review before order release.
Warranty and Support
- Published warranty coverage: limited lifetime warranty
- Replacement flange covers and mounting hardware are supported through quote review
- Final warranty registration and coverage documents are confirmed during quote review
Frequently Asked Questions
Which length goes where?
Typical programs run 12 in. bars at entries and controls, 24 in. bars at toilets, and 36 in. bars along tubs and shower walls. Final placement is set by the project's accessibility plan and confirmed during quote review.
Is the rating valid in drywall without studs?
The 500 lb manufacturer rating applies to stud or blocking installations. The separately quoted hollow-wall anchor system carries a published 300 lb rating.
What is the difference between the peened and satin finishes?
Peened bars have a texture that improves wet grip and ship in 12 and 24 in. lengths; the 36 in. bar ships in smooth satin stainless.
Are these ADA compliant?
The published specification summary states compliance with ADA specifications at the 1-1/4 in. diameter and 500 lb test rating. Project code review is confirmed during quote review.
