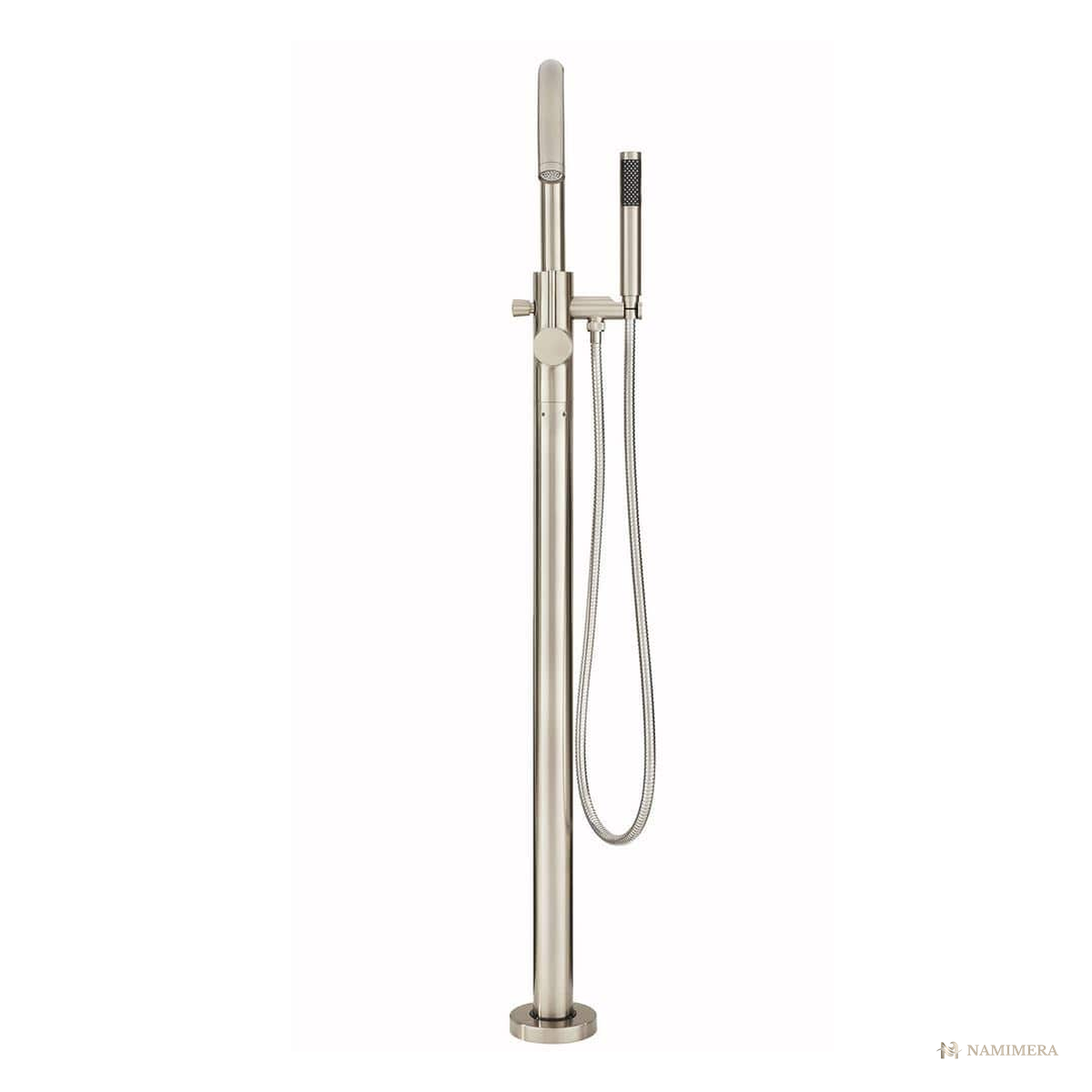

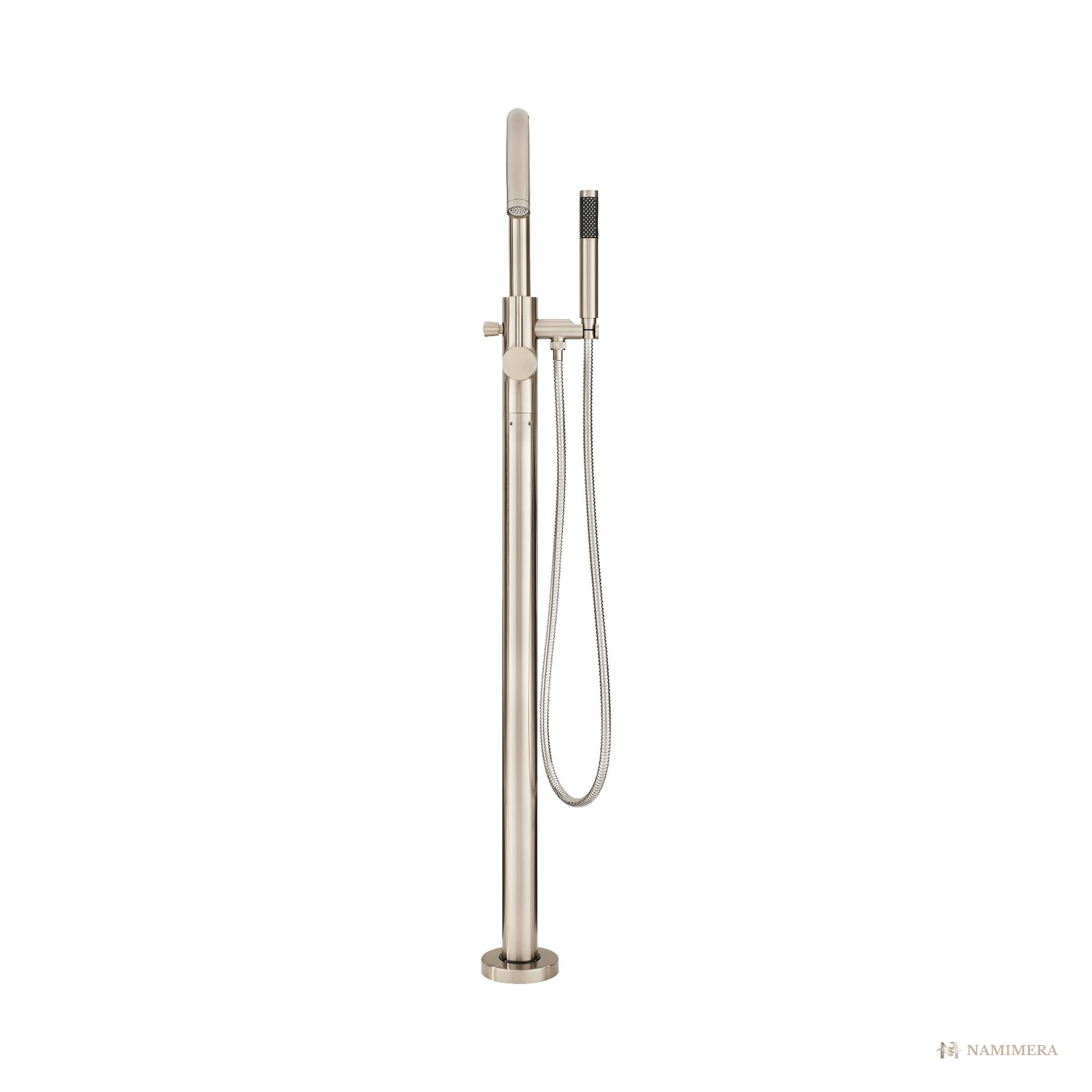

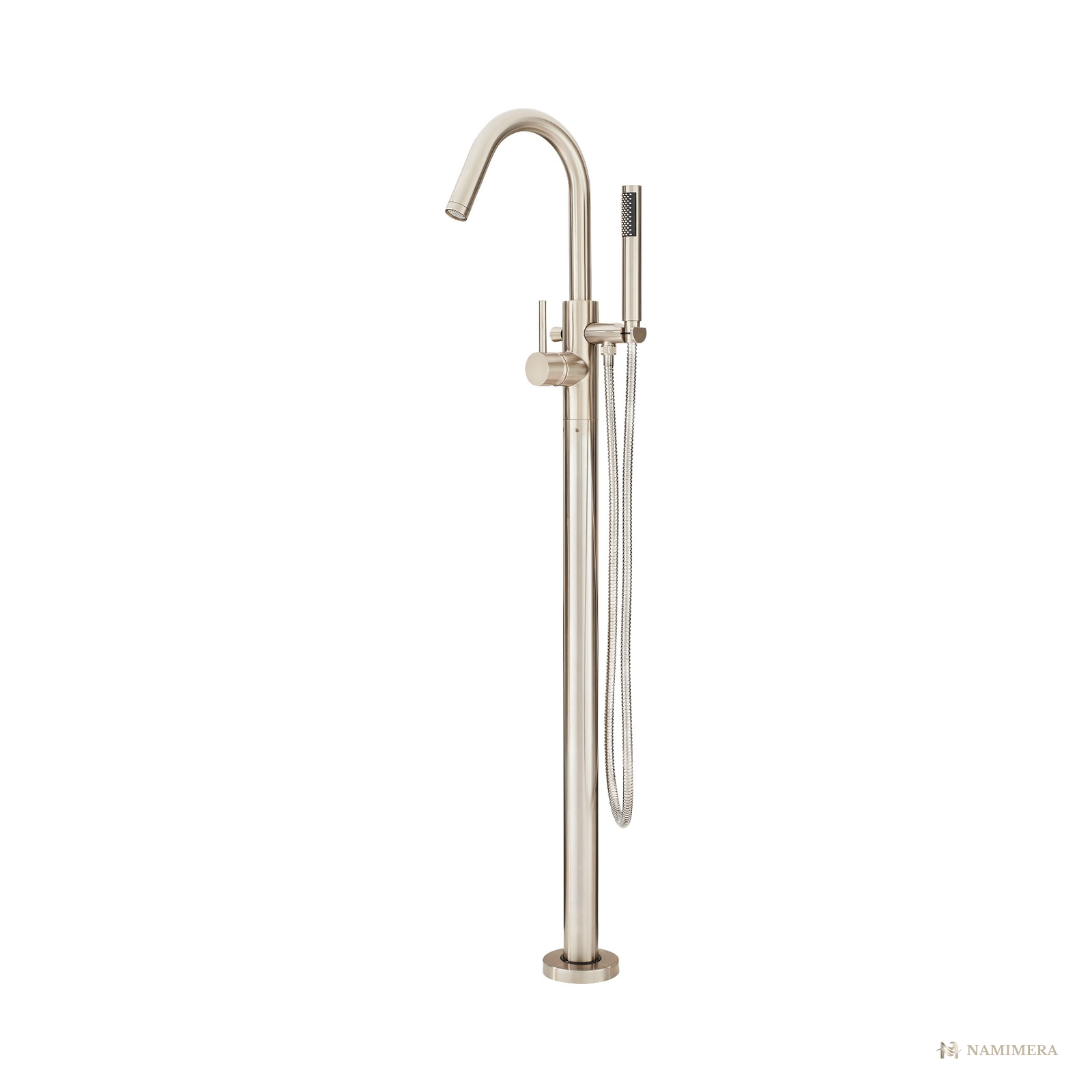

Namimera High-Arc Freestanding Tub Filler Trim with Hand Shower, 8 GPM, Brushed Nickel
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
This designer-ready product summary covers a 48-9/16 in. all-metal freestanding tub filler trim with 8 GPM at 60 psi spout flow, 1.8 GPM WaterSense hand shower on a 60 in. metal hose, ceramic disc volume and temperature control, and a dedicated floor rough-in valve requirement, helping bath programs move from review to release with fewer scope gaps.
Highlights
- High-arc spout fills large soaking tubs at 8 GPM at 60 psi
- 1.8 GPM hand shower is EPA WaterSense certified and CEC compliant
- 60 in. metal hose with matching brushed nickel finish
- Ceramic disc valve with single-lever volume and temperature control
- All-metal construction; 48-9/16 in. overall height with 8-3/4 in. spout reach
- Single-post floor trim installs over a dedicated rough-in valve, quoted separately
- ADA compliant lever handle per ANSI A117.1; NSF 61/9 Annex G low-lead
- Limited lifetime warranty against leaks, drips, and finish defects
Specification Table
| Flow rate | 8 GPM at 60 psi spout |
| Hand shower flow | 1.8 GPM, WaterSense certified |
| Valve | Ceramic disc, volume and temperature control |
| Mounting | Floor mount freestanding trim; dedicated rough-in valve required, quoted separately |
| Overall height | 48-9/16 in. |
| Spout reach | 8-3/4 in. |
| Hose | 60 in. metal hose, matching finish |
| Deck hole opening | 3-3/8 in. maximum |
| Material | All-metal construction |
| Finish | Brushed nickel |
| Certifications | IAPMO to ASME A112.18.1/CSA B125.1; ASME A112.18.3; NSF 61/9 Annex G; WaterSense; CEC; ADA lever handle |
| Warranty | Limited lifetime warranty |
Included Equipment
- Freestanding tub filler trim column with single-lever handle
- Coordinating hand shower with 60 in. matching metal hose
- Single-post mounting ring and mounting hardware
- Installation guide
Installation Notes
- This is a trim kit: a dedicated floor rough-in valve is required and is quoted separately; set the valve before finished flooring.
- Confirm joist blocking and a maximum 3-3/8 in. deck hole opening at the planned column location.
- For concrete slabs, an optional concrete mounting bracket is available and is added during quote review.
- Rough-in and final connection should be completed by a qualified, licensed plumber; flush lines before installing trim.
- Review the final finish selection and accessory bundle during quote review before order release.
Warranty and Support
- Published warranty coverage: limited lifetime warranty against leaks, drips, and finish defects
- Replacement cartridges, hand showers, and hoses are supported through quote review
- Final warranty registration and coverage documents are confirmed during quote review
Frequently Asked Questions
Is the rough-in valve included?
No. The column is a trim kit that pairs with a dedicated floor rough-in valve, which is added to the same quote so the pairing is never missed.
How fast does it fill a tub?
The published specification summary lists 8 GPM at 60 psi, which fills a typical 60 gal freestanding soaker in under 8 minutes at full supply pressure.
Is it code-friendly for lead and backflow?
The published specification summary lists NSF 61/9 Annex G low-lead certification and ASME A112.18.3 backflow prevention, with IAPMO certification to ASME A112.18.1/CSA B125.1. Local code questions are confirmed during quote review.
Can it anchor into a concrete slab?
Yes. An optional concrete mounting bracket supports slab installations and is confirmed during quote review.
Documents
- Type Freestanding Tub Filler
- SKU NM-PLB-TF-FS49-BN-BN
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
