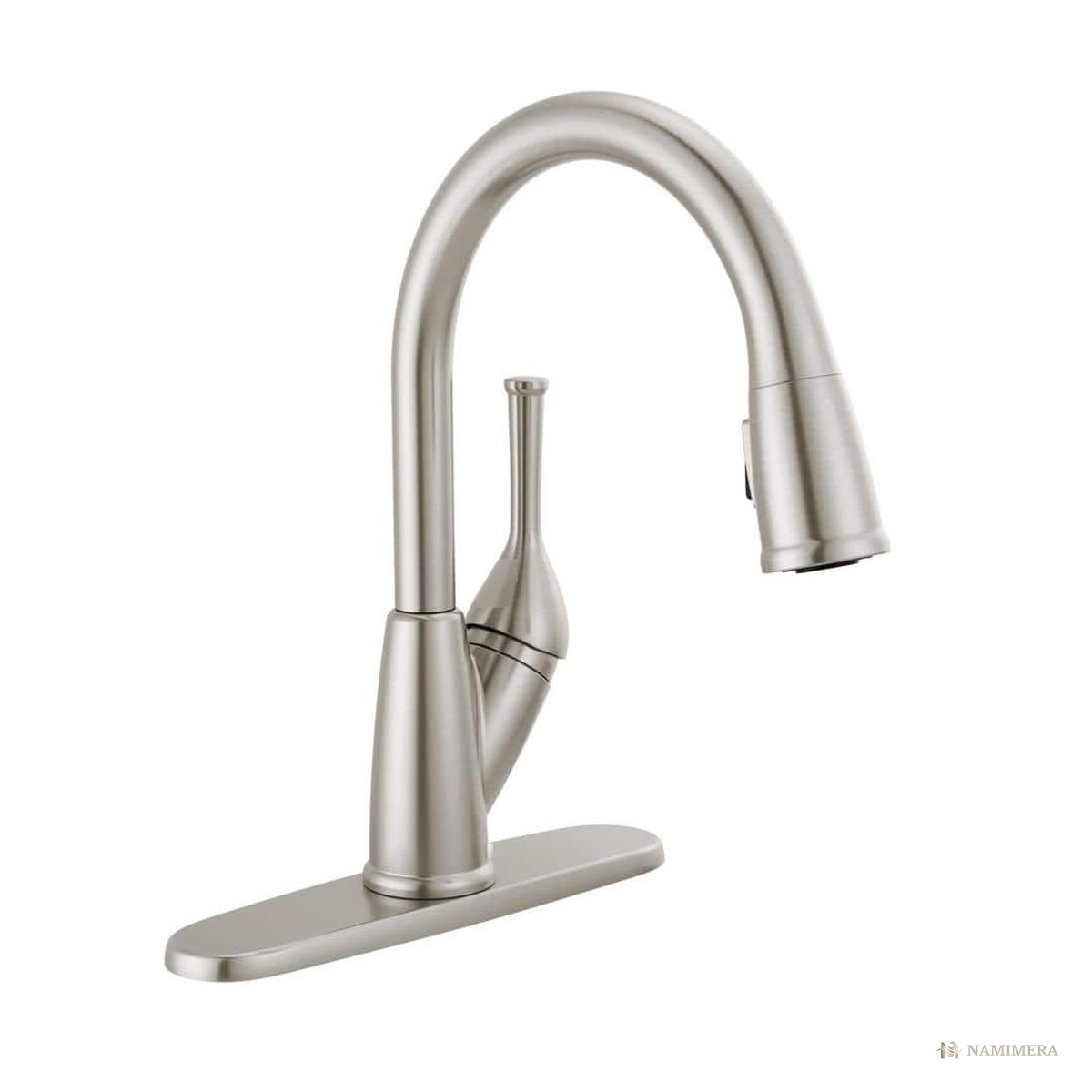

Namimera Pull-Down Kitchen Faucet with Magnetic Dock Sprayer, 1.8 GPM, Stainless Steel
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
This contractor-ready product summary covers a single-handle pull-down kitchen faucet with 1.8 GPM flow at 60 psi, a 14.13 in. overall height, a 9.13 in. spout reach, magnetic wand docking, and a diamond-coated ceramic cartridge, helping kitchen and bath programs move from review to release with fewer scope gaps.
Highlights
- 1.8 GPM at 60 psi with aerated stream and spray modes
- Magnetic docking holds the wand precisely in place, no drooping
- Diamond-coated ceramic cartridge for long service life
- 20 in. retractable hose with quick-connect installation
- Wipe-clean rubber nozzles clear mineral buildup with a fingertip
- Integrated PEX supply lines cut connection points under the sink
- Stainless steel and chrome finish options
- ADA compliant; certified to ASME A112.18.1/CSA B125.1
Specification Table
| Flow rate | 1.8 GPM at 60 psi |
| Valve cartridge | Diamond-coated ceramic |
| Docking | Magnetic wand dock |
| Overall height | 14.13 in. with deck plate; 13.63 in. without |
| Spout height | 7.25 in. deck to spout outlet with deck plate |
| Spout reach | 9.13 in. from base center |
| Spout swivel | 360 degrees |
| Hose | 20 in. retractable, quick-connect |
| Mounting | Single hole or 3-hole 8 in.; 10.75 in. deck plate included |
| Max deck thickness | 2.5 in. |
| Supply connections | 3/8 in. O.D. integrated PEX lines |
| Warranty | Lifetime limited on parts and finish |
Included Equipment
- Faucet body with two-function magnetic-dock spray wand
- Optional 10.75 in. deck plate for 3-hole sinks
- Integrated PEX supply lines and mounting hardware
- Installation guide
Installation Notes
- Confirm a single-hole sink or a 3-hole layout with 8 in. centers; holes must be 1.31 to 1.5 in. in diameter.
- Verify deck thickness is 2.5 in. or less and keep 2.5 in. of clearance to the backsplash for handle travel.
- Shut off supplies before removing the existing fixture; the integrated lines terminate in 3/8 in. compression fittings.
- Snap the hose quick-connect onto the wand tube until it clicks, then pull down gently to confirm.
- Review the final finish selection and accessory bundle during quote review before order release.
Warranty and Support
- Published warranty coverage: lifetime limited warranty on parts and finish
- Replacement wands, cartridges, hoses, and aerators are supported through quote review
- Final warranty registration and coverage documents are confirmed during quote review
Frequently Asked Questions
Will the wand sag over time?
The wand seats on an integrated magnet rather than a friction collar, which keeps it docked and prevents the droop common on worn pull-downs.
Does it fit under low uppers or a window sill?
Overall height is 14.13 in. with the deck plate and 13.63 in. without, one of the lower pull-down profiles. Verify your clearance during quote review.

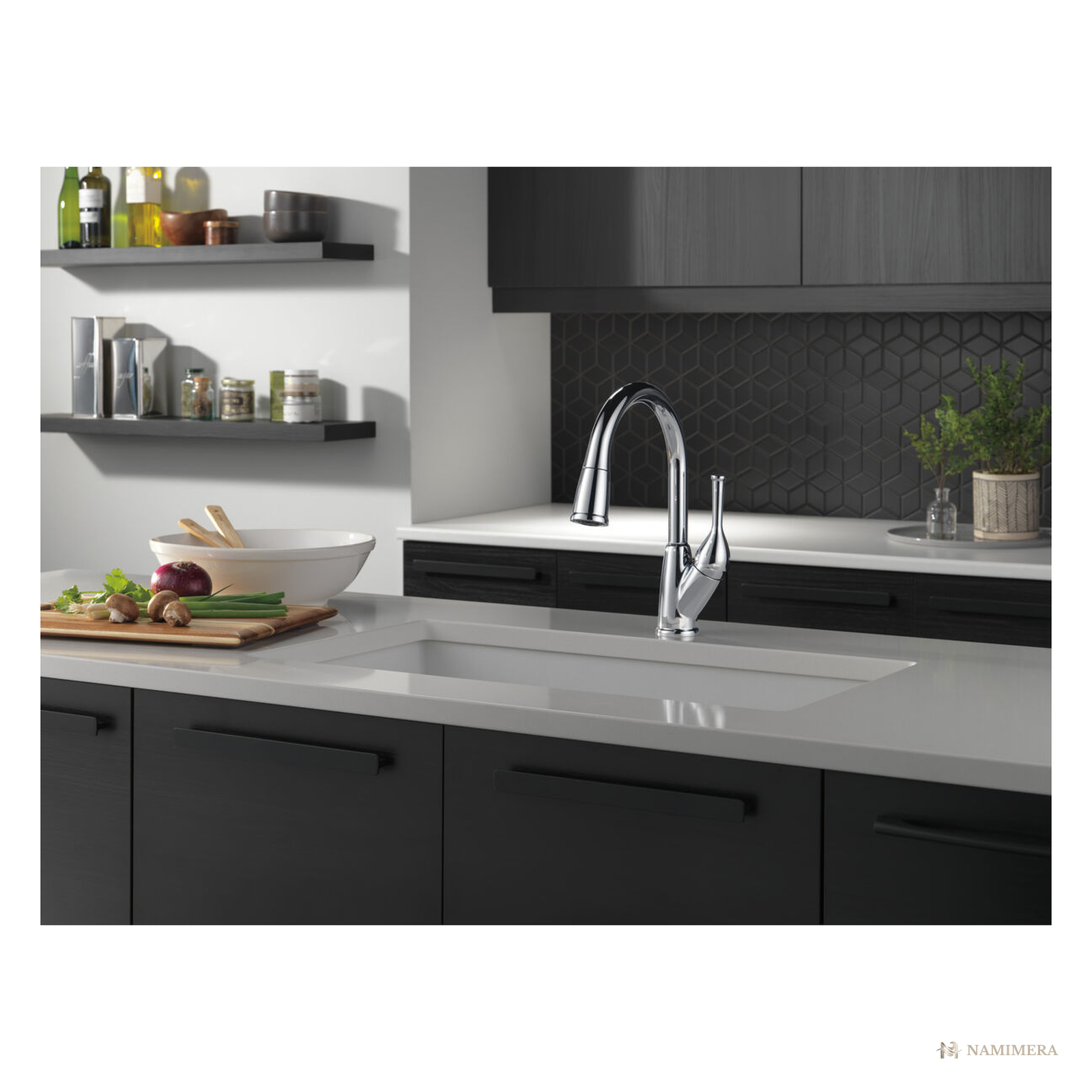

What finishes are available?
Stainless steel and chrome. A matte black colorway exists in the platform but is not part of this quoting record.
Is the flow rate code-compliant?
The published specification summary lists 1.8 GPM at 60 psi and ASME A112.18.1/CSA B125.1 compliance. Local code requirements should be confirmed during quote review.
Documents
- Type Pull-Down Kitchen Faucet
- SKU NM-PLB-KF-PDM18-SS-SS
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
