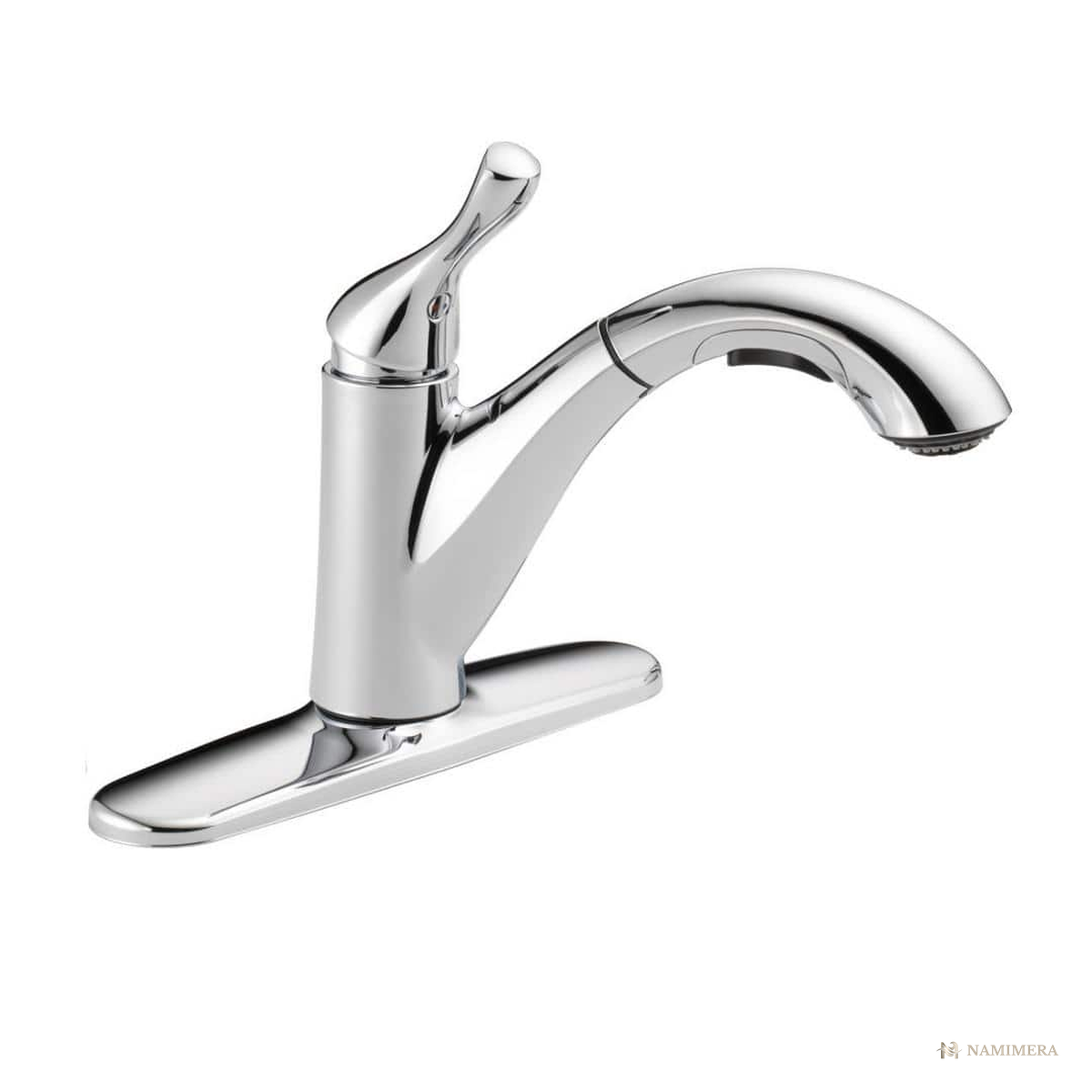

Namimera Single-Handle Pull-Out Kitchen Faucet with Deck Plate, 1.8 GPM, Chrome
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
This contractor-ready product summary covers a single-handle pull-out faucet with 1.8 GPM flow at 60 psi, a 9.13 in. overall height with 8.13 in. spout reach, a diamond-coated ceramic cartridge with integral check valves, and a 10.5 in. deck plate, helping kitchen and bath programs move from review to release with fewer scope gaps.
Highlights
- 1.8 GPM flow at 60 psi with push-button stream or spray
- Diamond-coated ceramic cartridge rated for long service life
- Low 9.13 in. overall height clears window sills and shelving
- Pull-out wand with soft rubber nozzles that wipe clean of scale
- Fits 1 or 3-hole sinks with the included 10.5 in. deck plate
- Integral double check valves for backflow protection
- ADA compliant; NSF/ANSI 61 and 372 lead-free compliant
Specification Table
| Flow rate | 1.8 GPM at 60 psi |
| Valve cartridge | Diamond-coated ceramic disc |
| Spray modes | Aerated stream or spray, push-button wand |
| Overall height | 9.13 in. |
| Spout height | 5.75 in. to spout outlet |
| Spout reach | 8.13 in. from base center |
| Spout swivel | 120 degrees |
| Hose | 53 in. spout-to-valve hose |
| Mounting | 1 or 3 holes, 1.31 to 1.5 in. diameter, 10.5 in. deck plate included |
| Body material | Chrome-plated polymer with PEX waterways |
| Supply connections | 3/8 in. O.D. PEX tubes, 35 and 36 in. |
| Warranty | Lifetime limited warranty |
Included Equipment
- Pull-out faucet body with two-function wand
- Pre-attached 53 in. hose
- Optional 10.5 in. deck plate for 3-hole installations
- Integrated 3/8 in. O.D. PEX supply tubes, 35 and 36 in.
- Mounting hardware
- Installation guide
Installation Notes
- Confirm 1 or 3-hole layout with 1.31 to 1.5 in. holes and deck thickness up to 2.5 in. before install.
- Keep at least 2.5 in. clearance to the backsplash for the handle sweep.
- Do not connect this faucet to a portable dishwasher; pressure cycles can rupture the pull-out hose.
- The integrated PEX supply tubes connect with 3/8 in. compression fittings; verify stop valve compatibility.
- Review the final finish selection and accessory bundle during quote review before order release.
Warranty and Support
- Published warranty coverage: lifetime limited warranty on parts and finish to the original consumer; 10-year multifamily and 5-year commercial terms; 5-year electronic parts where applicable
- Replacement wands, cartridges, and aerators are supported through quote review
- Final warranty registration and coverage documents are confirmed during quote review
Frequently Asked Questions
Does it fit a 3-hole sink?
Yes. The included 10.5 in. deck plate covers standard 3-hole layouts, and the faucet also mounts in a single hole.
What finishes are available?

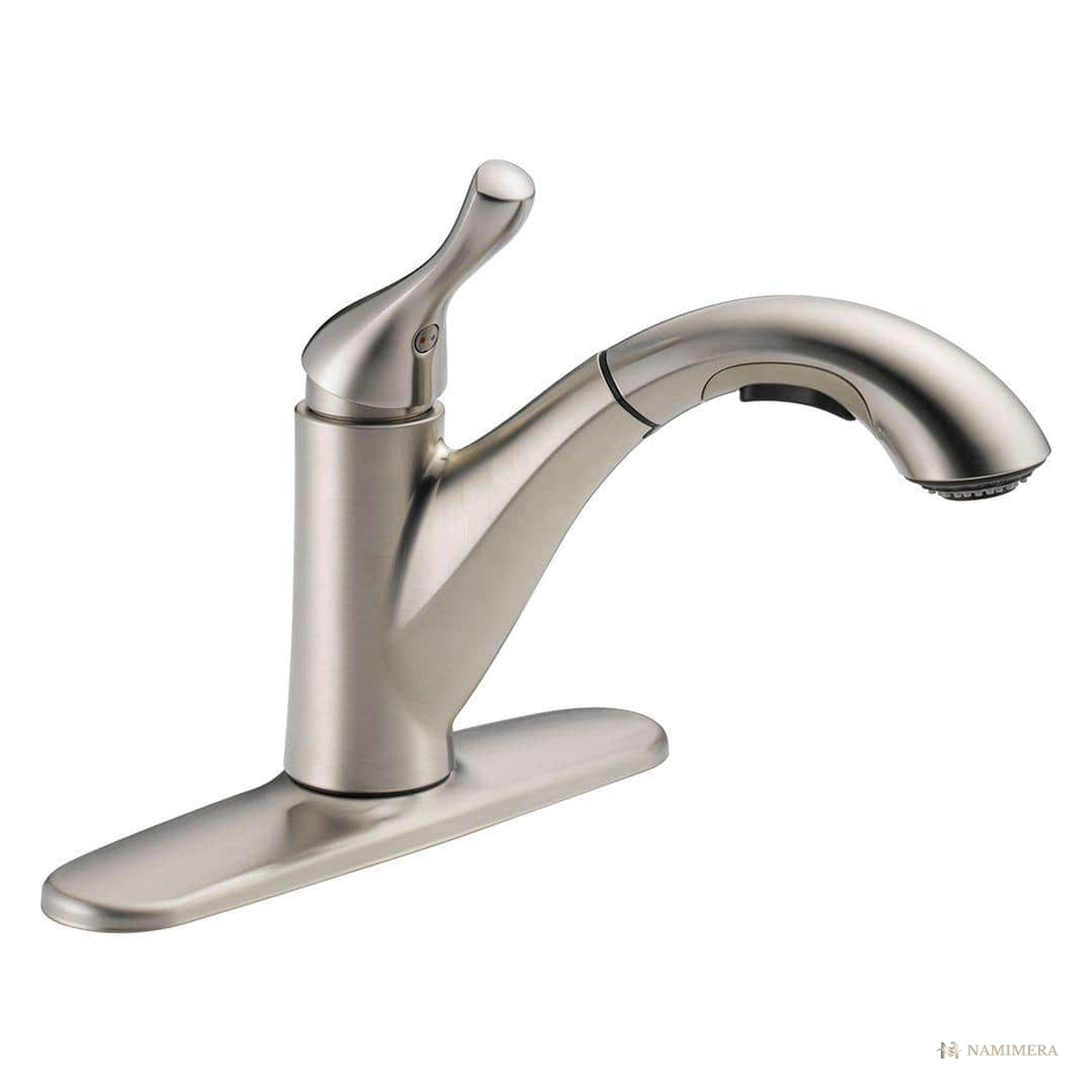

Chrome and stainless. The finish for the final order is confirmed during quote review.
Why is the body polymer instead of brass?
The published specification lists a chrome-plated engineered polymer body with crosslinked PEX waterways, which keeps water out of contact with metal and keeps the unit light. The valve itself is a diamond-coated ceramic cartridge.
What should be confirmed before ordering?
Hole layout, backsplash clearance, and supply stop type, together with the finish selection during quote review.
Documents
- Type Pull-Out Kitchen Faucet
- SKU NM-PLB-KF-PO18-CH-CH
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
