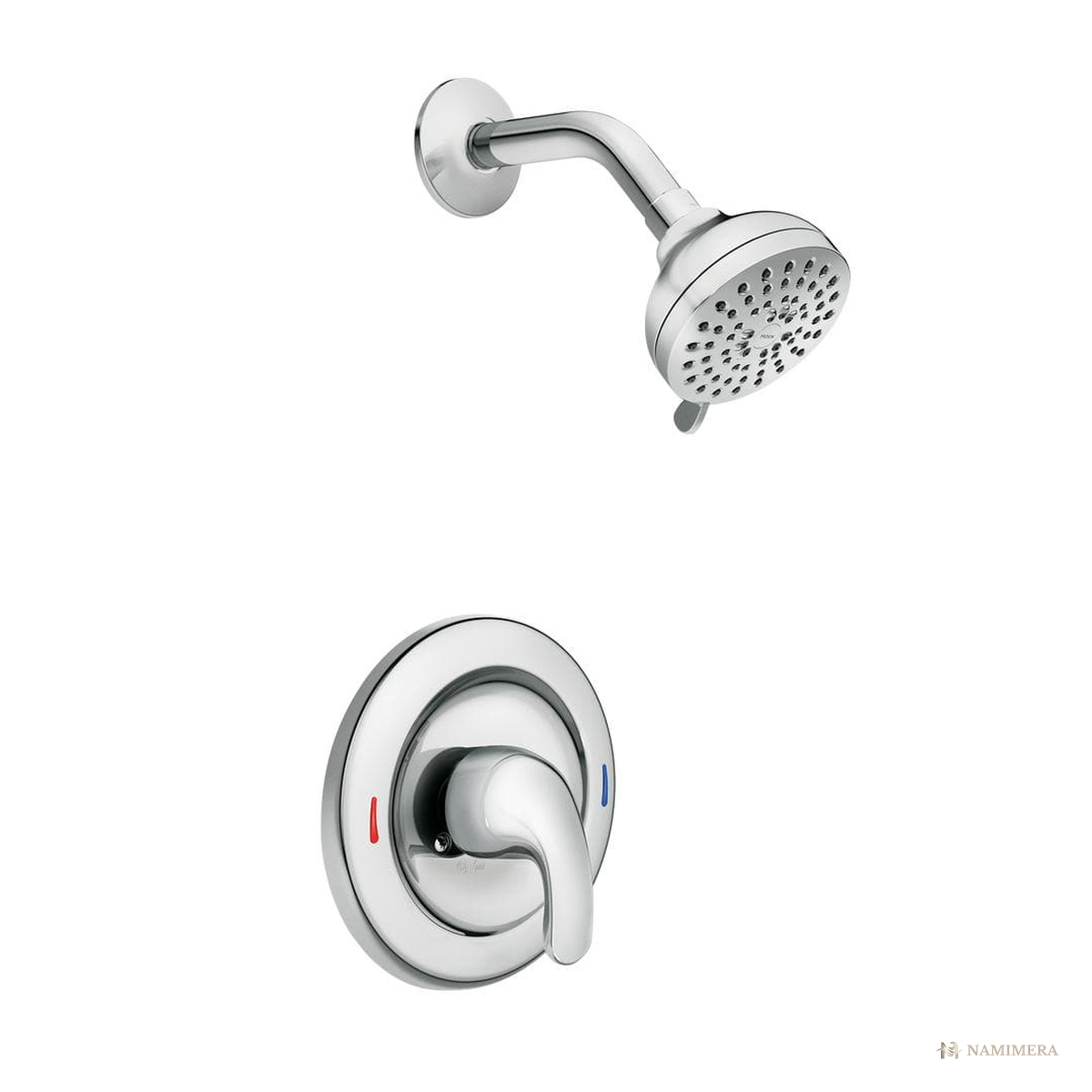

Namimera Single-Handle 4-Spray Shower Faucet Set with Pressure Balance Valve, 1.75 GPM, Chrome
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
This contractor-ready product summary covers a complete wall-mount shower faucet set with an included anti-scald pressure-balance valve, a 4-function 3.5 in. head, 1/2 in. CC or IPS connections, and 1.75 GPM WaterSense flow, helping plumbing crews and property teams move from review to release with fewer scope gaps.
Highlights
- Complete set: valve trim, rough-in valve, shower head, arm, and flange
- Pressure-balancing cartridge holds outlet temperature steady
- Preset safety stop with override limits maximum hot water
- 4-function shower head with 3.5 in. spray face
- Single lever handle, ADA compliant
- 1/2 in. CC or IPS connections fit standard US rough-ins
- 1.75 GPM maximum flow, WaterSense listed
- Chrome finish resists corrosion and tarnish
Specification Table
| Valve type | Pressure balance, anti-scald cycle valve |
| Valve included | Yes, rough-in valve in box |
| Flow rate | 1.75 GPM max |
| Spray modes | 4-function head |
| Head size | 3.5 in. diameter |
| Trim diameter | 7-1/8 in. |
| Handle | Single lever |
| Connection | 1/2 in. CC or IPS |
| Finish | Chrome |
| Certifications | WaterSense, ADA |
| Warranty | Limited lifetime, residential installations |
Included Equipment
- Pressure-balancing rough-in valve
- Valve trim with lever handle and escutcheon
- 4-function shower head
- Shower arm and flange
- Installation instructions
Installation Notes
- Shut off supplies and verify 1/2 in. CC or IPS rough-in alignment before setting the valve body.
- Set the valve depth to the finished wall using the plasterguard as the gauge.
- Adjust the temperature limit stop at commissioning to the maximum hot water the project allows.
- Rough-in and final connection should be completed by a qualified, licensed plumber.
- Review the final finish selection and accessory bundle during quote review before order release.
Warranty and Support
- Published warranty coverage: limited lifetime warranty for residential installations, 5-year limited in commercial use
- Replacement cartridges and trim parts are supported through quote review
- Final warranty registration and coverage documents are confirmed during quote review
Frequently Asked Questions
Is the rough-in valve included?
Yes. The set ships with the pressure-balancing rough-in valve, trim, head, arm, and flange in one box.
Does it protect against scalding?
The pressure-balancing cartridge holds the selected temperature as supply pressure shifts, and the preset safety stop caps handle rotation.
Is the flow rate code-compliant?
The published specification summary lists 1.75 GPM max with a WaterSense listing. Local code requirements should be confirmed during quote review.
What should be confirmed before ordering?
Rough-in type (CC or IPS), wall thickness at the valve, and finish selection are confirmed during quote review.
Documents
- Type Shower Faucet Set
- SKU NM-PLB-SV-PB175-CH-CH
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
