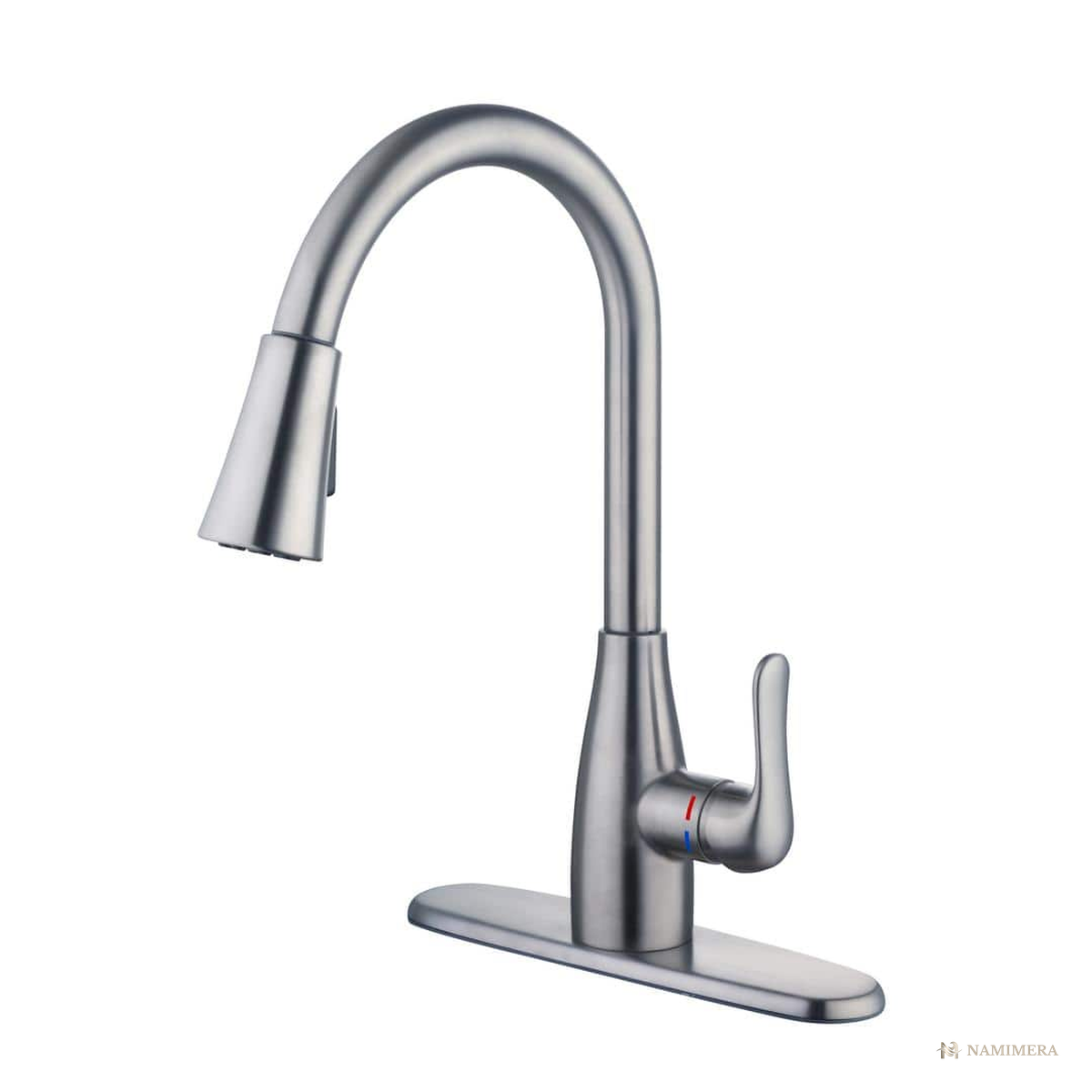

Namimera Single-Handle Pull-Down Kitchen Faucet with Power Spray, 1.8 GPM, Stainless Steel
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
This contractor-ready product summary covers a single-handle pull-down kitchen faucet with 1.8 GPM flow at 60 psi, a 7.77 in. spout height, an 8.11 in. spout reach, a 59 in. hose, and a ceramic disc cartridge, helping kitchen and bath programs move from review to release with fewer scope gaps.
Highlights
- 1.8 GPM at 60 psi with aerated stream and focused power-spray modes
- High-arc spout swivels 360 degrees for full sink coverage
- 59 in. pull-down hose reaches 11.42 in. beyond the spout for pot filling
- Tool-friendly quick-mount nut speeds one-person installation
- Ceramic disc cartridge rated for lifetime drip-free operation

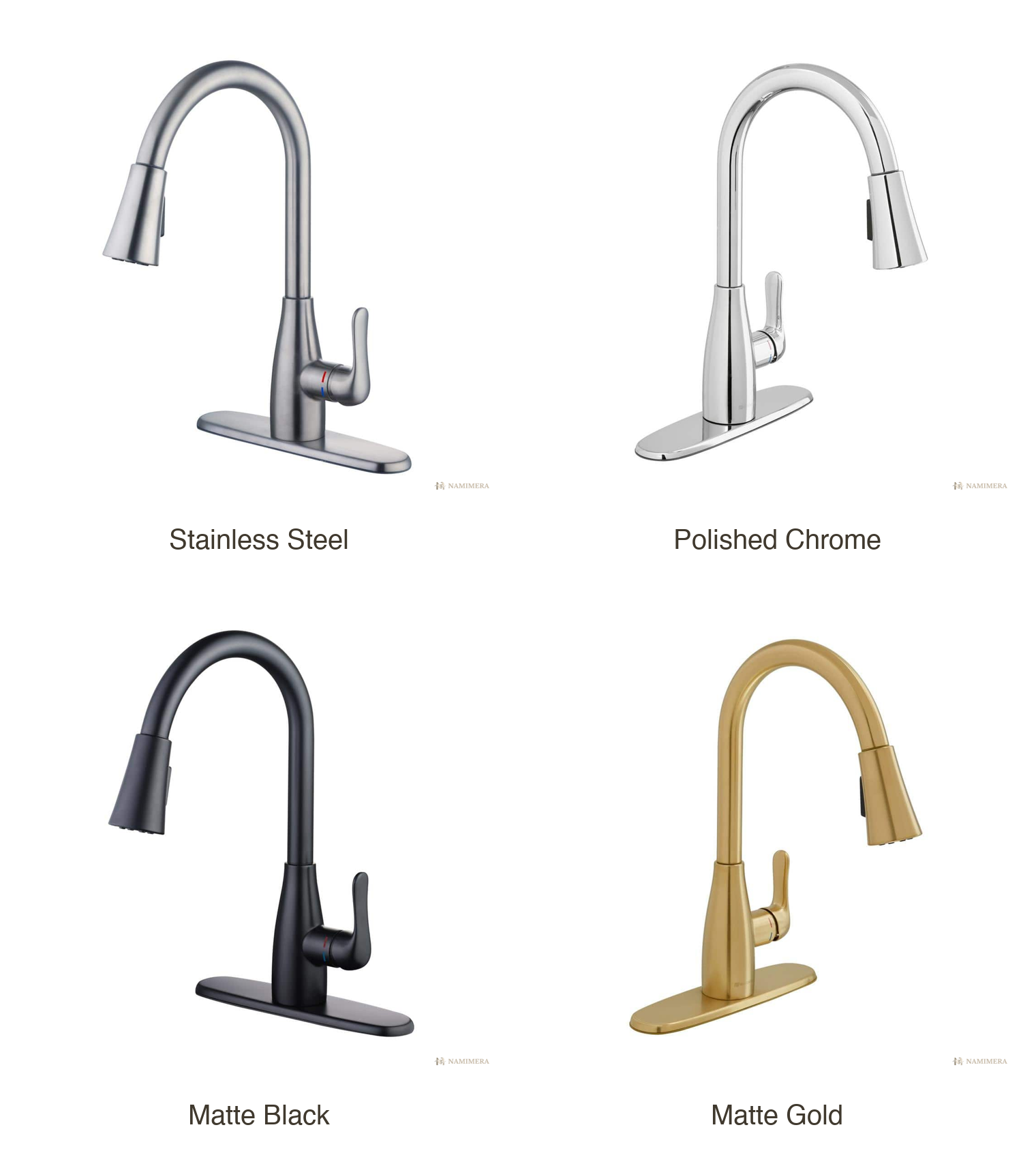

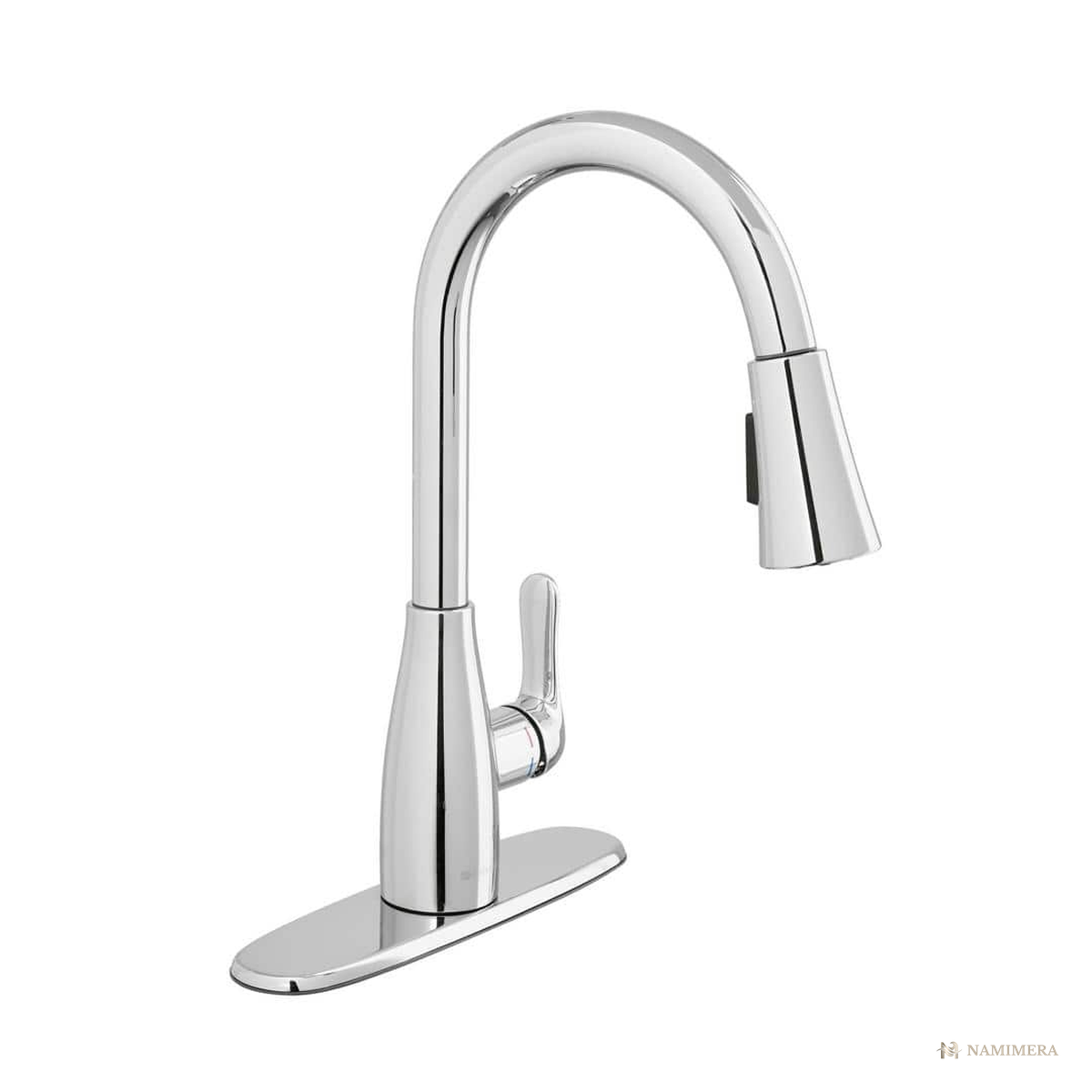

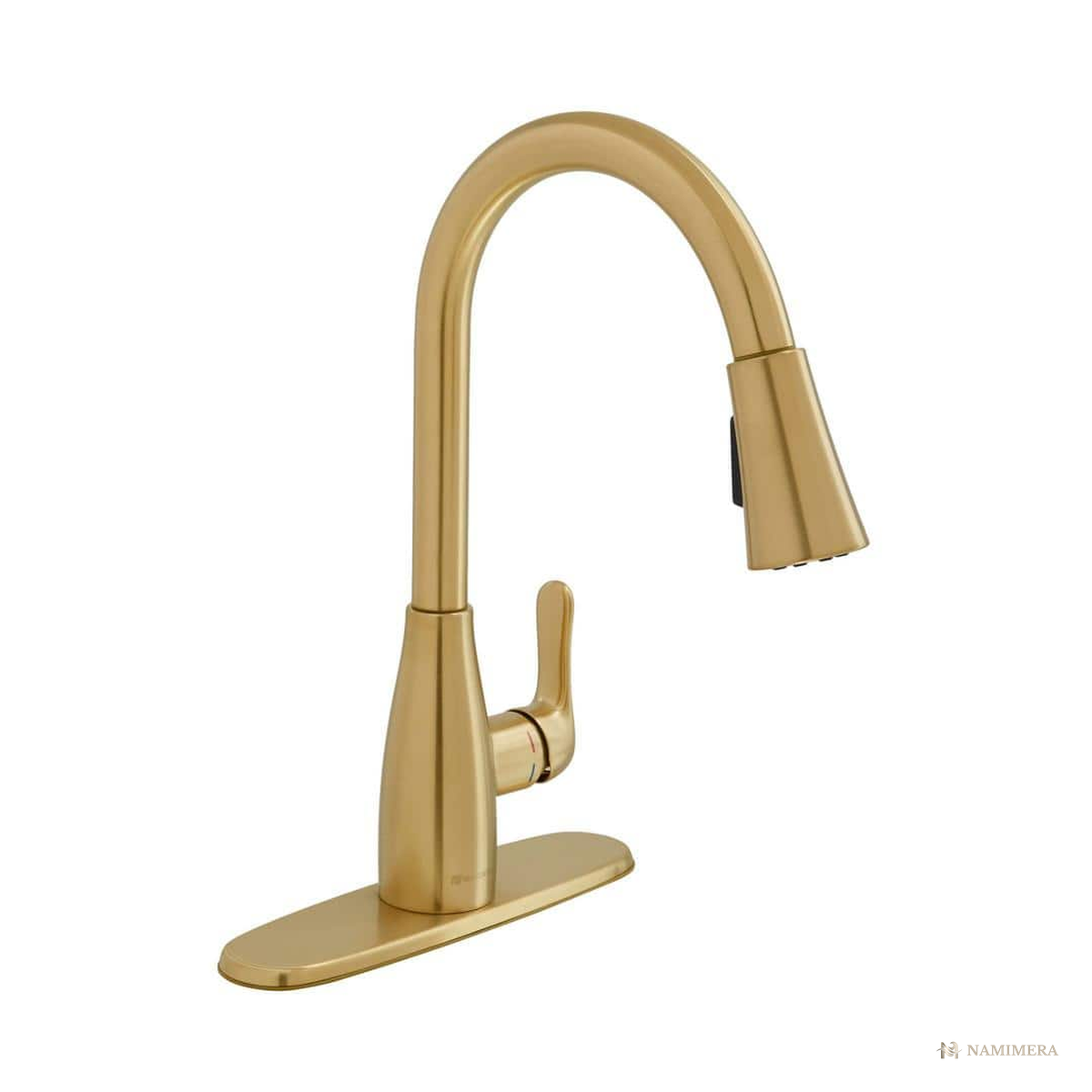

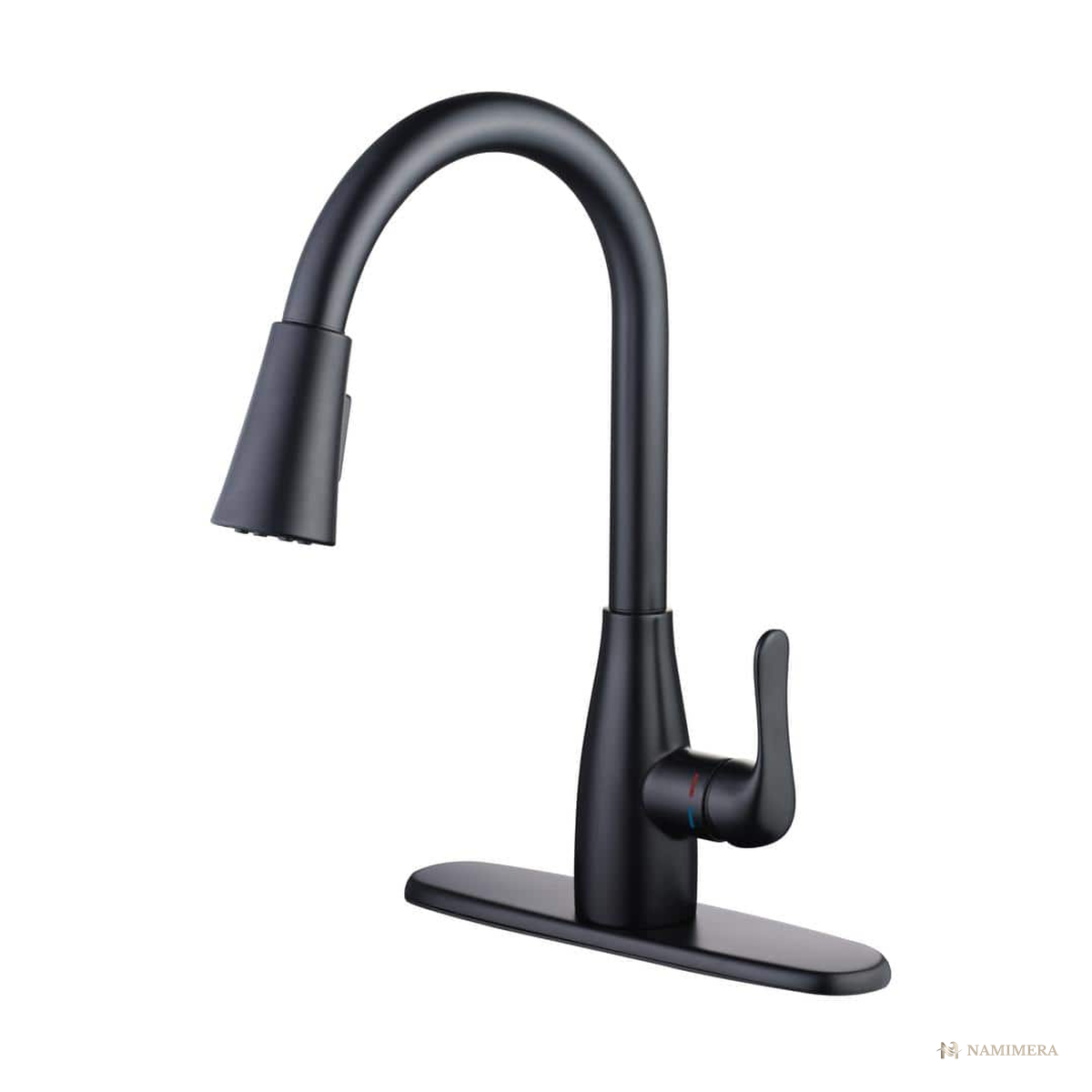

- Four finishes on one body: stainless steel, polished chrome, matte black, matte gold
- ADA compliant; certified to ASME A112.18.1/CSA B125.1 with NSF 61 and 372 lead-free waterways
- Installs on decks up to 3 in. thick with included supply lines
Specification Table
| Flow rate | 1.8 GPM at 60 psi |
| Valve cartridge | Ceramic disc, drip-free rated |
| Spray modes | Aerated stream and focused power spray |
| Overall height | 14.97 in. |
| Spout height | 7.77 in. deck to spout outlet |
| Spout reach | 8.11 in. from base center |
| Spout swivel | 360 degrees |
| Hose | 59 in. with 11.42 in. working wand reach |
| Mounting | Single hole, 8 in. on-center escutcheon, decks up to 3 in. |
| Supply connections | 3/8 in. compression, lines included |
| Certifications | ADA; ASME A112.18.1/CSA B125.1; NSF 61 and 372; AB1953 |
| Warranty | Limited lifetime warranty |
Included Equipment
- Faucet body with two-function pull-down spray head
- Quick-mount fastener and escutcheon with gasket
- Pre-attached 3/8 in. compression supply lines
- Hose weight and weight clip
- Installation guide
Installation Notes
- Confirm a single-hole sink or a 3-hole layout with 8 in. centers; the escutcheon covers outer holes.
- Verify deck thickness is 3 in. or less before ordering; thicker decks need review.
- Shut off supplies and verify 3/8 in. compression stops before removing the existing fixture.
- Set the hose weight at the marked point so the wand retracts and docks fully.
- Review the final finish selection and accessory bundle during quote review before order release.
Warranty and Support
- Published warranty coverage: limited lifetime warranty on the faucet and finish
- Replacement cartridges, spray heads, hoses, and mounting parts are supported through quote review
- Final warranty registration and coverage documents are confirmed during quote review
Frequently Asked Questions
Does it fit a 3-hole sink?
Yes. The included escutcheon covers standard 3-hole layouts with 8 in. centers, and single-hole decks install directly.
What finishes are available?
Stainless steel, polished chrome, matte black, and matte gold. The finish for the final order is confirmed during quote review.
How thick can my countertop be?
The published specification summary lists decks up to 3 in. thick with the standard mounting hardware.
Is the flow rate code-compliant?
The published specification summary lists 1.8 GPM at 60 psi with CalGreen and AB1953 compliance. Local code requirements should be confirmed during quote review.
Documents
- Type Pull-Down Kitchen Faucet
- SKU NM-PLB-KF-PD18-SS-SS
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
