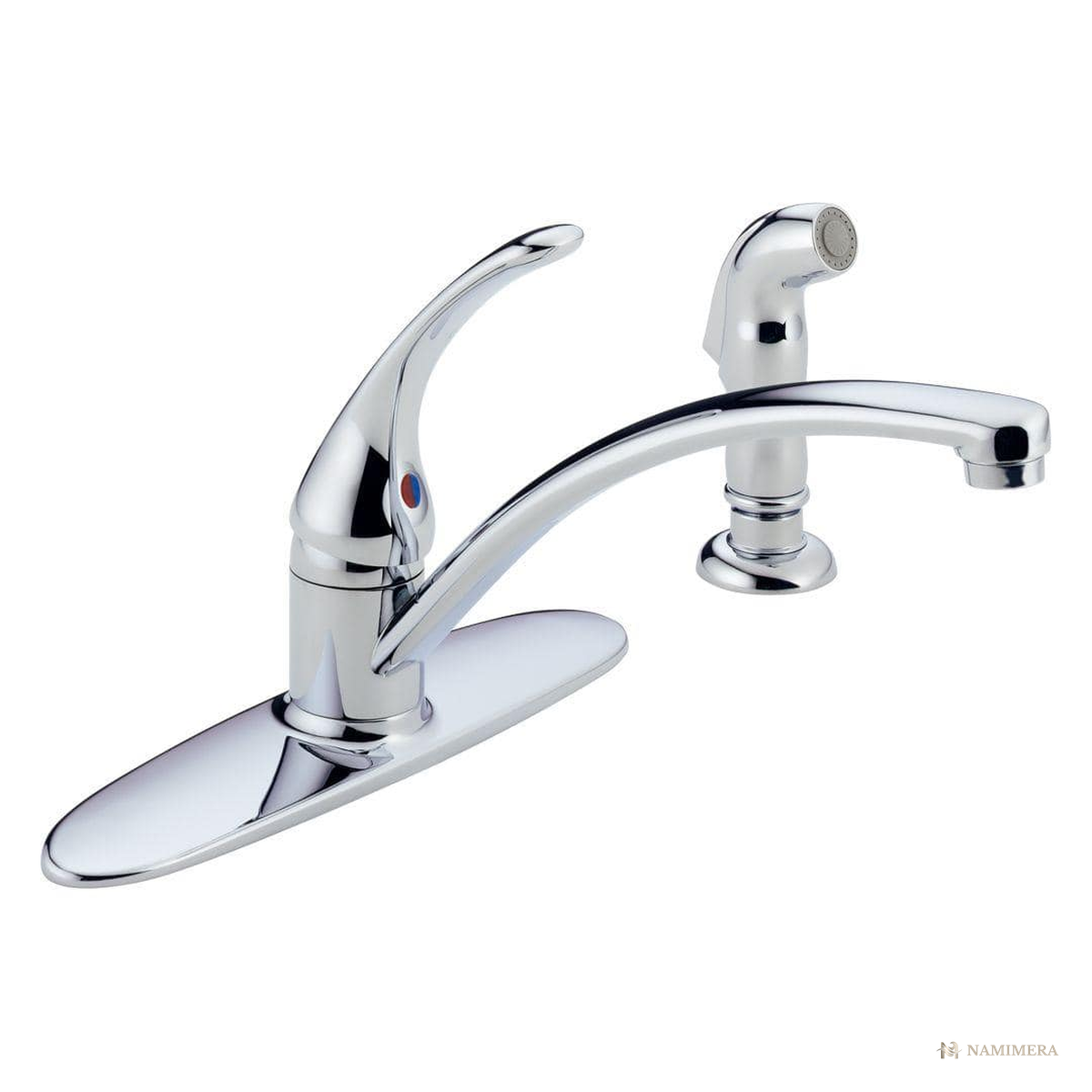

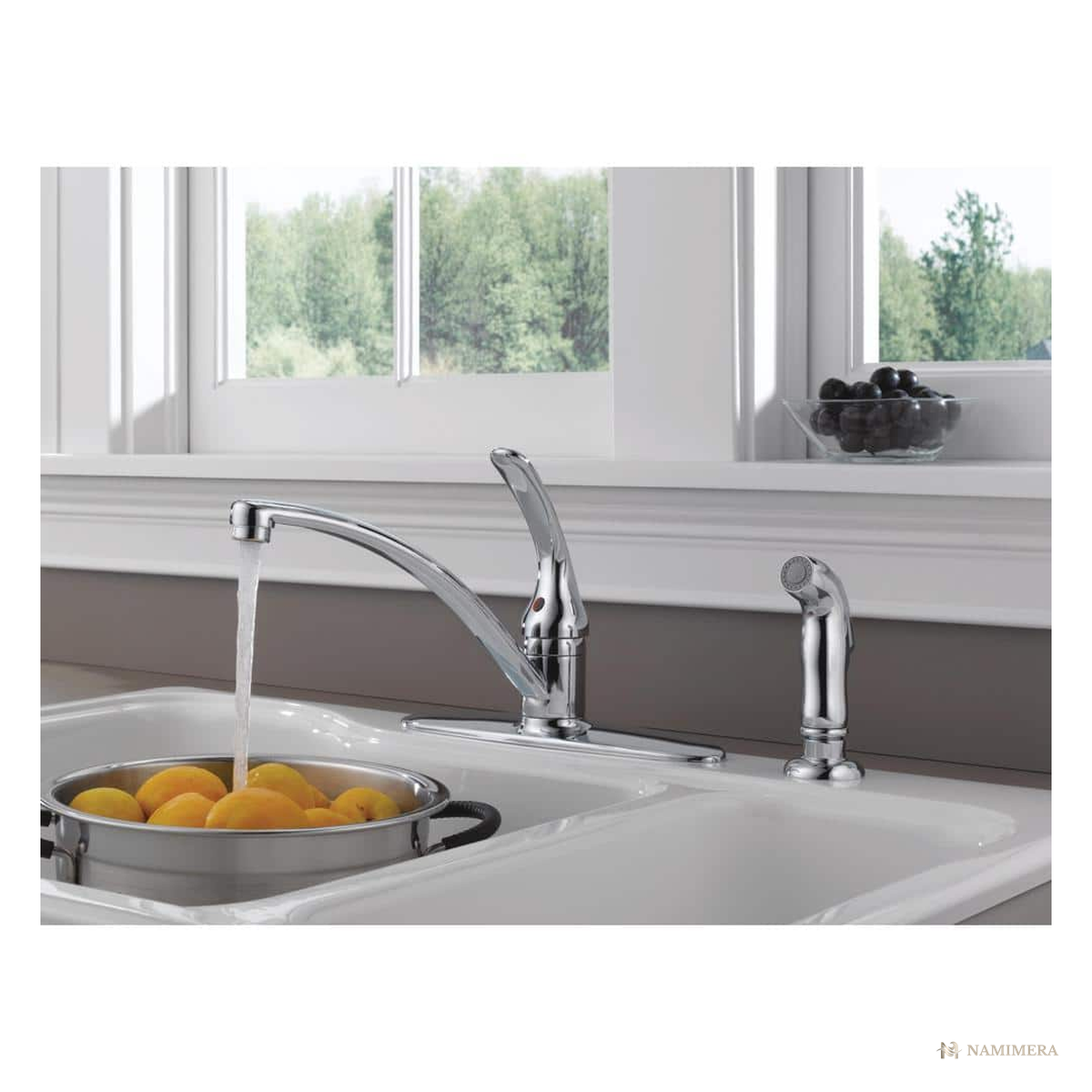

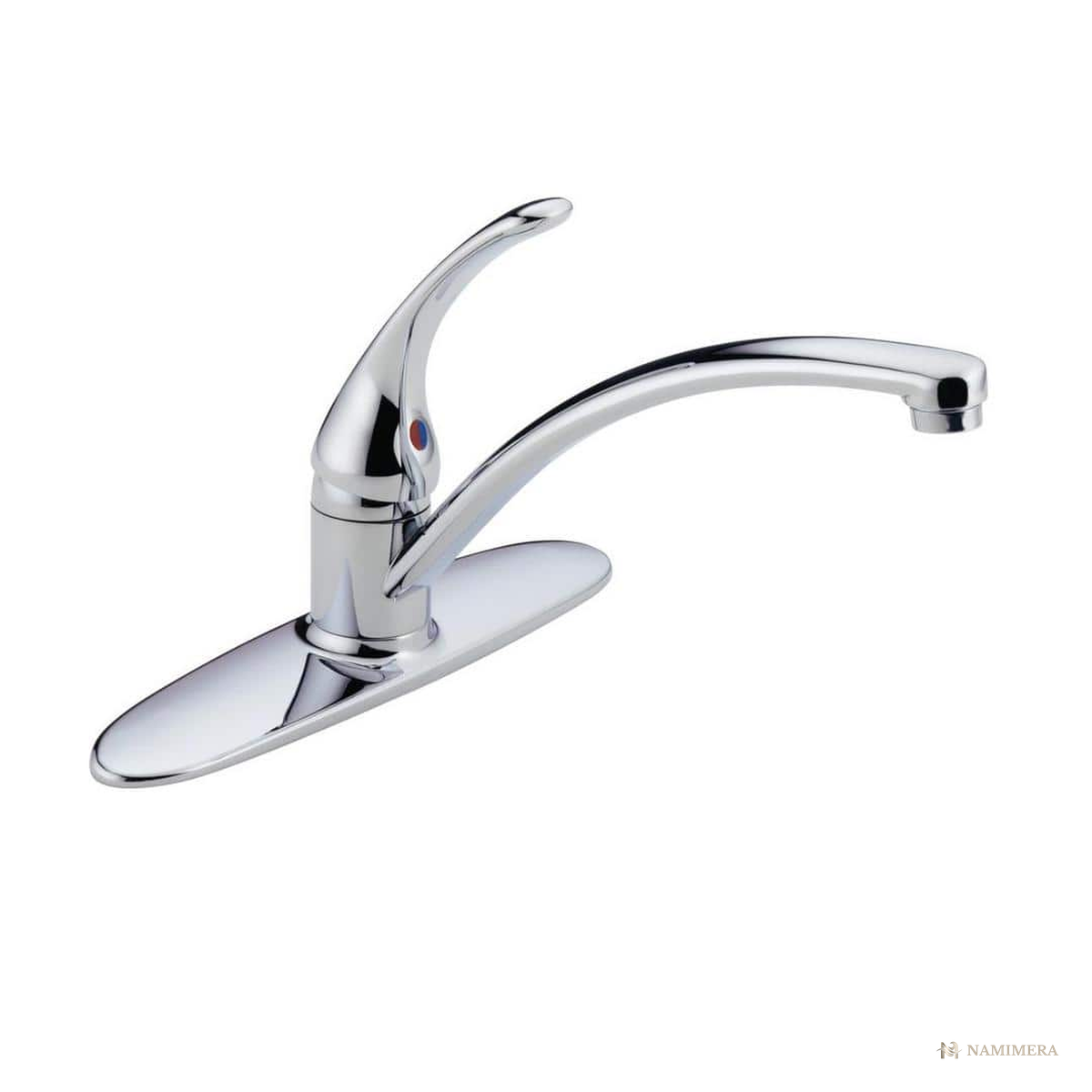

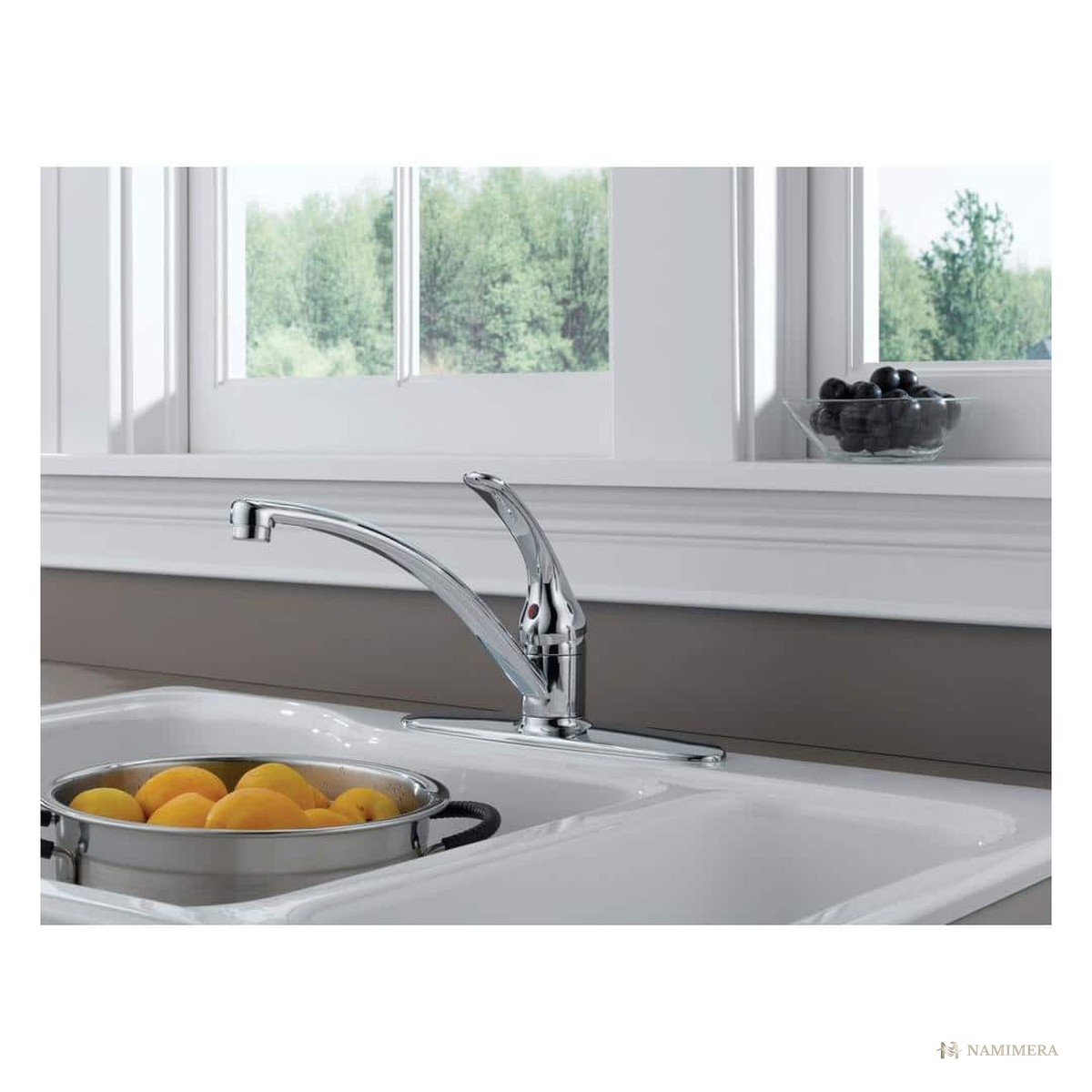

Namimera Single-Handle Standard Kitchen Faucet with Optional Side Sprayer, 1.8 GPM, Chrome
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
This contractor-ready product summary covers a single-handle standard kitchen faucet with 1.8 GPM flow at 60 psi, a 9.5 in. swing spout, a 6.63 in. spout height, and an optional side-sprayer configuration, helping kitchen and bath programs move from review to release with fewer scope gaps.
Highlights
- One body, two configurations: faucet only or with factory side sprayer
- 1.8 GPM at 60 psi through a 9.5 in. spout swinging 360 degrees
- Low 8.38 in. overall height clears sill-height windows
- Ball control with replaceable seats, serviceable from the top
- Handle returns to neutral when the valve shuts off
- Brass body with chrome finish
- ADA compliant; NSF/ANSI 61 and 372 lead-free certified
Specification Table
| Flow rate | 1.8 GPM at 60 psi |
| Valve control | Rotating stainless steel ball, replaceable seats |
| Overall height | 8.38 in. |
| Spout height | 6.63 in. to spout top |
| Spout reach | 9.5 in. from base center |
| Spout swivel | 360 degrees |
| Side sprayer | Included in the 4-hole configuration, integral anti-siphon |
| Mounting | 3-hole (standard) or 4-hole (with sprayer), 8 in. centers |
| Max deck thickness | 1.38 in. |
| Supply connections | 1/2-14 NPSM male inlet adapters |
| Certifications | ADA; NSF/ANSI 61 and 372 |
| Warranty | Lifetime limited warranty |
Included Equipment
- Single-handle faucet body with deck plate
- Factory side sprayer with hose and sink mount (With Side Sprayer configuration)
- Mounting hardware
- Installation guide
Installation Notes
- Pick the configuration first: the standard body needs a 3-hole sink, and the side-sprayer configuration needs a 4-hole layout, both on 8 in. centers.
- Verify deck thickness is 1.38 in. or less before ordering.
- Inlets are 1/2-14 NPSM male adapters; verify riser compatibility or plan couplings during rough-in.
- All operating parts service from the top, so leave counter clearance above the handle.
- Review the final configuration and accessory bundle during quote review before order release.
Warranty and Support
- Published warranty coverage: lifetime limited warranty on parts and finish
- Replacement ball assemblies, seats, sprayers, and hoses are supported through quote review
- Final warranty registration and coverage documents are confirmed during quote review
Frequently Asked Questions
Which configuration fits my sink?
Count the holes: 3-hole decks take the standard body, and 4-hole decks take the side-sprayer configuration, which uses the fourth hole for the sprayer.
Can I add the sprayer later?
The two configurations ship as distinct factory builds; pick the side-sprayer configuration up front if the sink has four holes.
How serviceable is the valve?
The ball control and its replaceable seats service from above the deck without pulling the faucet body.
What finishes are available?
This quoting record ships in chrome. A stainless colorway exists in the platform and is confirmed during quote review when available.
Documents
- Type Standard Kitchen Faucet
- SKU NM-PLB-KF-1HS18-CH-STD
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
