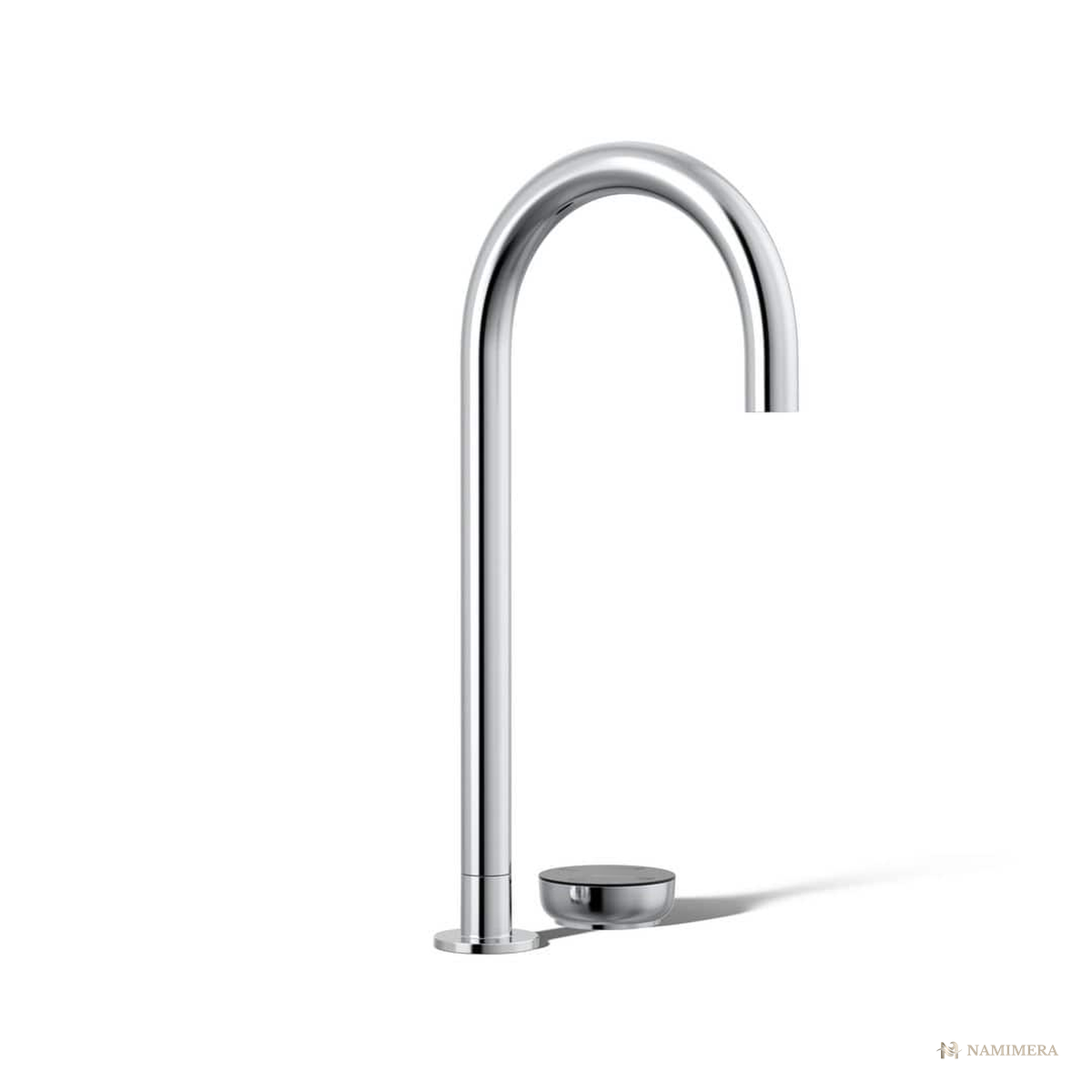

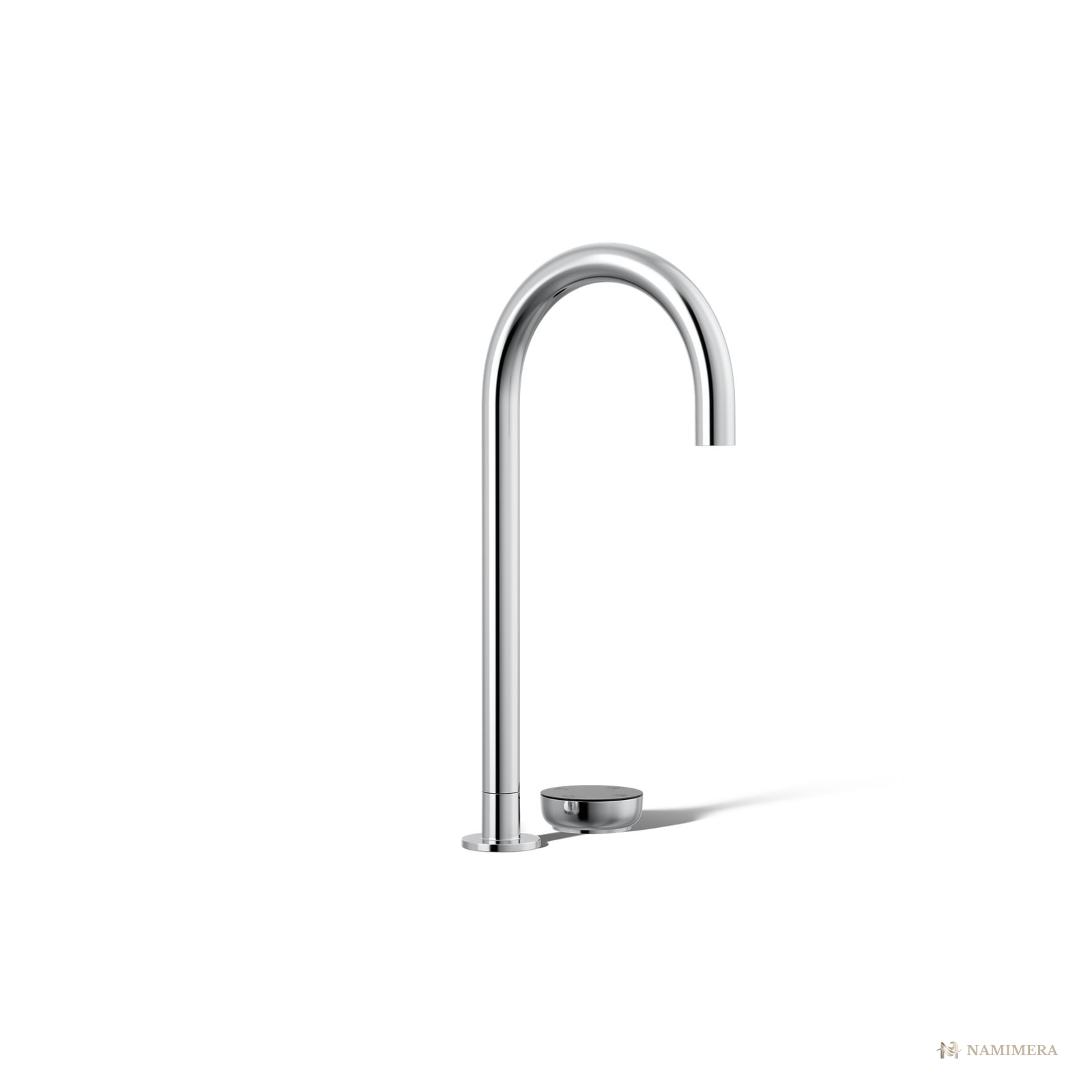

Namimera Tall-Arc Four-Mode Beverage Faucet with Touch Interface, 1 GPM, Polished Chrome
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
This designer-ready product summary covers a tall-arc four-mode beverage faucet with 1 GPM laminar flow, a 16.06 in. spout height, a 6.94 in. spout reach, a 160 degree swing spout, and a counter-mount touch interface, helping kitchen and bath programs move from review to release with fewer scope gaps.
Highlights
- Dispenses ambient, chilled, near-boiling, and sparkling water on demand
- 1 GPM laminar flow fills glasses and pitchers without splash
- 16.06 in. tall-arc spout height clears bottles and carafes
- High-arch swing spout rotates 160 degrees over the basin
- Touch interface mounts on the counter or on the included escutcheon plate
- Requires a dedicated undercounter beverage system, quoted separately

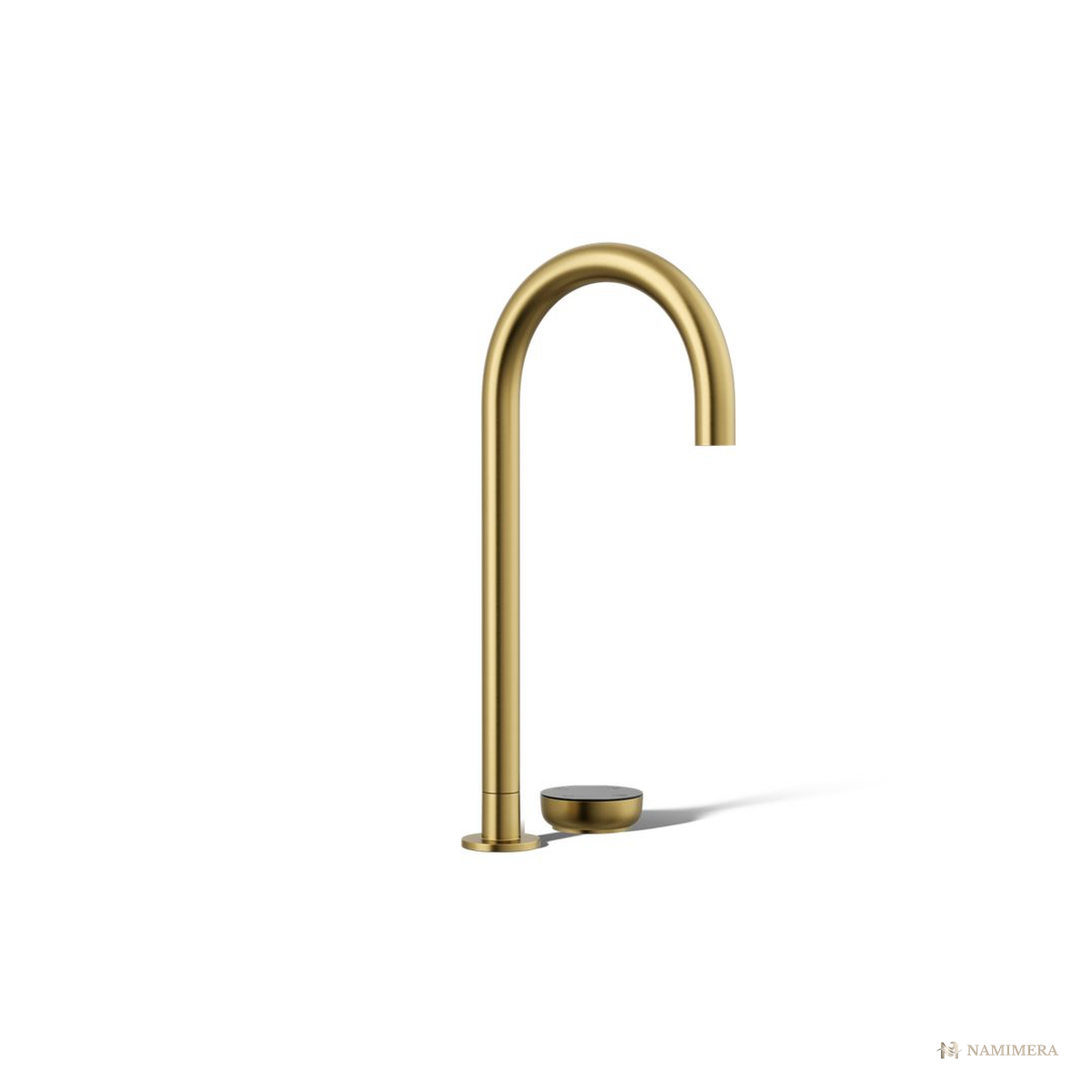

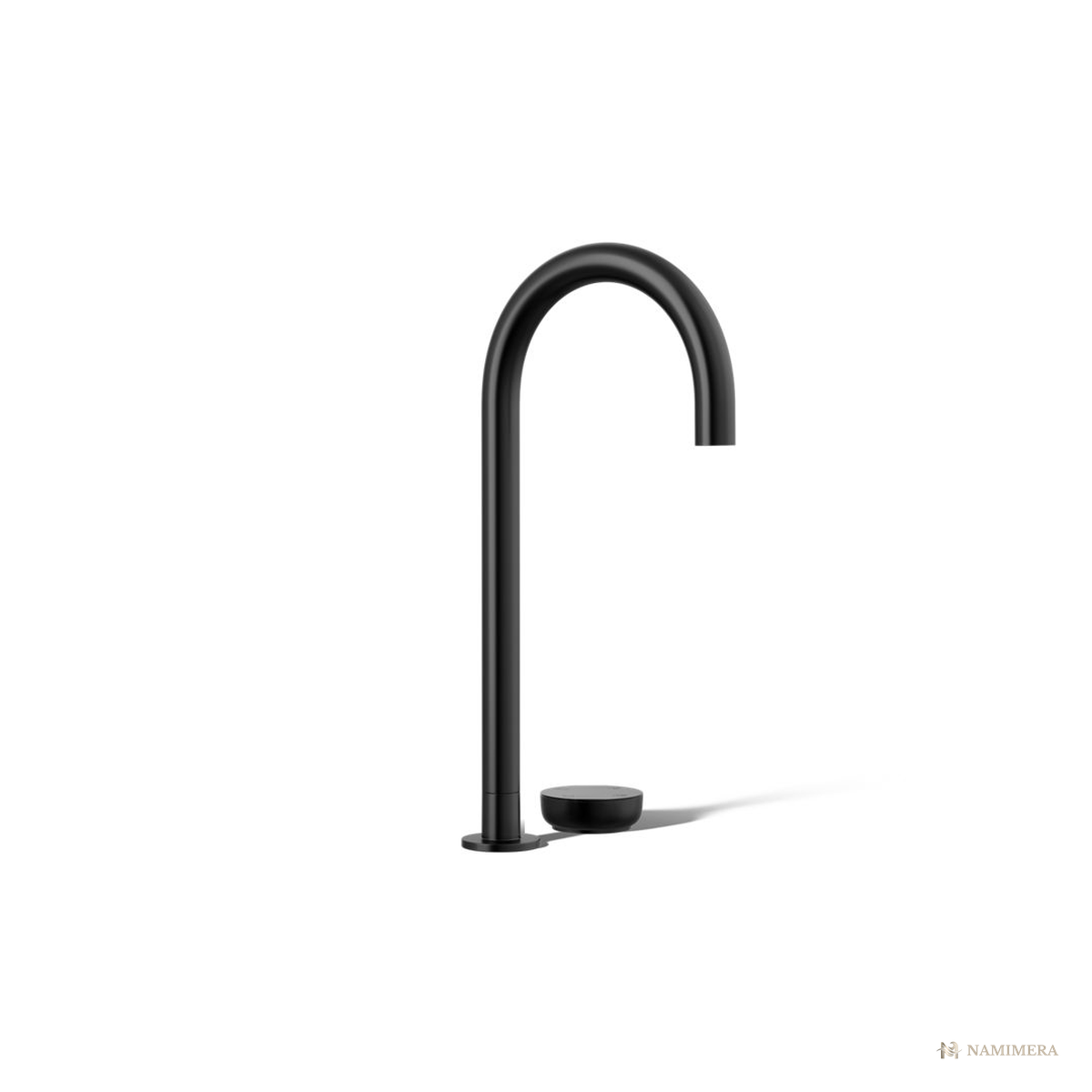

- Four finishes: polished chrome, stainless, matte black, brushed brass
- ADA and CSA B651 compliant when installed to the published requirements
Specification Table
| Flow rate | 1 GPM (3.8 L/min), laminar flow |
| Dispensing modes | Ambient, chilled, near-boiling, sparkling |
| Control | Counter-mount touch interface, escutcheon mountable |
| Spout height | 16.06 in. deck to top of arc |
| Spout reach | 6.94 in. from base center |
| Spout swivel | 160 degrees |
| Mounting | Deck mount, single- or two-hole, decks up to 2.5 in. |
| Supply connections | 3/8 in. compression fittings |
| Connection hoses | 41.5 in. and 34.25 in. lengths included |
| System requirement | Undercounter four-mode beverage system, quoted separately |
| Certifications | ADA, CSA B651 when installed to requirement; CEC listed |
Included Equipment
- Tall-arc beverage faucet body
- Touch interface puck with escutcheon plate
- Supply lines with 3/8 in. compression fittings
- Installation guide
Installation Notes
- Plan for the matching undercounter beverage system: cabinet space, an unswitched 120 V outlet, and a cold supply tee are required.
- Confirm single- or two-hole deck layout and a deck thickness of 2.5 in. or less before ordering.
- Route the touch interface cable before securing the escutcheon so the puck can mount on the counter surface.
- Near-boiling service requires scald-awareness signage in shared-use spaces; verify local code.
- Review the final finish selection and accessory bundle during quote review before order release.
Warranty and Support
- Published warranty documentation for this beverage faucet line is compiled during quote review
- Replacement touch interfaces, filters, and dispensing components are supported through quote review
- Final warranty registration and coverage documents are confirmed during quote review
Frequently Asked Questions
Does this faucet work on its own?
No. It is the dispensing trim for a dedicated undercounter four-mode beverage system, which chills, heats, carbonates, and filters the water. The system is quoted separately.
What do I need for sparkling water?
The undercounter system accepts standard screw-in 60 L CO2 bottles, sold separately, and an unswitched 120 V outlet must be within reach of the cabinet.

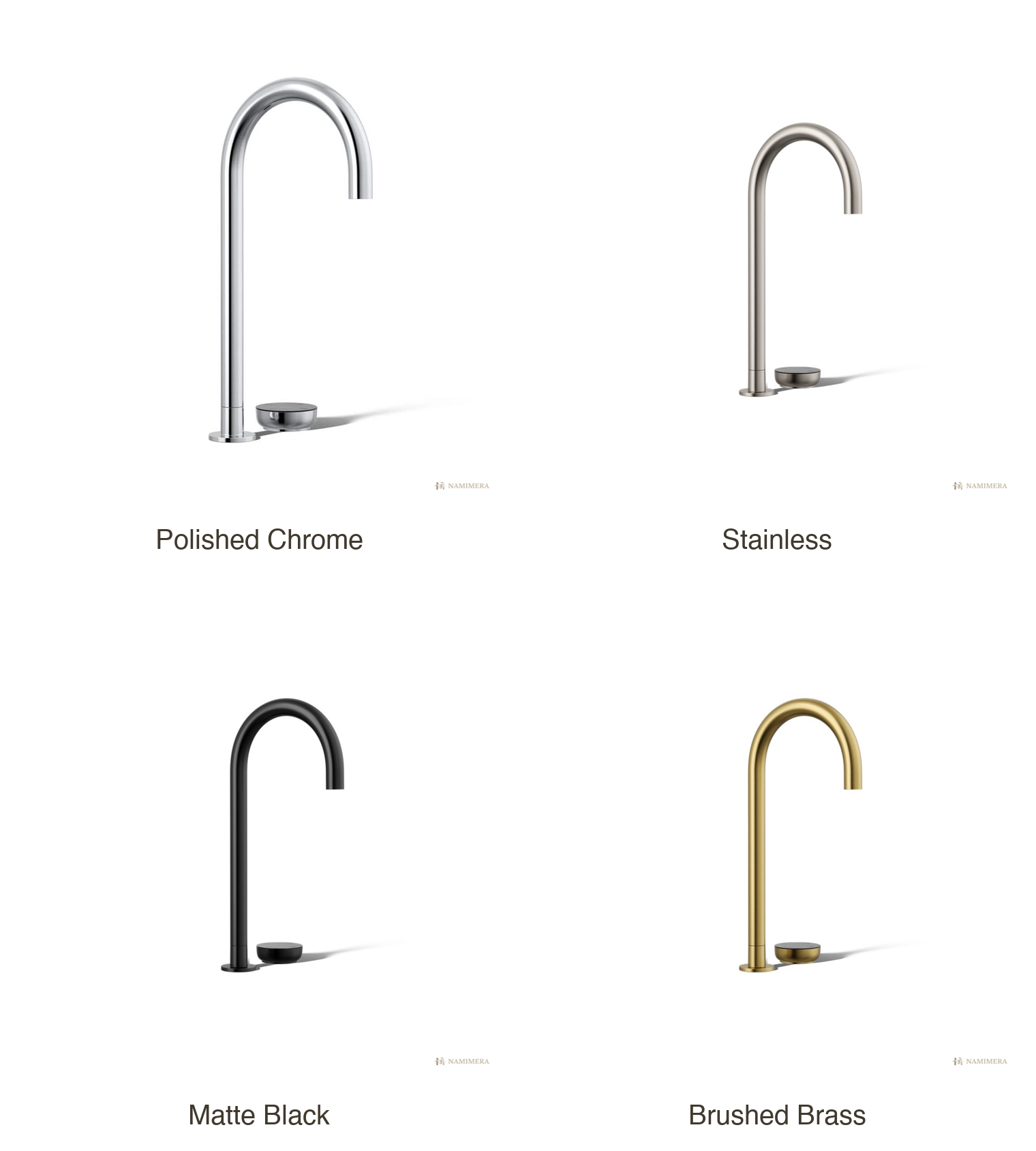

What finishes are available?
Polished chrome, stainless, matte black, and brushed brass. The finish for the final order is confirmed during quote review.
Is it accessible-height compliant?
The published specification summary lists ADA and CSA B651 compliance when installed to the specific requirements of those regulations. Confirm your installation during quote review.
Documents
- Type Beverage Faucet
- SKU NM-PLB-KF-BEV1-PC-PC
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
