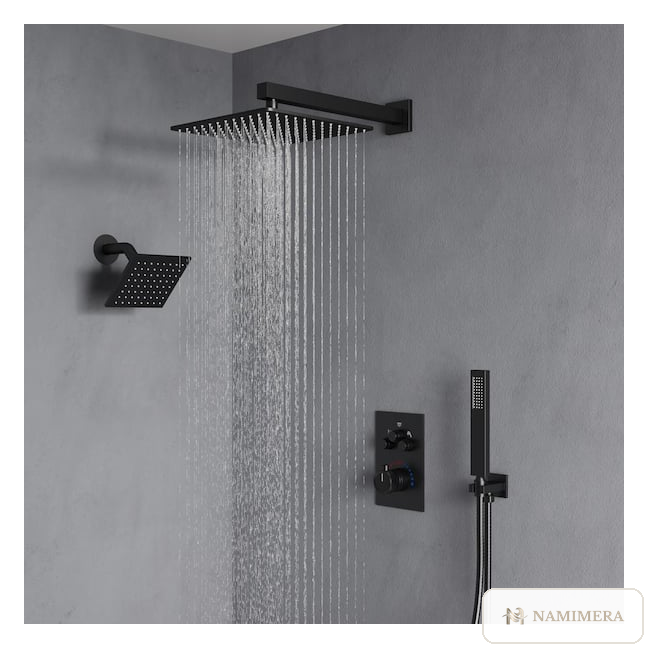

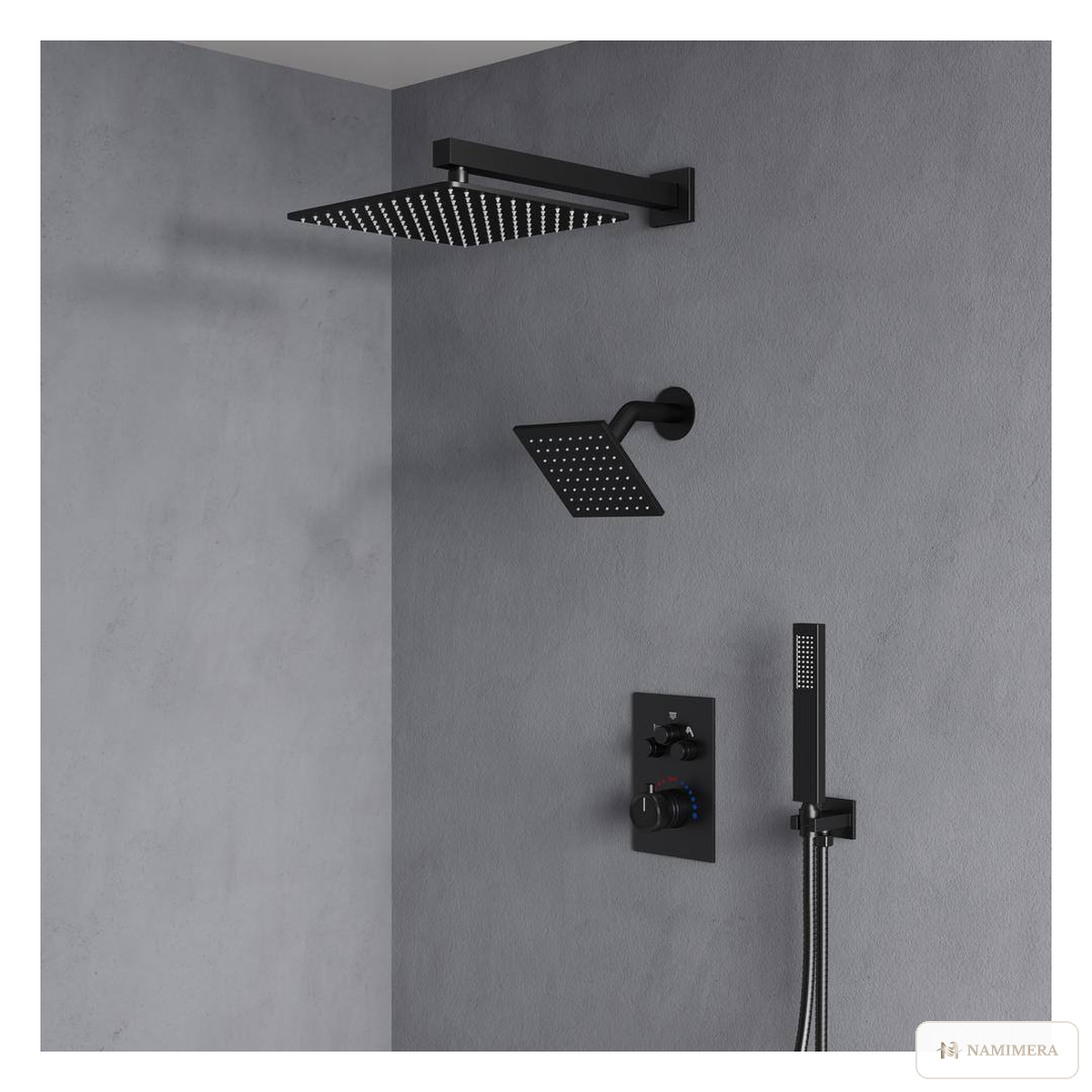

Namimera Thermostatic Shower System with 12 in. Rain Head, 6 Body Jets, and Handheld, Matte Black
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
This contractor-ready product summary covers a concealed thermostatic shower system with a 12 in. ceiling rain head, 6 body jets, a handheld on a 59 in. hose, an included rough-in valve with 100 F safety stop, and 2.5 GPM flow, helping plumbing crews and property teams move from review to release with fewer scope gaps.
Highlights
- Thermostatic rough-in valve included, anti-scald with 100 F safety stop
- 12 in. x 12 in. ultra-thin rain head on a ceiling-mount stainless arm
- Six wall-mounted body jets for full-body coverage
- Handheld sprayer with 59 in. hose
- Push-button diverter runs outlets separately or combined, 7 spray combinations
- Solid brass valve body with check valves
- 2.5 GPM maximum flow

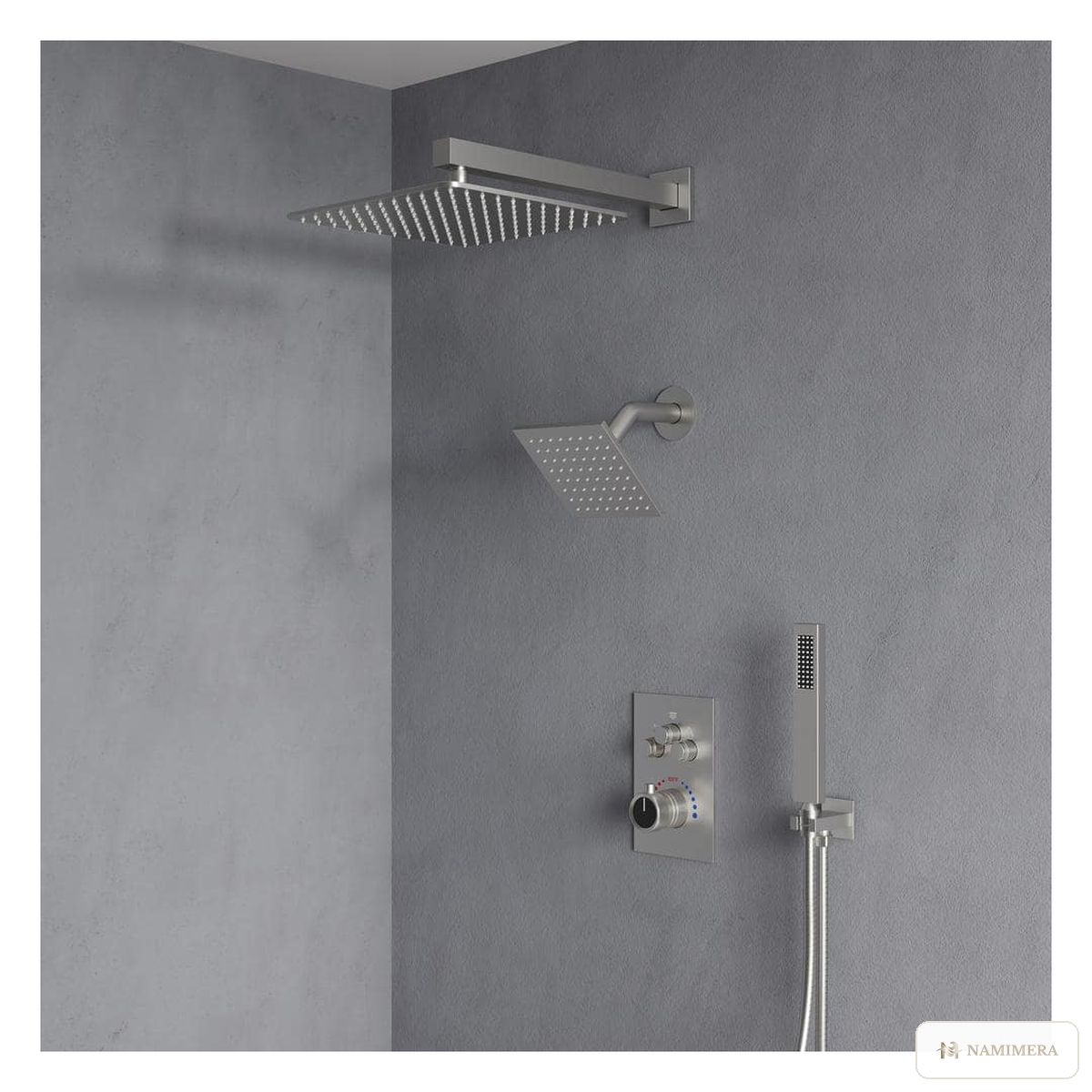

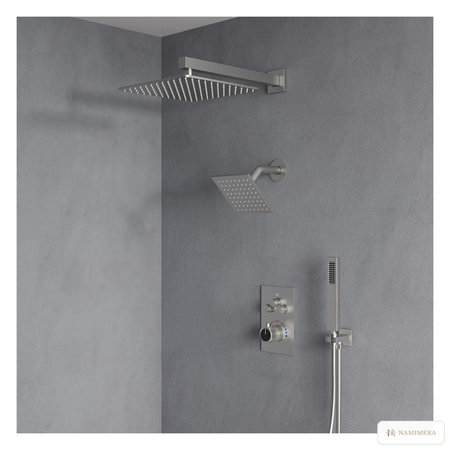

- Matte black or brushed nickel finish, cUPC listed
Specification Table
| Valve type | Thermostatic, anti-scald, 100 F safety stop |
| Valve included | Yes, rough-in valve in box |
| Flow rate | 2.5 GPM max |
| Rain head | 12 in. x 12 in., ceiling mount |
| Body jets | 6, wall mounted |
| Handheld hose | 59 in. |
| Diverter | Push-button, 3 outlets, combinable |
| Valve body | Solid brass |
| Finish | Matte black (brushed nickel available) |
| Certifications | cUPC listed |
Included Equipment
- 12 in. rain head with ceiling-mount arm
- Thermostatic rough-in valve with trim
- 6 body spray jets
- Handheld sprayer with 59 in. hose and holder
- Mounting hardware and installation instructions
Installation Notes
- Concealed system: valve body, jet piping, and the ceiling drop all rough in behind finished surfaces, so plan wall and ceiling access before tile.
- Set and verify the thermostatic safety stop at commissioning; confirm hot supply orientation at the valve body.
- Balance jet heights to the primary user during rough-in; jets are fixed once tiled.
- Rough-in and final connection should be completed by a qualified, licensed plumber.
- Review the final finish selection and accessory bundle during quote review before order release.
Warranty and Support
- Published warranty coverage: confirmed during quote review before order release
- Replacement cartridges, jets, and hoses are supported through quote review
- Final warranty registration and coverage documents are confirmed during quote review
Frequently Asked Questions
Is the rough-in valve included?
Yes. The thermostatic rough-in valve ships with the trim, heads, and jets in one box.
Can the rain head, jets, and handheld run at the same time?
Yes. The push-button diverter runs the three outlets separately or combined for seven spray combinations.
How does the anti-scald protection work?
The thermostatic cartridge holds the set temperature even when supply pressure swings, with a safety stop preset near 100 F.
What should be confirmed before ordering?
Ceiling depth for the drop arm, jet layout, finish selection, and local flow-rate code limits are confirmed during quote review.
Documents
- Type Thermostatic Shower System
- SKU NM-PLB-SH-TS12-MB-MB
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
