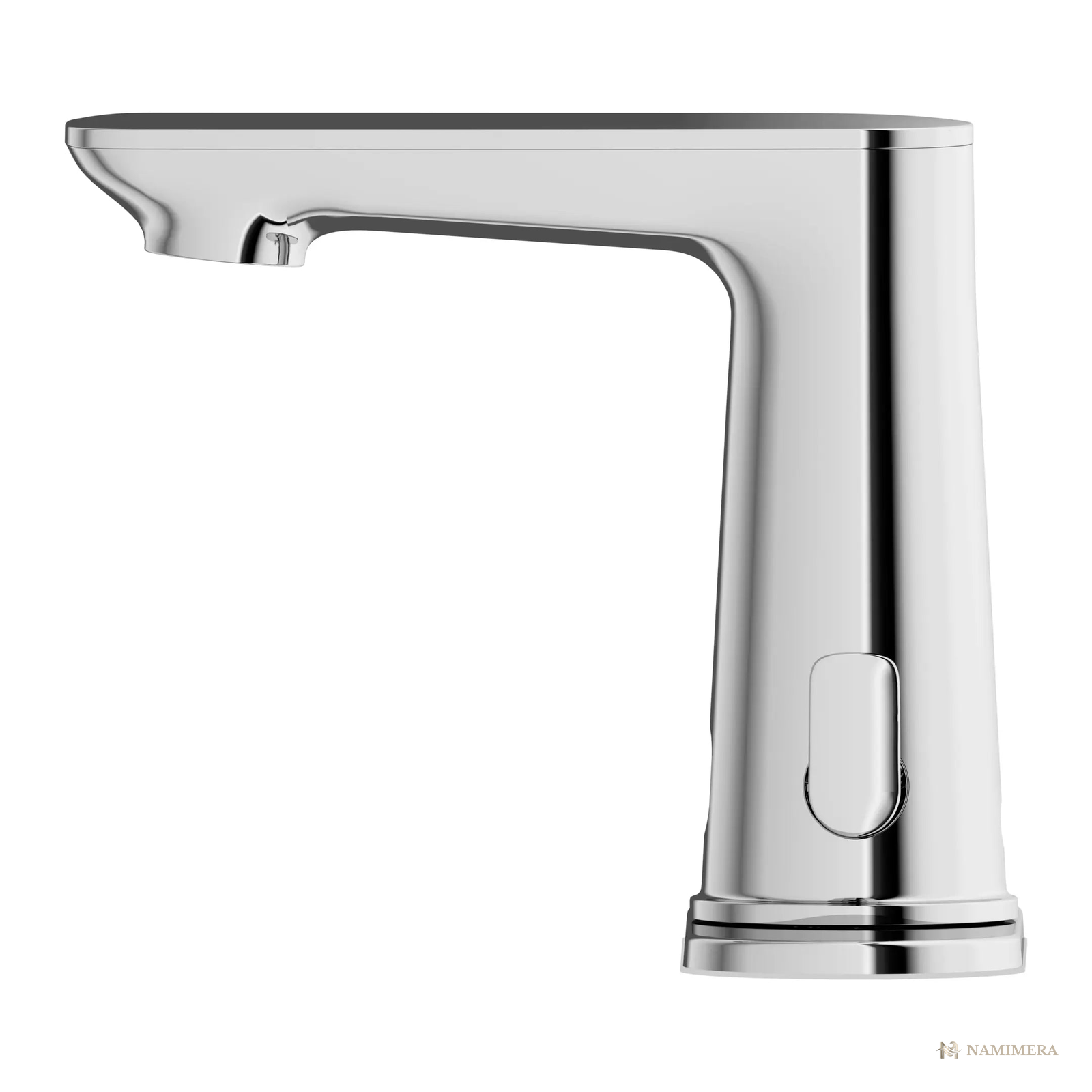

Namimera Battery Touchless Single-Hole Bathroom Faucet with Drain, 0.5 GPM, Polished Chrome
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
This facility-ready product summary covers a battery-powered touchless single-hole lavatory faucet with 0.5 GPM pressure-compensating spray, a 7-year lithium battery, a 4.81 in. spout with 4.56 in. reach, and an included push drain and deck plate, helping bath programs move from review to release with fewer scope gaps.
Highlights
- Touchless infrared operation limits germ spread at the sink
- 0.5 GPM pressure-compensating, vandal-resistant multi-laminar spray
- 7-year CR-P2 lithium battery included; no outlet required
- All electronics enclosed in the spout; no control box under the sink
- Above-deck temperature lever with hot limit safety stop
- Cleaning mode pauses water while the faucet is wiped down
- Push pop-up drain and 4 in. deck plate included
- ADA compliant per ANSI A117.1
Specification Table
| Flow rate | 0.5 GPM pressure-compensating spray |
| Activation | Infrared sensor; CR-P2 lithium battery included |
| Battery life | 7 years at 150 uses per day |
| Mixing | Above-deck lever with hot limit stop |
| Mounting | Single hole or 3 holes with included 4 in. deck plate |
| Spout height | 4.81 in. deck to spout outlet |
| Spout reach | 4.56 in. from base center |
| Overall height | 5.81 in. |
| Water pressure range | 20 to 120 psi |
| Supply connections | 24 in. pre-installed hoses, 3/8 in. compression |
| Drain | Push pop-up drain included |
| Certifications | ADA per ANSI A117.1; ANSI A112.18.1 |
| Warranty | 5-year limited warranty |
Included Equipment
- Touchless faucet body with integrated sensor, solenoid, and electronics
- CR-P2 lithium battery, factory installed
- Push pop-up drain assembly

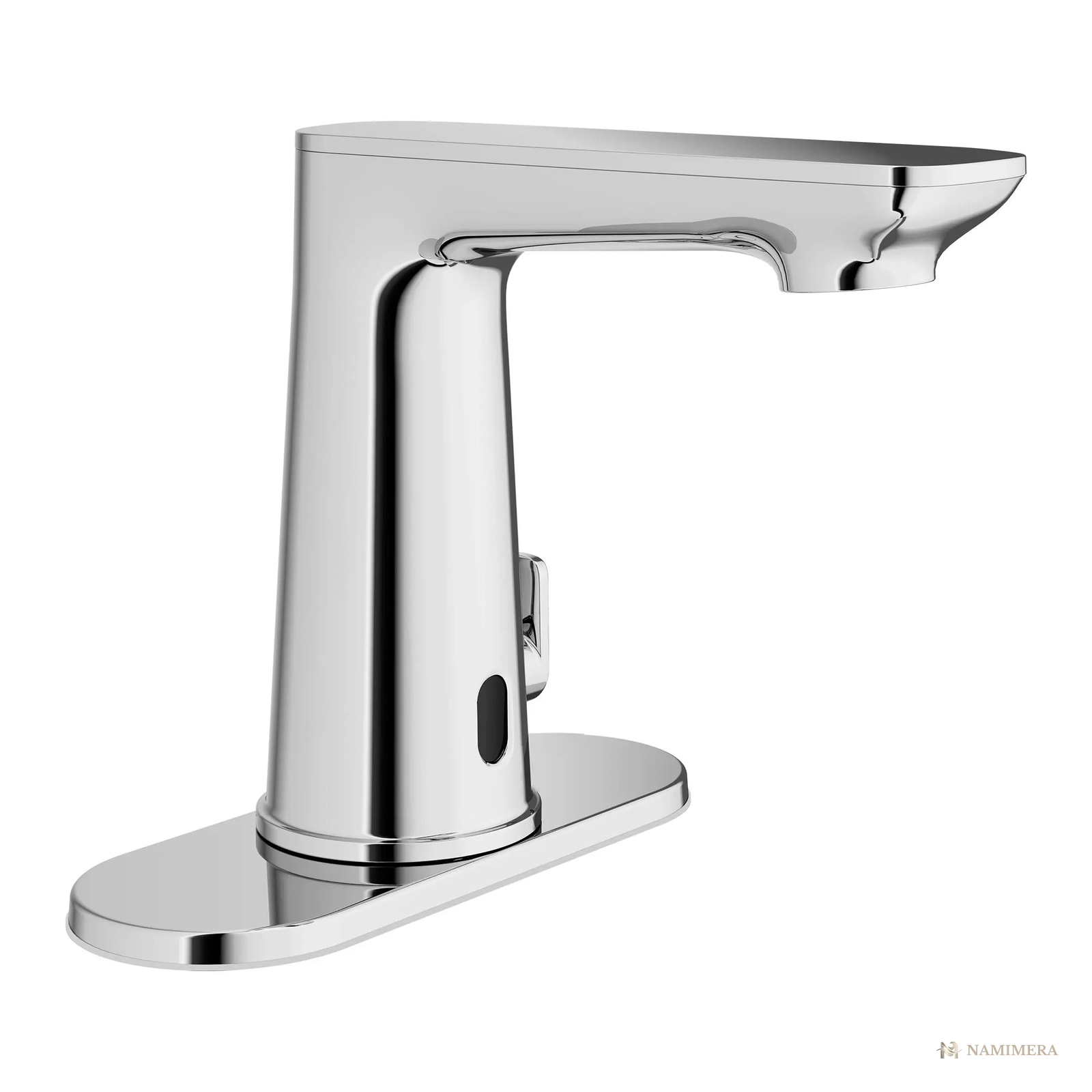

- Deck plate for 3-hole, 4 in. center installations
- Pre-installed 24 in. flexible inlet hoses with filters
Installation Notes
- Confirm a single-hole layout or a 3-hole, 4 in. center layout covered by the included deck plate.
- No electrical rough-in is required; the sealed lithium battery is rated for about 7 years at 150 uses per day.
- Water pressure must fall between 20 and 120 psi; verify stops and inline filters before install.
- Use the cleaning mode to pause the sensor during wipe-downs so the faucet does not cycle.
- Review the final configuration and accessory bundle during quote review before order release.
Warranty and Support
- Published warranty coverage: 5-year limited warranty
- Replacement batteries, sensors, solenoids, and drain parts are supported through quote review
- Final warranty registration and coverage documents are confirmed during quote review
Frequently Asked Questions
How long does the battery last?
The included CR-P2 lithium battery is rated for about 7 years at 150 uses per day, and the faucet fails safe and shut when the battery dies.
Is a drain included?
Yes. A push pop-up drain and a 4 in. center deck plate both ship in the carton.
Can the water temperature be adjusted?
Yes. An above-deck lever sets the mix, with an adjustable hot limit stop and red and blue indicators.
Is it suitable for residential use?
Yes for hands-free household sinks, with the note that the published 0.5 GPM spray is a water-saving public-restroom flow rate.
Documents
- Type Touchless Bathroom Faucet
- SKU NM-PLB-BF-SHT05B-PC-PC
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
