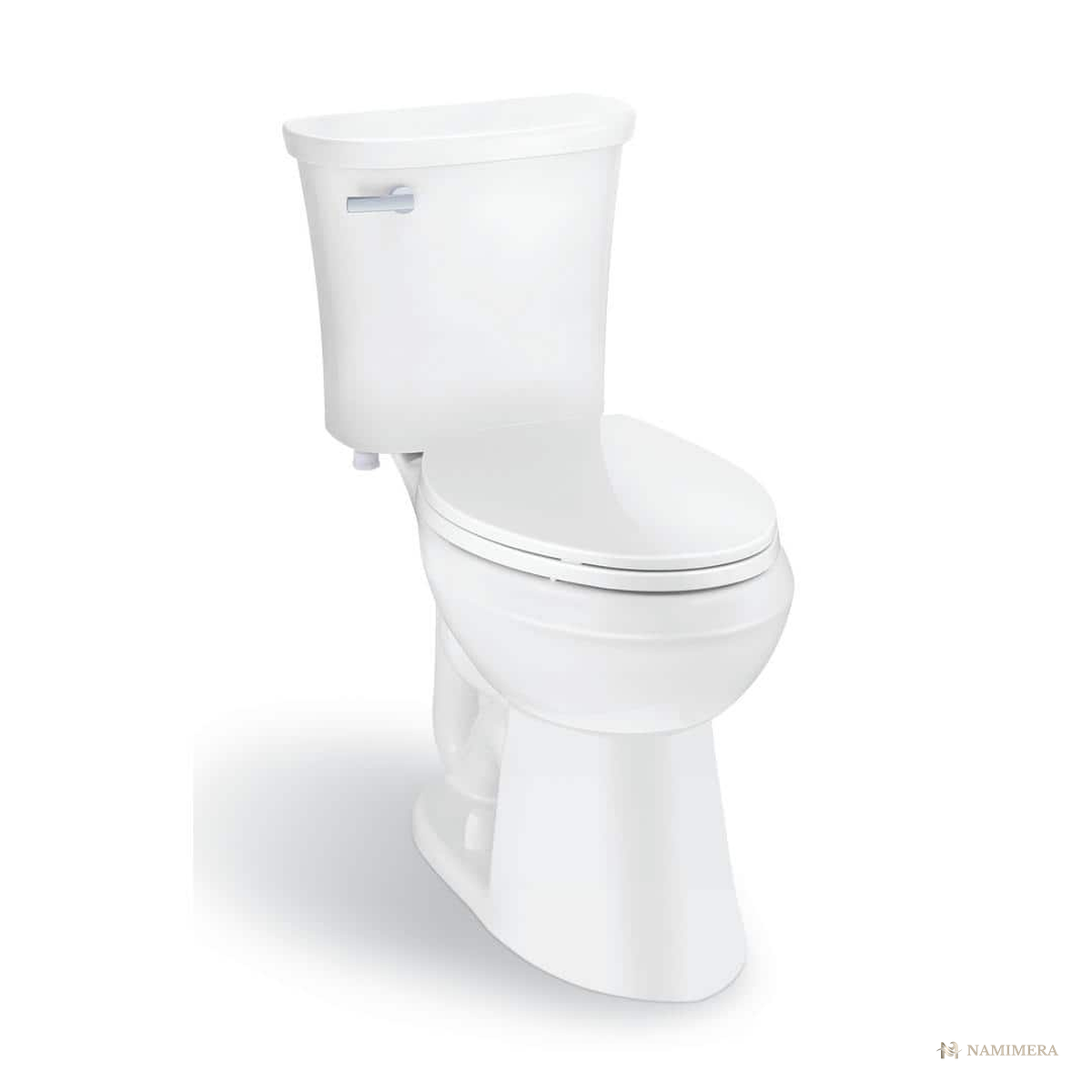

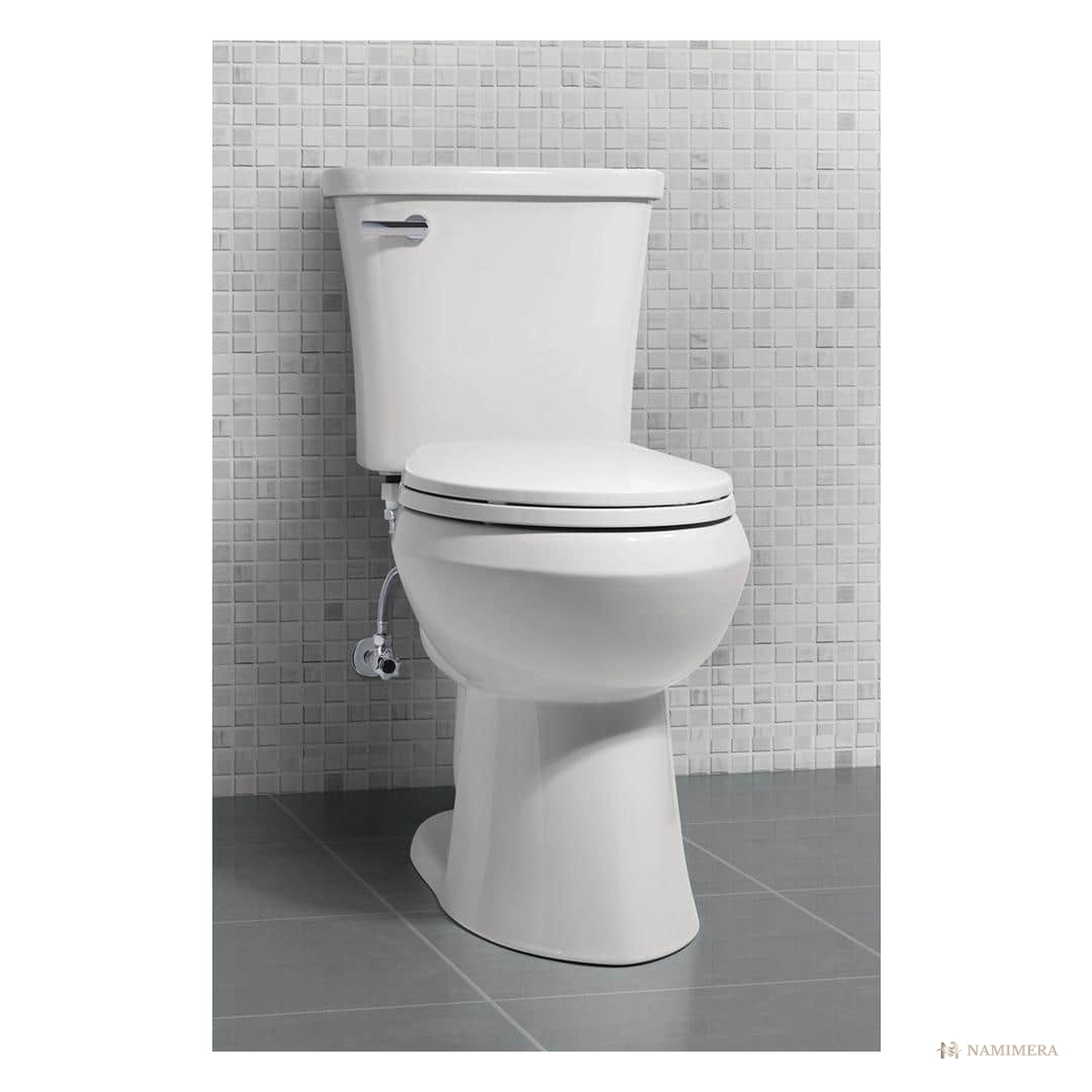

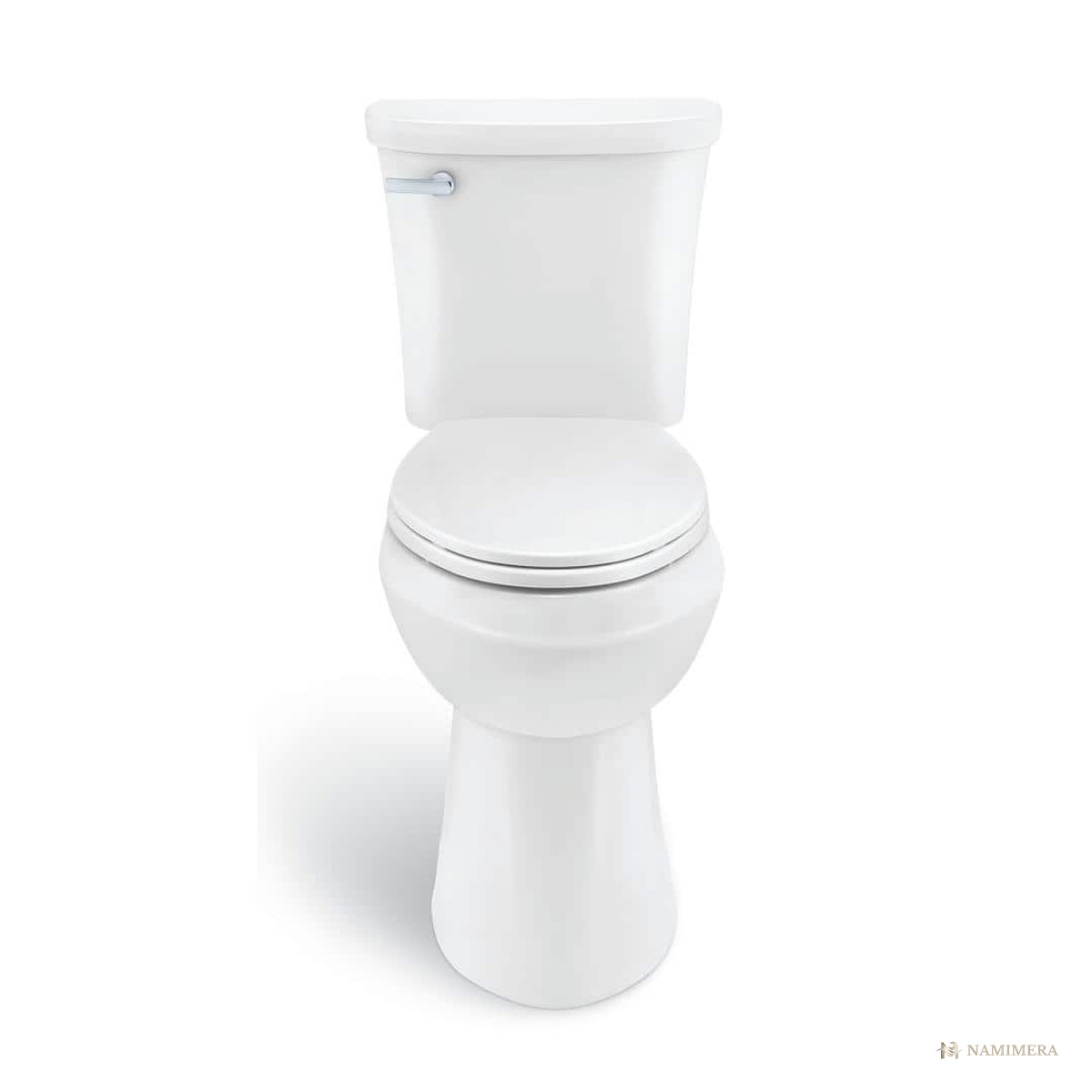

Namimera Vacuum-Assist Two-Piece Elongated Toilet, 1.28 GPF, 12 in. Rough-In, White
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
This contractor-ready product summary covers a two-piece vitreous china toilet with vacuum-assisted 1.28 GPF flush, extra-large 2-3/8 in. fully glazed trapway, 16.5 in. chair-height elongated bowl, 12 in. rough-in, 1,000 gram MaP rating, and slow-close seat, helping plumbing crews and property teams move from review to release with fewer scope gaps.
Highlights
- Vacuum-assisted flush builds hydraulic pressure in a sealed chamber for extra flushing force
- 1.28 GPF uses 20 percent less water than a 1.6 GPF toilet and 60 percent less than 3.5 GPF

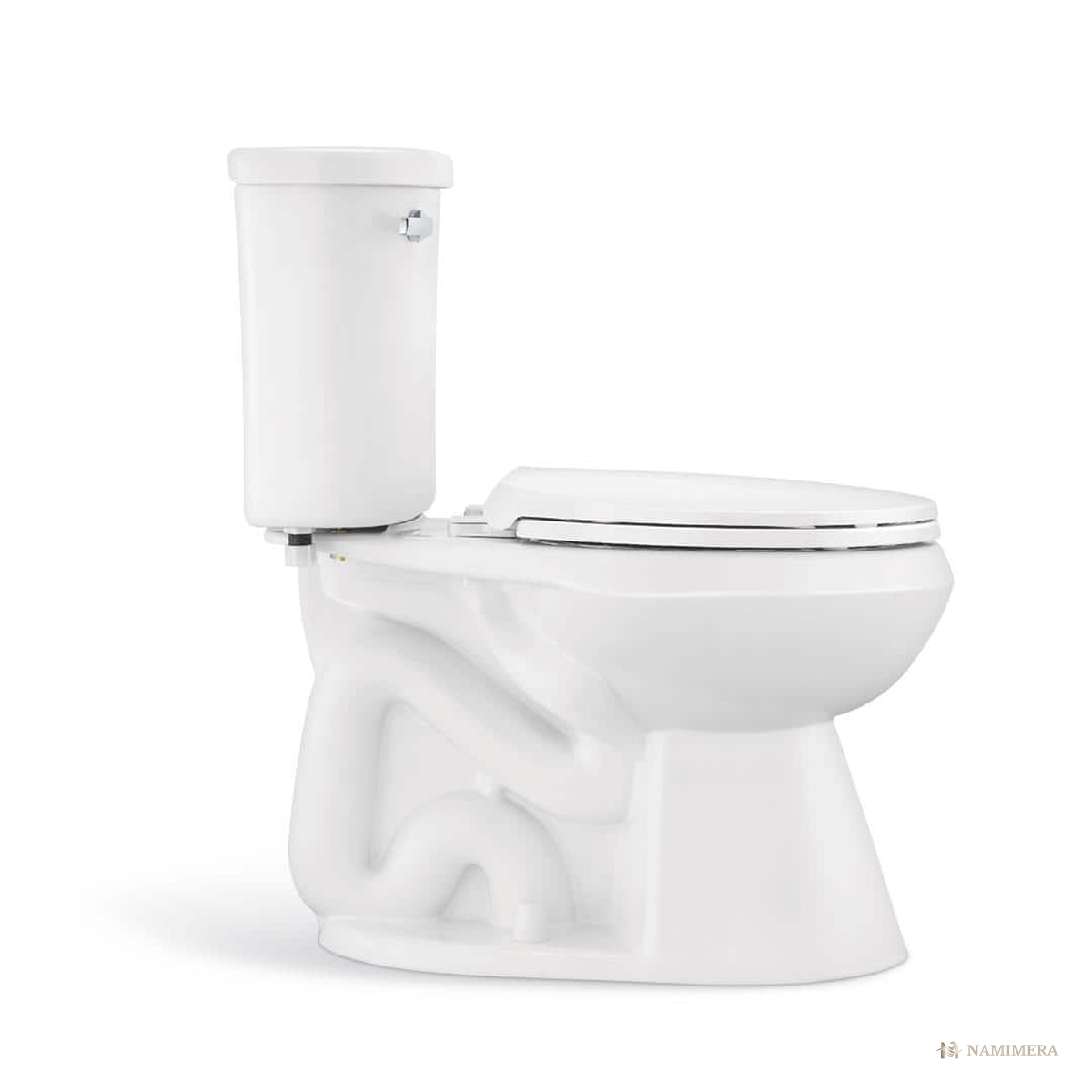

- Extra-large 2-3/8 in. fully glazed trapway minimizes clogging
- 1,000 gram MaP flush performance rating
- Chair-height 16.5 in. elongated bowl with large water spot for a cleaner bowl
- Slow-close seat with easy-clean hinge, wax ring, and floor bolt set included
- Extra-large 10.25 x 23.5 in. footprint, excellent for retrofitting
- WaterSense certified; limited lifetime warranty
Specification Table
| Flush rate | 1.28 GPF single flush |
| Flush type | Vacuum-assisted, gravity-fed with sealed pressure chamber |
| Bowl shape | Elongated |
| Bowl height | Chair height, 16.5 in. floor to rim without seat |
| Rough-in | 12 in. |
| Trapway | 2-3/8 in., fully glazed |
| Flush valve | 3 in. |
| MaP rating | 1,000 grams |
| Overall dimensions | 31.75 H x 17.125 W x 28.125 D in. |
| Material | Vitreous china |
| Seat included | Yes, slow-close elongated seat |
| Warranty | Limited lifetime warranty |
Included Equipment
- Toilet tank with vacuum-assist chamber and cover
- Elongated toilet bowl
- Slow-close elongated seat with easy-clean hinge
- Wax ring, floor bolts, and caps
- Installation and care guide
Installation Notes
- Verify the 12 in. rough-in from the finished wall to the closet flange centerline before ordering.
- Connect the air transfer tube between tank and bowl per the guide; the vacuum-assist chamber depends on a correctly seated tank gasket.
- The 10.25 x 23.5 in. base footprint helps cover flooring shadows left by older toilets; confirm coverage on site.
- Final setting, sealing, and supply connection should be completed by a qualified, licensed plumber; supply line is not included.
- Review the final color selection and accessory bundle during quote review before order release.
Warranty and Support
- Published warranty coverage: limited lifetime warranty
- Replacement fill valves, flush cartridges, and seats are supported through quote review
- Final warranty registration and coverage documents are confirmed during quote review
Frequently Asked Questions
How is a vacuum-assisted flush different from a standard gravity flush?
A sealed inner chamber inside the tank builds hydraulic pressure as water leaves, accelerating the flush. The published performance summary rates it at 1,000 grams MaP at only 1.28 GPF.
Is it loud like a pressure-assisted commercial toilet?
No compressor or pressure vessel charged by line pressure is used; the vacuum-assist design works with the gravity flush, so sound levels stay in the residential range.
Is it chair height?
Yes. The published specification summary lists a 16.5 in. bowl rim height before the seat.
What should be confirmed before ordering?
Rough-in distance, supply stop condition, and the accessory bundle are confirmed during quote review.
Documents
- Type Two-Piece Toilet
- SKU NM-PLB-TL-2PE128P-WH-WH
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
