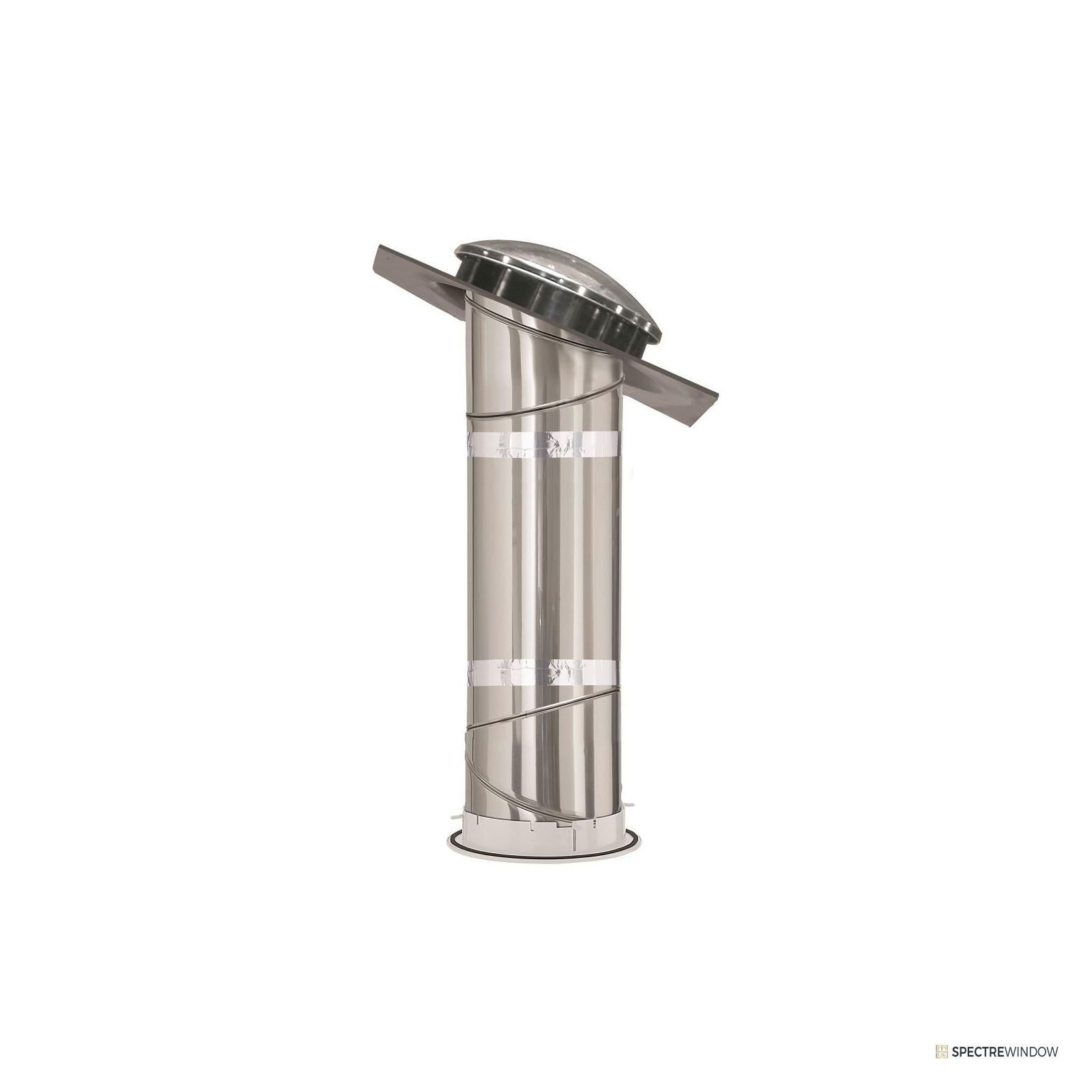

Spectre Window 10 in. x 48 in. Rigid Tubular Skylight with Acrylic Dome and Integrated Flashing

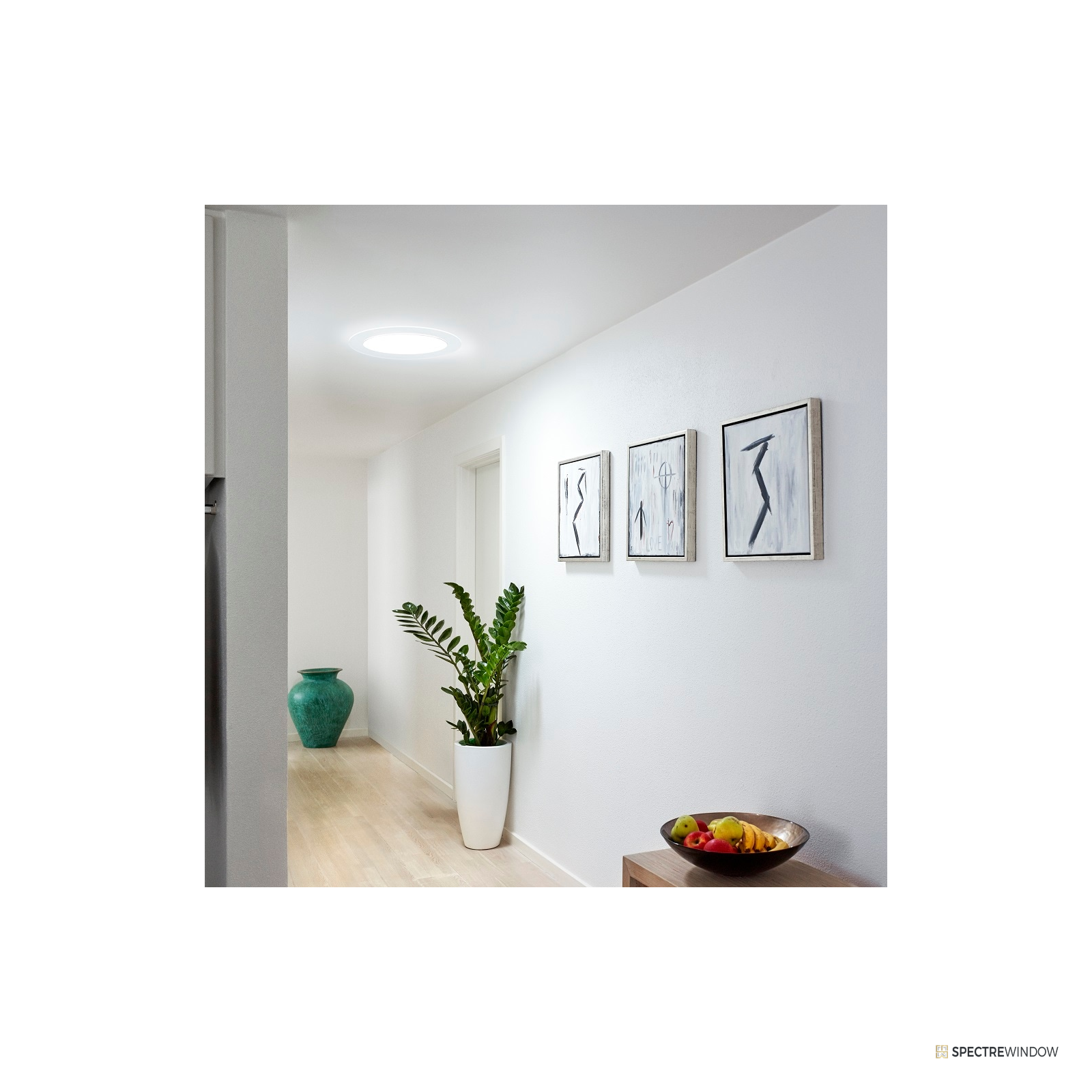

An acrylic dome gathers daylight at the roof and drives it down a rigid tunnel with a 99 percent reflective interior, holding brightness even on longer runs. The included one piece low profile galvanized steel flashing self flashes into shingle roofs pitched 14 to 60 degrees for an integrated look at the roofline. Two elbows and a 24 in. extension make up the included 48 in. of tunnel, the sections connect without screws, and additional rigid sections extend runs to 20 ft. The 10 in. tube daylights rooms up to about 200 sq ft at a 0.42 U factor and 0.40 solar heat gain coefficient with ENERGY STAR certification in the Northern climate zone; a 14 in. tube is stocked for larger rooms.

Highlights

• Rigid tunnel with 99 percent reflective interior holds brightness on long runs
• One piece low profile galvanized steel flashing included, no separate kit
• 48 in. of tunnel included: two elbows plus a 24 in. extension
• Extendable to 20 ft with additional rigid sections
• Tool friendly tube connections without screws
• 10 in. tube daylights rooms up to about 200 sq ft; 14 in. tube stocked for larger rooms
• For shingle roofs pitched 14 to 60 degrees
• 0.42 U factor with ENERGY STAR certification in the Northern climate zone (flagship)

Specification Table

Included Equipment

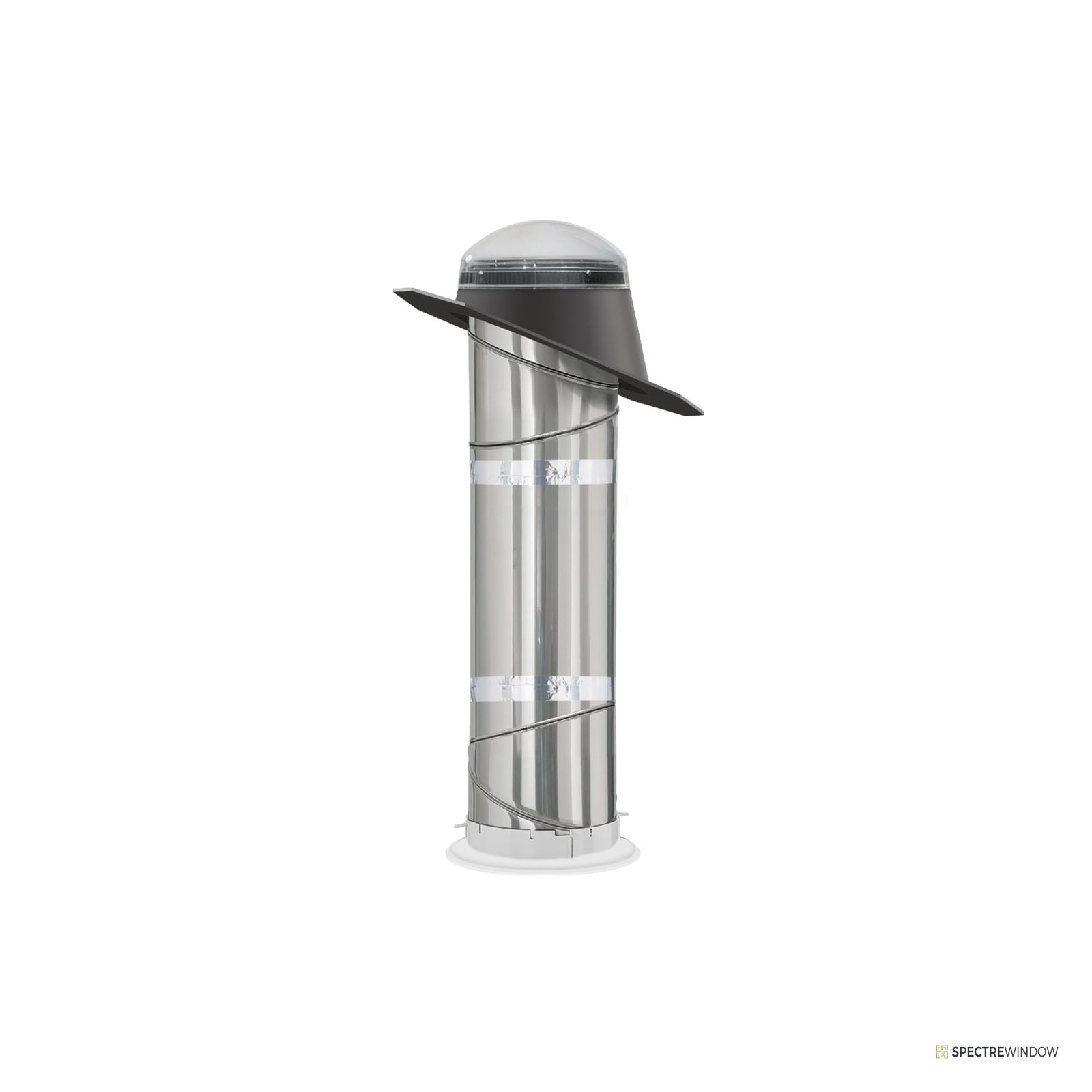

• Acrylic dome assembly
• One piece low profile galvanized steel flashing
• Two rigid elbows and one 24 in. rigid extension (48 in. of tunnel)
• Ceiling side trim and diffuser components per the released kit contents
• Installation hardware

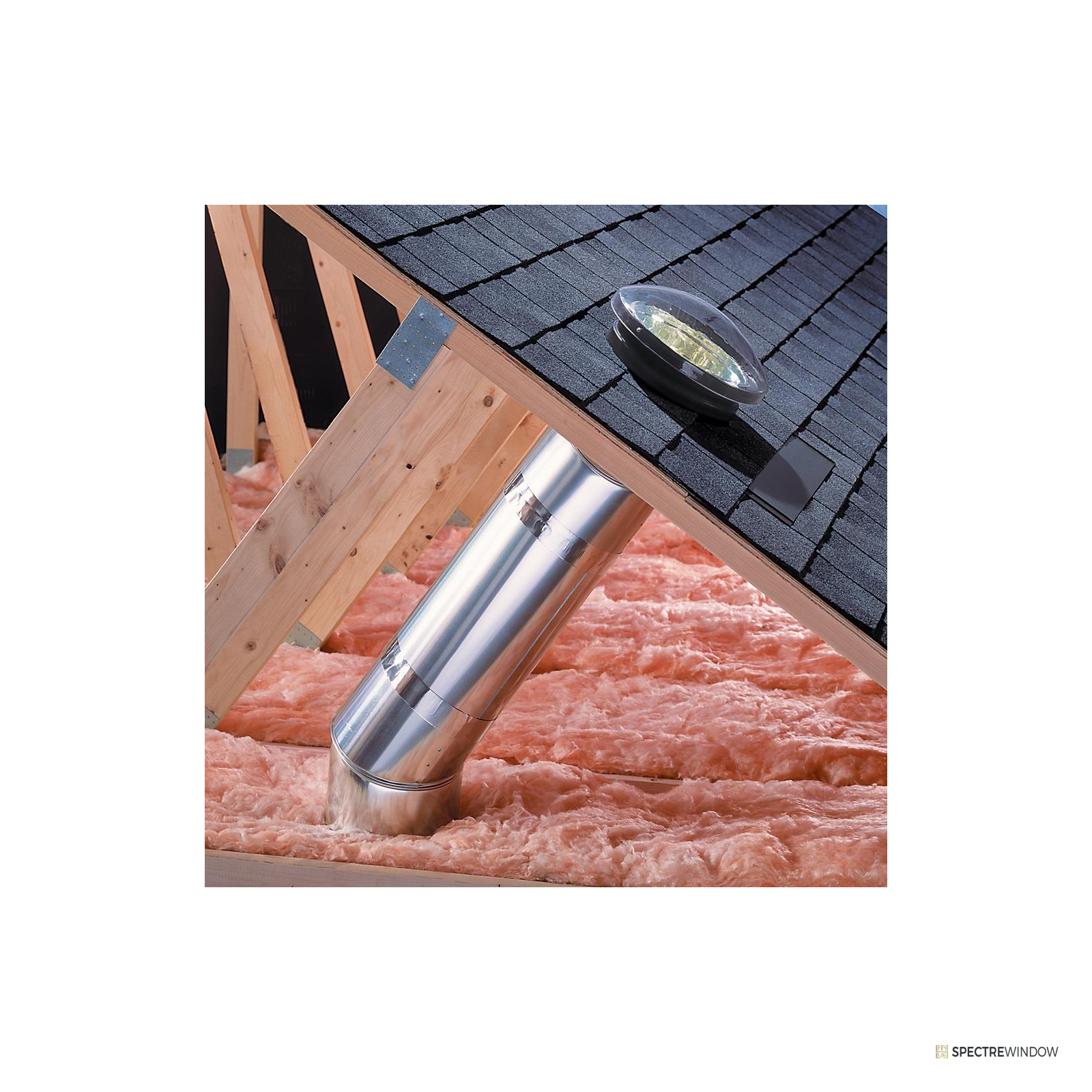

Installation Notes

• Confirm the roof is shingle covered and pitched between 14 and 60 degrees; other roof types are reviewed during quote review.
• Locate the ceiling opening below a clear attic path, then cut the roof opening at 11 in. x 12 in. for the 10 in. tube.
• Shingle the one piece flashing into the courses so water sheds over it; seal fastener heads.
• Assemble tunnel sections dome to diffuser without screws, seating each joint fully; add extensions for runs up to 20 ft.
• Keep elbow angles shallow where possible; brightness drops as bends and run length increase.

Warranty and Support

• Warranty coverage is confirmed during quote review before release.
• Quote packages include flashing selection guidance and roof pitch review for each installation.

Frequently Asked Questions

How much area does one tube light?
The 10 in. tube brightens rooms up to about 200 sq ft. For larger rooms, step up to the 14 in. tube or plan multiple tubes during quote review.

Can the tunnel run longer than 48 in.?
Yes. Additional rigid sections extend the run to 20 ft. Keep bends shallow to preserve brightness.

Does it work on metal or flat roofs?
The included flashing is for shingle roofs pitched 14 to 60 degrees. Other roof types and pitches are reviewed during quote review.

Does it change room temperature?
The flagship kit carries a 0.42 U factor and 0.40 solar heat gain coefficient with ENERGY STAR certification in the Northern climate zone, so heat transfer stays modest for a non insulated dome unit.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
