Spectre Window 118 Series Thermally Broken Three Track Sliding Window
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The 118 mm three track frame is built as a thermally broken assembly, with insulated glass units seated in 25 mm glazing pockets and a screen panel riding its dedicated track. The factory shows the series with fixed transom lights over the sliding sashes for taller openings. Documentation for this series is deliberately conservative: the factory prints the frame depth and the thermal break claim, and panel sections, wall gauge, and size limits are engineered per opening during quote review. Every assembly is finished in one of eight standard colors.
Highlights
- Thermally broken 4.65 in (118 mm) three track frame
- Sliding glass panels plus a mesh screen panel on its own track
- Insulated glass units in 25 mm glazing pockets

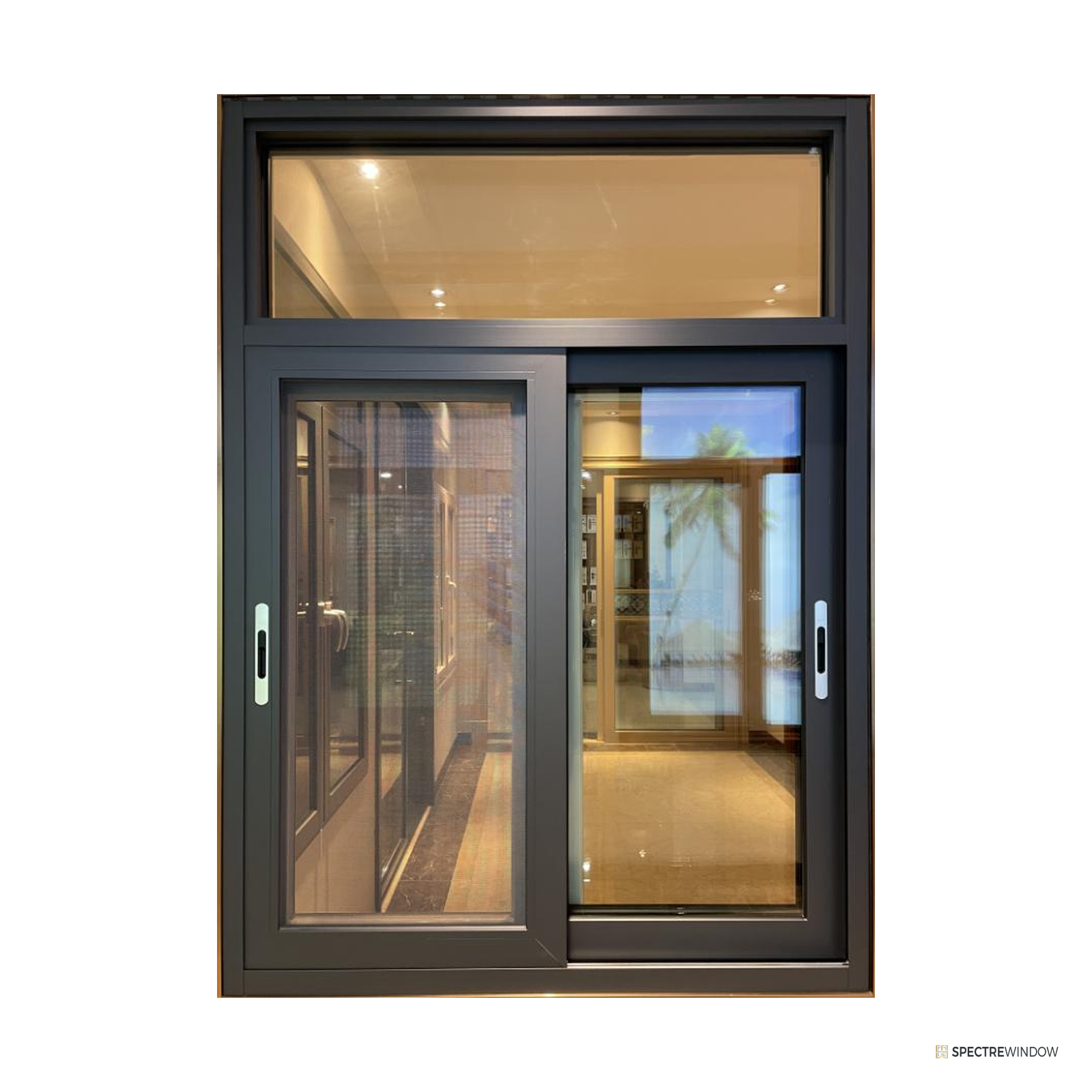

- Fixed transom over slider layouts shown by the factory
- Panel layout engineered per opening
- Eight standard fluorocarbon and woodgrain finishes
Specification Table
| Configuration | Three track slider: glass panels plus screen panel; transom layouts available |
| System sizing | Quote configured; panel layout engineered per opening |
| Frame section | 4.65 in (118 mm), thermally broken |
| Profile wall thickness | Confirmed during quote review |
| Material | Extruded aluminum with thermal break |
| Glazing | Insulated glass unit, 25 mm glazing pocket; final makeup confirmed during quote review |
| Screen | Mesh screen panel, dedicated track |
| Hardware | Flush bar pulls, finished to match |
| Finish system | Factory applied finish program in eight standard colors: five solid fluorocarbon coated tones and three woodgrain films |
| Representative weight | About 499 lb (226.5 kg) as a 2 panel with screen module at 35.4 x 59.1 in panels (engineering estimate) |
| Warranty | Confirmed during quote review |
Included Equipment
- Thermally broken three track aluminum frame set
- Glazed sliding panel set with insulated glass
- Mesh screen panel on the dedicated track
- Flush bar pull hardware
- Installation fasteners and shim guidance
Installation Notes
- Verify the rough opening and sill support before release; the three track sill must bear on a continuous, level surface.
- Panel layout, gauge, and dimensions are engineered per opening; exact sizes are confirmed during quote review.
- On exterior walls integrate head flashing and a sealed sill joint per local code; keep sill weeps clear.
- Set the frame plumb, level, and square so panels glide and lock without lift.
- Installation should be completed by a licensed contractor.
Warranty and Support
- Warranty coverage is confirmed during quote review before release.
- Quote packages include hardware adjustment guidance and finish care notes.
Frequently Asked Questions
How is this different from the 85 Series three track slider?
Both carry a dedicated screen track. The 118 Series adds a thermal break through the deeper 4.65 in (118 mm) frame, making it the choice for conditioned spaces and colder climates.
What sizes can it be built to?
The series is quote configured. The factory does not publish a fixed size run, so panel counts and dimensions are engineered to your opening during quote review.
Can it have a transom?
Yes. The factory shows the series with fixed transom lights over the sliding sashes, and transom layouts are configured during quote review.
What glass comes in it?
Insulated glass units in 25 mm glazing pockets. The exact makeup is confirmed during quote review.
