Spectre Window 130 Series Concealed Frame Aluminum Curtain Wall System
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

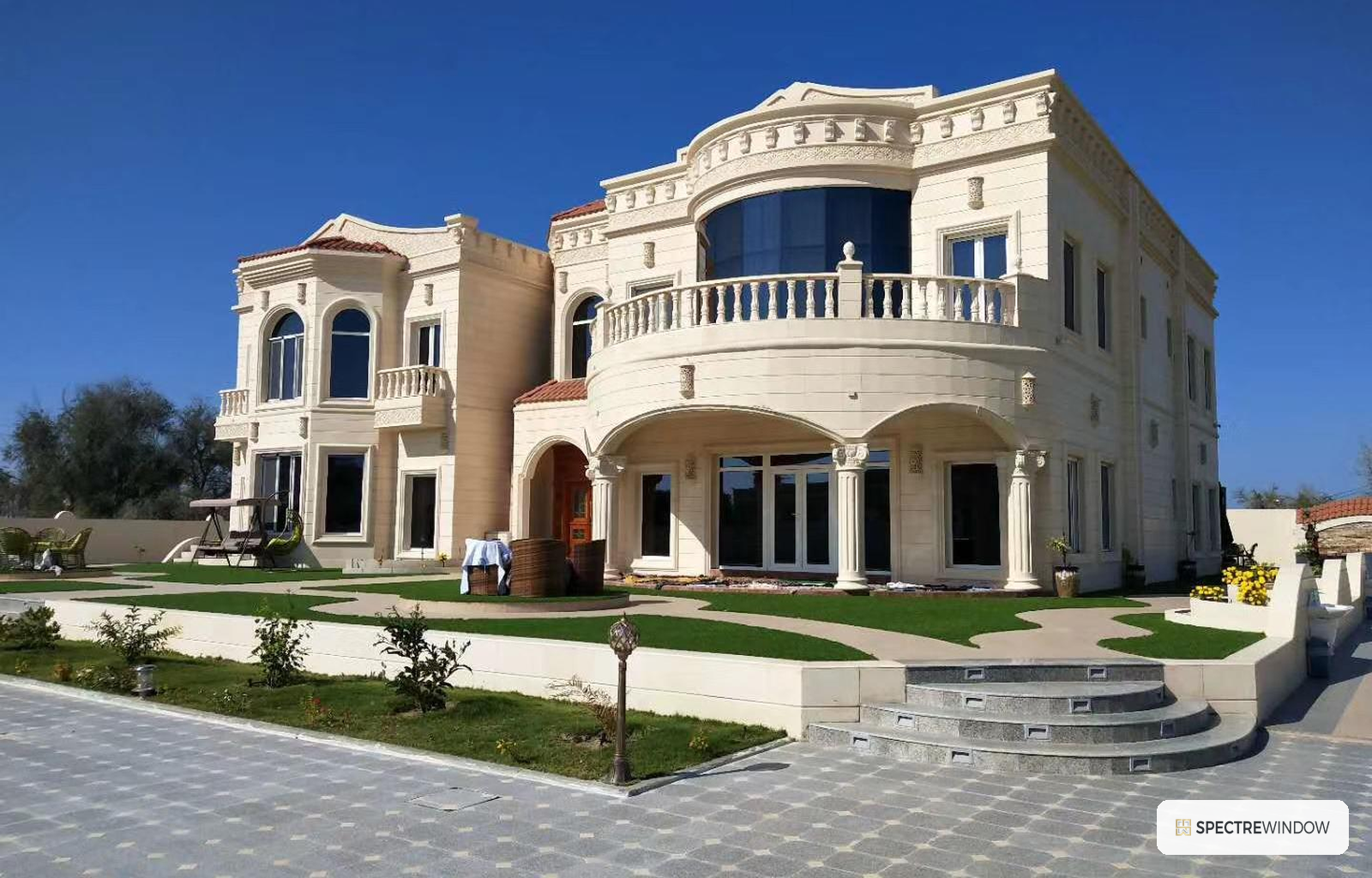

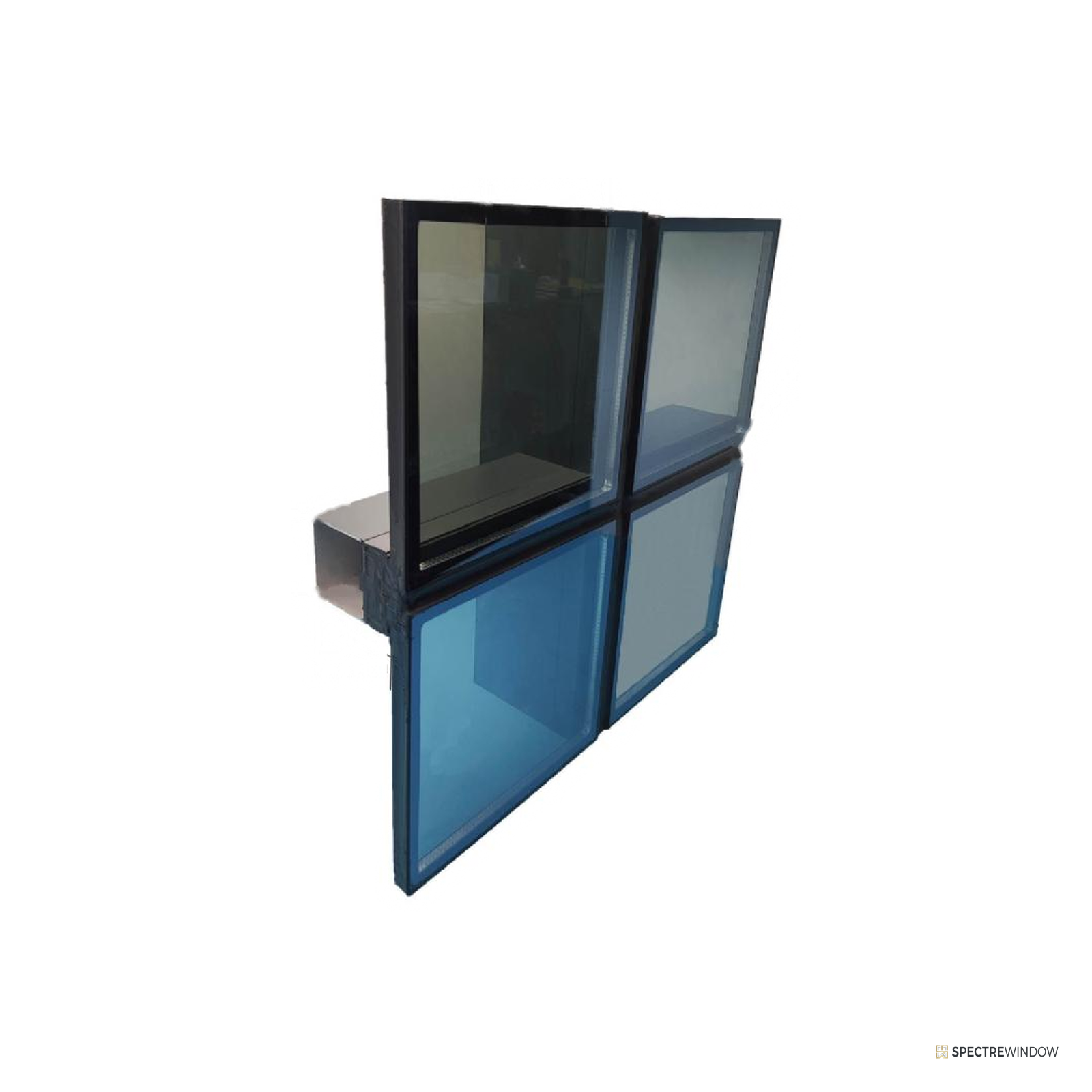

The system pairs a 5.12 in (130 mm) structural mullion with a concealed frame exterior: glass conceals the grid from outside for a flush, structurally glazed reading. The factory shows the series on villa work including a curved glass bay, and radius layouts are part of the platform. Grid module, bay sizes, spans, and anchoring are engineered per elevation, and glass makeup is specified per project. Interior members are finished in one of eight standard colors.
Highlights
- Concealed frame exterior on a deeper 5.12 in (130 mm) structural mullion
- Flush structurally glazed look for taller spans
- Curved and radius facade applications shown by the factory
- Insulated glazing in a 25 mm glazing pocket
- Grid and bay sizes engineered per elevation
- Eight standard finishes on the interior grid
Specification Table
| System type | Concealed frame curtain wall on a deep structural mullion |
| Mullion face | 5.12 in (130 mm) |
| Module sizing | Quote configured; grid and bay sizes engineered per elevation |
| Material | Extruded aluminum mullions and transoms |
| Glazing | Insulated glazing shown, 25 mm glazing pocket; makeup specified per project |
| Glass retention | Concealed frame; glass conceals the grid from the exterior |
| Ventilation | Fixed lites standard; vent integration quoted per project |
| Applications | Facades and villa work including curved and radius bays |
| Finish system | Factory applied finish program in eight standard colors: five solid fluorocarbon coated tones and three woodgrain films |
| Representative weight | About 819 lb (371.6 kg) per representative 94.5 x 118.1 in module (engineering estimate) |
| Warranty | Confirmed during quote review |
Included Equipment
- Aluminum mullion and transom grid, cut and machined per shop drawings
- Glazing gaskets and setting blocks
- Structural glazing retention components per the project details
- Anchoring brackets per the project engineering package
- Assembly and installation hardware
Installation Notes
- Curtain wall systems are engineered per elevation; anchor layout, dead load brackets, and movement joints are settled in the project engineering package during quote review.
- Verify slab edge conditions, embed locations, and tolerances against the approved shop drawings before release.
- Glaze and seal per the released project details; keep pressure equalization and drainage paths clear.
- Installation must be completed by a qualified facade or glazing contractor.
Warranty and Support
- Warranty coverage is confirmed during quote review before release.
- Quote packages include hardware adjustment guidance and finish care notes.
Frequently Asked Questions
How does this differ from the 84 Series concealed frame?
Both read as flush structural glazing from outside. This 130 Series carries a deeper 5.12 in (130 mm) structural mullion for taller spans and heavier glass, and the factory shows it on curved and radius facade work.
What sizes and modules are available?
Grid module, bay sizes, and overall elevation are engineered per project. The factory does not publish fixed module limits for this series, so the layout is settled with the project engineering package during quote review.
What glass does it take?
Renders show insulated glazing seated in the 25 mm glazing pocket. The exact glass makeup, including coatings, tints, laminated or spandrel panels, is specified per project during quote review.
Which finishes are available?
Eight standard finishes: Matte Black, Slate Grey, Silver Grey, White, Champagne, Cherry Woodgrain, Golden Oak Woodgrain, and Walnut Woodgrain, applied over the extruded aluminum members.
Documents
- Type Curtain Wall
- SKU SW-WIN-CW-HID130-MB
