Spectre Window 130 Series Exposed Frame Aluminum Curtain Wall System
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

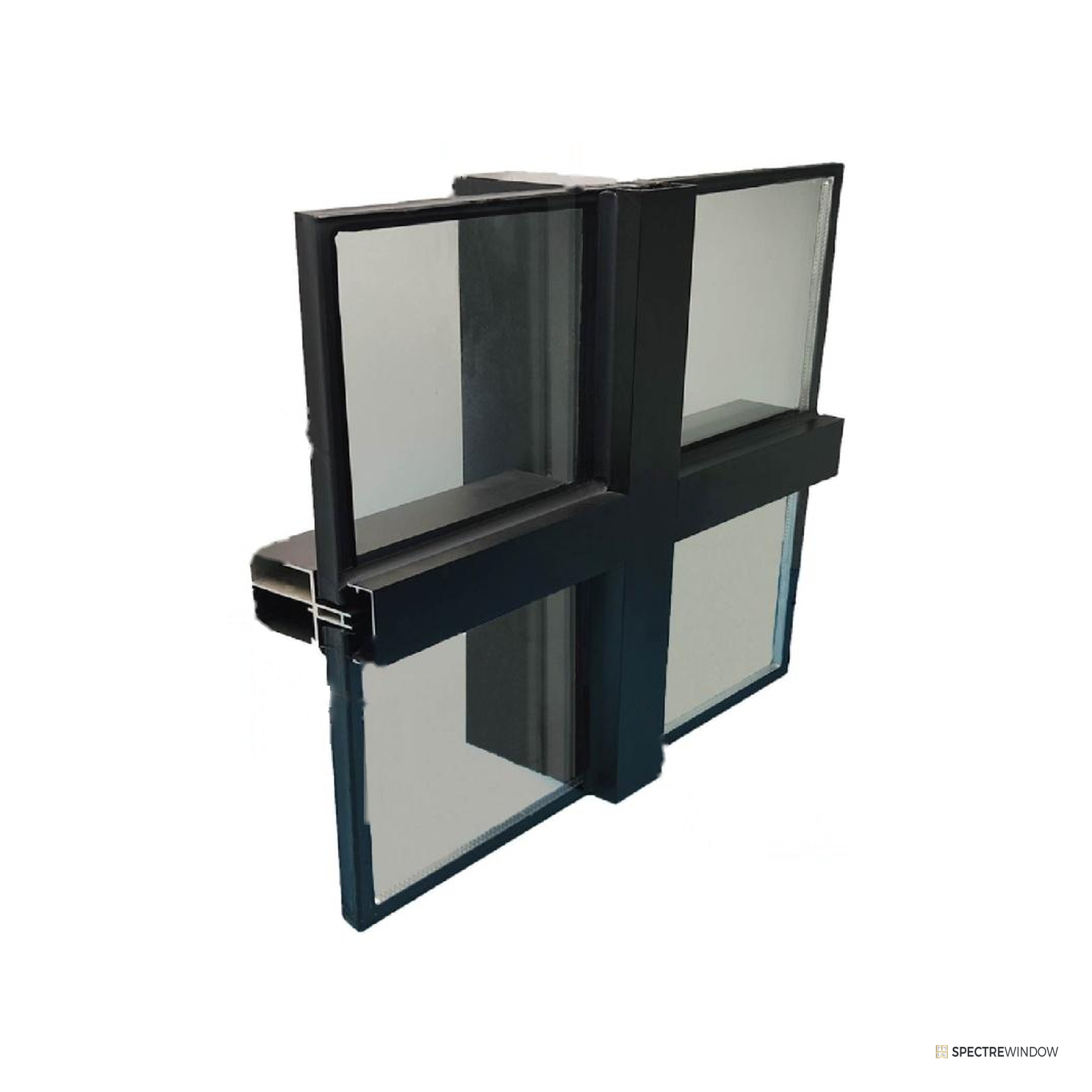

The system builds on 5.12 in (130 mm) face members carrying insulated glazing in a 25 mm glazing pocket, clamped by pressure plates and dressed with snap on cover caps that form the visible exterior grid. The factory shows the series with integrated projected vent windows within the facade for natural ventilation. Grid module, bay sizes, spans, anchoring, and vent placement are engineered per elevation, and glass makeup is specified per project. Caps and interior members are finished in one of eight standard colors.
Highlights
- Captured (pressure plate) curtain wall with snap on cover caps
- 5.12 in (130 mm) face members
- Insulated glazing in a 25 mm glazing pocket

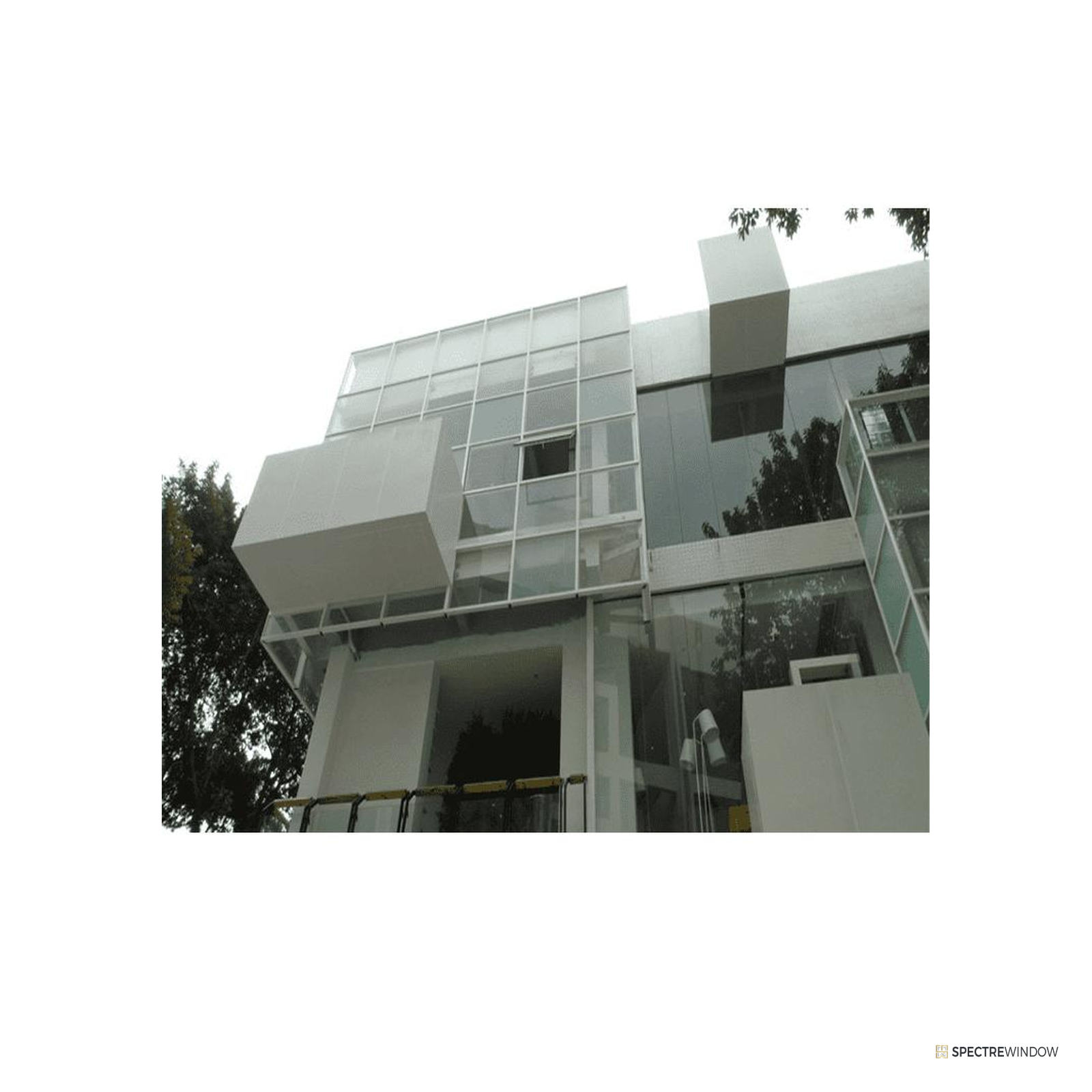

- Integrated projected vent windows shown by the factory
- Robust, serviceable glazing detail with mechanical retention
- Grid and bay sizes engineered per elevation
- Eight standard finishes on caps and interior members
Specification Table
| System type | Exposed frame (captured, pressure plate) curtain wall |
| Mullion face | 5.12 in (130 mm) |
| Module sizing | Quote configured; grid and bay sizes engineered per elevation |
| Material | Extruded aluminum mullions and transoms |
| Glazing | Insulated glazing shown, 25 mm glazing pocket; makeup specified per project |
| Glass retention | Pressure plates with snap on cover caps (captured grid) |
| Ventilation | Integrated projected vent windows shown by the factory |
| Applications | Storefronts, schools, office facades |
| Finish system | Factory applied finish program in eight standard colors: five solid fluorocarbon coated tones and three woodgrain films |
| Representative weight | About 837 lb (379.7 kg) per representative 94.5 x 118.1 in module (engineering estimate) |
| Warranty | Confirmed during quote review |
Included Equipment
- Aluminum mullion and transom grid, cut and machined per shop drawings
- Glazing gaskets and setting blocks
- Pressure plates and snap on cover caps
- Anchoring brackets per the project engineering package
- Assembly and installation hardware
Installation Notes
- Curtain wall systems are engineered per elevation; anchor layout, dead load brackets, and movement joints are settled in the project engineering package during quote review.
- Verify slab edge conditions, embed locations, and tolerances against the approved shop drawings before release.
- Glaze and seal per the released project details; keep pressure equalization and drainage paths clear.
- Installation must be completed by a qualified facade or glazing contractor.
Warranty and Support
- Warranty coverage is confirmed during quote review before release.
- Quote packages include hardware adjustment guidance and finish care notes.
Frequently Asked Questions
What does exposed frame mean?
The glass is clamped by pressure plates dressed with snap on cover caps, so a visible aluminum grid frames every lite, the detail the industry calls a captured or capped curtain wall. It is the most robust and serviceable retention and the standard for stick built facades.
What sizes and modules are available?
Grid module, bay sizes, and overall elevation are engineered per project. The factory does not publish fixed module limits for this series, so the layout is settled with the project engineering package during quote review.
What glass does it take?
Renders show insulated glazing seated in the 25 mm glazing pocket. The exact glass makeup, including coatings, tints, laminated or spandrel panels, is specified per project during quote review.
Which finishes are available?
Eight standard finishes: Matte Black, Slate Grey, Silver Grey, White, Champagne, Cherry Woodgrain, Golden Oak Woodgrain, and Walnut Woodgrain, applied over the extruded aluminum members.
Documents
- Type Curtain Wall
- SKU SW-WIN-CW-EXP130-MB
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
