Spectre Window 135 Series Thermally Broken Aluminum Window with Integrated Security Screen
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

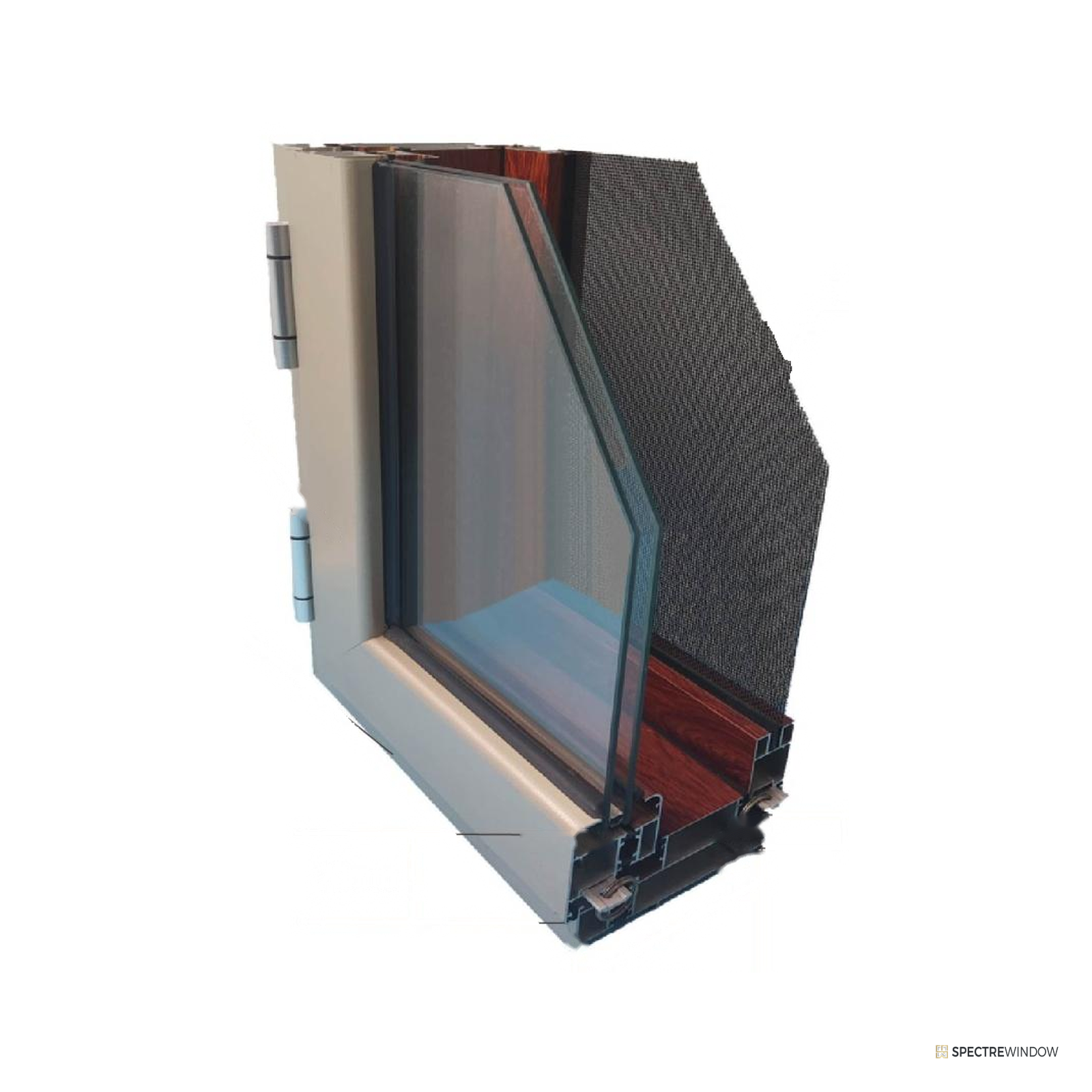

The 135 mm integrated frame pairs 2.76 in (70 mm) glazed panel sections, with 78 mm and 80 mm sections quoted on request, against interior security mesh panels in one thermally broken assembly. The 25 mm glazing pocket carries a two pane insulated glass unit, and the 1.8 mm profile wall is the heaviest gauge stated in the aluminum window lineup, sized for tall window wall spans. A 65 mm big handle option upgrades the operating hardware. This is a platform product: panel counts, sash layout, and dimensions are engineered per opening during quote review, and every assembly is finished in one of eight standard colors.
Highlights
- Flagship 5.31 in (135 mm) thermally broken integrated screen frame
- Heaviest stated profile wall in the lineup at 0.071 in (1.8 mm)
- Insulated glazed panels outside, security steel mesh panels inside
- Single windows through full height window wall layouts
- Insulated glass unit in a 25 mm glazing pocket
- 65 mm big handle hardware option
- Eight standard fluorocarbon and woodgrain finishes
Specification Table
| System sizing | Quote configured; module layouts engineered per opening |
| Frame section | 5.31 in (135 mm), thermally broken integrated frame |
| Glazed panel section | 2.76 in (70 mm) standard; 78 or 80 mm quoted on request |
| Profile wall thickness | 0.071 in (1.8 mm), heaviest stated gauge in the window lineup |
| Material | Extruded aluminum with thermal break |
| Glazing | Insulated glass unit, 25 mm glazing pocket; final makeup confirmed during quote review |
| Screen | Security steel mesh panels, inside face |
| Operation | Hinged glazed panels outside; mesh panels inside; fixed lites per layout |
| Hardware | Standard handle; 65 mm big handle option |
| Finish system | Factory applied finish program in eight standard colors: five solid fluorocarbon coated tones and three woodgrain films |
| Representative weight | About 485 lb (220.1 kg) per 35.4 x 70.9 in module (engineering estimate) |
| Warranty | Confirmed during quote review |
Included Equipment
- Thermally broken integrated aluminum frame assembly with perimeter gaskets
- Insulated glass hinged panels, factory fitted
- Security steel mesh interior panels
- Operating hardware; 65 mm big handle when ordered
- Installation fasteners and shim guidance
Installation Notes
- Window wall layouts are engineered per opening; structural anchoring is reviewed against the opening during quote review.
- Verify the opening is square, level, and plumb before release; shim at hinge and lock points.
- On exterior walls integrate head flashing and a sealed sill joint per local code; keep weep paths clear.
- Confirm interior clearance for the inside mesh panels before ordering.
- Installation should be completed by a licensed contractor.
Warranty and Support
- Warranty coverage is confirmed during quote review before release.
- Quote packages include hardware adjustment guidance and finish care notes.
Frequently Asked Questions
How is the 135 Series different from the 108 Series?
Both integrate glass and security mesh in one thermal frame. The 135 Series carries a deeper 5.31 in (135 mm) frame at a heavier 1.8 mm profile wall, which supports taller full height window wall layouts, and it offers the 65 mm big handle. The 108 Series is the standard depth for single window openings.
What sizes can it be built to?
The series is quote configured. The factory does not publish a fixed size run for this platform; panel counts and dimensions are engineered per opening during quote review.
Is the mesh an insect screen?
It is woven security steel mesh, so it keeps insects out while also resisting impact and cutting. It reads like a dark insect screen from a distance.
Can it work as a door?
This product page covers window configurations only. Door configurations of the platform are handled under the door program with door hardware and thresholds.
