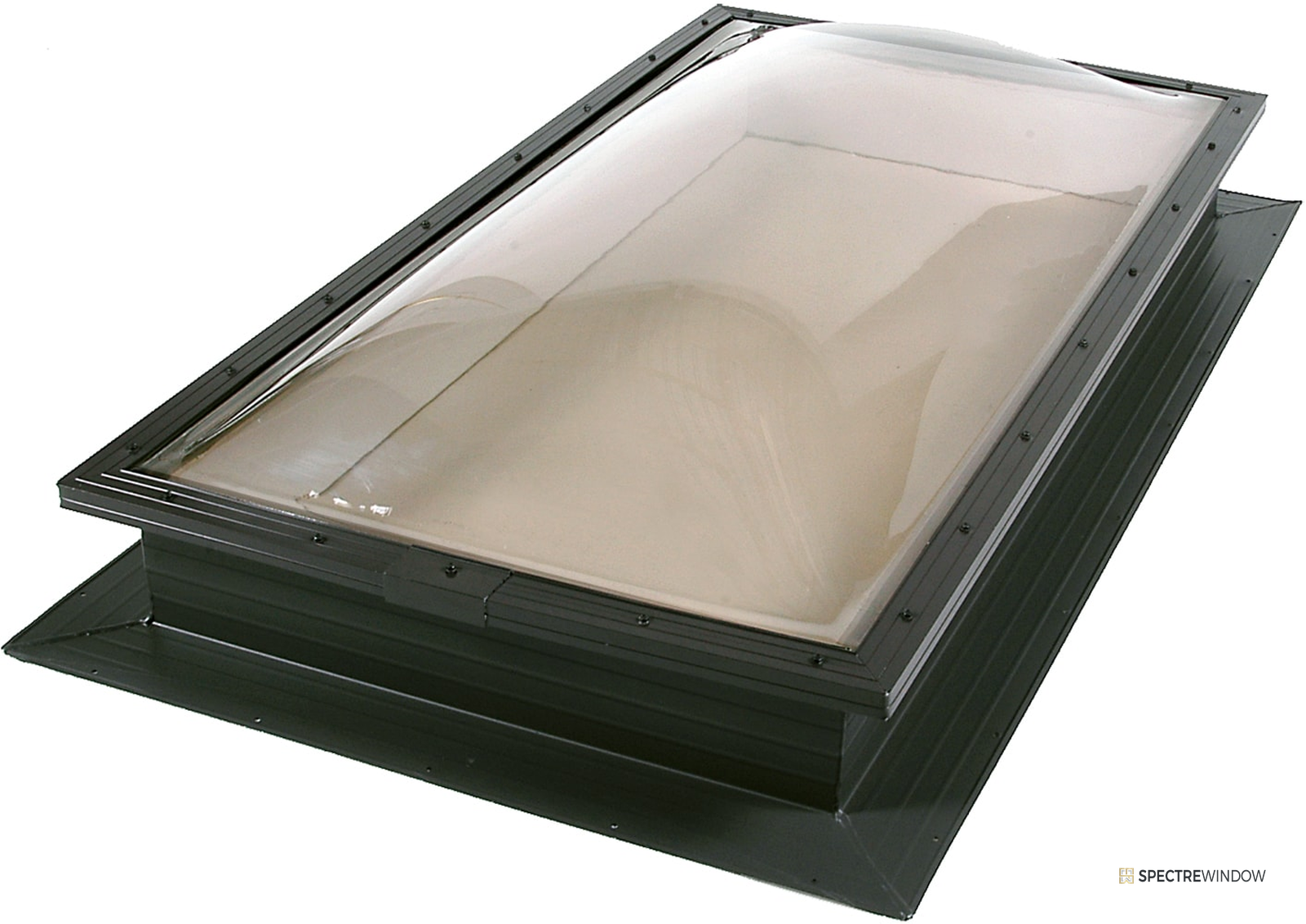

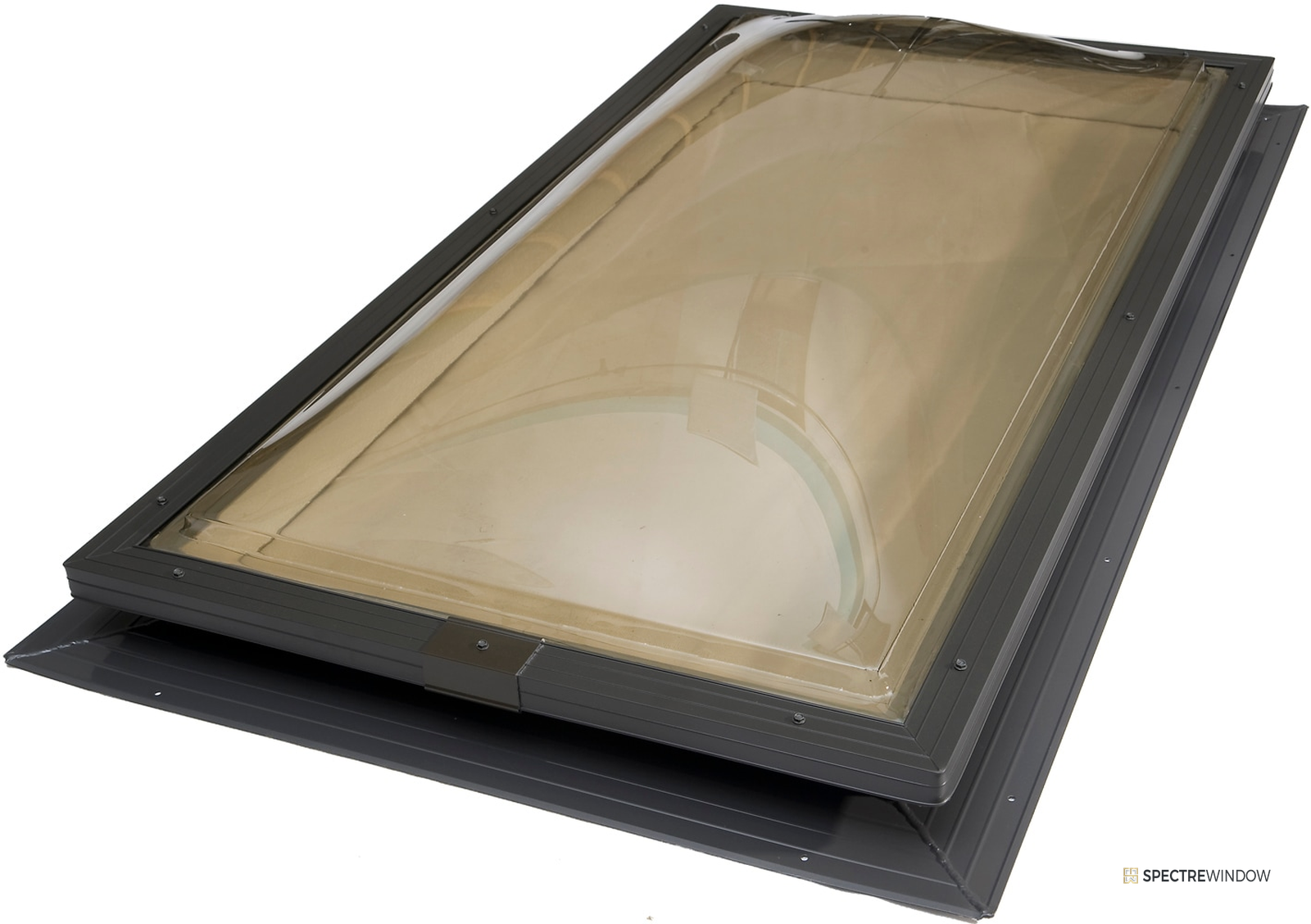

Spectre Window 22.5 in. x 30.5 in. Fixed Self Flashing Aluminum Skylight with Double Strength Glass
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Self flashing construction laps the one piece perimeter flange under the shingle courses above and over the courses below, sealing the unit to the deck in a single pass. Two sizes are stocked on a 22.5 in. nominal width: a 30.5 in. length, and a 46.5 in. length that carries an impact rated configuration with Miami Dade County approval for high wind zones. Glazing is insulated double strength glass in a fixed, non venting aluminum frame. Roof pitch limits, exact flange footprint, and glazing documentation for permitting are confirmed during quote review.
Highlights
- Integral self flashing flange installs without a curb or separate flashing kit
- Aluminum frame with insulated double strength glass
- Impact rated Miami Dade County approved configuration in the 22.5 in. x 46.5 in. size
- Two stocked sizes on a 22.5 in. nominal width
- Fixed, non venting construction for a permanent weather tight seal
Specification Table
| Nominal fit size (flagship) | 22.5 in. x 30.5 in. |
| Stocked sizes | 22.5 in. x 30.5 in. and 22.5 in. x 46.5 in. |

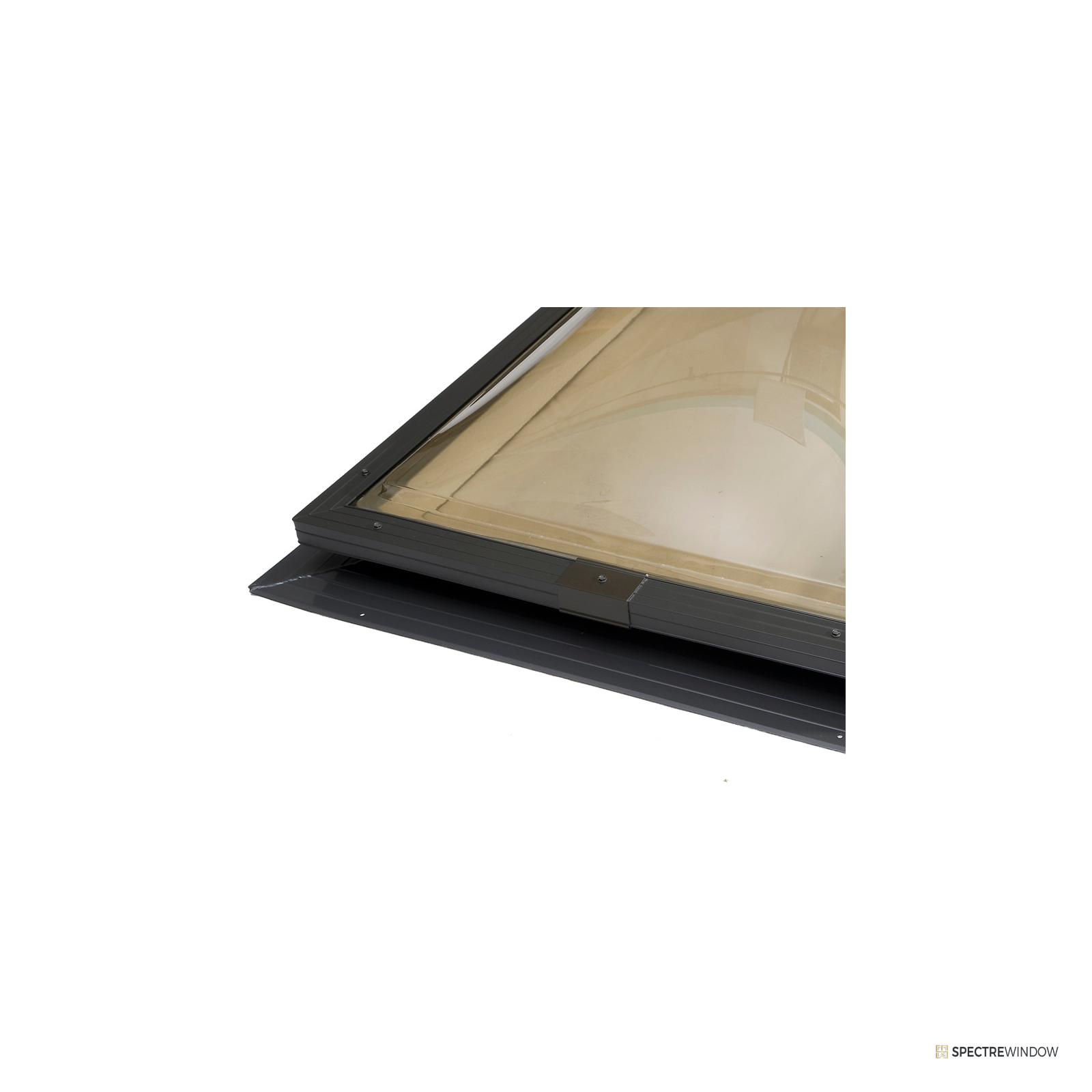

| Mount type | Self flashing, integral perimeter flange |
| Frame material | Aluminum |
| Operation | Fixed, non venting |
| Glazing | Double strength glass, insulated |
| Impact option | Miami Dade County approved configuration in the 46.5 in. length |
| Roof pitch range | Confirmed during quote review |
| Flange footprint | Extends beyond nominal size; confirmed during quote review |
| Weight | About 35 lb flagship size (engineering estimate) |
| Warranty | Limited manufacturer backed warranty program, confirmed during quote review |
Included Equipment
- Fixed skylight with factory glazed double strength glass
- Integral one piece self flashing flange
Installation Notes
- Frame the roof opening to the nominal fit size and confirm pitch suitability during quote review before ordering.
- Strip shingles back past the flange line, set the unit in compatible roof sealant, and fasten the flange per the released schedule.
- Shingle the flange in: courses above lap over the flange, courses below run under it, so water always sheds over metal.
- Do not face fasten through exposed flange areas below the unit; seal every fastener head.
Warranty and Support
- Warranty coverage is confirmed during quote review before release.
- Quote packages include flashing selection guidance and roof pitch review for each installation.
Frequently Asked Questions
Do I need a flashing kit or a curb?
No. The flange is the flashing: it shingles directly into the roof deck. That is the point of a self flashing unit.
Which size carries the impact rating?
The 22.5 in. x 46.5 in. size is stocked in an impact rated configuration with Miami Dade County approval. Documentation for permitting is provided during quote review.
Can it be opened for ventilation?
No. Both sizes are fixed, non venting units sealed for weather tightness.
