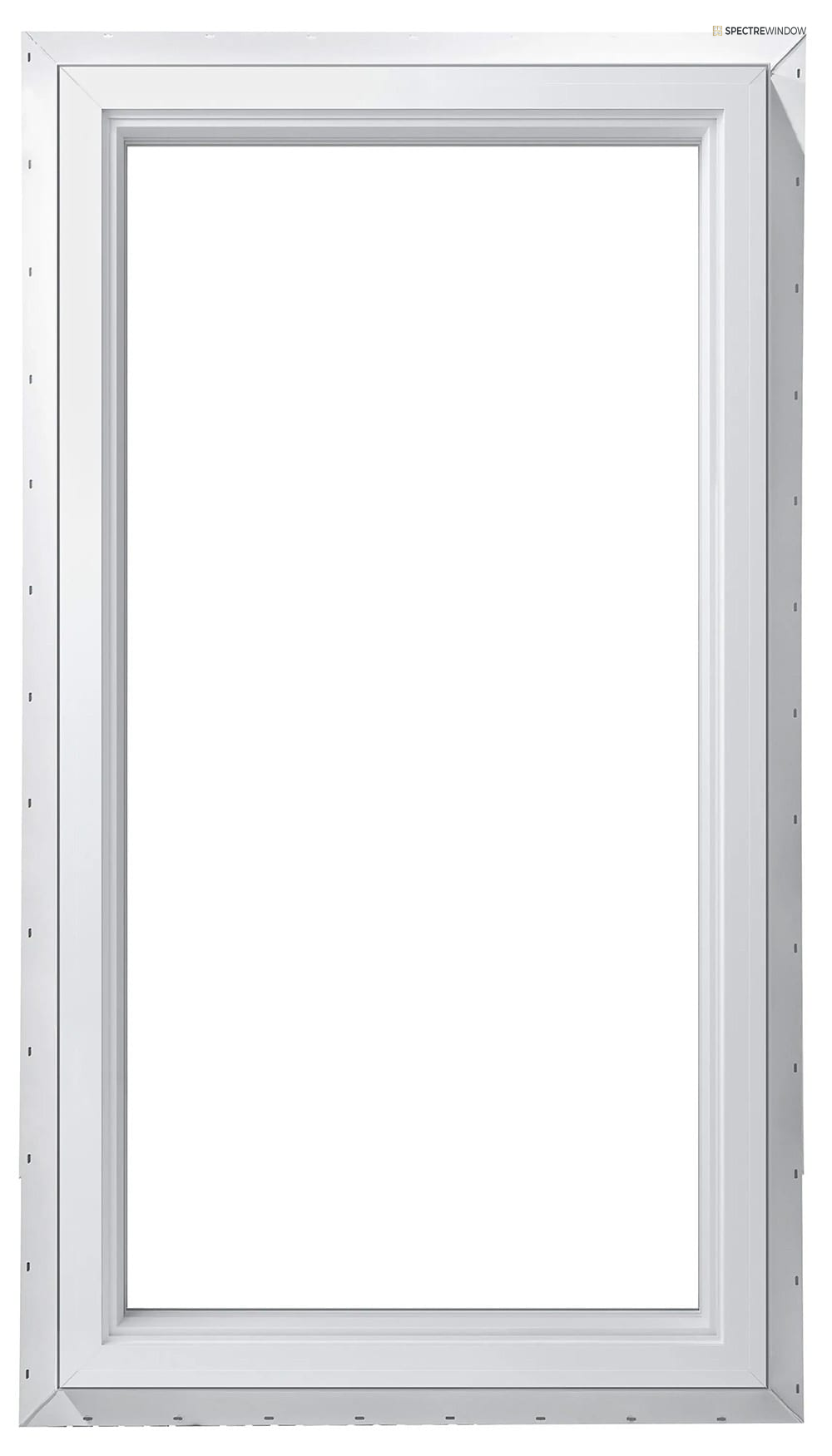

Spectre Window 29.5 in. x 47.5 in. Vinyl Casement Window with Full Screen

The sash hinges on the left edge as viewed from the exterior and drives outward with a crank operator, sealing back against the frame when locked. Glazing is a double pane insulated unit with annealed panes; the coating and gas fill options for your project are confirmed during quote review. The 3.25 in. deep vinyl frame installs weathertight in new construction with a nailing fin, and the included full screen mounts on the interior since the sash swings out. Right hinge units and additional sizes on this platform are quoted on request.

Highlights

• 29.5 in. x 47.5 in. unit for a 30 in. x 48 in. rough opening
• Crank-out 1 lite sash for full-opening ventilation
• Double pane insulated glazing with annealed panes
• Extruded vinyl frame, no painting
• 3.25 in. jamb depth
• Full interior screen included
• Nailing fin installation for new construction
• Right hinge and additional sizes quoted on request

Specification Table

Included Equipment

• Assembled vinyl casement window with insulated glass
• Full interior screen
• Crank operator and sash lock, factory fitted
• Nailing fin around the frame perimeter

Installation Notes

• Verify the rough opening is 30 in. x 48 in., square, with a level, supported sill before setting the unit.
• Shim behind the hinge-side jamb at hinge points and the lock jamb at the keeper so the tall sash pulls in evenly along its full height.
• Integrate the nailing fin with the weather barrier shingle fashion and flash the head.
• Operate the crank to full extension before fastening off to confirm the sash swings and locks without binding.

Warranty and Support

• Limited manufacturer-backed warranty program, confirmed during quote review.
• Quote packages include crank and lock adjustment guidance.

Frequently Asked Questions

Can I get this window right hinged?
The stocked unit is left hinge viewed from the exterior. Right hinge units on the same platform are quoted on request.

What glass options are available?
The stocked unit carries a double pane insulated glass package with annealed panes. Low-E coatings, gas fill, and privacy glass options are confirmed during quote review.

Is this for new construction or replacement?
It ships with a nailing fin for new construction. For full-frame replacement, the opening is stripped to the framing so the fin can seat against the sheathing.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
