Spectre Window 30 Series Aluminum Louvered Shutter with Hand Adjustable Blades
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

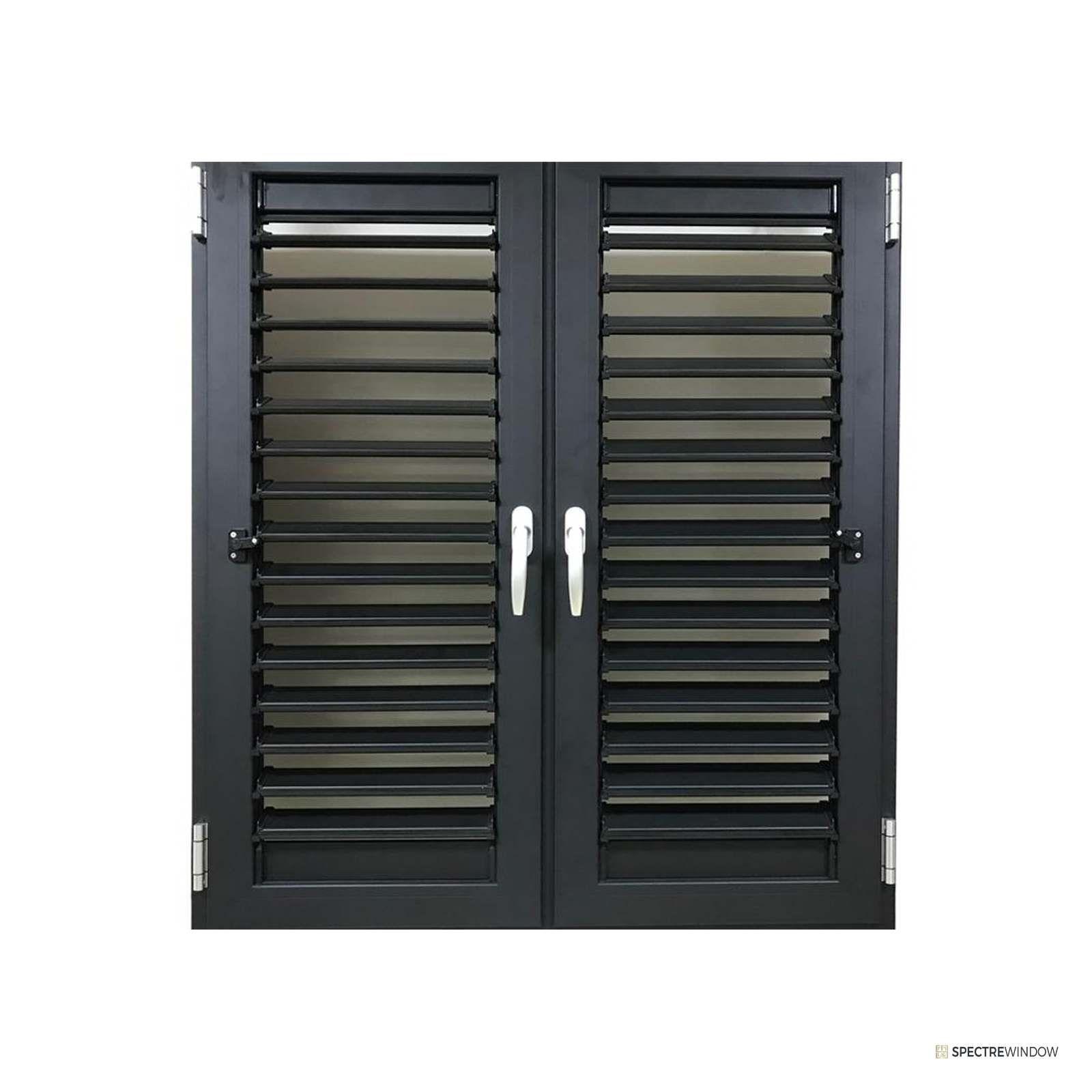

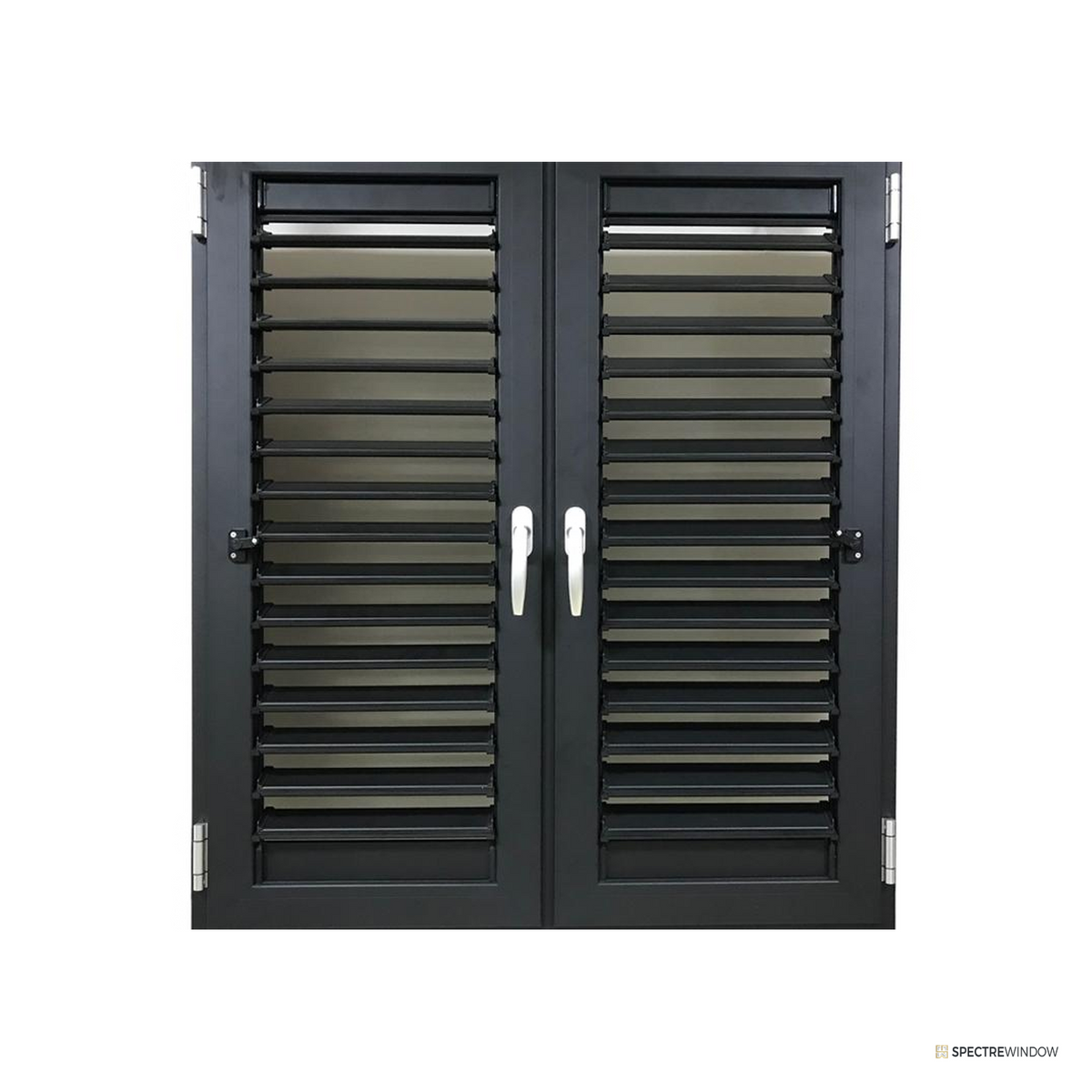

The shutter builds on a 1.18 in (30 mm) frame with 2.56 in (65 mm) panel stiles at a 0.055 in (1.4 mm) profile wall. Panels run 15.7 to 33.5 in wide (400 to 850 mm) at heights to 59.1 in (1500 mm), hung singly or as a double panel pair on butt hinges. A lever on the center stile sets the blade angle by hand, and the factory offers glass blades in place of aluminum where filtered daylight is wanted. Every shutter is fabricated to the opening size and finished in one of eight standard colors.
Highlights
- Hand adjustable 3.46 in (88 mm) flat louver blades
- Aluminum blades standard; glass blade option
- 1.18 in (30 mm) frame with 2.56 in (65 mm) panel stiles
- 0.055 in (1.4 mm) profile wall
- Panels 15.7 to 33.5 in (400 to 850 mm) wide, heights to 59.1 in (1500 mm)
- Hinged panels open to the inside or outside
- Eight standard fluorocarbon and woodgrain finishes
Specification Table
| Configuration | Single panel or double panel pair, hinged to open in or out |
| Panel sizing | 15.7 to 33.5 in (400 to 850 mm) wide; heights to 59.1 in (1500 mm); fabricated to opening size |
| Frame section | 1.18 in (30 mm) |
| Panel section | 2.56 in (65 mm) |
| Louver blades | 3.46 in (88 mm) flat blades; aluminum standard, glass on request |
| Blade operation | Hand lever on the center stile tilts blades in unison |
| Profile wall thickness | 0.055 in (1.4 mm) |
| Material | Extruded aluminum profiles |
| Installation | Surface mount on the opening face or reveal |
| Hardware | Lever handles and butt hinges, finished to match |
| Finish system | Factory applied finish program in eight standard colors: five solid fluorocarbon coated tones and three woodgrain films |
| Representative weight | About 98 lb (44.3 kg) as a 27.6 x 55.1 in single panel with aluminum blades (engineering estimate) |
| Warranty | Confirmed during quote review |
Included Equipment
- Aluminum shutter frame and louver panel set
- Hand lever blade adjustment hardware
- Butt hinges and lever handles
- Installation fasteners and shim guidance
Installation Notes
- Verify the opening face or reveal is flat, sound, and square before release.
- Sized to your opening within the factory range; exact dimensions are confirmed during quote review.
- Anchor hinge stiles to structure, not to cladding alone, and seal fastener penetrations on exterior walls.
- Check blade clearance through the full swing before final fixing.
- Installation should be completed by a licensed contractor.
Warranty and Support
- Warranty coverage is confirmed during quote review before release.
- Quote packages include hardware adjustment guidance and finish care notes.
Frequently Asked Questions
Do the blades move?
Yes. A hand lever on the center stile tilts the 88 mm blades in unison, from closed for privacy and weather to open for airflow and view.
Can the panels open like a door?
Yes. Panels hang on butt hinges and open to the inside or outside, so glazing behind them stays reachable for cleaning.
What is the glass blade option?
The factory can supply the same blade geometry in glass, which keeps daylight while screening the view. It is selected as the Louvers option on this page.
How does the 30 Series differ from the 40 Series?
The architecture matches; the 40 Series carries a deeper 1.57 in (40 mm) frame for larger panels. This 30 Series page also publishes the factory panel size run.
Documents
- Type Louvered Shutter
- SKU SW-WIN-SHUT-ALU30-SP-AL-MB
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
