Spectre Window 35.5 in. x 35.5 in. Vinyl Utility Sliding Window with Half Screen

The 2 lite sash layout keeps one panel fixed and slides the other from the left as viewed outside, secured with a single sweep lock. Interlocking panels and an internal weep system shed water out of the frame instead of letting it pool, and the white extruded vinyl never needs paint. An integrated nailing fin surrounds the 3 in. deep frame for fast new construction installs into a 36 in. x 36 in. rough opening. At 21 lb the unit sets easily with one installer, and the fiberglass mesh half screen covers the operable panel out of the box.

Highlights

• 35.5 in. x 35.5 in. unit for a 36 in. x 36 in. rough opening
• Single strength glazing in a solid welded vinyl main frame

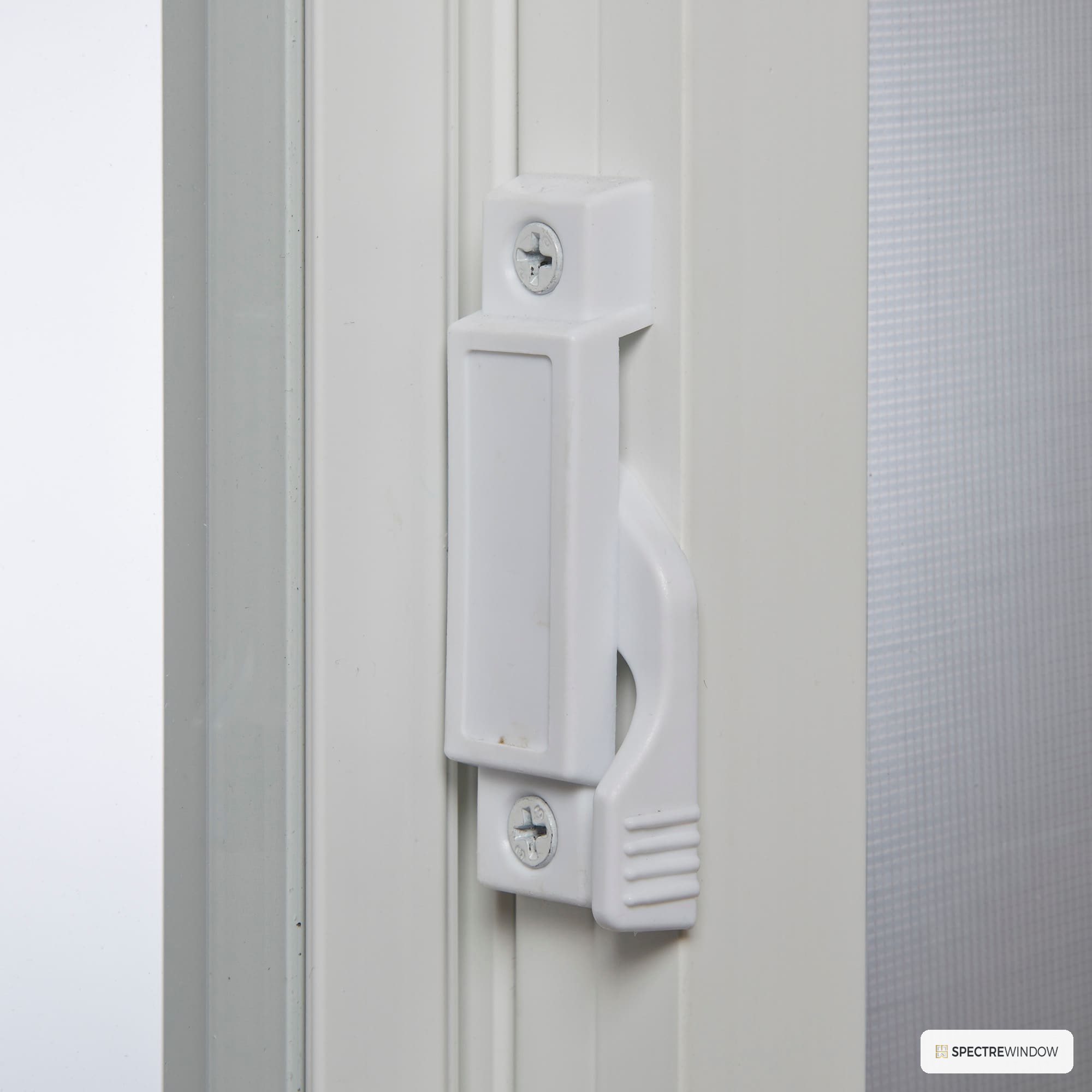

• Left operable 2 lite sash layout with single sweep lock
• Internal weep system drains the sill cavity
• Integrated nailing fin for weathertight new construction installs
• Fiberglass mesh half screen included
• White frame inside and out, no painting
• 21 lb unit weight for one-person setting

Specification Table

Included Equipment

• Assembled vinyl sliding window with single strength glazing
• Fiberglass mesh half screen in roll-form frame
• Factory-fitted sweep lock
• Integrated nailing fin around the frame perimeter

Installation Notes

• Verify the rough opening is 36 in. x 36 in., square, and framed with a level sill before setting the unit.
• Set the frame plumb and level and shim at the lock rail so the sliding panel glides and the sweep lock engages cleanly.
• Fasten through the nailing fin and integrate it with the weather barrier shingle fashion; do not fasten through the sill track.
• Keep the internal weep path clear of sealant and debris so the frame can drain.

Warranty and Support

• Limited manufacturer-backed warranty program, confirmed during quote review.
• Quote packages include screen care and lock adjustment guidance.

Frequently Asked Questions

Is this window insulated?
No. It carries a single pane of single strength glass, which suits unconditioned garages, sheds, barns, and utility buildings. For conditioned living space, use an insulated dual pane sliding window instead.

Which side slides open?

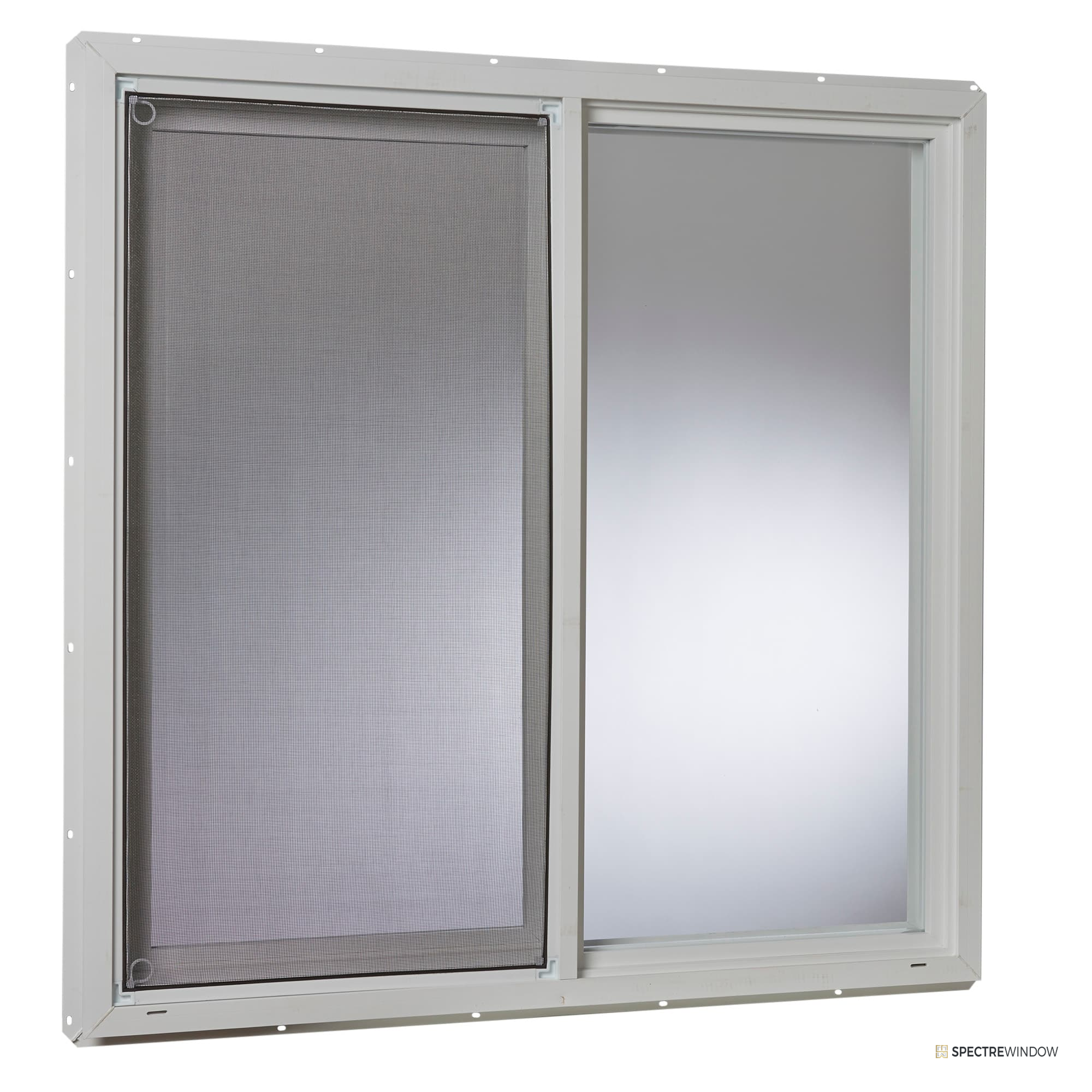

Viewed from the exterior, the left panel slides and the right panel is fixed. The half screen covers the operable side.

Can it be installed in an existing opening?
It is built for new construction with an integrated nailing fin. In retrofit work the siding must be cut back so the fin can seat against the sheathing.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
