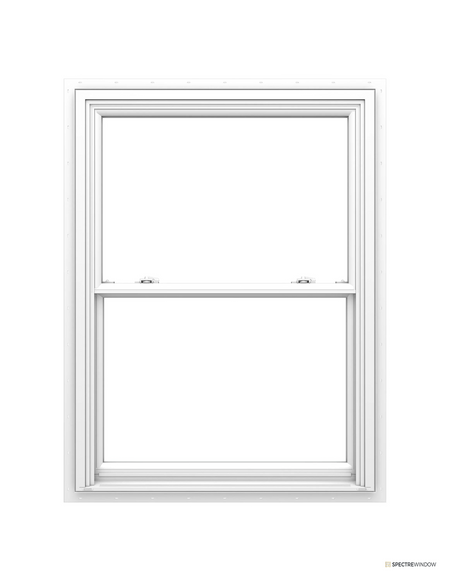

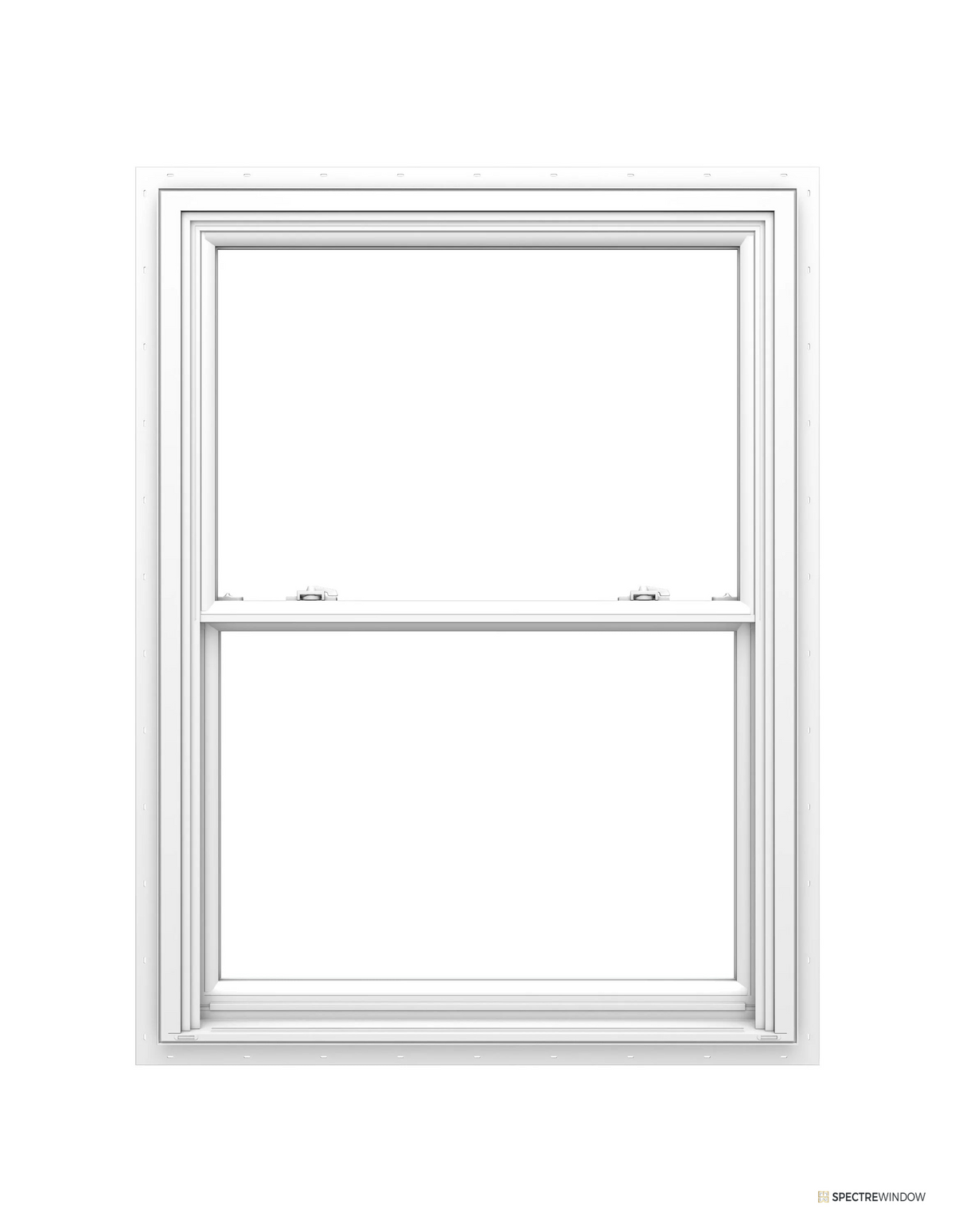

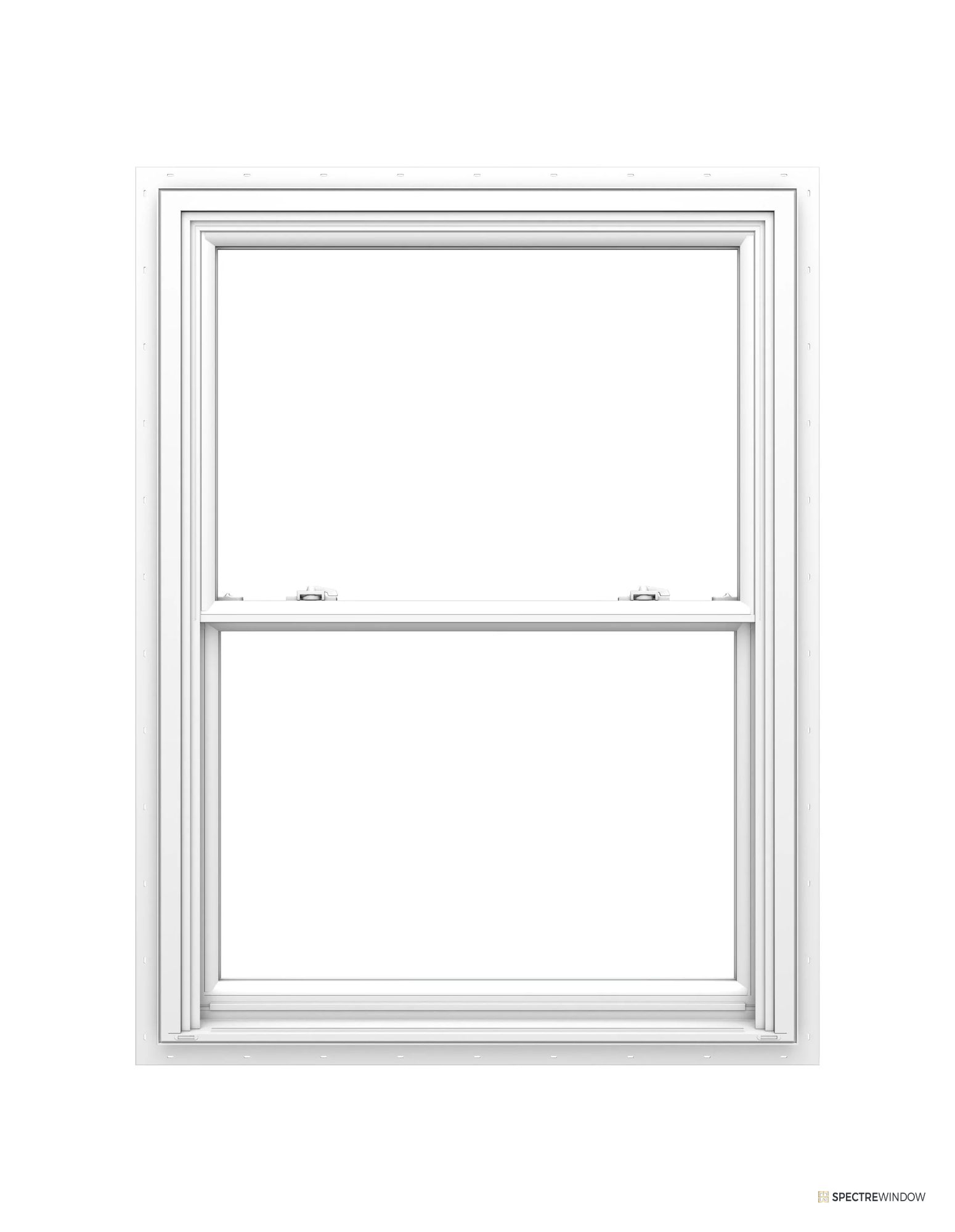

Spectre Window 35.5 in. x 59.5 in. Vinyl Double Hung Window with Low-E Argon Glass and Full Screen - front view

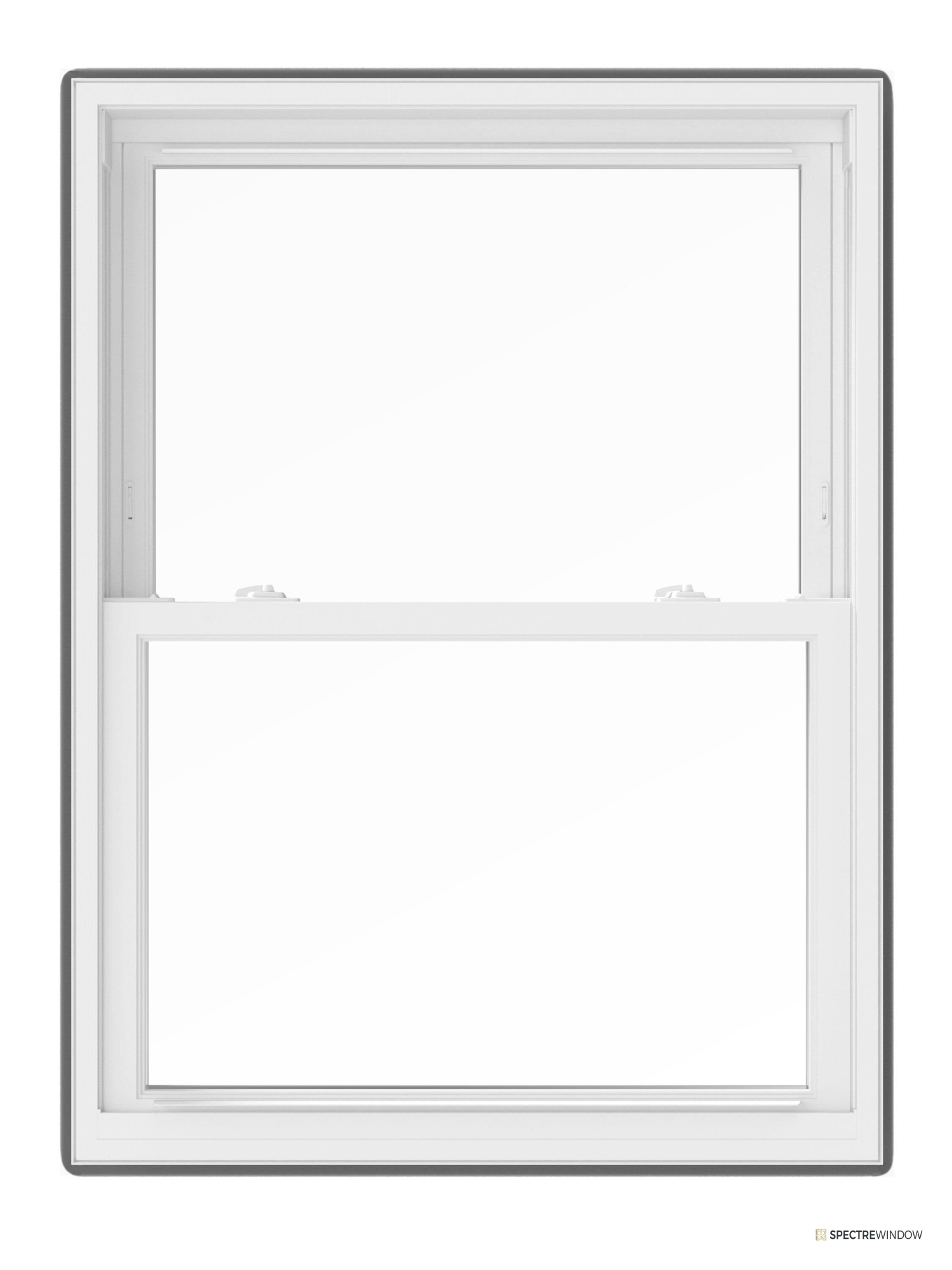

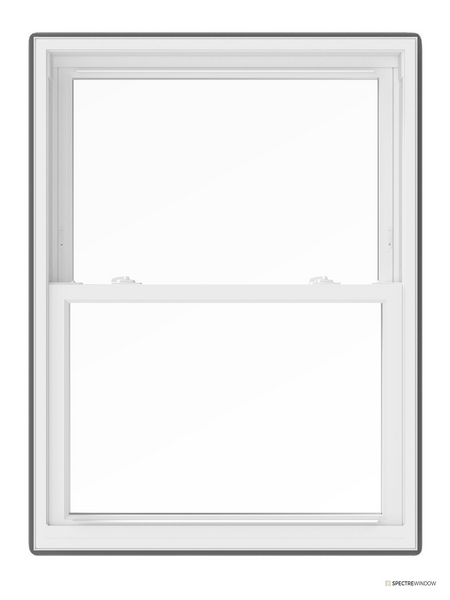

Spectre Window 35.5 in. x 59.5 in. Vinyl Double Hung Window with Low-E Argon Glass and Full Screen - alternate view

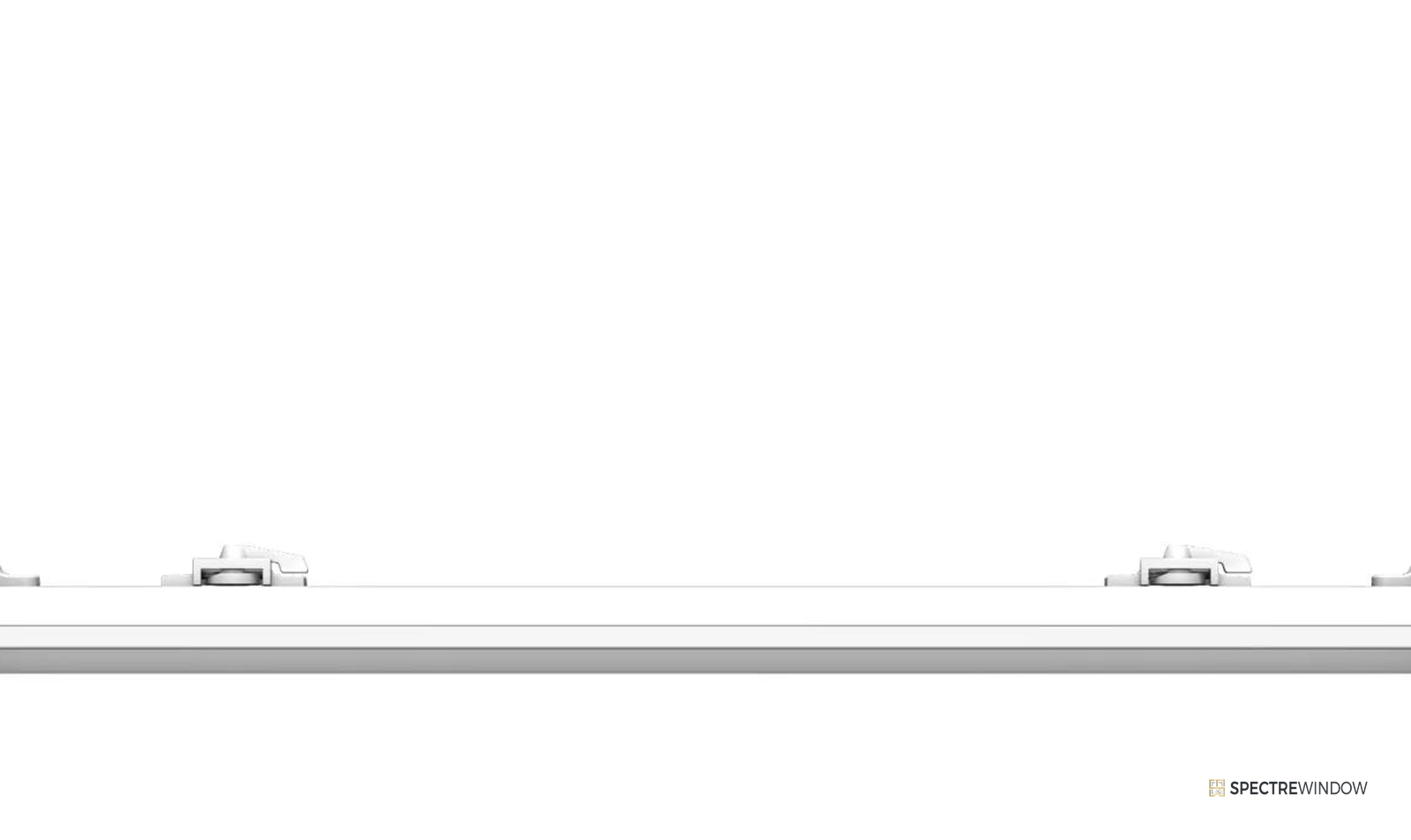

Spectre Window 35.5 in. x 59.5 in. Vinyl Double Hung Window with Low-E Argon Glass and Full Screen - frame and hardware detail

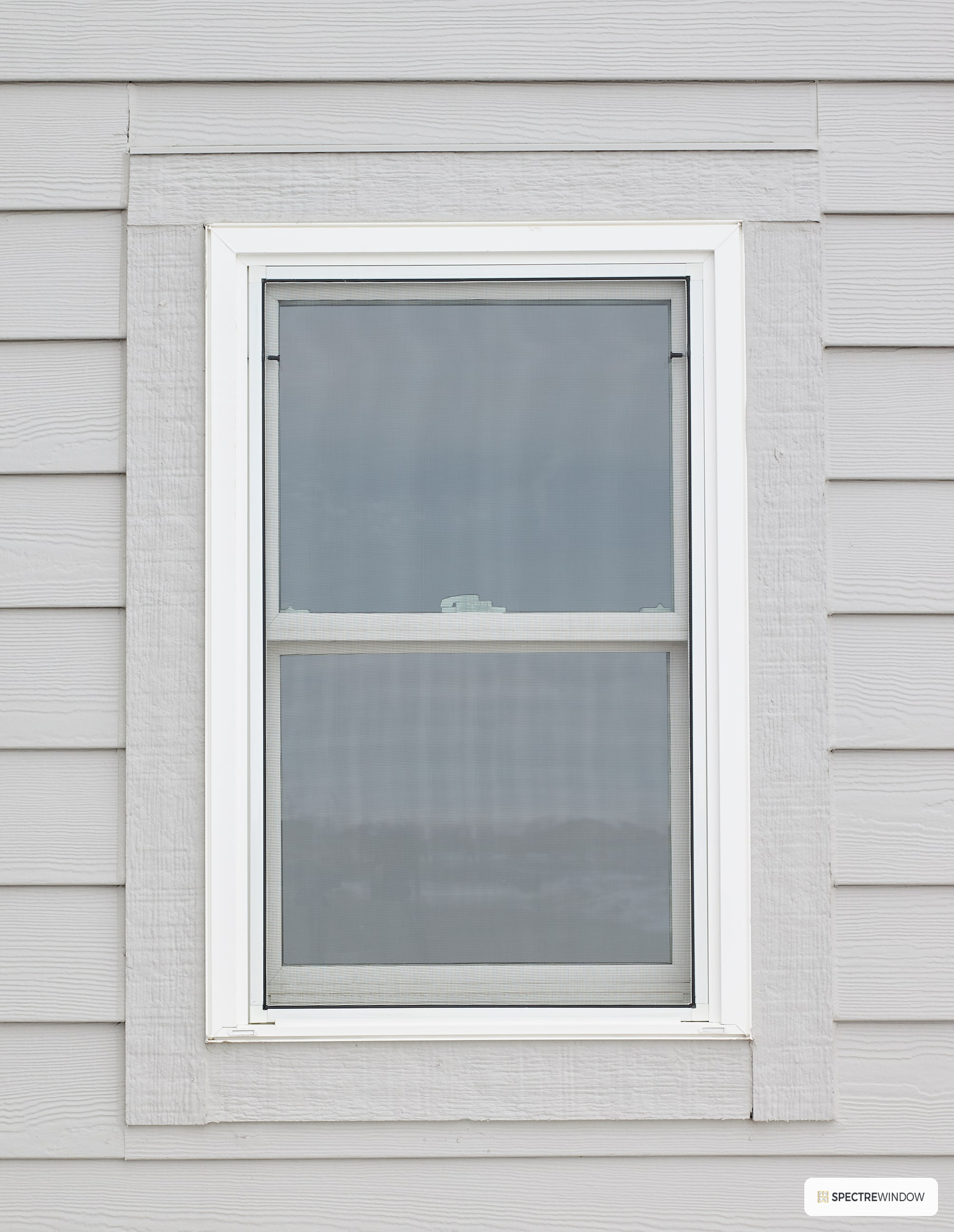

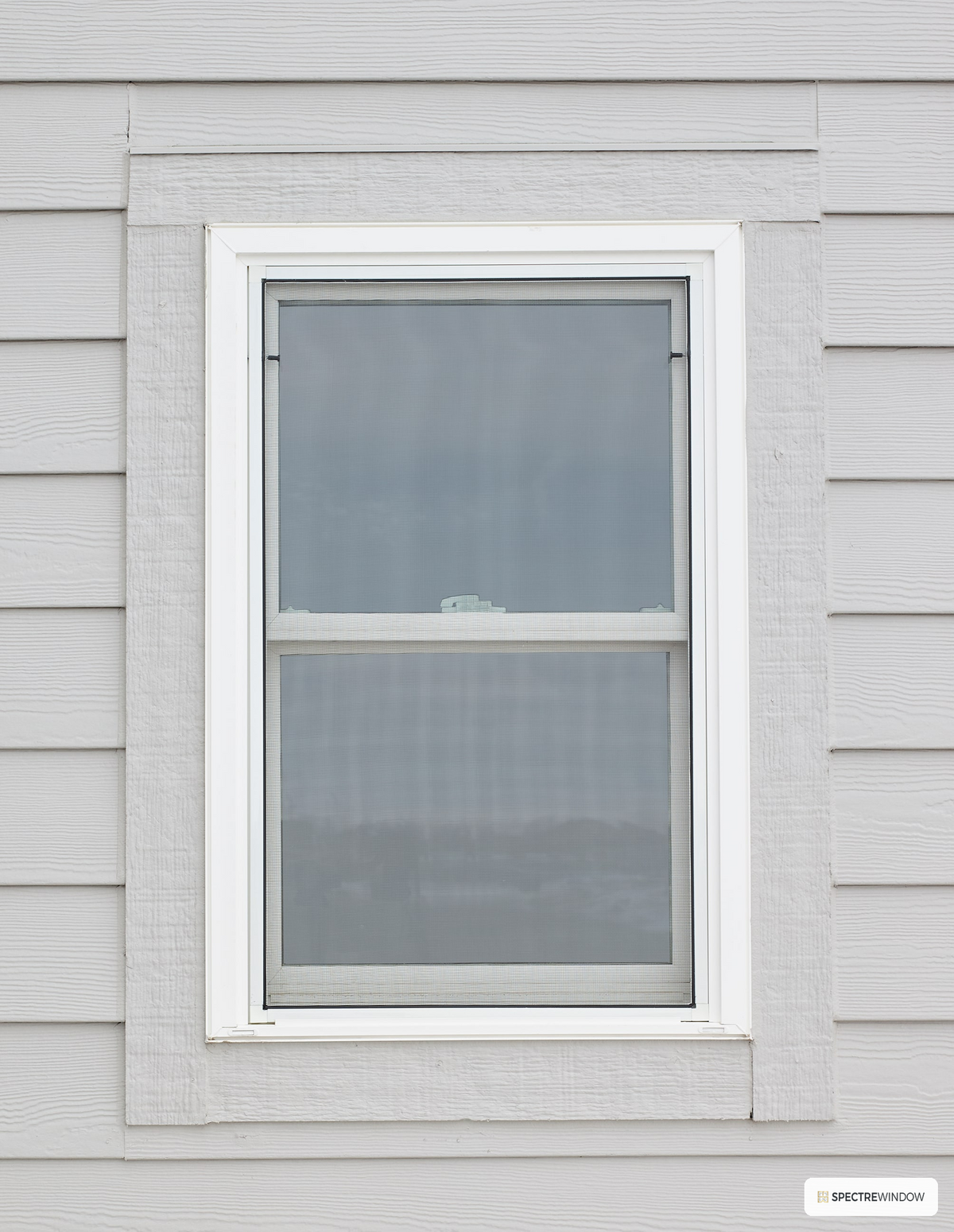

Spectre Window 35.5 in. x 59.5 in. Vinyl Double Hung Window with Low-E Argon Glass and Full Screen - installed view
Spectre Window 35.5 in. x 59.5 in. Vinyl Double Hung Window with Low-E Argon Glass and Full Screen - front view
Spectre Window 35.5 in. x 59.5 in. Vinyl Double Hung Window with Low-E Argon Glass and Full Screen - alternate view
Spectre Window 35.5 in. x 59.5 in. Vinyl Double Hung Window with Low-E Argon Glass and Full Screen - frame and hardware detail
Spectre Window 35.5 in. x 59.5 in. Vinyl Double Hung Window with Low-E Argon Glass and Full Screen - installed view

Product image note: Images are representative of product class and included accessory configuration. Final model, exact finish, and included components are confirmed during quote review.

Spectre Window

Spectre Window 35.5 in. x 59.5 in. Vinyl Double Hung Window with Low-E Argon Glass and Full Screen

SKU: SW-WIN-DH-VNL150-235-375
Size
Installation

Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

Both sashes operate on constant force balances, tilt in for cleaning, and pull tight against the weatherstrip with dual cam locks. The 4.19 in. jamb depth of the fin units suits 2x4 walls with sheathing without extension jambs in most assemblies, while the insert units drop into sound existing frames. The insulated unit runs a verified 0.30 U-factor with 0.21 solar heat gain, rated DP35.

Highlights

  • Both sashes operate and tilt in on constant force balances
  • Verified U-factor 0.30, SHGC 0.21, DP35 (flagship configuration)
  • Full fiberglass mesh screen included
  • 4.19 in. jamb depth on fin units
  • Twelve stocked sizes across fin and insert formats
  • Dual cam locks at the meeting rail

Specification Table

Flagship unit size 35.5 in. W x 59.5 in. H
Rough opening 36 in. W x 60 in. H
Jamb depth 4.19 in. (fin units)
Frame material Vinyl, welded
Operation Double hung, both sashes tilt in
Glazing Double pane, Low-E, argon fill
U-factor / SHGC 0.30 / 0.21 (flagship configuration)
Design pressure DP35
Screen Full screen included
Locks Two cam locks
Weight 49 lb (flagship size)
Warranty Limited manufacturer-backed warranty program, confirmed during quote review

Included Equipment

  • Assembled double hung window unit
  • Factory-installed full screen
  • Integrated nailing fin (fin configuration)

Installation Notes

  • Verify the rough opening at unit size plus 0.5 in. each way; the flagship fin unit takes 36 in. x 60 in.
  • Shim at sill ends, meeting rail, and head; keep diagonals within 1/8 in.
  • Flash fin units into the weather resistive barrier per the released documents; insert units seal to the existing frame perimeter.
  • Cycle both sashes and tilt latches before trimming out.

Warranty and Support

  • Published warranty coverage: Limited manufacturer-backed warranty program, confirmed during quote review.

Frequently Asked Questions

Are energy values verified?
Yes. The flagship configuration publishes a 0.30 U-factor and 0.21 SHGC. Values for other sizes are confirmed during quote review.

Fin or insert: which do I need?
Fin units are for open framing on new construction or full tear-outs. Insert units renovate a sound existing frame without disturbing trim.

Is the screen full height?
Yes. Every unit ships with a full fiberglass mesh screen.

Can I mix sizes on one order?
Yes. Build a quote list with each size and configuration; the platform quotes additional sizes on request.

Documents
  • Type Double Hung Window
  • SKU SW-WIN-DH-VNL150-235-375

Download the available product documents below. If a document is not linked yet, use the SKU during quote review.

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
