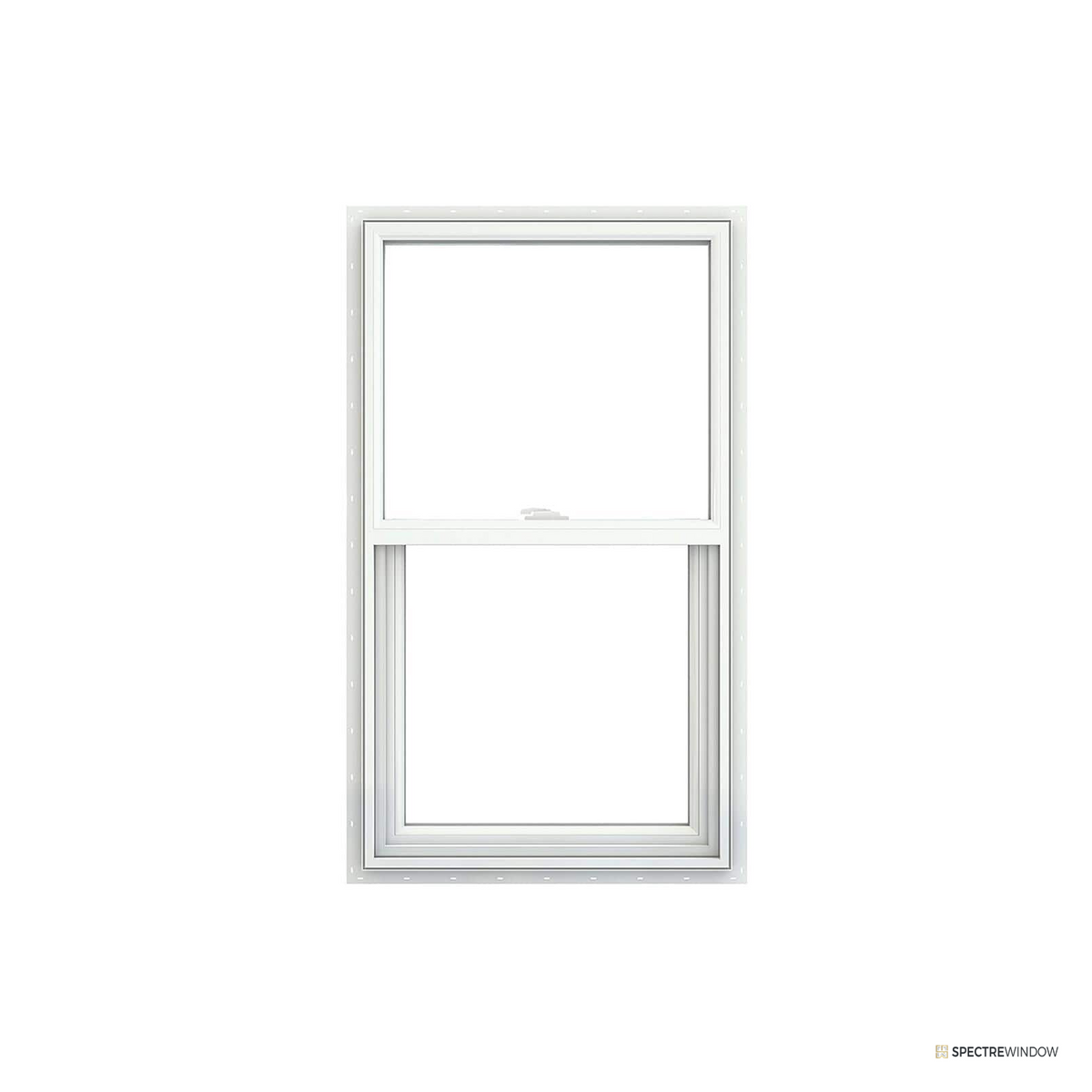

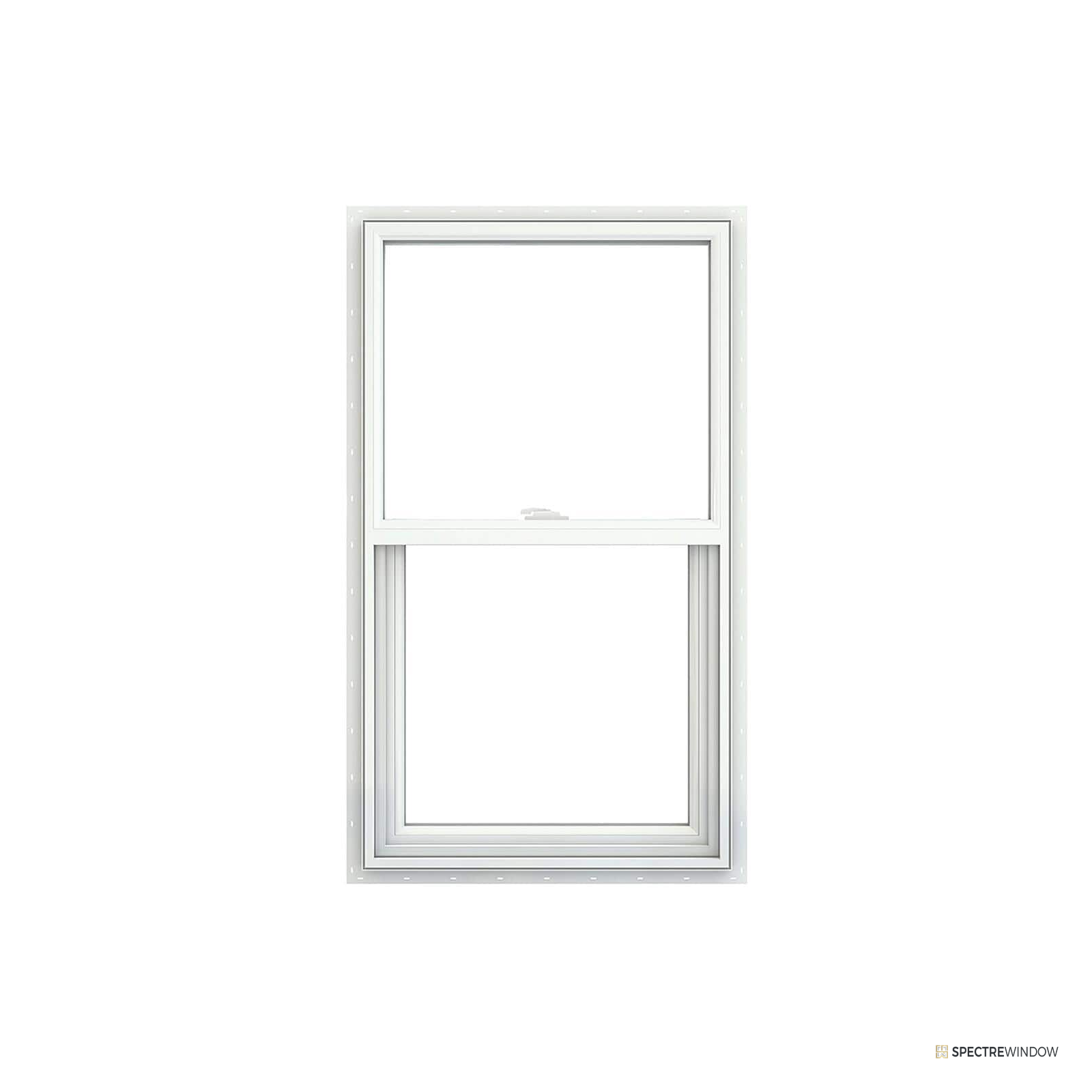

Spectre Window 35.5 in. x 59.5 in. Vinyl Single Hung Tilt Window, New Construction Nailing Fin

The multi-chambered vinyl frame carries an integral nailing fin on all four sides and welds at every corner for a weather-tight shell. The operating sash tilts into the room for cleaning from inside, and the insulated unit pairs a Low-E coating with argon fill for year-round comfort. A black exterior option with white interior supports current elevation palettes without a paint line on site. Eleven stocked sizes cover openings from 24 by 36 up to 36 by 72; additional sizes are quoted on request.

Highlights

• Integral nailing fin for new construction installation
• Tilt-in bottom sash for in-room cleaning
• Double pane Low-E insulated glass with argon fill
• Welded multi-chambered vinyl frame and sash
• White or black exterior with white interior
• Screen included from the factory
• Eleven stocked sizes; additional sizes quoted on request

Specification Table

Included Equipment

• Assembled single hung window unit
• Factory-installed screen
• Integral nailing fin

Installation Notes

• Verify the rough opening is 0.5 in. larger than the unit in width and height, square and plumb.
• Set the unit on a level sill, shim at balance points, and fasten through the nailing fin per the released installation documents.
• Integrate the fin with the weather resistive barrier: sill flashing first, jamb flashing over the fin, head flashing last.

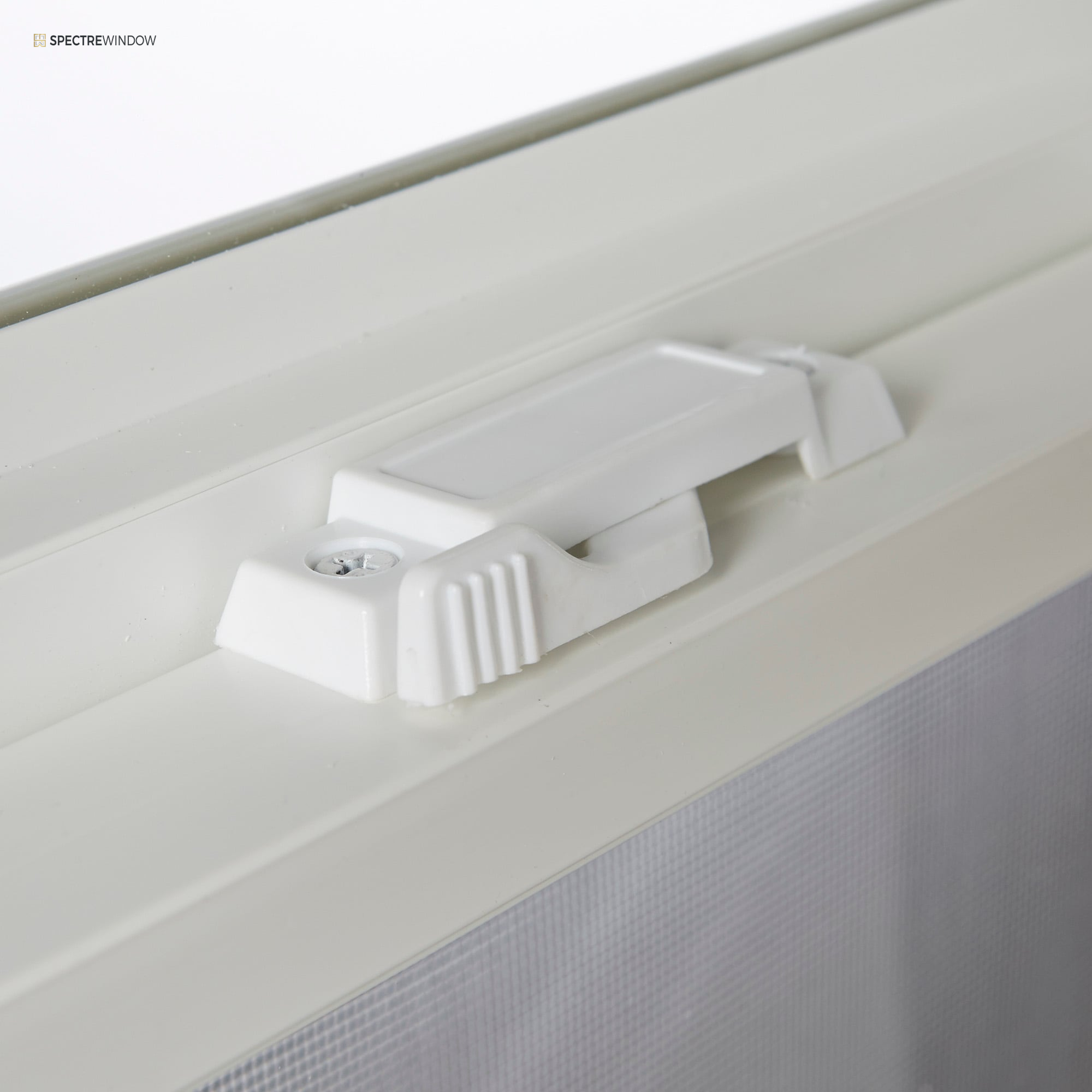

• Confirm the tilt latches re-engage after the sash is tilted for cleaning.

Warranty and Support

• Published warranty coverage: Limited manufacturer-backed warranty program, confirmed during quote review.

Frequently Asked Questions

Is this a replacement window?
No. This platform carries an integral nailing fin for new construction or full tear-out openings. A companion replacement platform is available in the same family.

Does the sash tilt for cleaning?
Yes. The operating bottom sash tilts into the room so exterior glass can be cleaned from inside.

Which sizes are stocked?
Eleven sizes from 23.5 x 35.5 in. to 35.5 x 71.5 in. are stocked. Additional sizes are quoted on request.

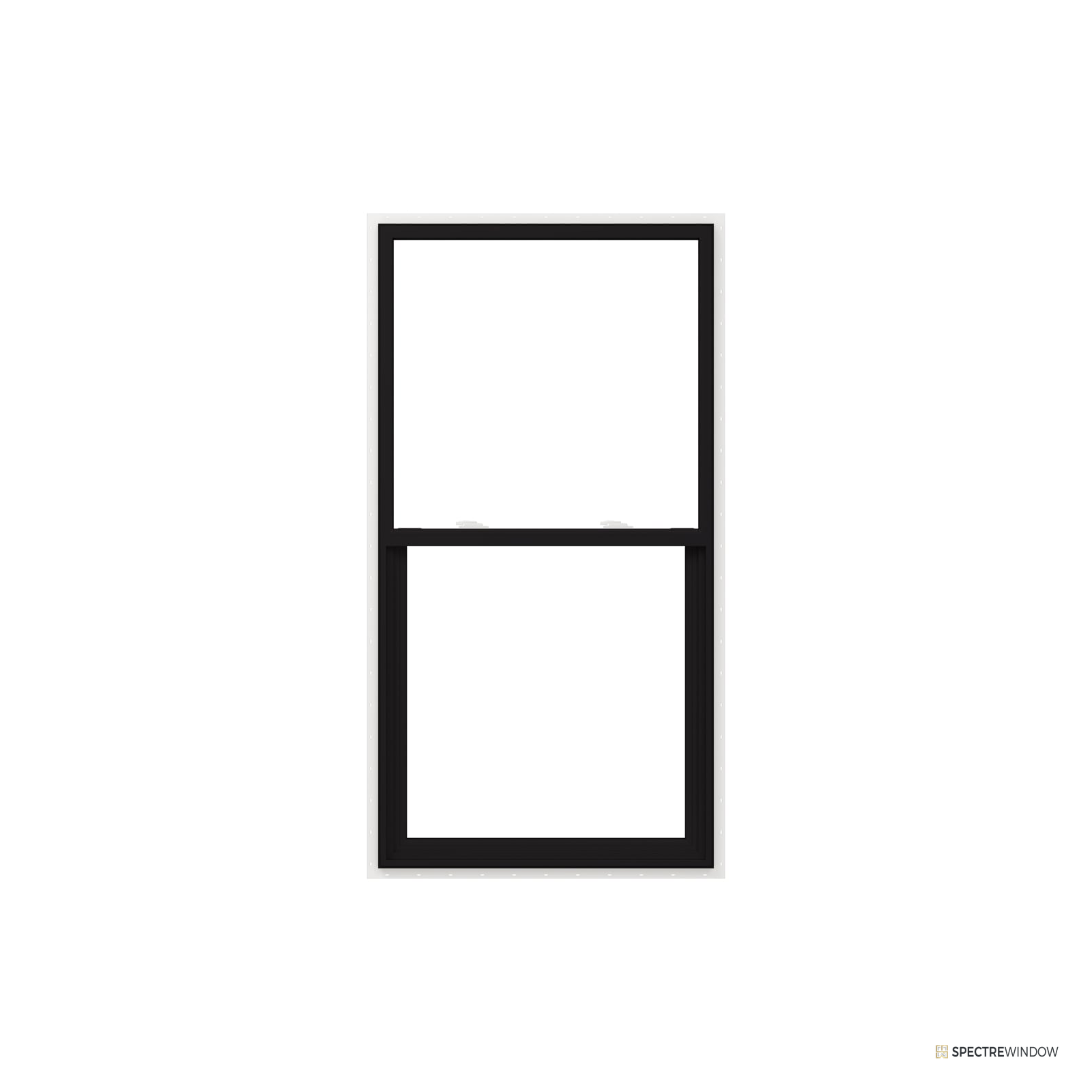

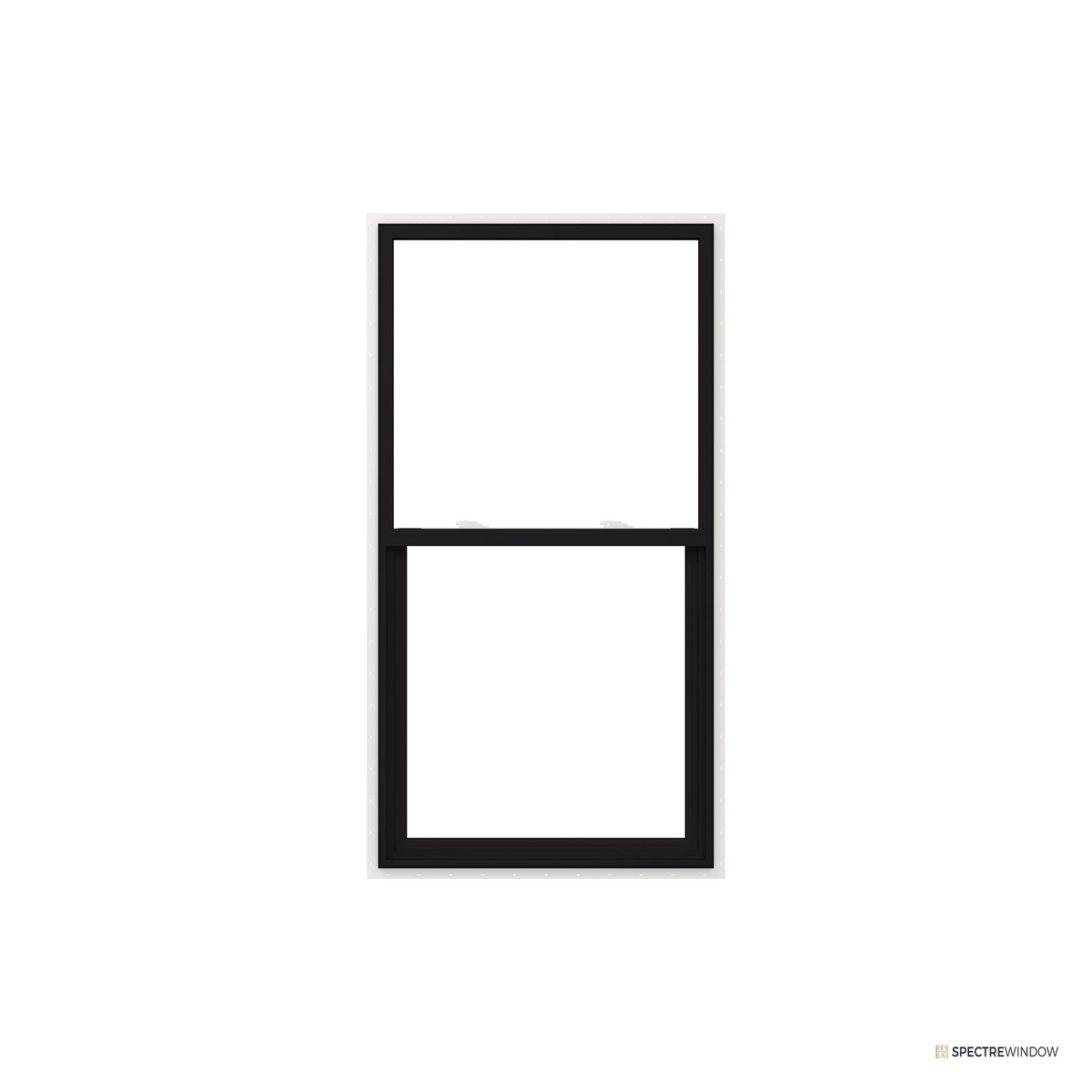

Is the black frame painted?
No. The black exterior is a factory finish over the vinyl profile with a white interior face.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
