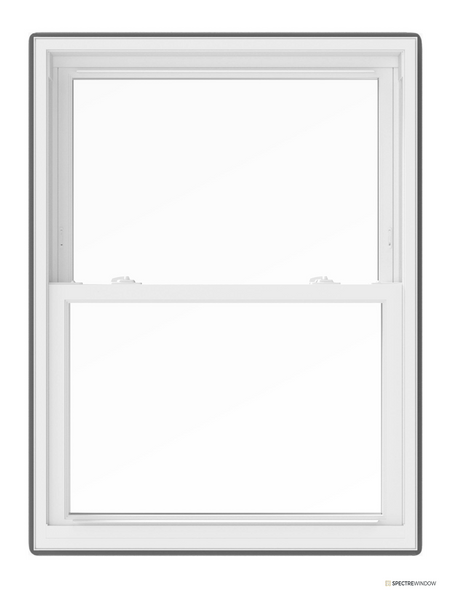

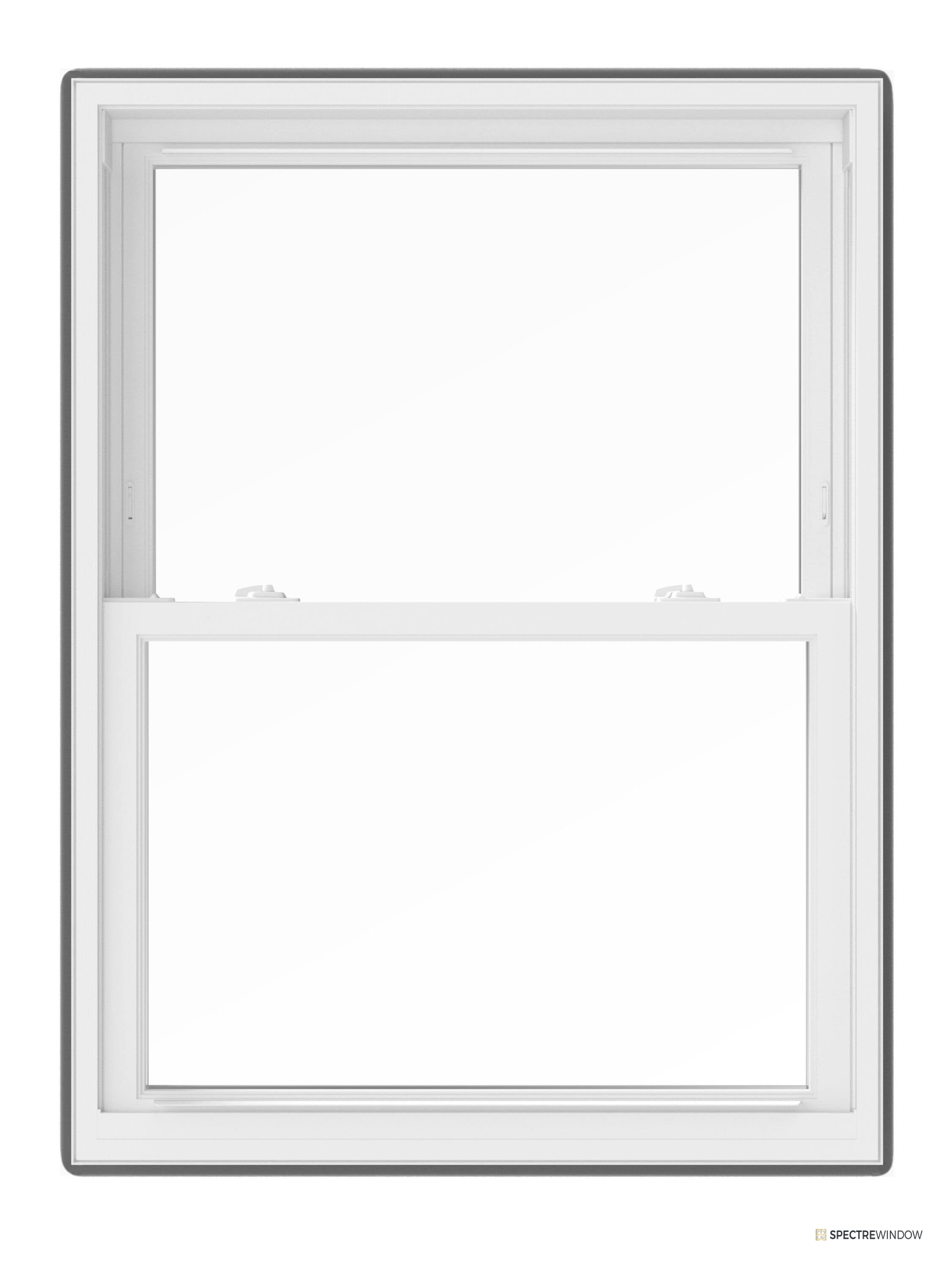

Spectre Window 35.75 in. x 53.5 in. Vinyl Double Hung Replacement Window, Triple Pane Option, ENERGY STAR Certified
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

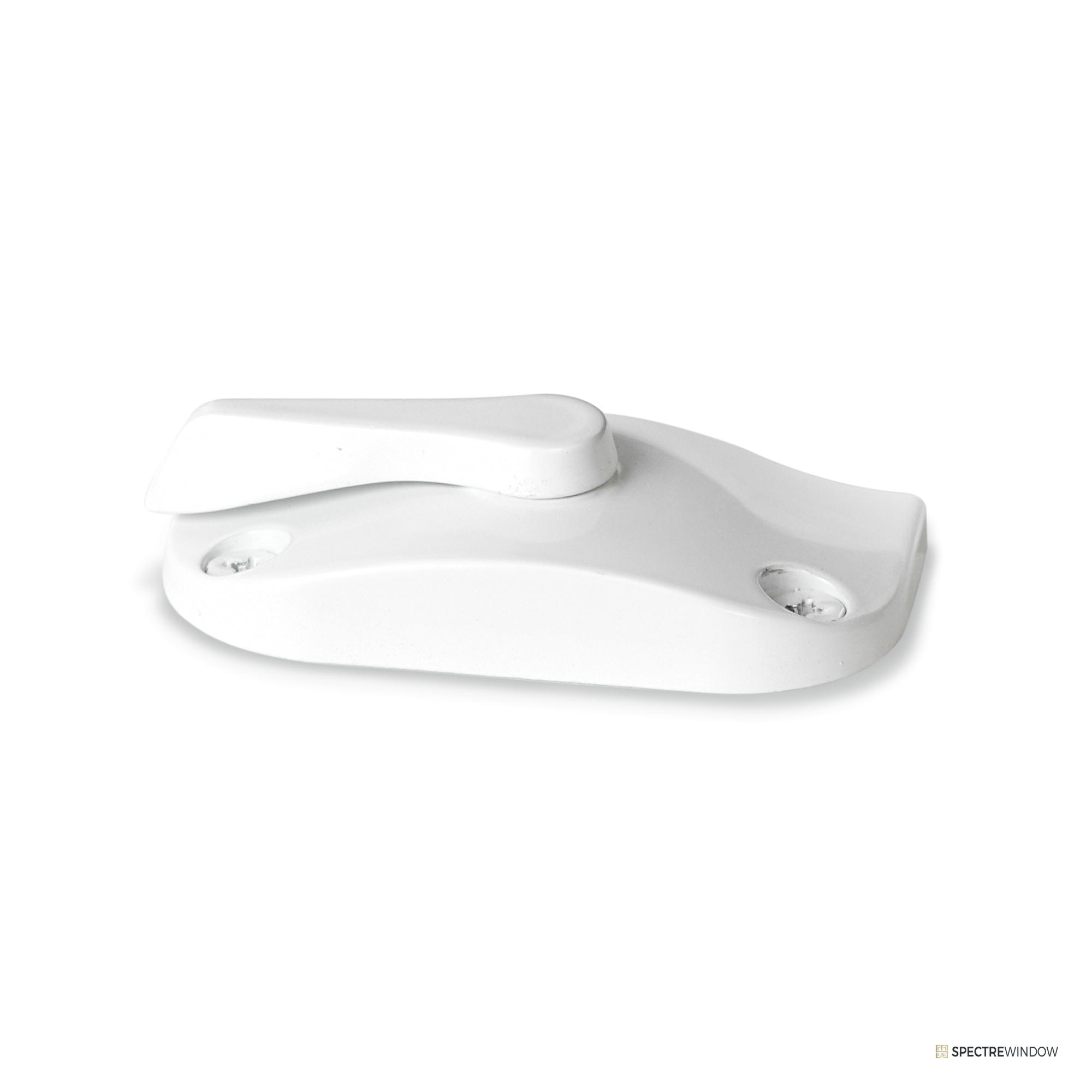

The insert frame drops into a sound existing opening without disturbing trim. Both sashes tilt in on constant force balances and lock with dual cams. The triple pane insulated unit posts a verified 0.21 U-factor, 0.16 solar heat gain, and a DP60 design pressure with ENERGY STAR certification in northern and southern climate maps; a dual pane Low-E argon build is offered where budgets lead. A factory Hunter Green exterior over white interior serves period exteriors without site painting.
Highlights
- Triple pane option: verified U-factor 0.21, SHGC 0.16, DP60
- ENERGY STAR certified flagship configuration
- Replacement insert format, transferrable warranty program
- Both sashes tilt in on constant force balances

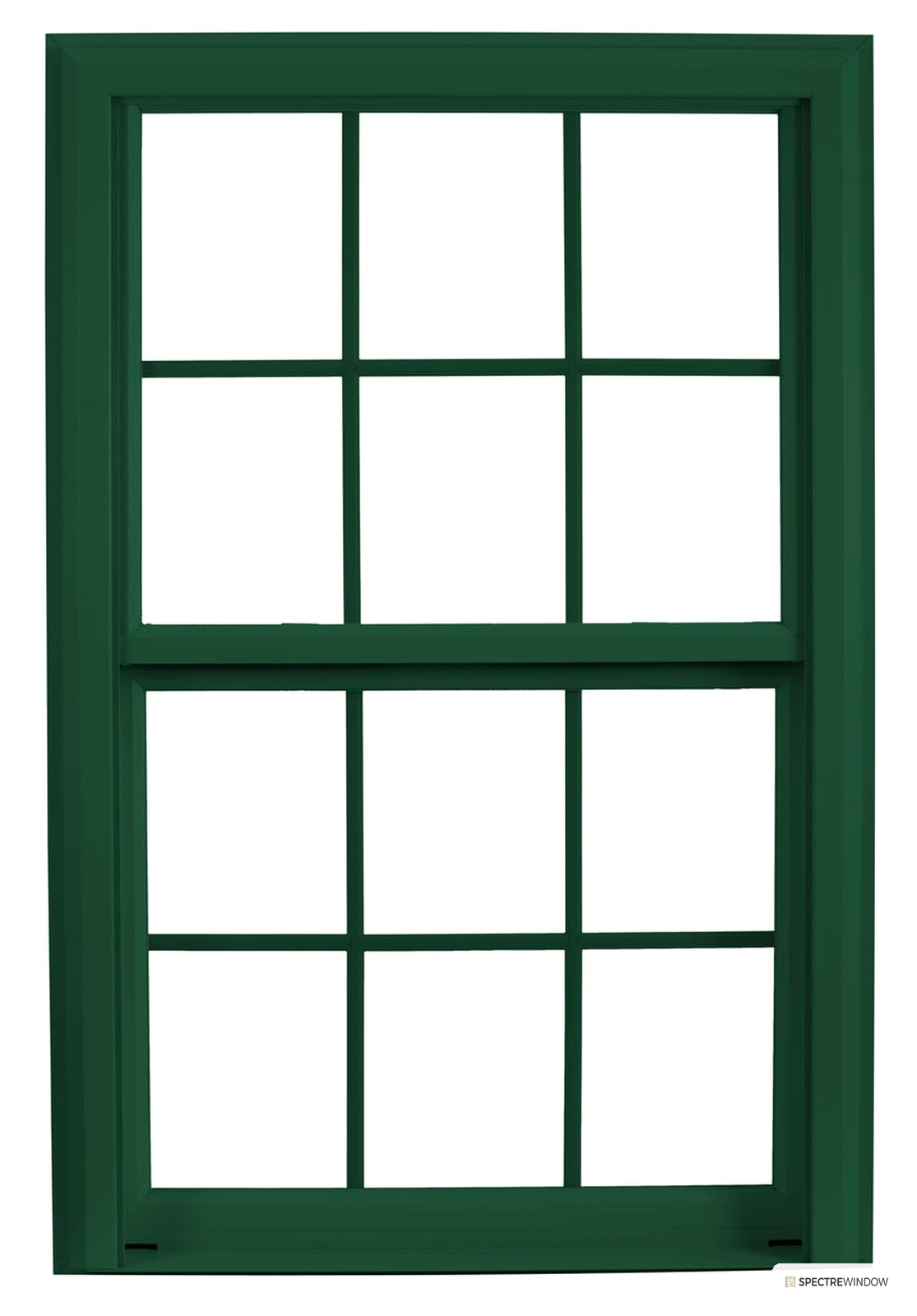

- White or Hunter Green factory exterior
- Half screen included
Specification Table
| Flagship unit size | 35.75 in. W x 53.5 in. H |
| Rough opening | 36 in. W x 53.75 in. H |
| Jamb depth | 3.25 in. |
| Frame material | Vinyl, welded |
| Operation | Double hung, both sashes tilt in |
| Glazing options | Dual pane or triple pane, Low-E, argon |
| U-factor / SHGC | 0.21 / 0.16 (triple pane flagship) |
| Design pressure | DP60 (triple pane flagship) |
| Certification | ENERGY STAR certified (flagship configuration) |
| Screen | Half screen included |
| Weight | 72 lb (triple pane flagship) |
| Warranty | Limited manufacturer-backed warranty program, confirmed during quote review |
Included Equipment
- Assembled double hung insert unit
- Factory-installed half screen
Installation Notes
- Measure the existing frame at three points each way; order to the smallest dimension.
- Set the insert against the outside stops, plumb and square, shimming at the meeting rail.
- Fasten through the jambs only; never through the sill.
- Insulate the perimeter gap with low-expansion foam and reinstall interior stops.
Warranty and Support
- Published warranty coverage: Limited manufacturer-backed warranty program, confirmed during quote review.
Frequently Asked Questions
Is triple pane worth it?
For energy-driven renovations, yes: the triple pane build reaches a 0.21 U-factor versus roughly 0.27 for the dual pane, and adds measurable sound damping.
Will it fit my existing frame?
Insert units are ordered to the measured frame opening. Provide your three-point measurements in the quote request.
How heavy is the triple pane unit?
The flagship triple pane unit weighs about 72 lb; plan a two-person set.
Is the Hunter Green painted on site?
No. It is a factory exterior finish over a white interior.
Documents
- Type Double Hung Window
- SKU SW-WIN-DH-VNL39R-3175-535-DP
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
