Name: Spectre Window 40 Series Aluminum Casement Window, Single Glazed
Brand: Spectre Window
SKU: SW-WIN-CS-ALU40-14-MB

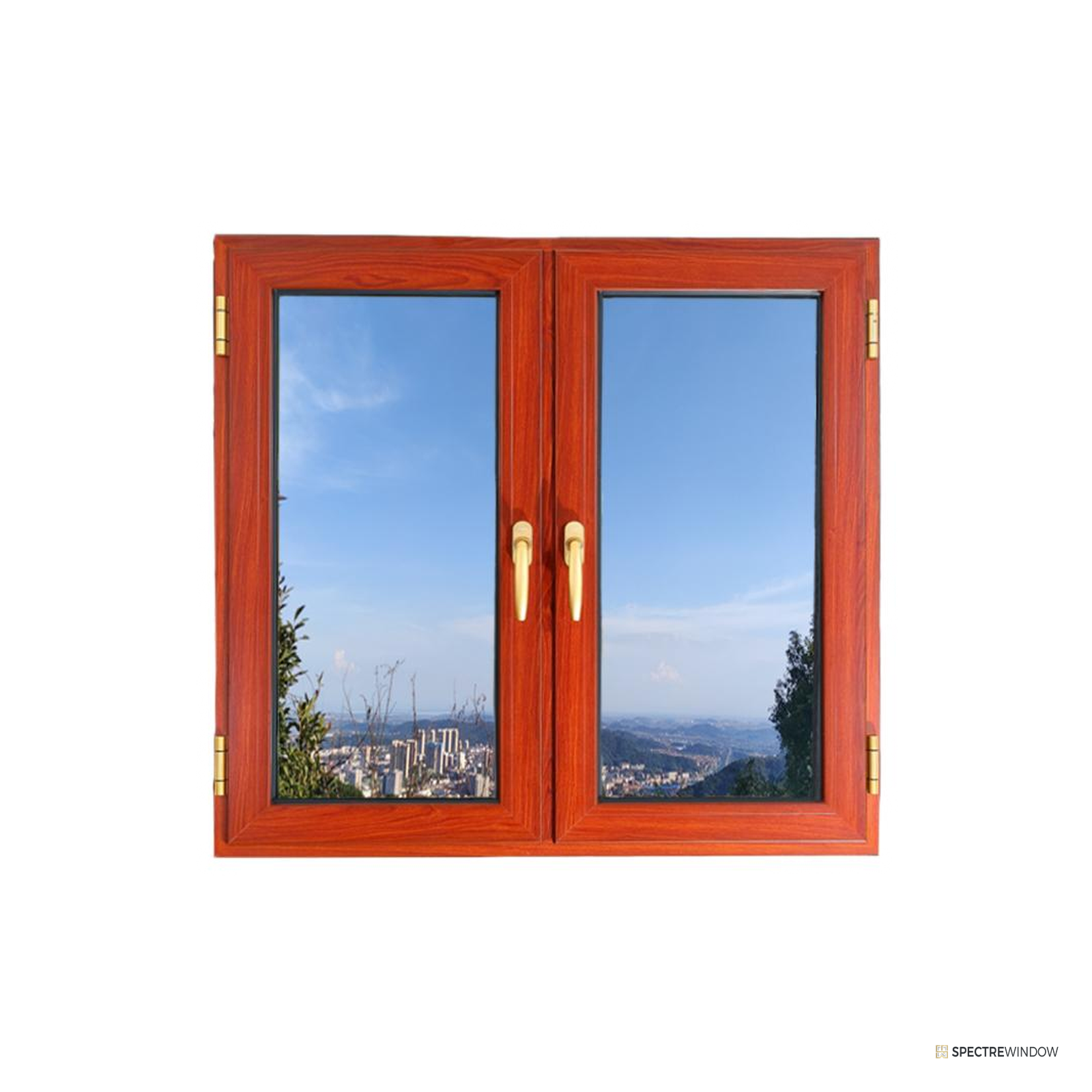

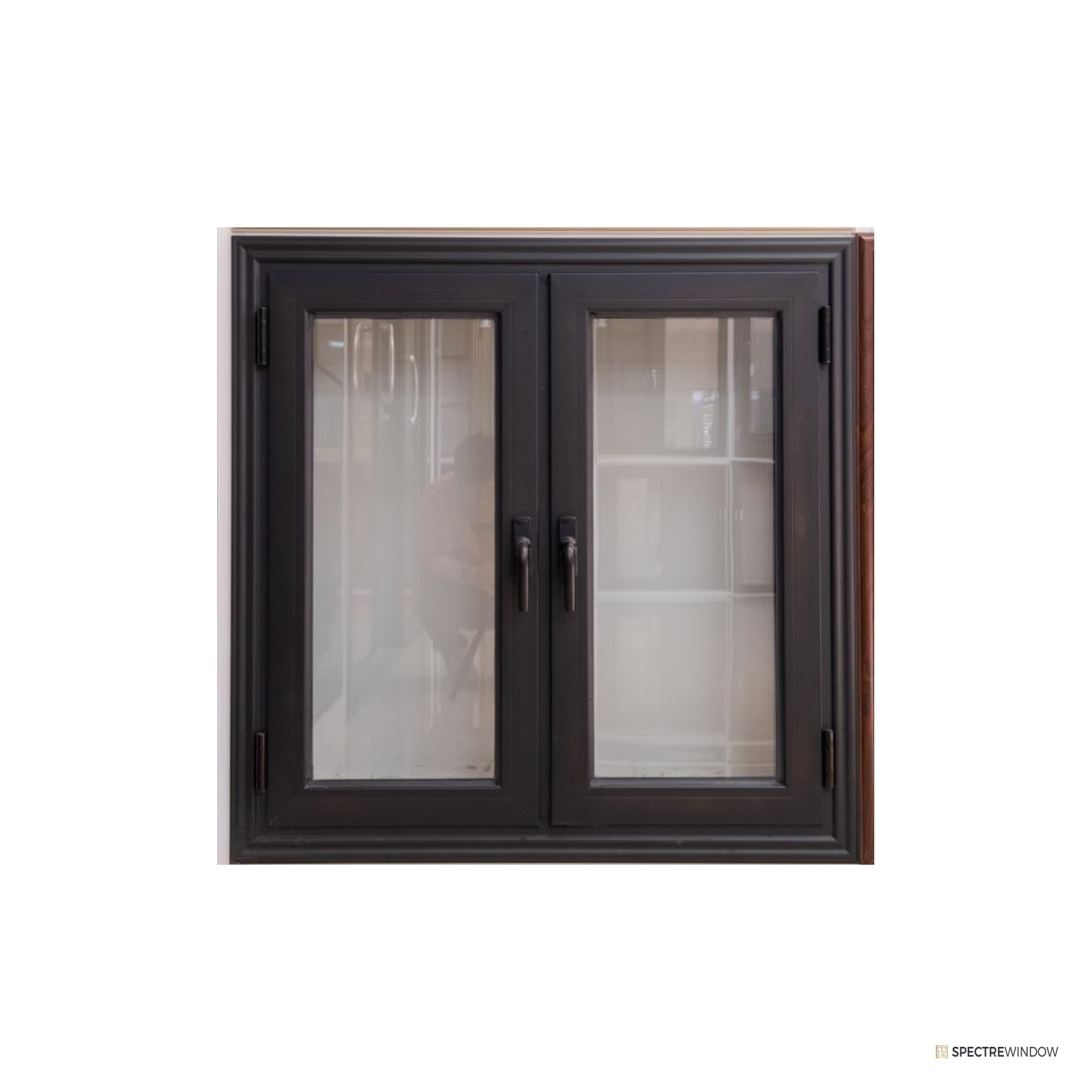

The system pairs a 1.57 in (40 mm) frame section with a 2.56 in (65 mm) sash section and carries single glazing in a 25 mm glazing pocket. Sashes run 15.7 to 33.5 in wide (400 to 850 mm) at heights to a recommended 59.1 in (1500 mm), built as single sash, double sash, or fixed plus casement layouts. The factory offers the profile in three wall gauges: 0.047 in (1.2 mm) for light duty, 0.055 in (1.4 mm) standard, and 0.079 in (2.0 mm) for heavy use openings. Wrapped inner window and exterior trim configurations are both standard, with an optional frame extension to the inside or outside of the opening. Every unit is fabricated to the opening size and finished in one of eight standard colors.

Highlights

1.57 in (40 mm) aluminum frame with 2.56 in (65 mm) sash sections
Profile wall choice of 0.047 in (1.2 mm), 0.055 in (1.4 mm), or 0.079 in (2.0 mm)
Sash widths 15.7 to 33.5 in (400 to 850 mm), heights to 59.1 in (1500 mm)
Single glazing in a 25 mm glazing pocket
Wrapped inner window or exterior trim configurations
Optional frame extension to the inside or outside
Lever handles on butt hinges
Eight standard fluorocarbon and woodgrain finishes

Specification Table

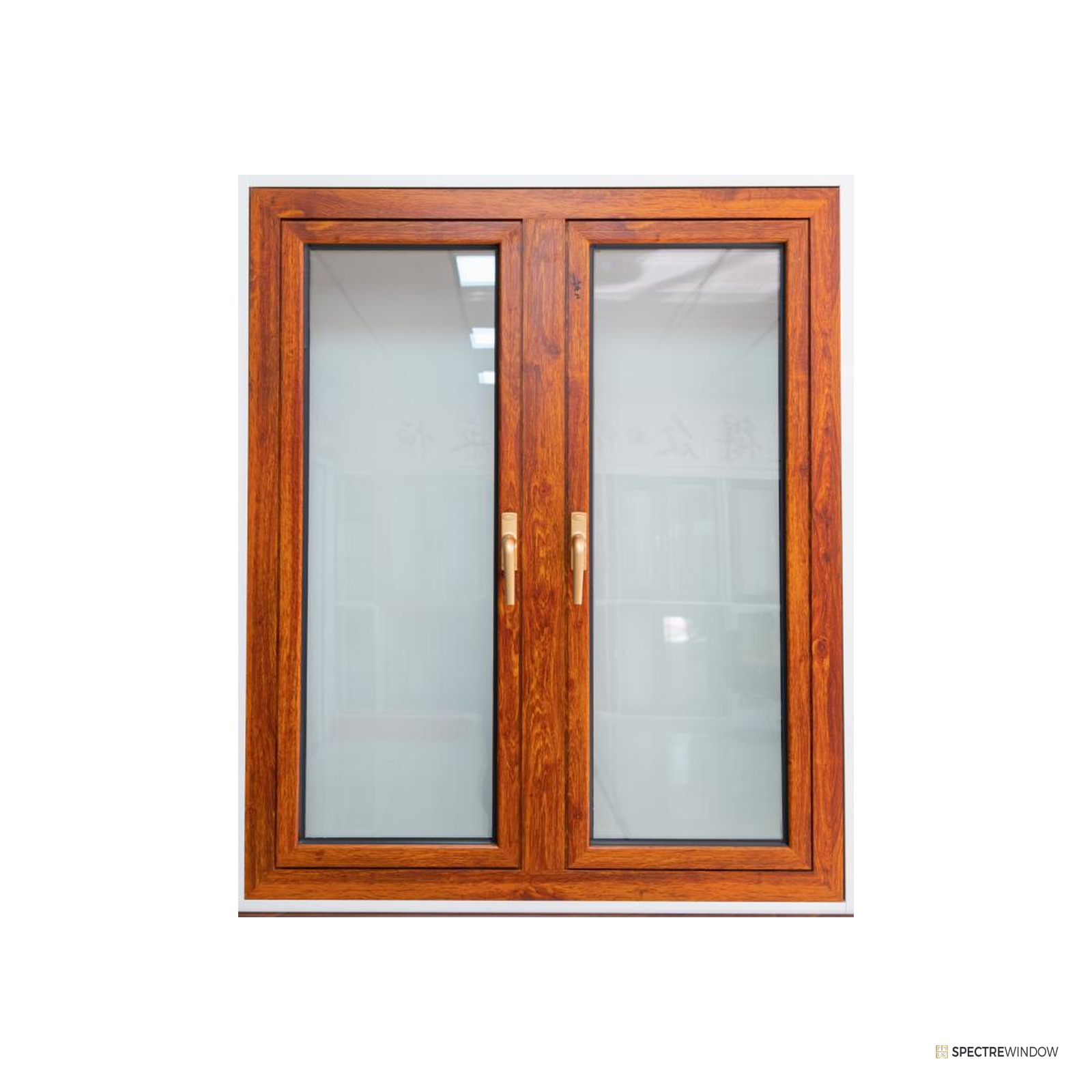

Configuration	Single sash, double sash, or fixed plus casement combinations
Sash sizing	15.7 to 33.5 in (400 to 850 mm) wide; recommended heights to 59.1 in (1500 mm); fabricated to opening size

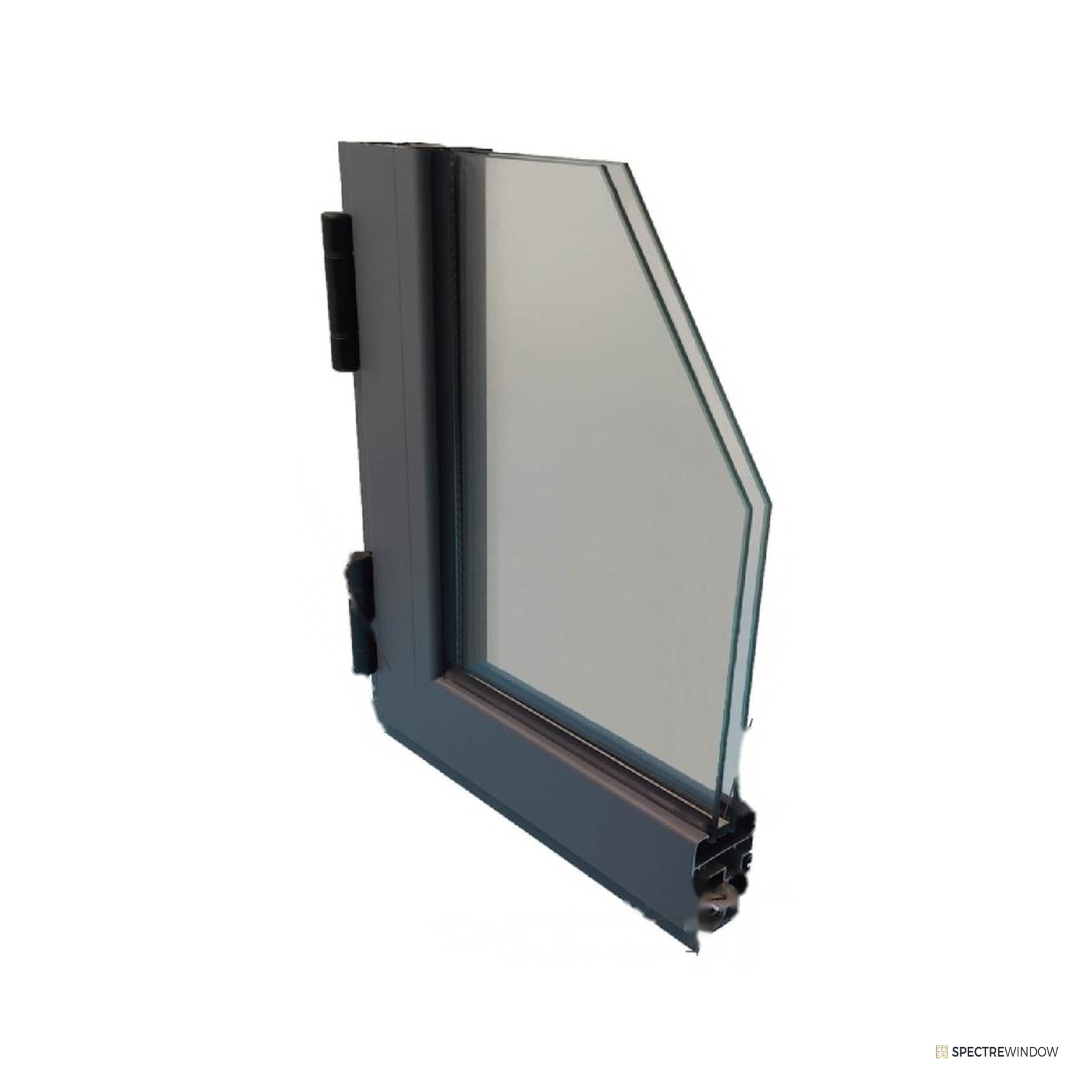

Frame section	1.57 in (40 mm)
Panel section	2.56 in (65 mm)
Profile wall thickness	0.047 in (1.2 mm), 0.055 in (1.4 mm), or 0.079 in (2.0 mm), selected at order
Thermal break	None (non thermal ambient profile)
Material	Extruded aluminum profiles
Glazing	Single glazing, 25 mm glazing pocket; upgraded glass quoted on request
Frame extension	Optional, to the inside or outside of the opening
Hardware	Lever handles on butt hinges, finished to match
Weatherstripping	Perimeter gaskets at frame and sash
Finish system	Factory applied finish program in eight standard colors: five solid fluorocarbon coated tones and three woodgrain films
Representative weight	About 200 lb (90.9 kg) as a two sash 47.2 x 55.1 in unit at 1.4 mm wall (engineering estimate)
Warranty	Confirmed during quote review

Included Equipment

Aluminum frame set with perimeter gaskets
Glazed casement sash set, hinged and factory fitted
Lever handle hardware on butt hinges
Optional frame extension profiles when ordered
Installation fasteners and shim guidance

Installation Notes

Verify the rough opening is square, level, and plumb before release; the frame must bear evenly on shims at hinge points.
Sized to your opening within the factory range; exact dimensions are confirmed during quote review.
Flash and seal the opening per local code; on exterior walls integrate a head flashing and sill sealant joint.
Do not fasten through the sill without sealing the penetrations.
Installation should be completed by a licensed contractor.

Warranty and Support

Warranty coverage is confirmed during quote review before release.
Quote packages include hardware adjustment guidance and finish care notes.

Frequently Asked Questions

Is this window thermally broken?
No. The 40 Series is a non thermal ambient profile intended for mild climates, enclosed porches, and interior partition use. For heated and cooled exterior walls, step up to the 55 Series or 70 Series thermally broken casements.

Which profile wall should I pick?
1.4 mm suits standard openings and is the common order. Choose 2.0 mm for heavy use or larger sashes, and 1.2 mm only for light duty and budget led interior work. Your sizes are reviewed against the gauge during quote review.

Can I order custom sizes?
Yes. Every unit is made to order. Sashes run 15.7 to 33.5 in wide with heights to a recommended 59.1 in, and the assembled window is sized to your opening within that range during quote review.

Is it available for new construction and replacement?
Yes. The frame installs in new construction and replacement openings, and an optional frame extension to the inside or outside adapts the frame depth to the wall build.
