Spectre Window 40 Series Aluminum Louvered Shutter with Hand Adjustable Blades
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

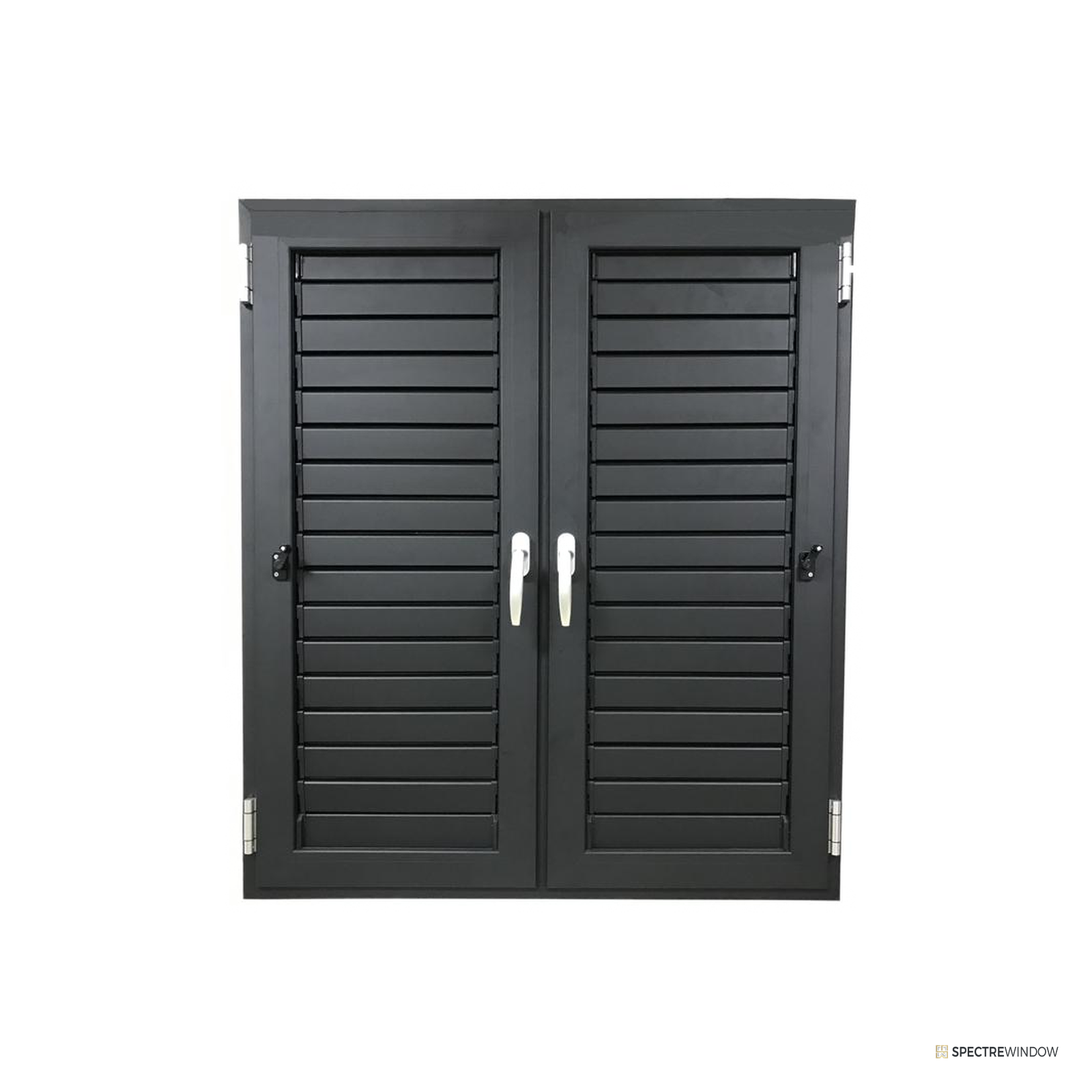

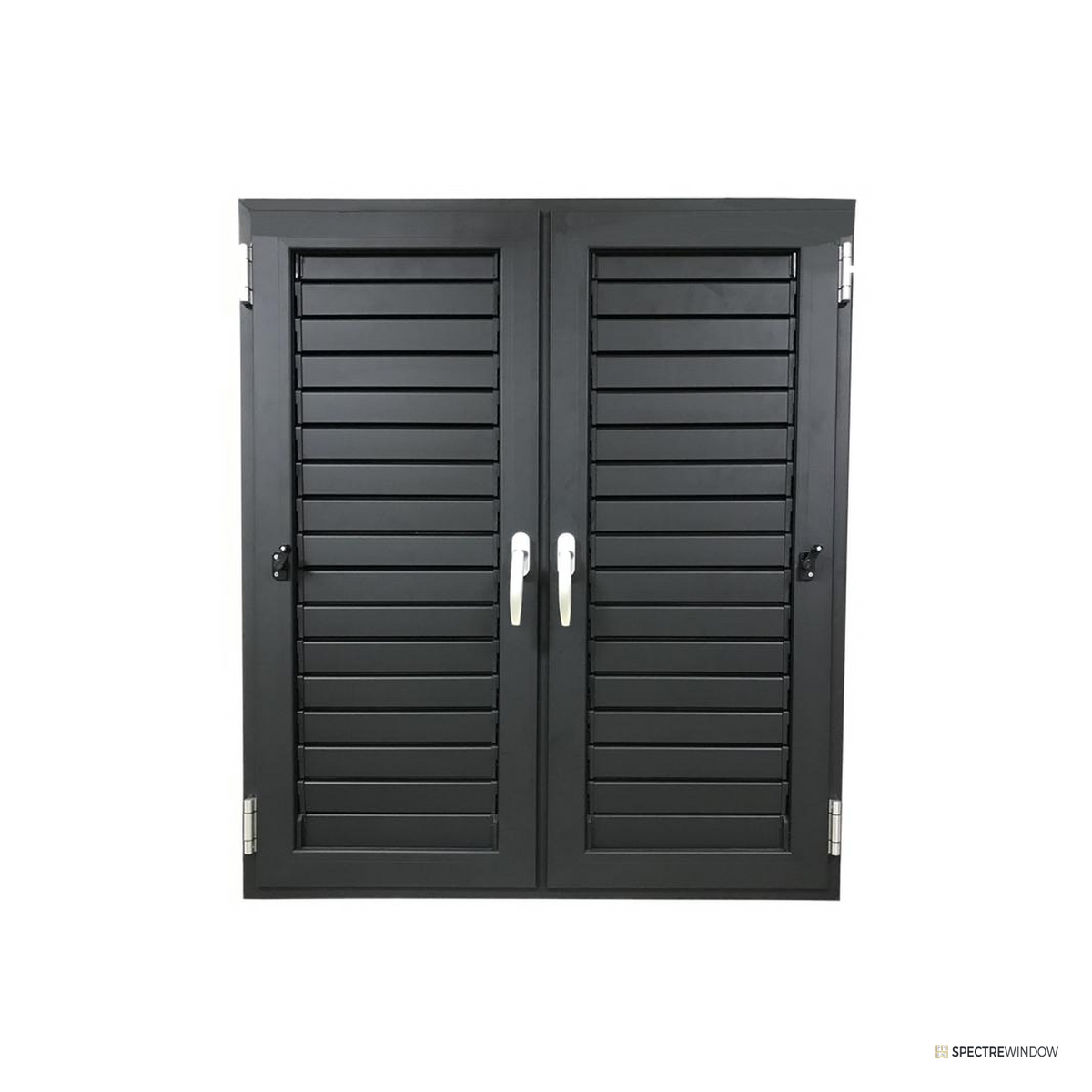

Panels build on 2.56 in (65 mm) stiles at a 0.055 in (1.4 mm) profile wall, hung on butt hinges to open inside or outside, with a hand lever on the center stile tilting the blades in unison. The factory photographs the series as double panel pairs in both blade types: flat aluminum blades for full blackout and shade duty, and glass blades that keep daylight while screening the view. The factory does not print a panel size run for this series, so panel dimensions are confirmed to your opening during quote review. Every shutter is finished in one of eight standard colors.
Highlights
- Deeper 1.57 in (40 mm) frame tier of the louvered shutter family
- Hand adjustable 3.46 in (88 mm) blades
- Aluminum blades or glass blades, both factory shown
- 2.56 in (65 mm) panel stiles at a 0.055 in (1.4 mm) profile wall
- Hinged panels open to the inside or outside
- Fabricated to the opening; sizes confirmed during quote review
- Eight standard fluorocarbon and woodgrain finishes
Specification Table
| Configuration | Double panel pair shown by the factory; other layouts quoted on request |
| Panel sizing | Fabricated to opening; panel size run confirmed during quote review |
| Frame section | 1.57 in (40 mm) |
| Panel section | 2.56 in (65 mm) |
| Louver blades | 3.46 in (88 mm); aluminum standard, glass blade variant |
| Blade operation | Hand lever on the center stile tilts blades in unison |
| Profile wall thickness | 0.055 in (1.4 mm) |
| Material | Extruded aluminum profiles |
| Installation | Surface mount on the opening face or reveal |
| Hardware | Lever handles and butt hinges, finished to match |
| Finish system | Factory applied finish program in eight standard colors: five solid fluorocarbon coated tones and three woodgrain films |
| Representative weight | About 189 lb (85.9 kg) as a 55.1 x 55.1 in double panel unit with aluminum blades (engineering estimate) |
| Warranty | Confirmed during quote review |
Included Equipment
- Aluminum shutter frame and louver panel set
- Hand lever blade adjustment hardware
- Butt hinges and lever handles
- Installation fasteners and shim guidance
Installation Notes
- Verify the opening face or reveal is flat, sound, and square before release.
- Panel dimensions are confirmed to your opening during quote review.
- Anchor hinge stiles to structure, not to cladding alone, and seal fastener penetrations on exterior walls.
- Check blade clearance through the full swing before final fixing.
- Installation should be completed by a licensed contractor.
Warranty and Support
- Warranty coverage is confirmed during quote review before release.
- Quote packages include hardware adjustment guidance and finish care notes.
Frequently Asked Questions
How does this differ from the 30 Series shutter?
Same working architecture: hand adjustable 88 mm blades on hinged panels. The 40 Series carries a deeper 1.57 in (40 mm) frame for larger panels, while the 30 Series publishes the factory panel size run for standard openings.
What does the glass blade variant look like?

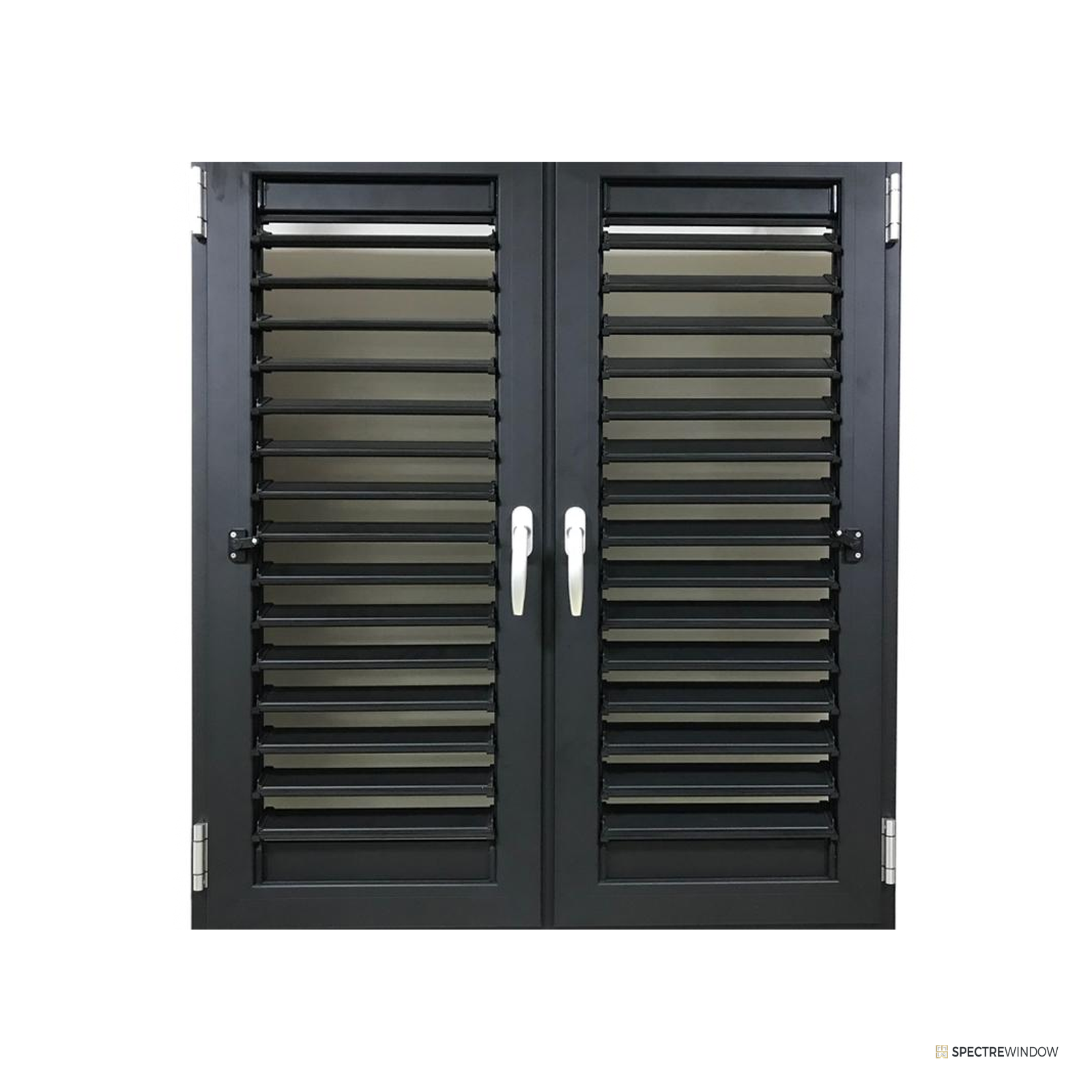

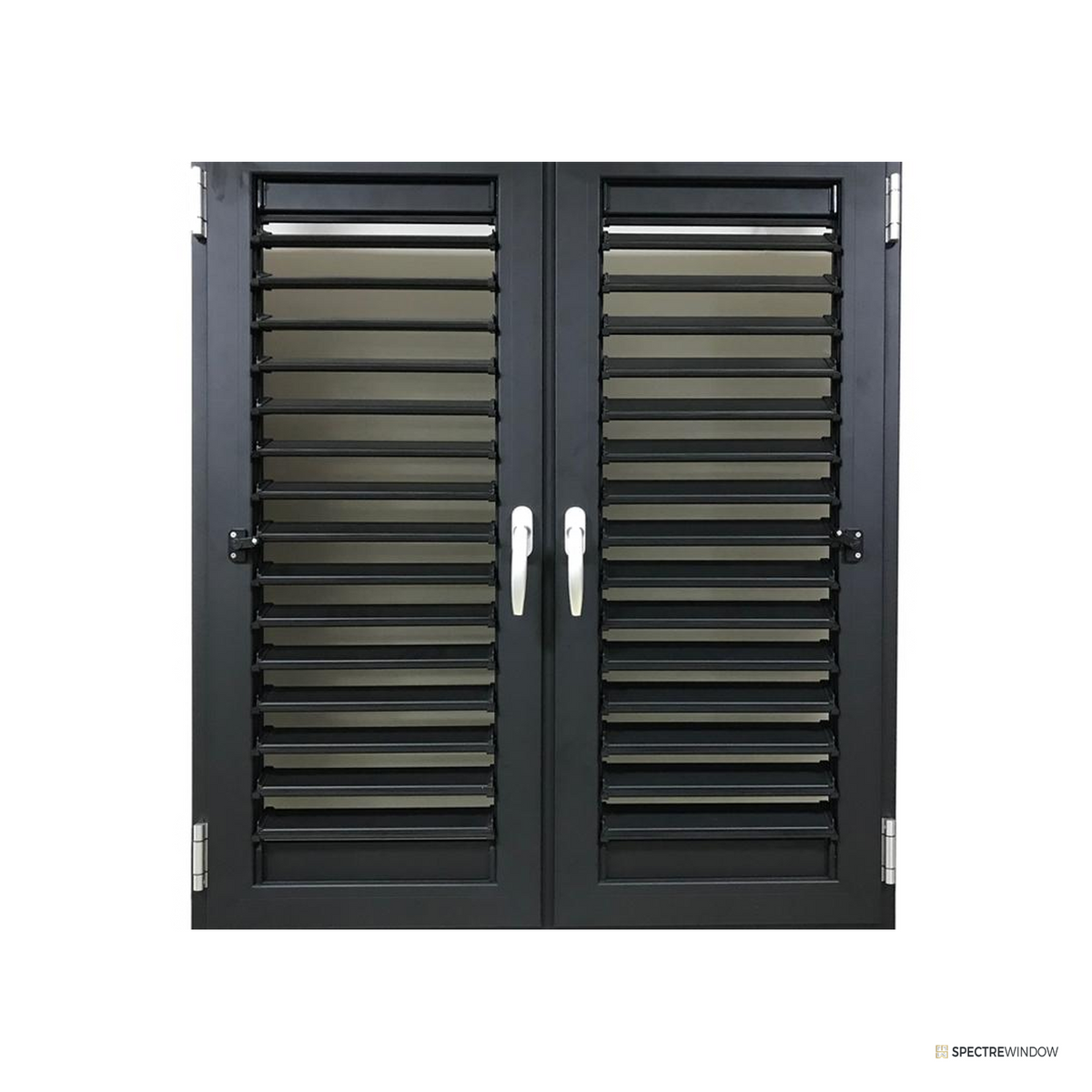

The blade geometry stays the same with glass in place of aluminum, so the shutter keeps daylight while screening the view. The factory photographs both variants on this series.
What sizes can it be built to?
The factory does not print a size run for this series. Panels are fabricated to your opening, with dimensions confirmed during quote review.
Does it open like a door?
Yes. Panels hang on butt hinges and open to the inside or outside for access to the glazing behind.
Documents
- Type Louvered Shutter
- SKU SW-WIN-SHUT-ALU40-AL-MB
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
