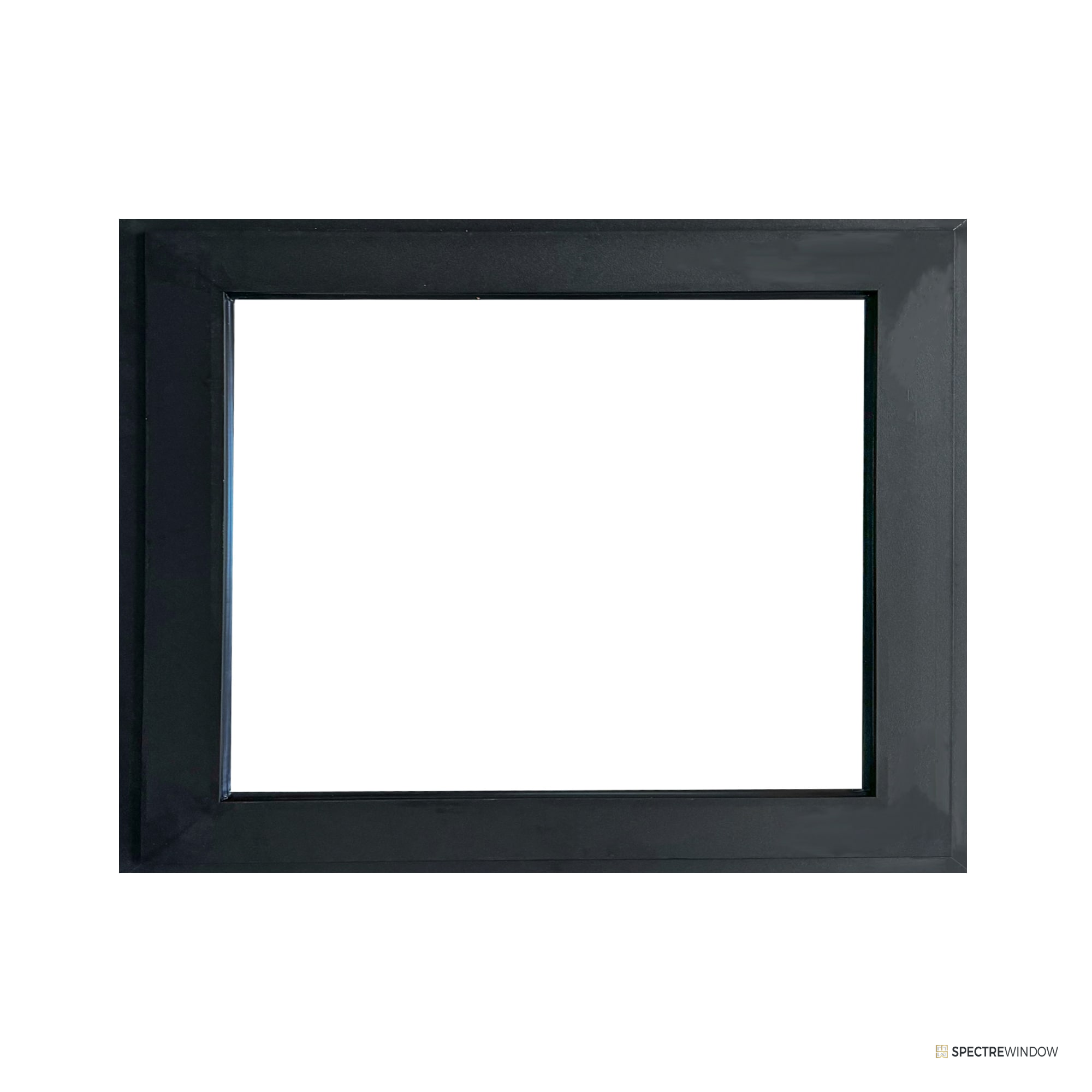

Spectre Window 47.5 in. x 35.5 in. Aluminum Awning Window with Tempered Insulated Glass

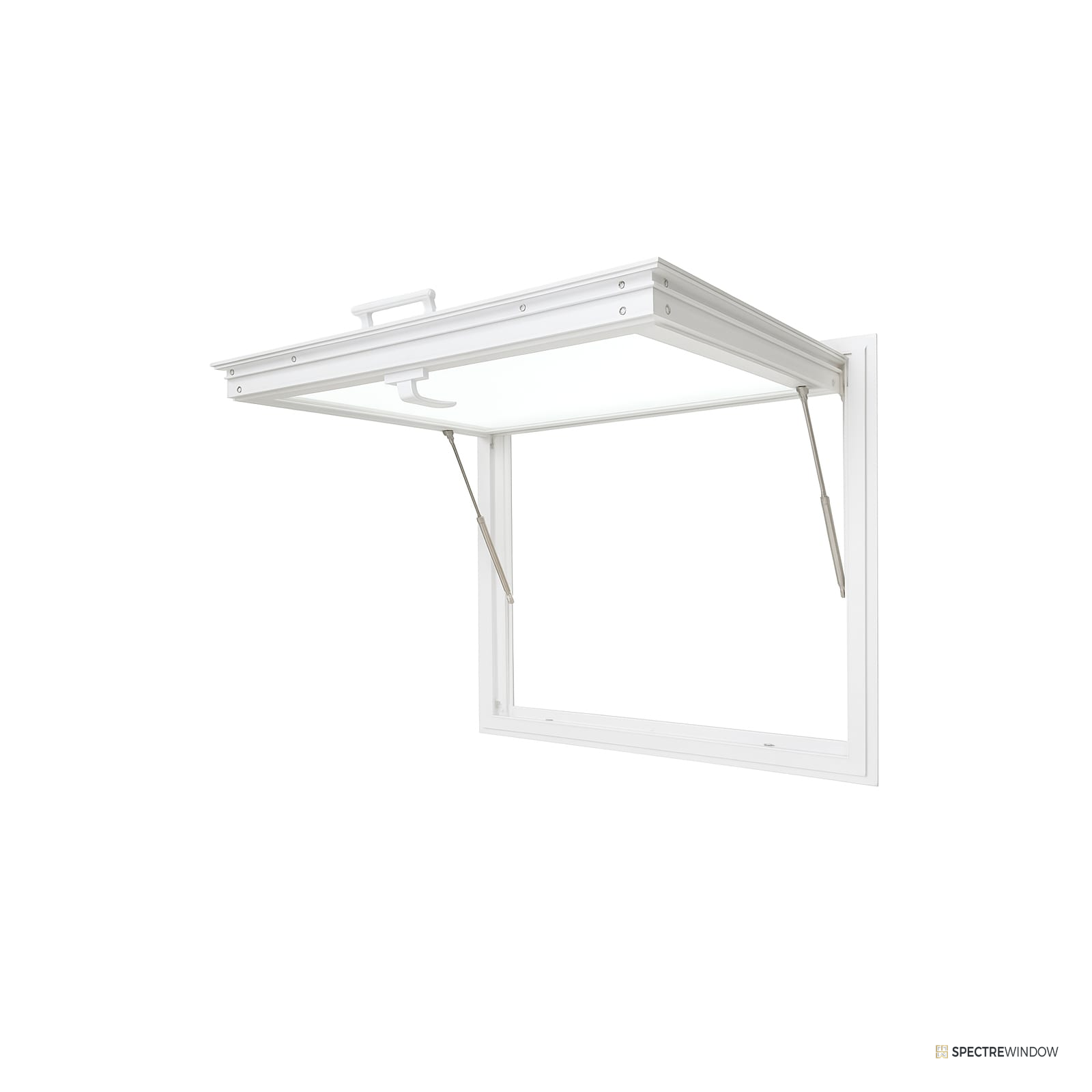

The sash hinges at the top and rises on two gas hydraulic struts that lock the panel at the opening angle without props or stays, so even the 71.5 in. wide sash lifts with one hand and shrugs off wind slam. Glazing is a tempered double pane insulated unit with argon fill; the flagship size documents a 0.30 U-factor, 0.23 SHGC, ENERGY STAR certification for the Northern and North/Central climate zones, a DP 35 structural rating, and California forced entry compliance. The 6 in. deep aluminum frame ships with an integrated nailing fin for new construction walls, and a full aluminum mesh screen covers the opening from the interior. Open at 90 degrees the sash reads as a glass canopy, keeping rain out of the opening while air moves.

Highlights

• Seven stocked sizes up to 71.5 x 47.5 in.

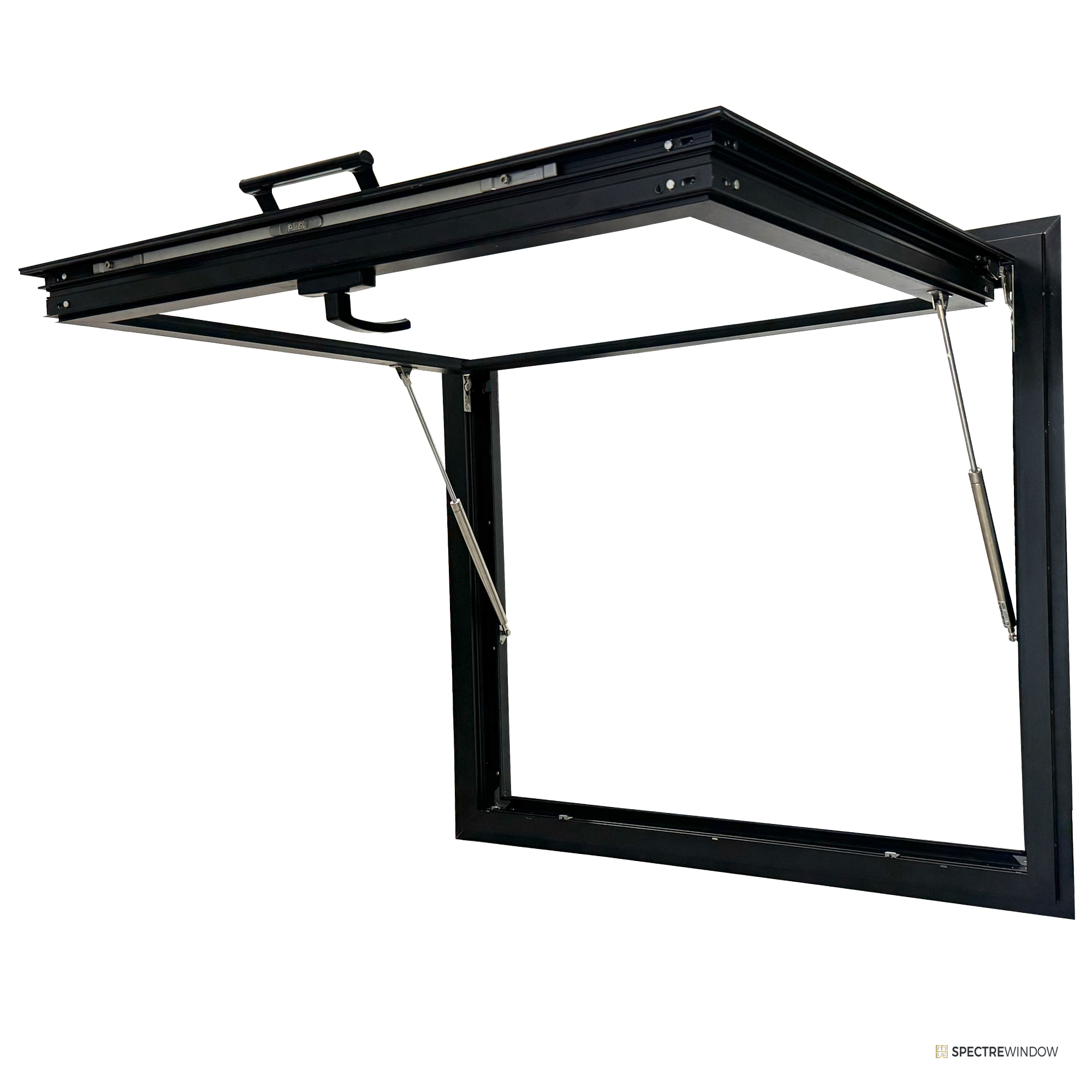

• Sash opens to 90 degrees on dual self-locking hydraulic struts
• Tempered double pane insulated glass with argon fill
• ENERGY STAR certified for Northern and North/Central zones, documented for the flagship size
• U-factor 0.30 and SHGC 0.23 documented for the flagship size
• DP 35 rating and California forced entry compliance documented for the flagship size
• Heavy duty aluminum frame, 6 in. deep, black or white finish
• Full aluminum mesh screen included

Specification Table

Included Equipment

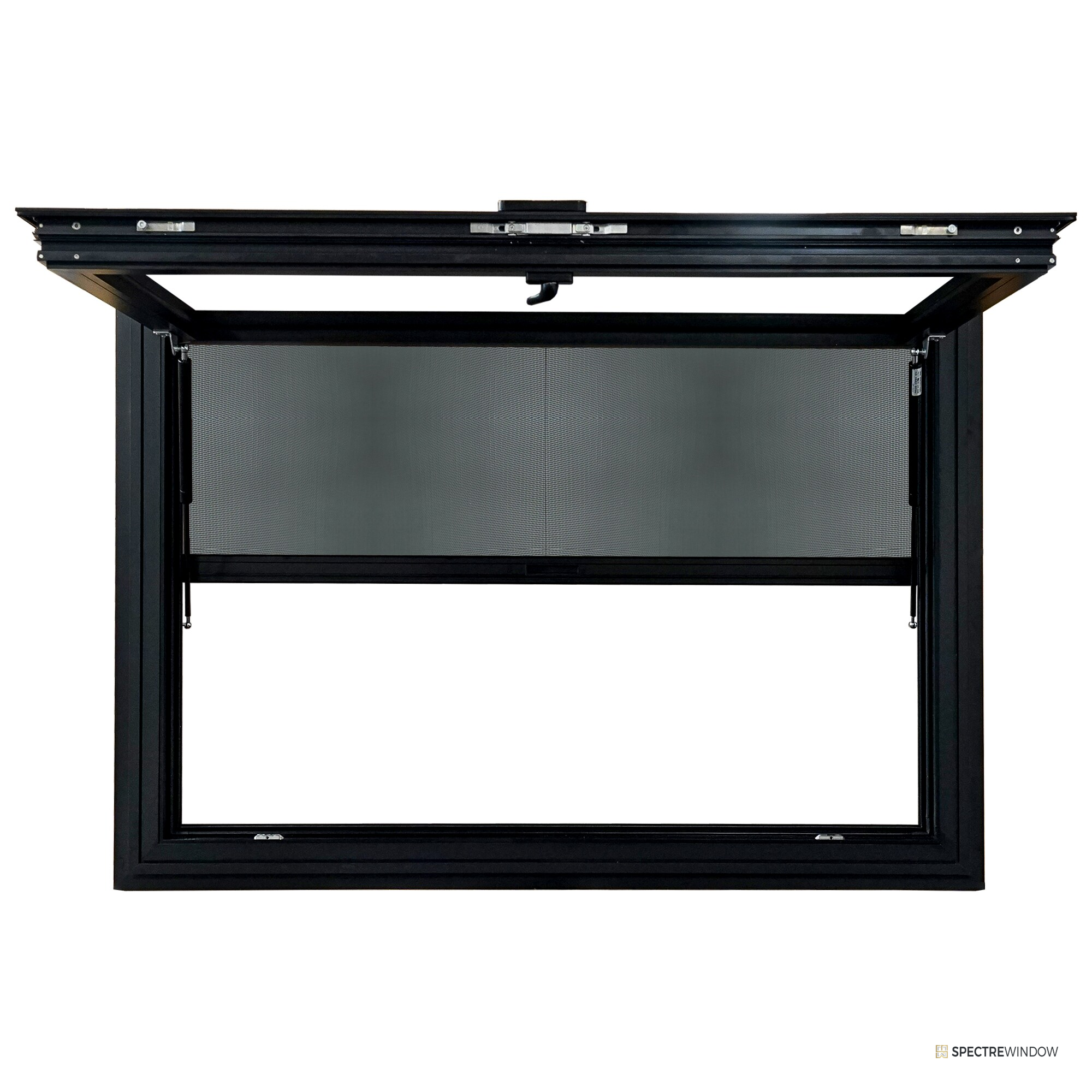

• Assembled aluminum awning window with tempered insulated glass
• Dual self-locking hydraulic struts, factory fitted
• Full aluminum mesh screen in roll-form frame
• Single lock and handle hardware
• Integrated nailing fin around the frame perimeter

Installation Notes

• Verify the rough opening is 0.5 in. wider and taller than the unit, square, with solid full-perimeter framing; these are heavy assemblies and the head must carry the open sash load.
• Two installers minimum; the larger sizes exceed 140 lb and the deep 6 in. frame needs support until fastened.
• Set the frame plumb and level, shim at strut anchor points, and integrate the nailing fin with the weather barrier shingle fashion with head flashing.
• Cycle the sash to full 90 degree opening before fastening off to confirm the struts lock and the sash seats evenly on close.
• Confirm clearance outside the wall face; the open sash projects roughly the sash height beyond the plane of the wall.

Warranty and Support

• 10 year limited manufacturer warranty program, confirmed during quote review.
• Quote packages include strut adjustment and finish care guidance.

Frequently Asked Questions

How is this different from a crank awning window?
There is no crank. The sash rides on two gas hydraulic struts that lift it to any angle up to 90 degrees and lock it there, the same way a tailgate strut holds position. That allows much larger and heavier sashes than a crank operator can drive.

Can it stay open in the rain?
Yes. The top-hinged sash slopes over the opening like a canopy, so typical rainfall sheds away from the opening while it vents. Close and lock the sash in storms and high wind.

Is the glass safety rated?
Yes. Both panes of the insulated unit are tempered, and the flagship size documents compliance with California forced entry requirements.

Is it efficient enough for cold climates?
The flagship size is ENERGY STAR certified for the Northern and North/Central climate zones with a documented 0.30 U-factor and 0.23 SHGC. Zone certification for other sizes is confirmed during quote review.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
