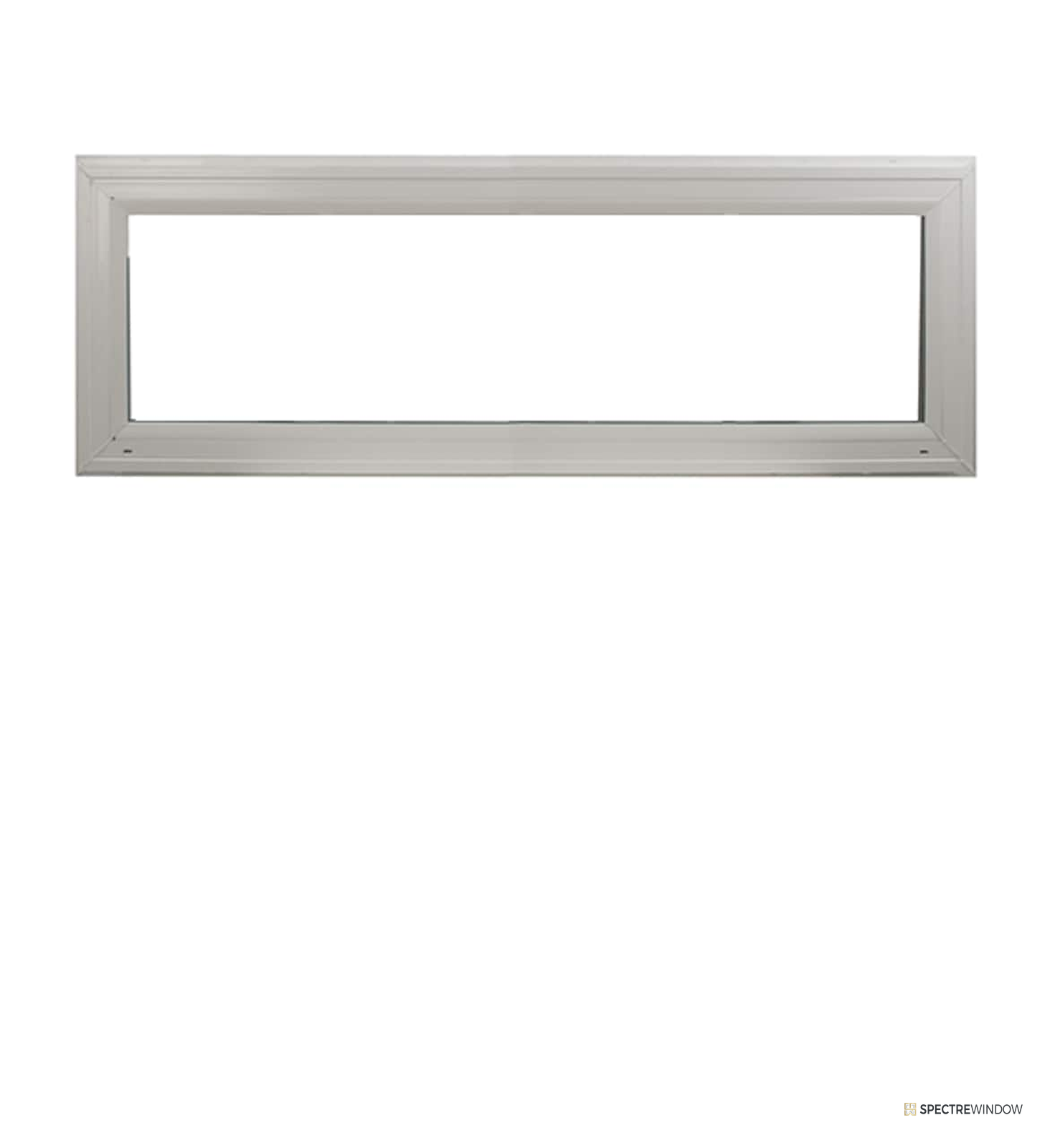

Name: Spectre Window 48 in. x 12 in. Vinyl Transom Window with Double Pane Insulated Glass
Brand: Spectre Window
SKU: SW-WIN-PW-TRANSOM-4812WHN

The program runs fourteen stocked sizes from 24 in. to 72 in. wide in 10, 12, and 16 in. heights, in White and Black frames. Glazing is double strength clear glass in a double pane insulated unit with argon fill, rated at a 0.31 U factor and 0.25 solar heat gain coefficient with Florida product approval in the flagship size, and the DP50 design pressure rating is stated across the program. The integrated J channel ties the frame directly into vinyl siding for a clean surface mounted install, and the overall frame runs about 1.5 in. larger than the listed size in each direction. An optional grid package divides the glass with vertical bars into equal lites scaled to the width: three lites at 36 in., four at 48 in., and five at 60 in. Additional grid layouts and tempered glazing are quoted on request.

Highlights

Fixed vinyl transom for daylight over doors, entries, and window runs
DP50 design pressure rating stated across the program
Double pane double strength glass with argon fill
0.31 U factor and 0.25 solar heat gain coefficient in the flagship size

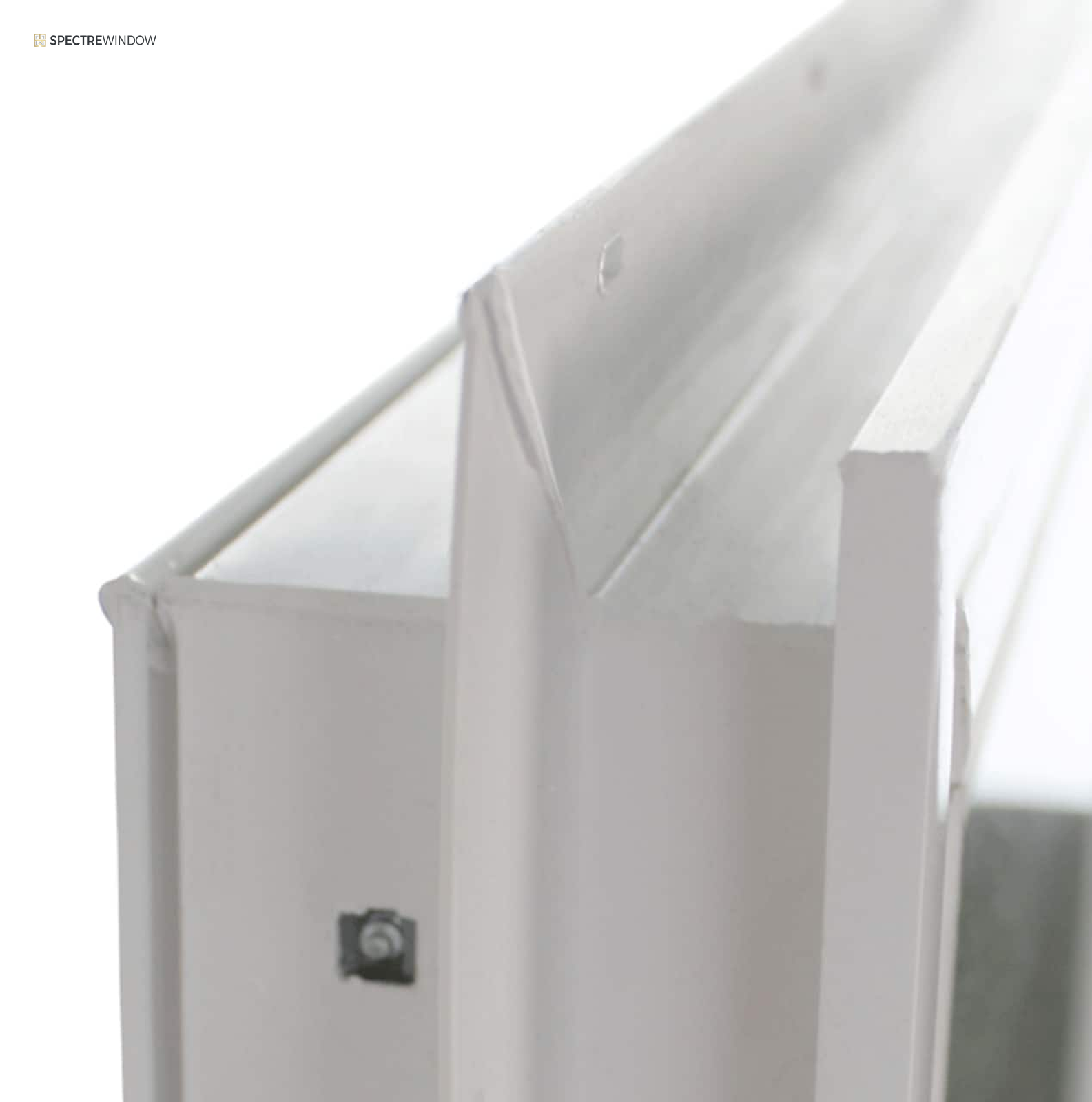

Integrated J channel frame for direct siding installation
Fourteen stocked sizes from 24 in. to 72 in. wide in White and Black
Optional vertical grid package with lite count scaled to width

Specification Table

Unit size (flagship)	49.5 in. W x 13.5 in. H overall
Rough opening (flagship)	48 in. W x 12 in. H
Sizing rule	Overall frame is about 1.5 in. larger than the listed size in width and height
Frame material	Vinyl

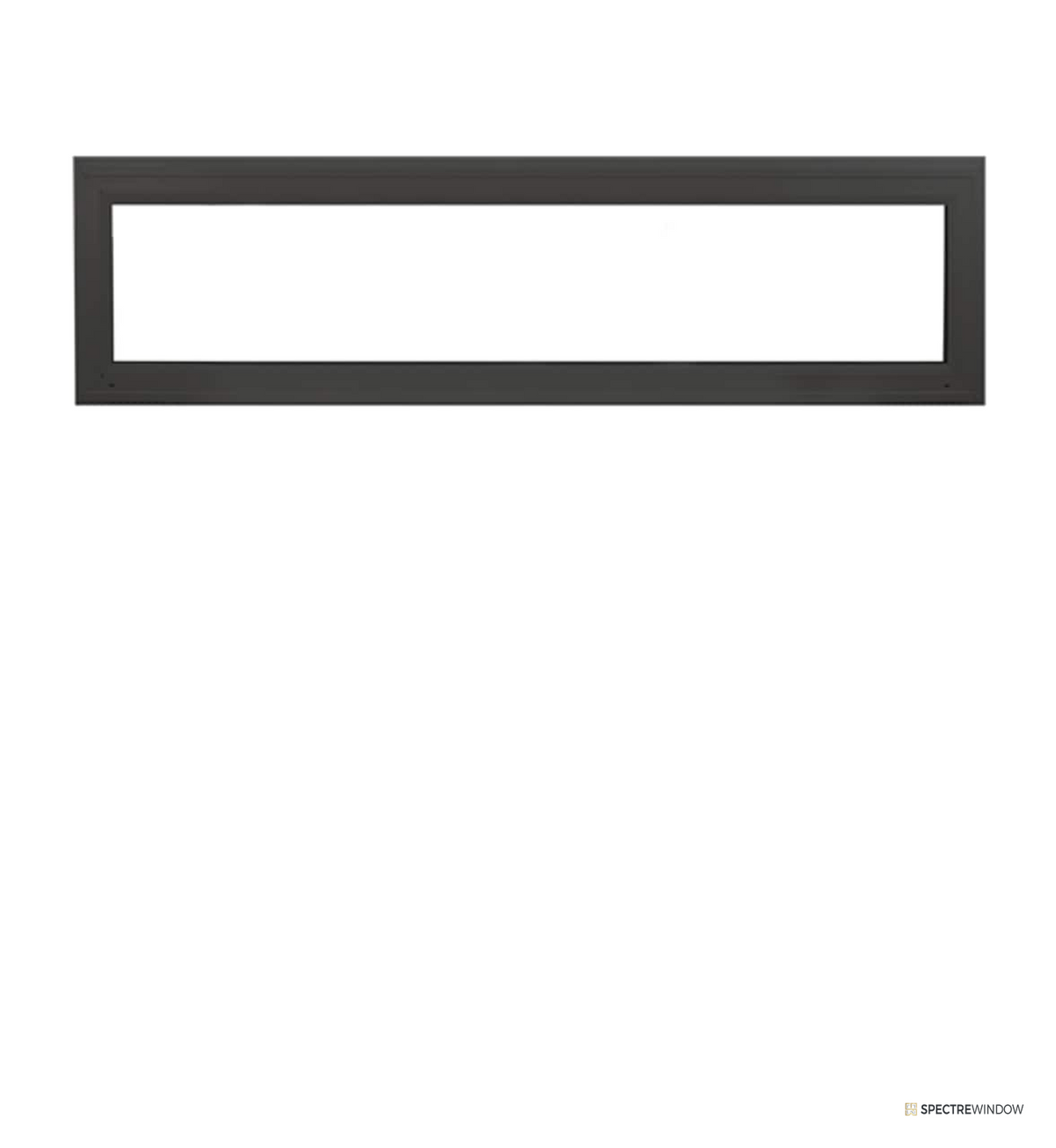

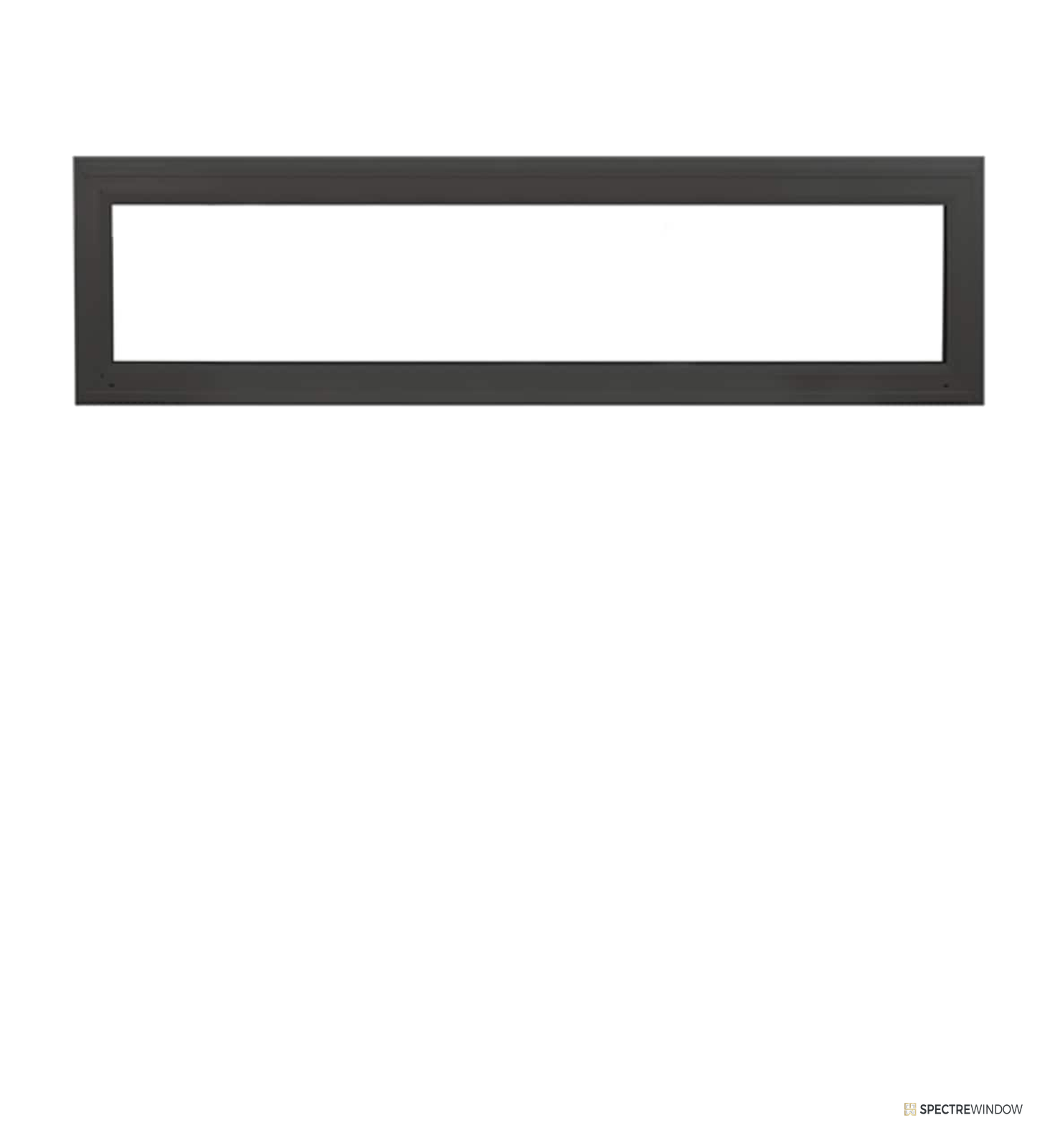

Frame colors	White, Black
Operation	Fixed transom, non operating
Glazing	Double pane, double strength clear glass, argon fill
U factor	0.31 (flagship size)
Solar heat gain coefficient	0.25 (flagship size)
Design pressure	DP50

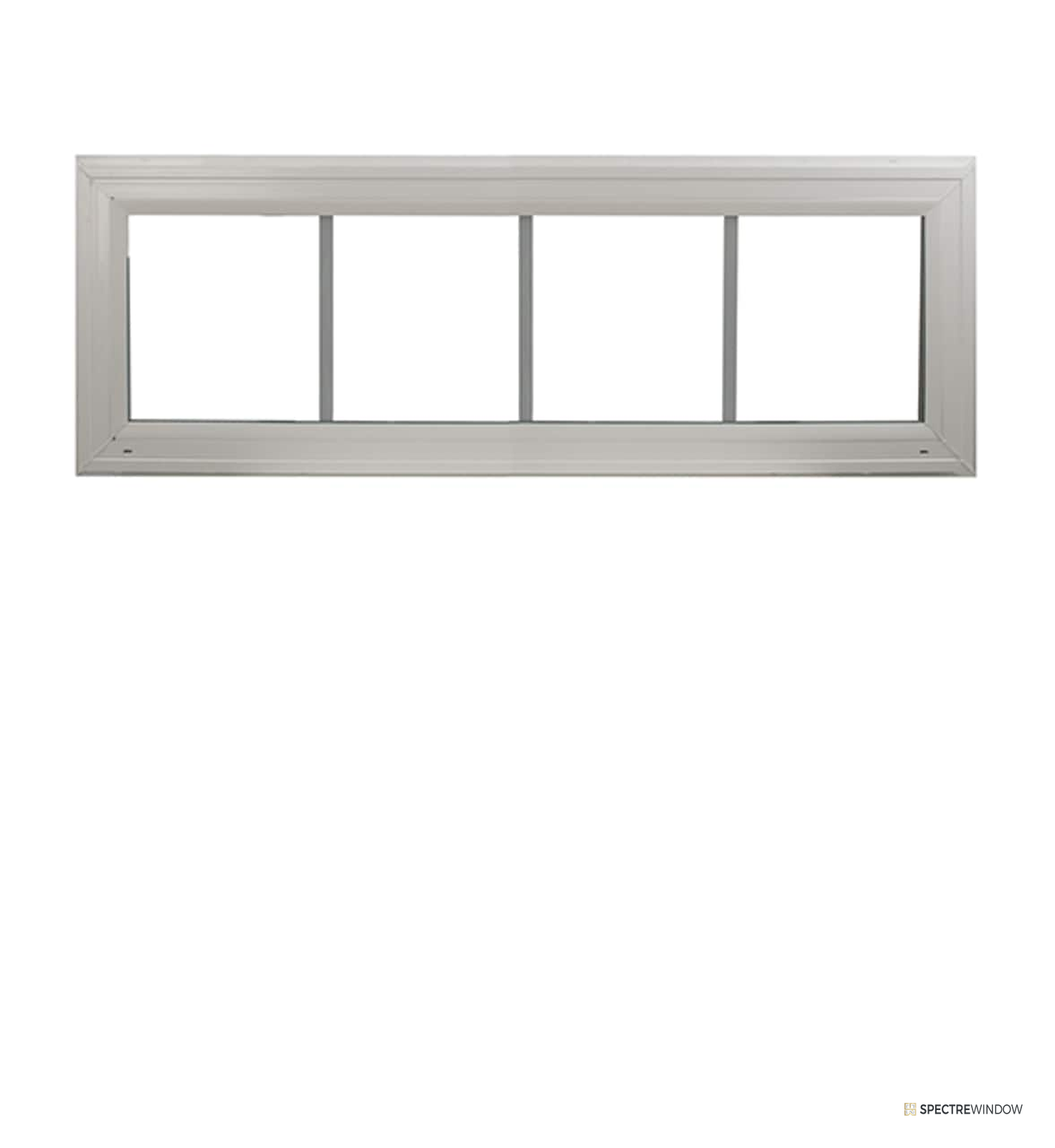

Grids	Optional vertical grids; 3 lites at 36 in., 4 lites at 48 in., 5 lites at 60 in.
Installation	New construction opening with integrated J channel for siding
Weight	About 12 lb in the flagship size; varies by size (engineering estimate)
Warranty	Limited manufacturer backed warranty program, confirmed during quote review

Included Equipment

Assembled fixed transom unit
Factory sealed insulated glass unit
Integrated J channel mounting frame

Installation Notes

Verify the framed opening matches the listed rough opening size and is square and level before setting the unit.
Set the unit into the opening and integrate the J channel with the siding course per the released details.
Fasten per the released schedule, keeping the frame straight; do not overdrive fasteners into the vinyl.
Seal the head and side perimeter with compatible exterior sealant and keep sill drainage paths clear.

Warranty and Support

Warranty coverage is confirmed during quote review before release.
Quote packages include sizing review and installation guidance for each opening.

Frequently Asked Questions

Can these be installed over an entry door or garage door?
Yes. The program is a fixed daylight transom sized for door and window runs from 24 in. to 72 in. wide. Confirm header height and structural support during quote review.

Are grids available on every size?
Stocked grid configurations cover the most common widths, with vertical bars dividing the glass into equal lites scaled to the width. Additional grid layouts are quoted on request.

Is tempered glass available?
Yes, tempered glazing is available on select sizes and is quoted on request. Building codes often require tempered glass near doors, so flag the application during quote review.

What does the DP50 rating cover?
The DP50 design pressure rating is stated for the program, and the flagship 48 in. x 12 in. unit also carries Florida product approval. Per size documentation is confirmed during quote review.
