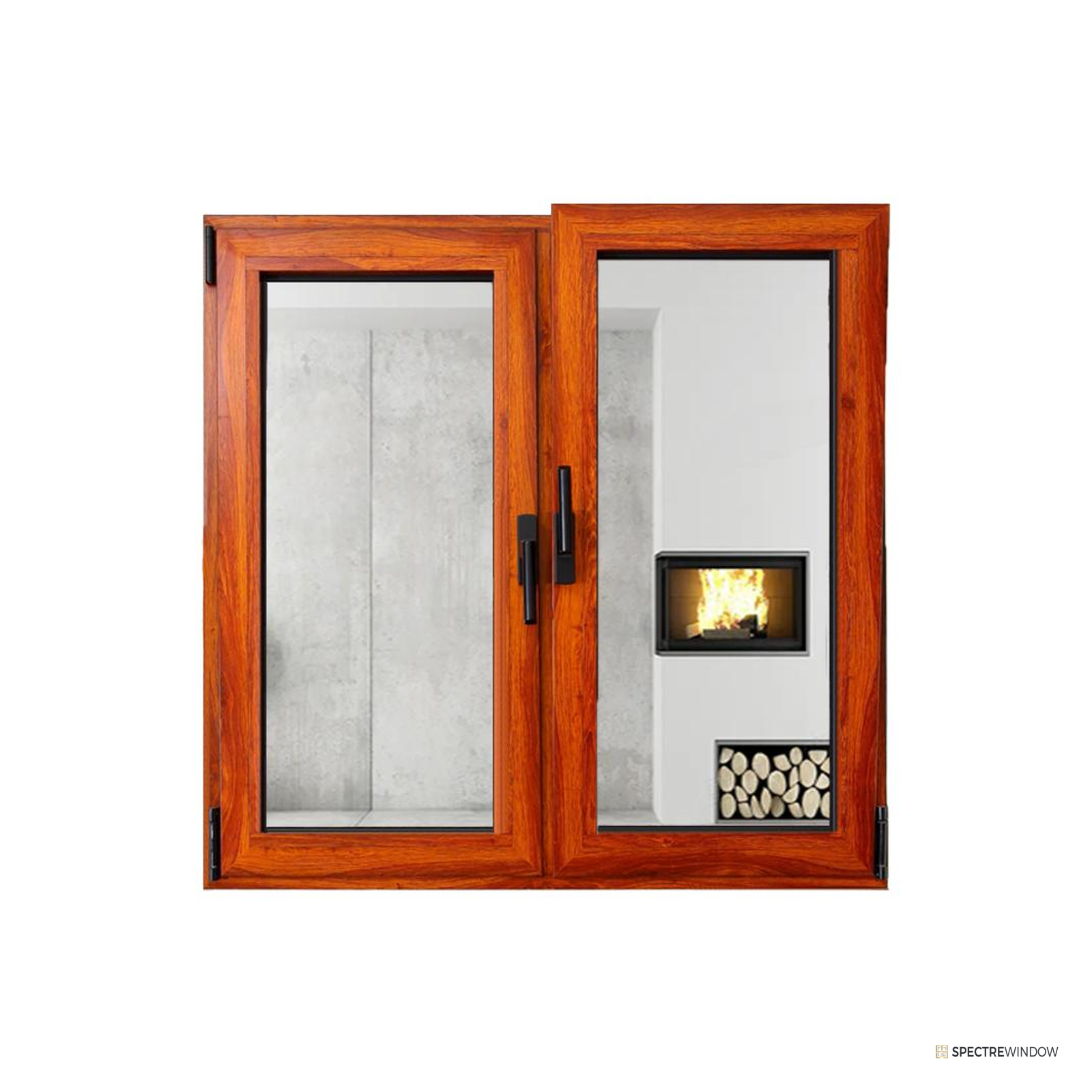

Name: Spectre Window 55 Series Thermally Broken Aluminum Casement Window, Insulated Glass
Brand: Spectre Window
SKU: SW-WIN-CS-ALU55TB-2448-MB

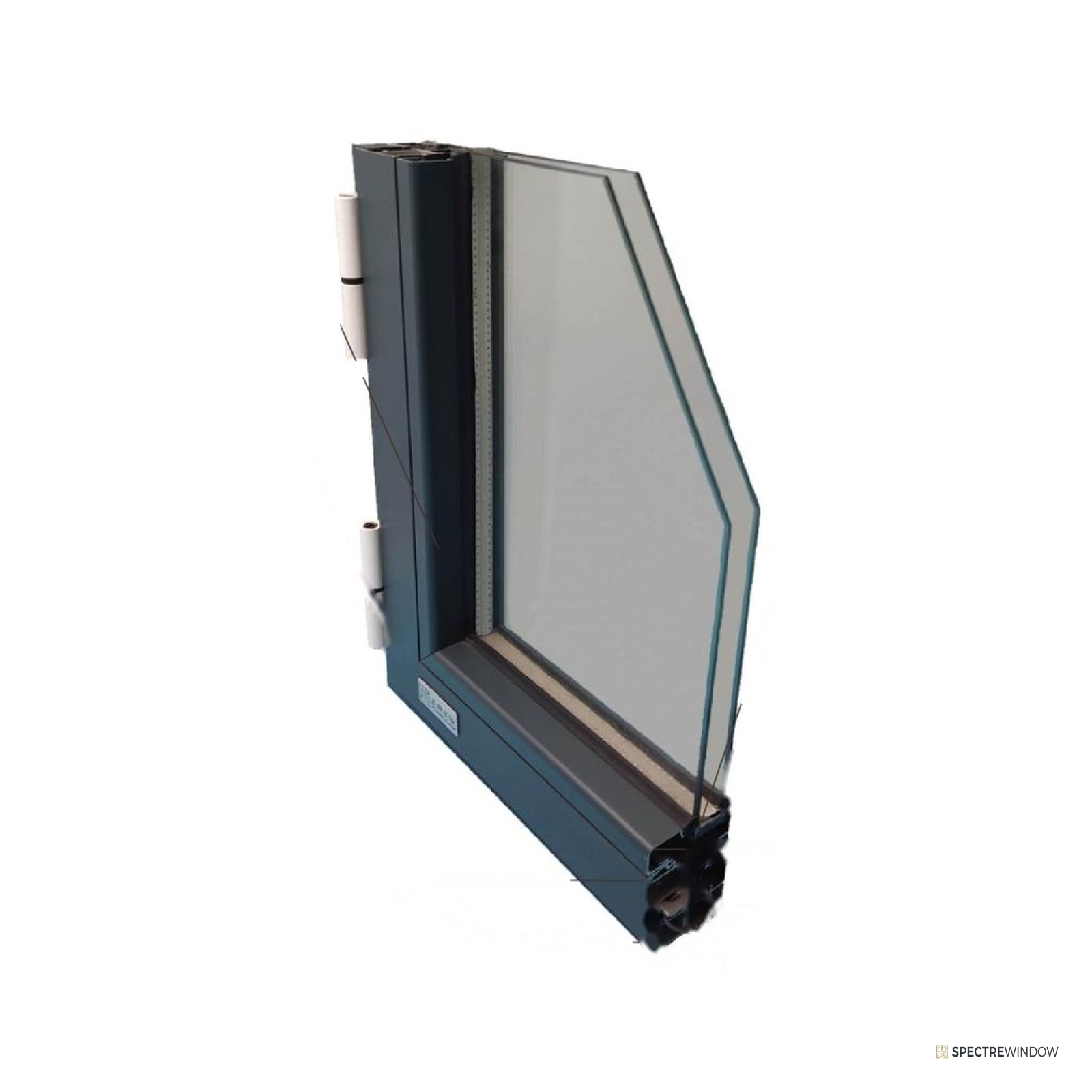

Frame sections run 2.17 in (55 mm) with 2.76 in (70 mm) sash sections and 0.055 in (1.4 mm) profile walls, joined at 45 degree miters. A polyamide thermal break separates the interior and exterior aluminum faces, and the 25 mm glazing pocket carries a two pane insulated glass unit. Sashes run 19.7 to 33.5 in wide (500 to 850 mm) at heights of 47.2 to 70.9 in (1200 to 1800 mm), built as single sash, double sash, or fixed plus casement layouts, with a wrapped inner window configuration for finished interiors. Three nominal sizes are stocked for quoting; every unit is fabricated to the opening size and finished in one of eight standard colors.

Highlights

Thermally broken 2.17 in (55 mm) frame with 2.76 in (70 mm) sash sections
Insulated glass unit in a 25 mm glazing pocket
0.055 in (1.4 mm) profile wall, 45 degree mitered joints
Sash widths 19.7 to 33.5 in (500 to 850 mm), heights 47.2 to 70.9 in (1200 to 1800 mm)
Nominal 24 x 48, 28 x 60, and 48 x 60 in units quoted; custom sizes made to order
Wrapped inner window configuration for finished interiors
Eight standard fluorocarbon and woodgrain finishes

Specification Table

Nominal sizes	24 x 48 in, 28 x 60 in, 48 x 60 in; custom sizes fabricated to opening
Rough opening	Nominal size plus 0.75 in each way (typical); verified during quote review
Sash sizing	19.7 to 33.5 in (500 to 850 mm) wide; 47.2 to 70.9 in (1200 to 1800 mm) high
Frame section	2.17 in (55 mm), thermally broken
Panel section	2.76 in (70 mm)
Profile wall thickness	0.055 in (1.4 mm)
Frame joints	45 degree miters
Material	Extruded aluminum with polyamide thermal break
Glazing	Insulated glass unit, 25 mm glazing pocket; final makeup confirmed during quote review
Operation	Outward opening casement; fixed plus casement combinations available
Hardware	Square line lever handles on butt hinges, finished to match
Weatherstripping	Perimeter gaskets at frame and sash
Finish system	Factory applied finish program in eight standard colors: five solid fluorocarbon coated tones and three woodgrain films
Representative weight	About 134 lb (60.6 kg) at 24 x 48 in nominal (engineering estimate)
Warranty	Confirmed during quote review

Included Equipment

Thermally broken aluminum frame set with perimeter gaskets
Insulated glass casement sash set, hinged and factory fitted
Square line lever handle hardware
Optional frame extension profiles when ordered
Installation fasteners and shim guidance

Installation Notes

Verify the rough opening is square, level, and plumb and about 0.75 in larger than the unit each way before release.
Custom sizes are fabricated to the opening within the factory range; exact dimensions are confirmed during quote review.
On exterior walls integrate head flashing and a sealed sill joint per local code; keep weep paths clear.
Shim at hinge points and lock keeps so sashes compress evenly against the gaskets.
Installation should be completed by a licensed contractor.

Warranty and Support

Warranty coverage is confirmed during quote review before release.
Quote packages include hardware adjustment guidance and finish care notes.

Frequently Asked Questions

What does thermally broken mean?
A reinforced polyamide strip separates the interior and exterior aluminum faces of every frame and sash profile, cutting conducted heat flow and interior condensation compared with plain aluminum. The catalog positions this series for heat and noise insulation.

What glass comes in it?
A two pane insulated glass unit sits in the 25 mm glazing pocket. The exact glass makeup, including any coating or obscure option, is confirmed during quote review.

Are the listed sizes the only sizes?
No. The three nominal sizes anchor quoting. Every window is made to order with sashes 19.7 to 33.5 in wide and 47.2 to 70.9 in high, sized to your opening during quote review.

How does this compare with the 70 Series?
Both are thermally broken. The 70 Series carries a deeper 2.76 in (70 mm) frame with 3.07 in (78 mm) sashes for larger openings and stronger insulation, while the 55 Series is the value thermal tier for standard openings.
