Spectre Window 70 Series Security Glass Louver Window with Guard Bars
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

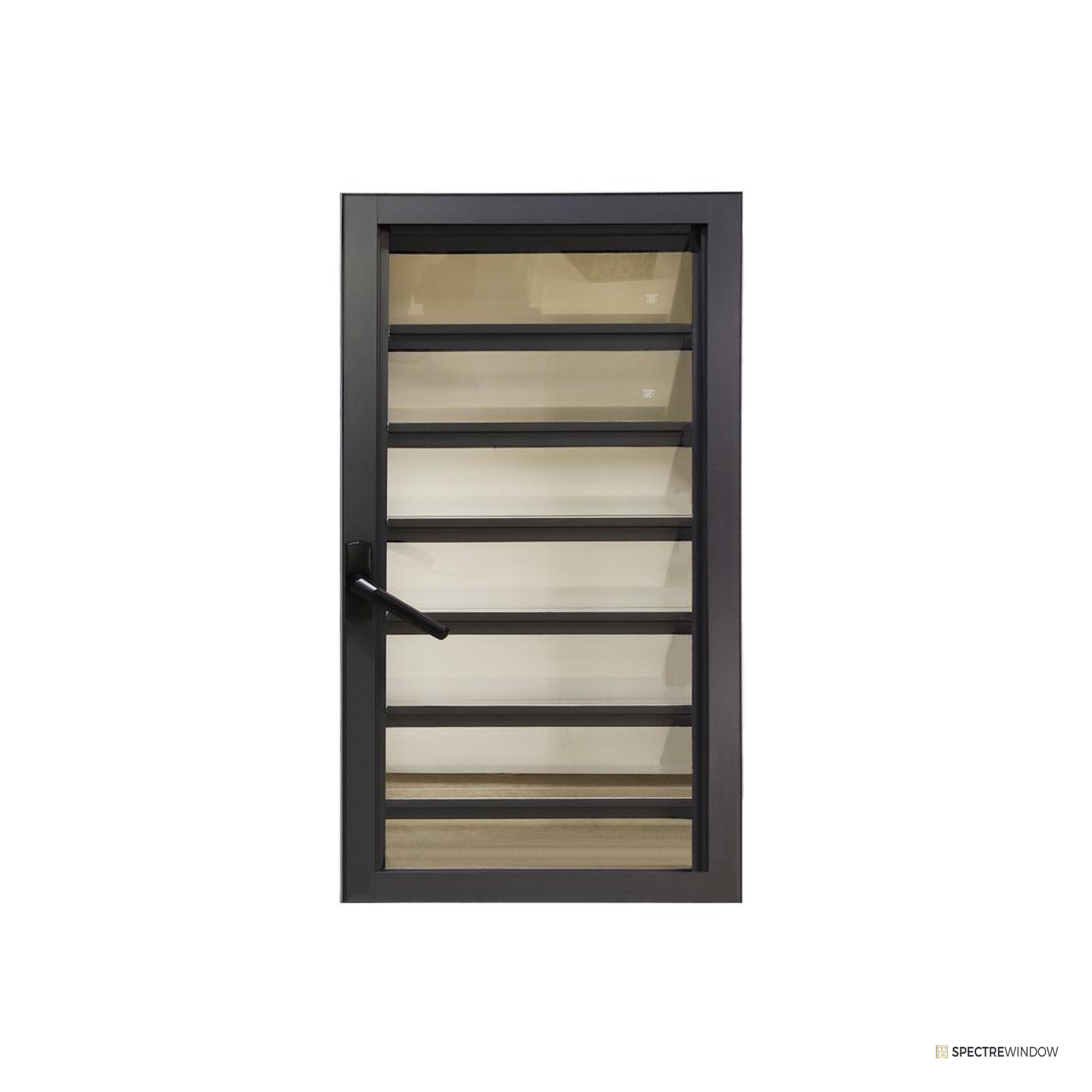

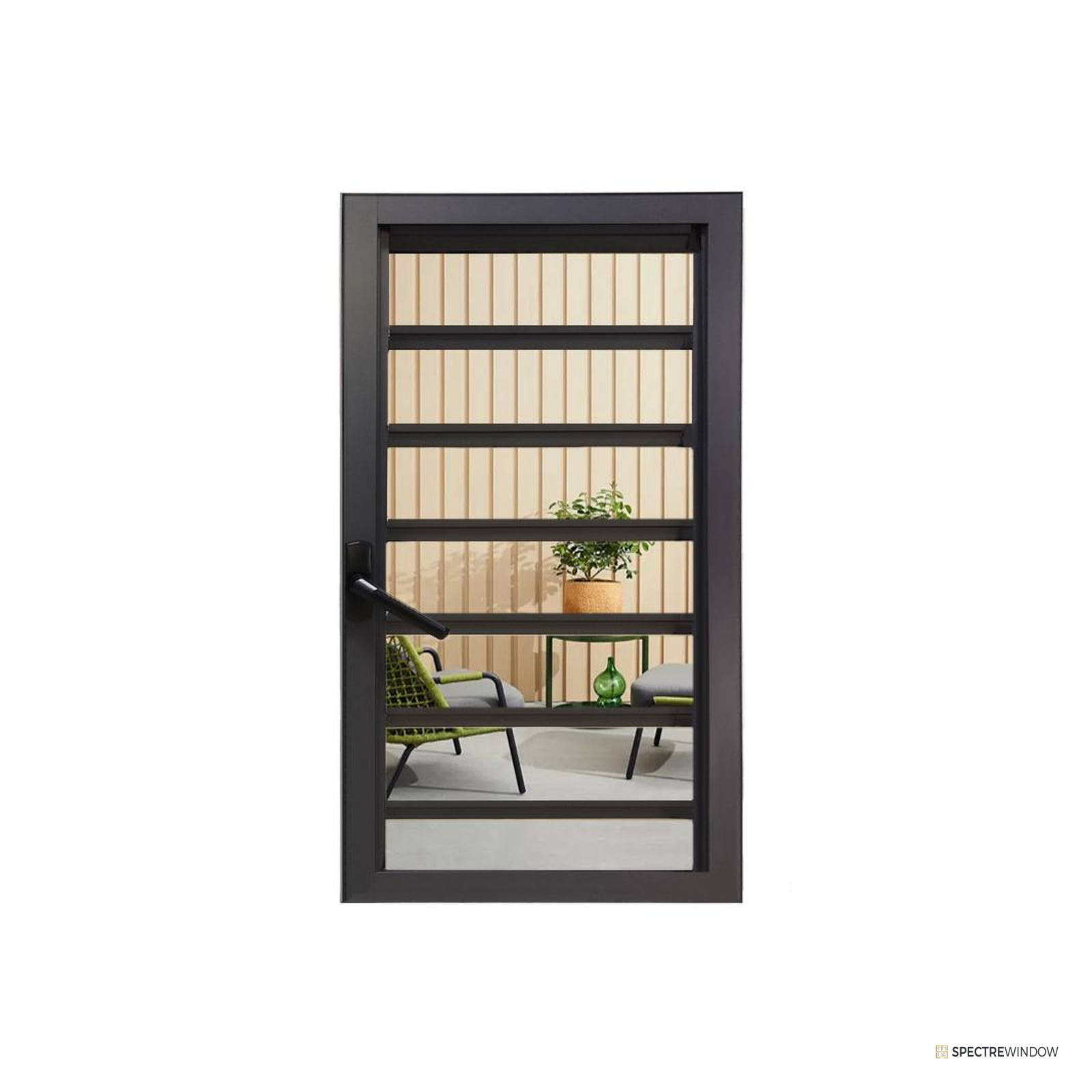

A side mounted lever sets the blade angle by hand, so the same handle position that tunes airflow also sets privacy. The guard bars are fixed into the frame behind the blade line, which is what lets the window ventilate overnight or in an empty room without giving up the opening. The mesh sash variant hinges open for cleaning access to the blades. This is a platform product: the factory does not publish profile dimensions or a size run for the series, so frame details and dimensions are engineered per opening and confirmed during quote review. Every unit is finished in one of eight standard colors.
Highlights
- Hand operated adjustable glass louver blades
- Fixed vertical guard bars behind the blades secure the opening
- Ventilates securely with the blades open
- Hinged gauze mesh insect screen sash variant
- Side mounted lever handle sets blade angle
- Dimensions engineered per opening during quote review
- Eight standard fluorocarbon and woodgrain finishes
Specification Table
| Configuration | Glass blades with guard bars; optional hinged gauze mesh sash |
| System sizing | Quote configured; dimensions confirmed during quote review |
| Blade operation | Hand lever, side mounted; handle angle sets ventilation amount |
| Security | Fixed vertical guard bars behind the blade line |
| Louver blades | Wide glass blades |
| Material | Extruded aluminum profiles |
| Screen | Hinged gauze mesh sash on the room side (with the mesh sash configuration) |
| Installation | Surface mount or reveal fit, confirmed at order |
| Hardware | Side mounted lever handle, finished to match |
| Finish system | Factory applied finish program in eight standard colors: five solid fluorocarbon coated tones and three woodgrain films |
| Representative weight | About 170 lb (76.9 kg) per representative 27.6 x 55.1 in bay (engineering estimate) |
| Warranty | Confirmed during quote review |
Included Equipment
- Aluminum louver frame with glass blade set
- Fixed vertical guard bar grid, factory fitted
- Hinged gauze mesh sash (with the mesh sash configuration)
- Side mounted lever hardware
- Installation fasteners and shim guidance
Installation Notes
- Verify the opening is square, sound, and dimensionally stable before release.
- Dimensions and frame details are engineered per opening; exact sizes are confirmed during quote review.
- Anchor the frame to structure and seal fastener penetrations on exterior walls.
- Confirm interior clearance for the hinged mesh sash where ordered.
- Installation should be completed by a licensed contractor.
Warranty and Support
- Warranty coverage is confirmed during quote review before release.
- Quote packages include hardware adjustment guidance and finish care notes.
Frequently Asked Questions
How is this secure if the blades open?
The security element is the grid of fixed vertical guard bars mounted behind the blade line. Blades tilt for airflow while the bars keep the opening protected, so the window can ventilate unattended.
Is there an insect screen?

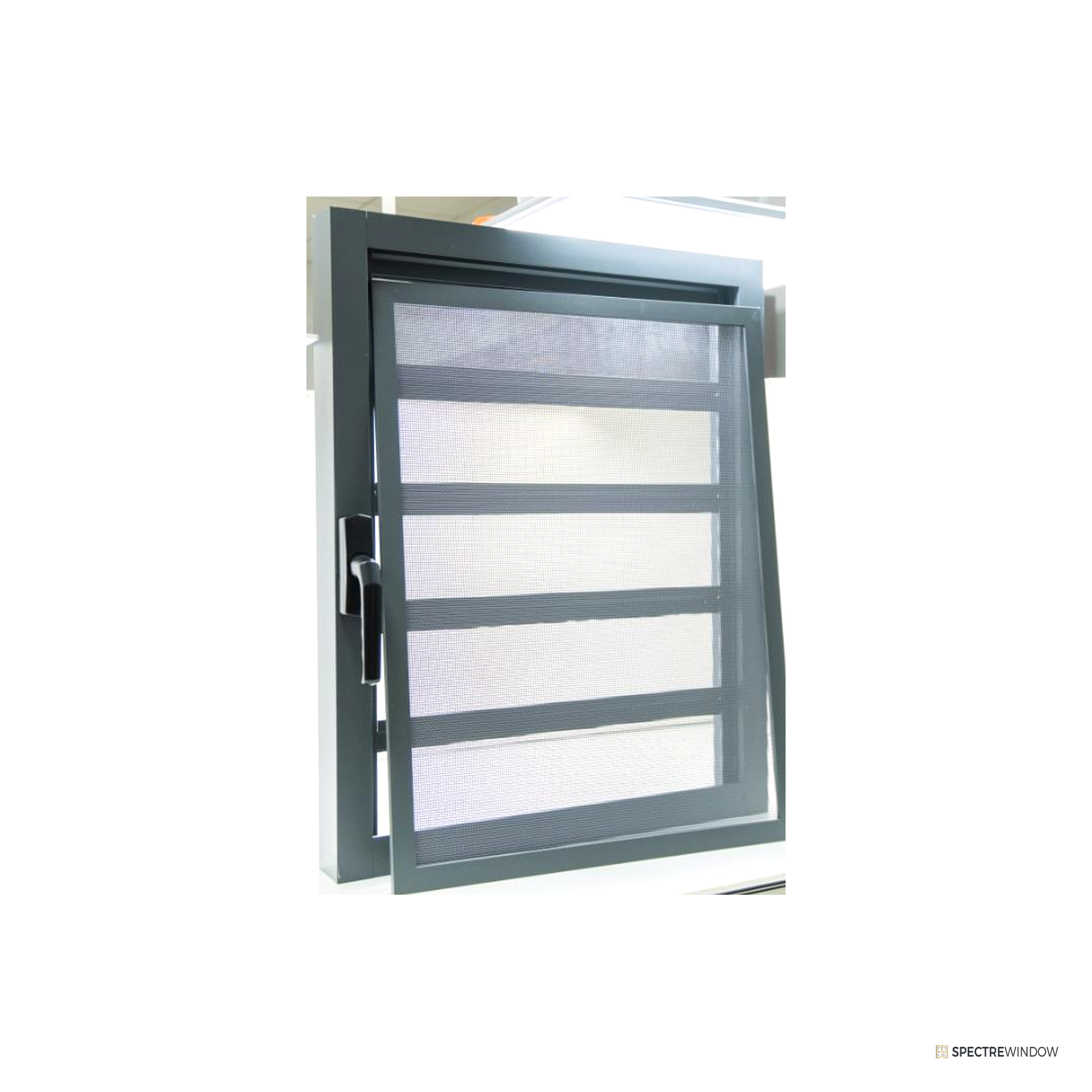

Yes. The factory offers a hinged gauze mesh sash on the room side, selected as the mesh sash configuration on this page. It swings open for access to the blades.
What sizes can it be built to?
The series is quote configured. The factory does not publish a size run, so dimensions are engineered to your opening during quote review.
Where is this window typically used?
Ground floor rooms, service areas, walkway facing walls, and rentals in warm climates: anywhere that wants constant ventilation without leaving an opening unsecured.
Documents
- Type Louver Window
- SKU SW-WIN-SHUT-SEC70-GB-MB
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
