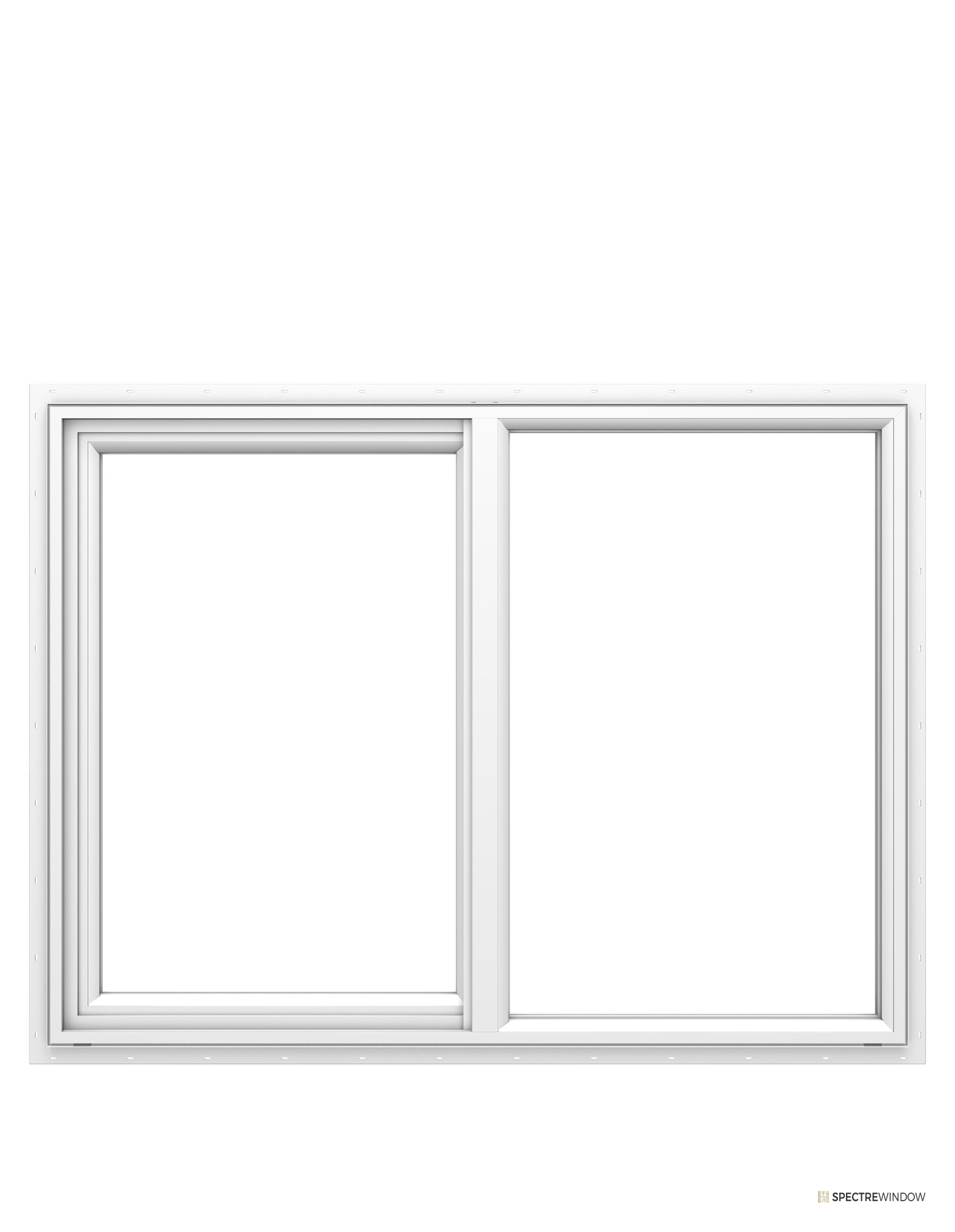

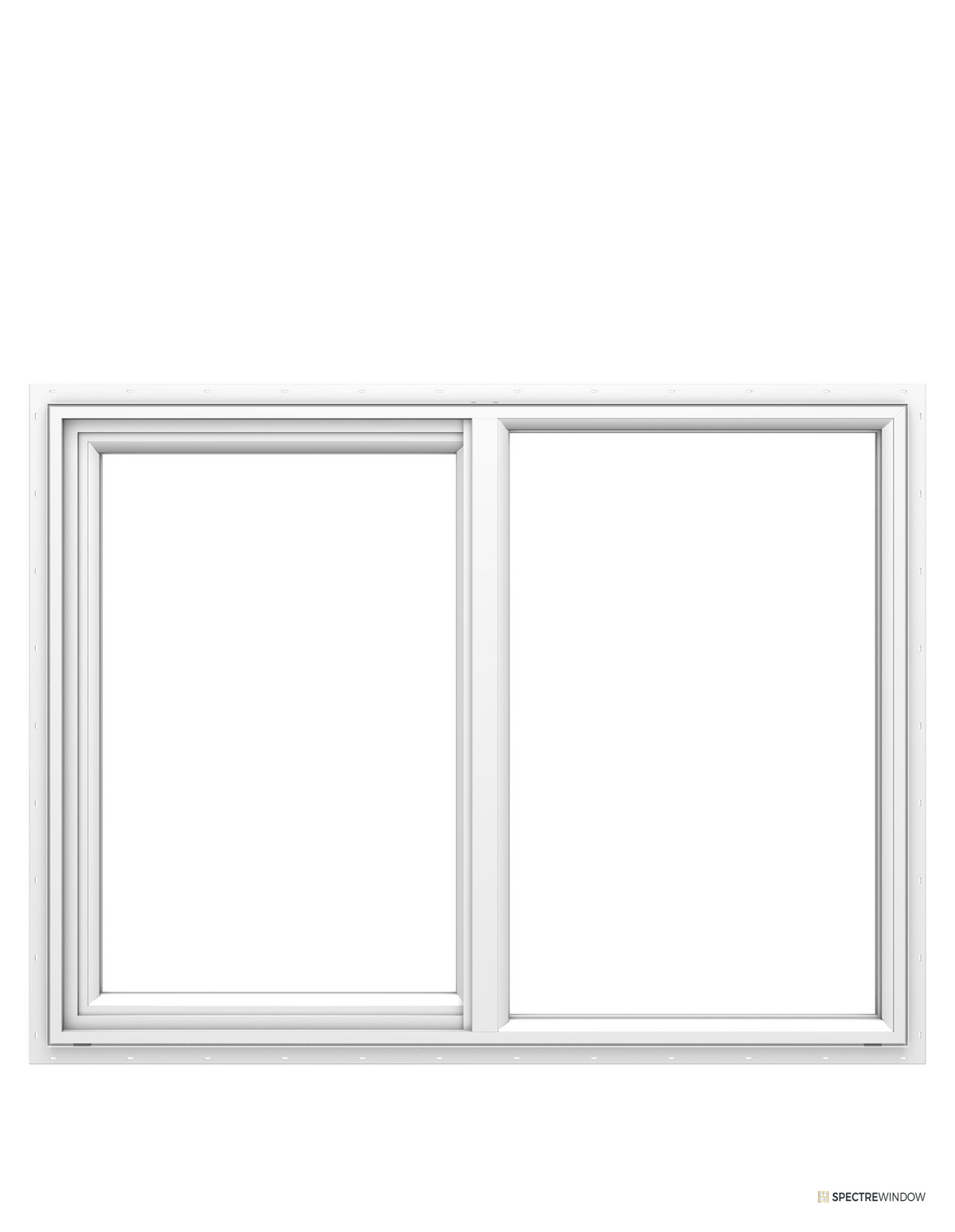

Spectre Window 71.5 in. x 47.5 in. Vinyl Sliding Window with Half Screen
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Each unit is a 2 lite horizontal slider with the operable panel on the left as viewed from the exterior and a fixed companion lite. Frames are extruded vinyl in white or fossil grey and never need paint, and the shallow 2.69 in. jamb suits standard 2x4 wall packages with a jamb extension. The half screen covers the operable panel and lifts out for cleaning. Units ship ready for new construction installation with a nailing fin, into rough openings a half inch larger than the unit in each direction. The insulated glass package for each size is confirmed during quote review.
Highlights
- Four stocked sizes: 59.5 x 35.5, 59.5 x 47.5, 71.5 x 35.5, and 71.5 x 47.5 in.
- Wide-format 2 lite slider with left operable sash
- Extruded vinyl frame in White or Fossil grey
- Slim 2.69 in. jamb depth
- Half screen included on the operable panel
- Nailing fin installation for new construction
- No-paint frame finish inside and out
Specification Table
| Unit size (flagship) | 71.5 in. W x 47.5 in. H; three additional stocked sizes |
| Rough opening | Unit width plus 0.5 in. and unit height plus 0.5 in. (typical); 72 in. x 48 in. for the flagship |
| Frame material | Extruded vinyl |
| Frame colors | White, Fossil grey |
| Frame depth | 2.69 in. jamb |
| Operation | Horizontal slider, 2 lite, left operable from the exterior |
| Glazing | Insulated glass package, confirmed during quote review |
| Screen | Half screen included |
| Installation | New construction with nailing fin |
| Weight | About 63 lb for the 71.5 x 47.5 in. unit, engineering estimate |
| Warranty | Limited manufacturer-backed warranty program, confirmed during quote review |
Included Equipment
- Assembled vinyl sliding window
- Half screen on the operable panel
- Factory-fitted sash lock
- Nailing fin around the frame perimeter
Installation Notes
- Verify the rough opening is 0.5 in. wider and taller than the ordered unit, square, and framed with a level, supported sill.
- Set the frame plumb and level and shim behind the jambs at the lock point so the wide sash glides without binding.
- Integrate the nailing fin with the weather barrier in shingle fashion and flash the head; keep sill weeps clear.
- Do not fasten through the sill track; the sill must stay unbroken to drain.
Warranty and Support
- Limited manufacturer-backed warranty program, confirmed during quote review.
- Quote packages include glide adjustment and screen care guidance.
Frequently Asked Questions
Which glass package ships with this window?
The stocked units carry an insulated glass package; the exact pane makeup, coating, and any upgrade options for your sizes are confirmed during quote review.
Which panel opens?
Viewed from the exterior, the left panel slides and the right lite is fixed. The half screen covers the operable panel.

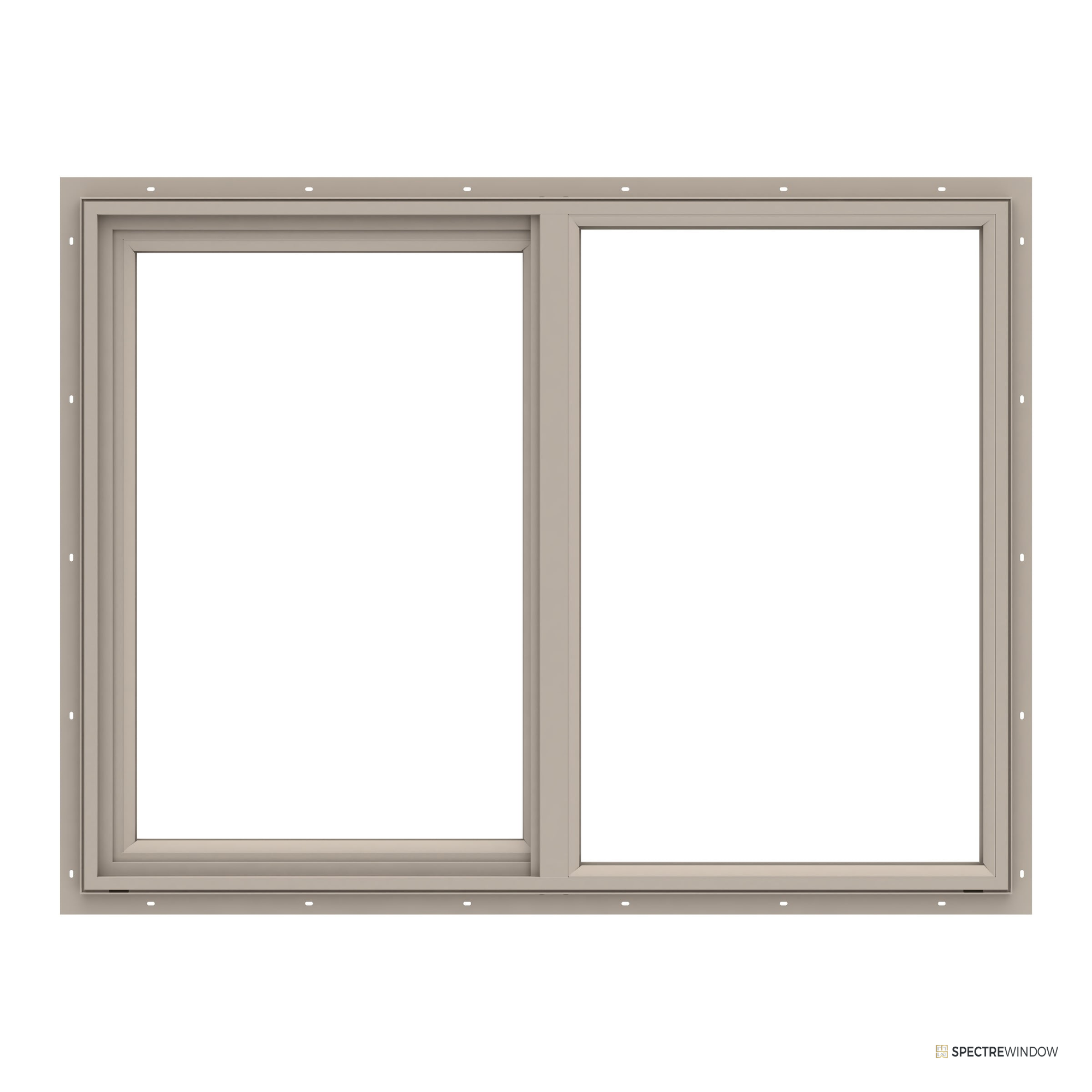

What is Fossil?
Fossil is a warm grey frame color, stocked in the 59.5 in. x 47.5 in. size. White is stocked in the other three sizes, and additional color and size pairings are quoted on request.
Is this window for new construction or replacement?
It ships with a nailing fin for new construction. For replacement openings where the fin cannot seat, request a quote note and the fin and trim approach will be confirmed during review.
Documents
- Type Sliding Window
- SKU SW-WIN-SL-VNL150-6036-WH
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
