Name: Spectre Window 72 Series Aluminum Sliding Window, Insulated Glass
Brand: Spectre Window
SKU: SW-WIN-SL-ALU72-2P-14-MB

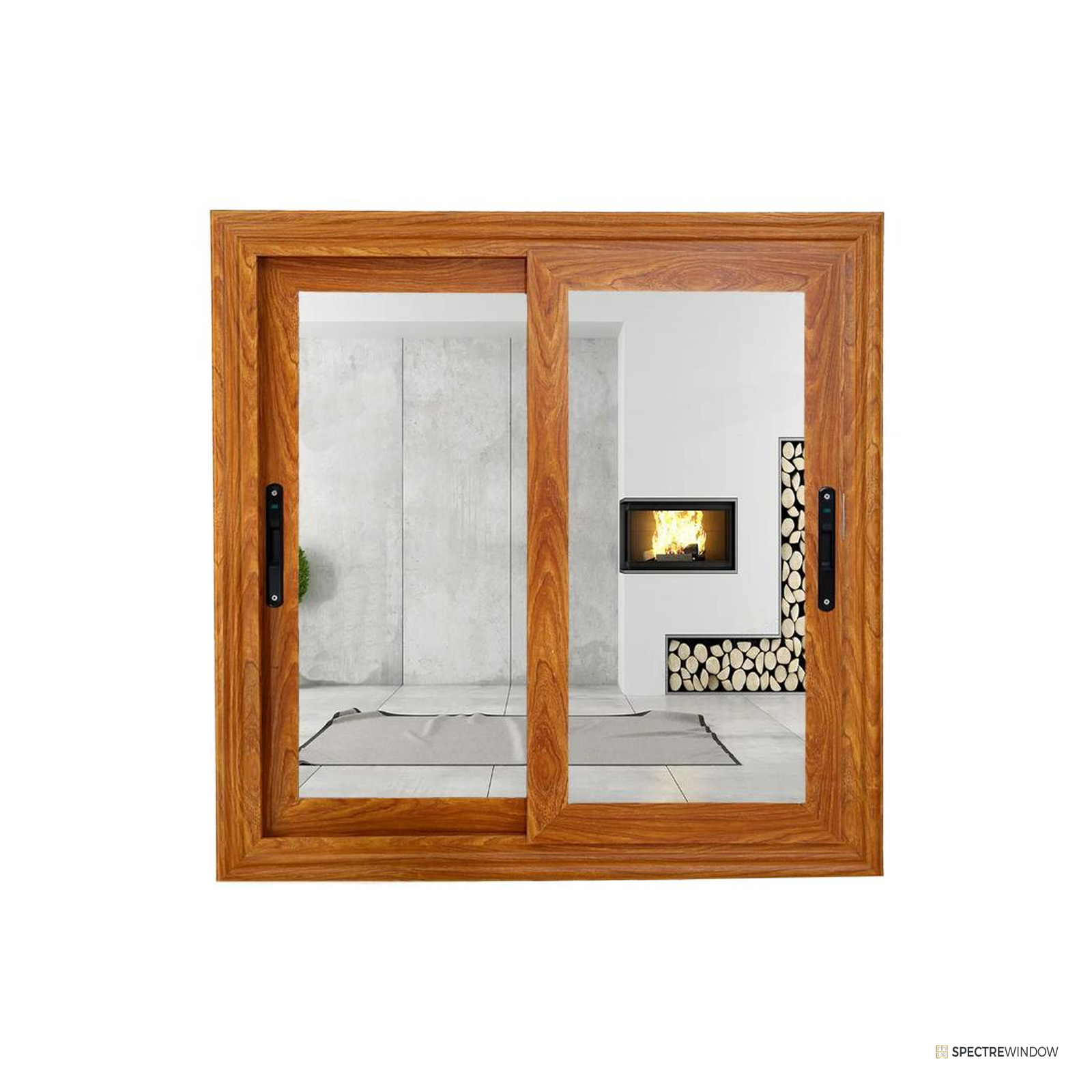

The 72 mm frame carries 2.56 in (65 mm) glazed panels running 15.7 to 47.2 in wide (400 to 1200 mm) at heights to 70.9 in (1800 mm). The factory builds three layouts: a standard 2 panel slider, a single sliding panel against fixed glass, and a 4 panel run where the middle panels slide. The 25 mm glazing pocket carries a two pane insulated glass unit, and a decorative internal grille is quoted on request. Frame extensions fit inside or outside, the screen panel tracks inside or outside, and flush bar pulls with sliding sash locks come fitted. Every unit is fabricated to the opening size and finished in one of eight standard colors.

Highlights

2.83 in (72 mm) frame and 2.56 in (65 mm) panel sections
Profile wall choice of 0.055 in (1.4 mm) or 0.079 in (2.0 mm)
2 panel and 4 panel middle sliding layouts; single sliding panel quoted on request
Glazed panel widths 15.7 to 47.2 in (400 to 1200 mm), heights to 70.9 in (1800 mm)
Insulated glass unit in a 25 mm glazing pocket
Gauze mesh screen panel, inside or outside track position
Decorative internal grille option quoted on request
Eight standard fluorocarbon and woodgrain finishes

Specification Table

Configuration	2 panel, or 4 panel with the middle panels sliding; single sliding panel layout quoted on request
Panel sizing	Glazed panels 15.7 to 47.2 in (400 to 1200 mm) wide; heights to 70.9 in (1800 mm); fabricated to opening size
Typical unit widths	About 71 in as a 2 panel and 142 in as a 4 panel unit at 900 mm panels
Frame section	2.83 in (72 mm)
Panel section	2.56 in (65 mm)
Profile wall thickness	0.055 in (1.4 mm) or 0.079 in (2.0 mm), selected at order; 0.047 in (1.2 mm) light gauge quoted on request
Thermal break	None (non thermal ambient profile)
Material	Extruded aluminum profiles
Glazing	Insulated glass unit, 25 mm glazing pocket; final makeup confirmed during quote review
Screen	Gauze mesh screen panel; inside or outside track position
Hardware	Flush bar pulls and sliding sash locks, finished to match
Finish system	Factory applied finish program in eight standard colors: five solid fluorocarbon coated tones and three woodgrain films
Representative weight	About 356 lb (161.5 kg) as a 2 panel 70.9 x 59.1 in unit at 1.4 mm wall (engineering estimate)
Warranty	Confirmed during quote review

Included Equipment

Aluminum sliding frame set with head, sill, and interlocks
Glazed sliding and fixed panel set with insulated glass
Gauze mesh screen panel in the ordered track position
Flush bar pulls and sliding sash locks
Installation fasteners and shim guidance

Installation Notes

Verify the rough opening and sill support before release; the track must bear on a continuous, level sill.
Sized to your opening within the factory range; exact dimensions are confirmed during quote review.
On exterior walls integrate head flashing and a sealed sill joint per local code; keep sill weeps clear.
Set the frame plumb, level, and square so panels glide and lock without lift.
Installation should be completed by a licensed contractor.

Warranty and Support

Warranty coverage is confirmed during quote review before release.
Quote packages include hardware adjustment guidance and finish care notes.

Frequently Asked Questions

Which layouts are available?
Three factory layouts: a standard 2 panel slider, a single sliding panel against fixed glass, and a 4 panel run where the two middle panels slide. The 2 panel and 4 panel layouts are stocked on this page; the single panel layout is quoted on request.

Which profile wall should I pick?
1.4 mm suits standard residential panels. Step up to 2.0 mm for wide or tall panels and heavy daily use. A 1.2 mm light gauge exists for budget interior work and is quoted on request.

Where does the screen go?
The gauze mesh screen panel can ride on the inside or the outside track line, chosen at order. Wrapped edge trims are available with either position.

Is a grille pattern available?
Yes. A decorative internal grille is shown by the factory for this series and is quoted on request per opening.
