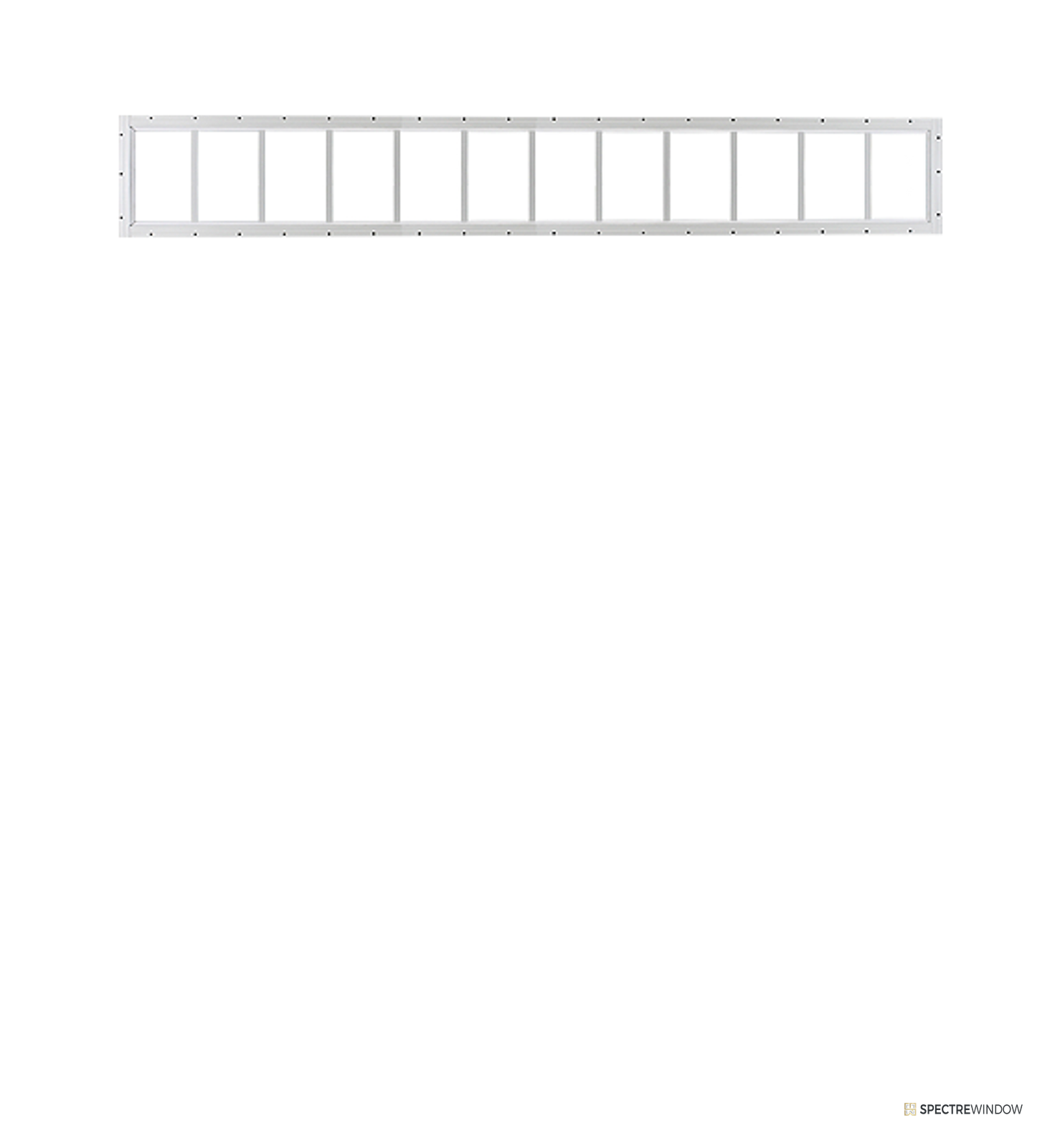

Spectre Window 72 in. x 10 in. Aluminum Fixed Transom Utility Window with Tempered Glass
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Five stocked widths run 18, 23, 29, 60, and 72 in., all 10 in. tall, in White, with the 72 in. width also stocked in Black. Every unit is glazed with tempered safety glass. The 18, 60, and 72 in. widths carry a flush mounting flange that fastens directly over the sheathing, while the 23 and 29 in. widths carry a J channel frame that ties into panel siding. These are utility grade fixed lites for outbuildings, workshops, garages, and equipment rooms rather than conditioned living space, and they mount high on the wall to keep light coming in without giving up wall storage or privacy.
Highlights
- Slim 10 in. tall fixed transom lites for sheds, garages, and utility walls
- Tempered safety glass in every size

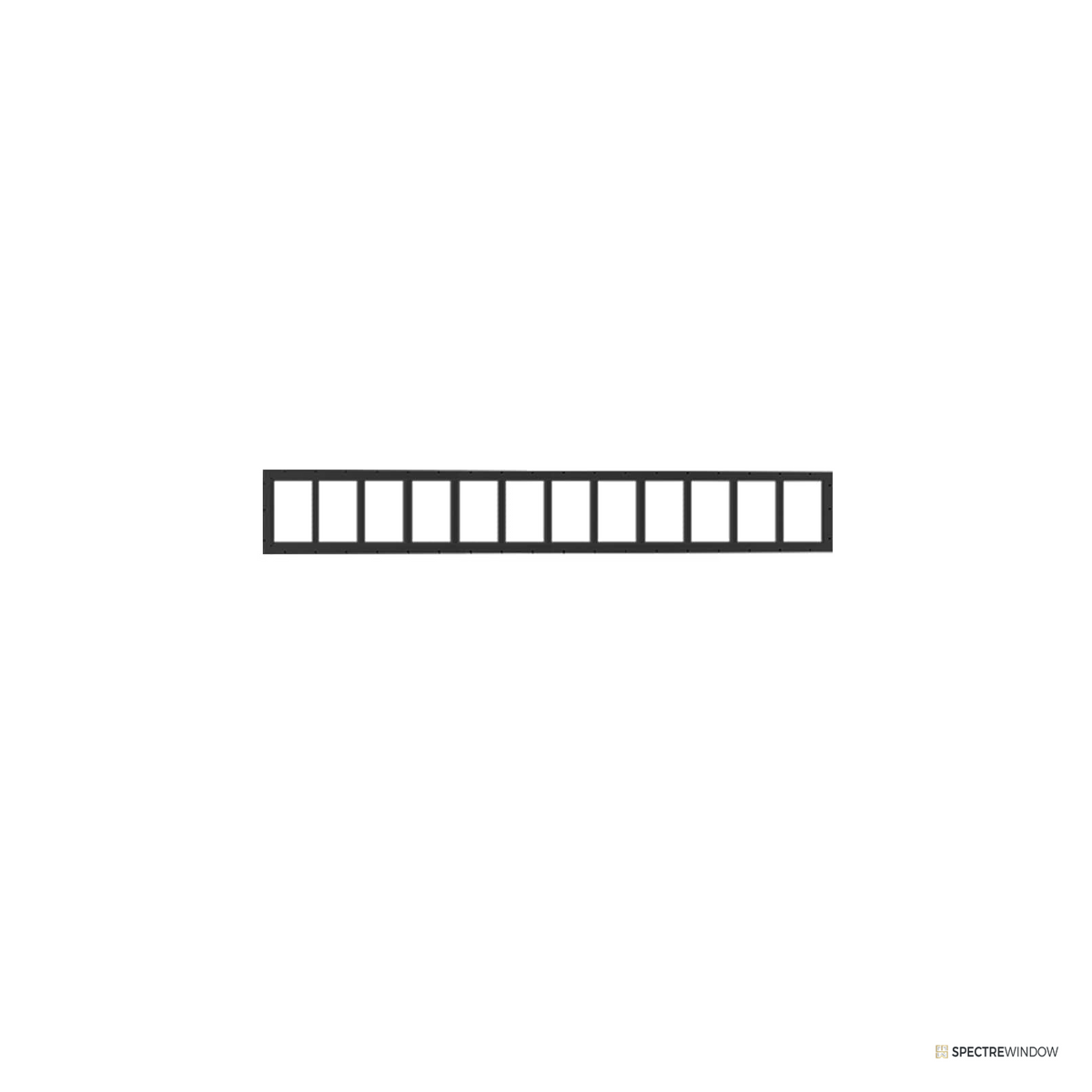

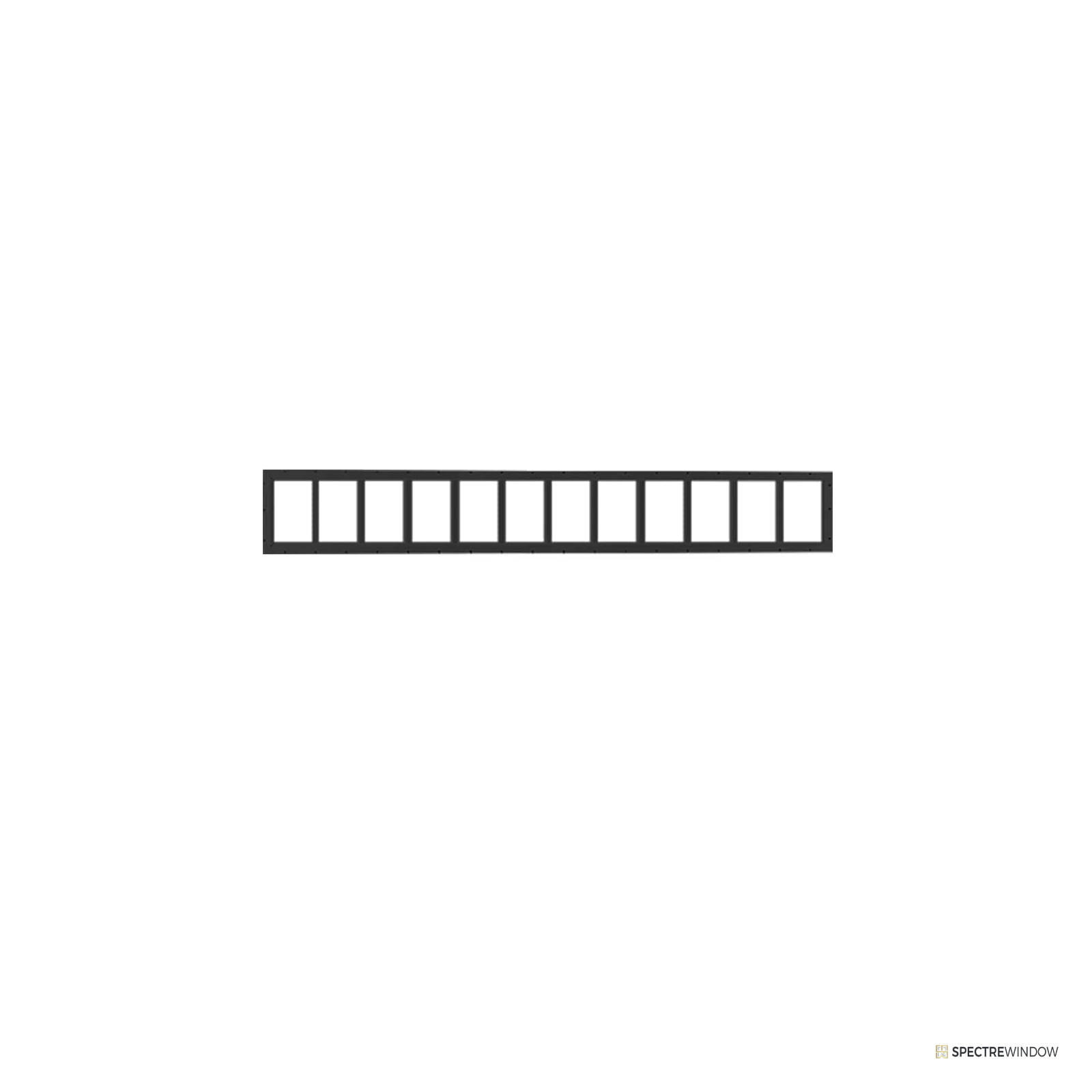

- Aluminum frame in White, with Black stocked in the 72 in. width
- Flush flange mounting on 18, 60, and 72 in. widths
- J channel mounting on 23 and 29 in. widths for panel siding
- Five stocked widths from 18 in. to 72 in.
Specification Table
| Unit size (flagship) | 72 in. W x 10 in. H |
| Stocked sizes | 18, 23, 29, 60, and 72 in. W, all 10 in. H |
| Rough opening | Unit size plus 0.5 in. in width and height (typical) |
| Frame material | Aluminum |
| Frame colors | White; Black in the 72 in. width |
| Operation | Fixed, non operating |
| Glazing | Tempered safety glass |
| Mounting | Flush flange on 18, 60, 72 in. widths; J channel on 23, 29 in. widths |
| Application | Sheds, garages, workshops, utility buildings |
| Weight | About 14 lb in the flagship size; varies by width (engineering estimate) |
| Warranty | Limited manufacturer backed warranty program, confirmed during quote review |
Included Equipment
- Assembled fixed utility window
- Tempered glass lite, factory glazed
- Flush mounting flange or J channel frame per width
Installation Notes
- Cut the opening 0.5 in. larger than the unit in width and height (typical) and verify the header is straight.
- Flush flange widths fasten through the flange into framing over a bead of exterior sealant; J channel widths integrate with the siding panel course.
- Keep fasteners snug, not overdriven, so the aluminum frame stays straight.
- Seal the top and side perimeter and leave weep paths at the sill clear.
Warranty and Support
- Warranty coverage is confirmed during quote review before release.
- Quote packages include sizing review and installation guidance for each opening.
Frequently Asked Questions
Are these insulated windows?
These are utility grade fixed lites with tempered safety glass, intended for sheds, garages, and outbuildings. Glazing makeup beyond the tempered rating is confirmed during quote review.
Which widths mount flush versus with J channel?
The 18, 60, and 72 in. widths use a flush mounting flange. The 23 and 29 in. widths use a J channel frame that accepts panel siding.
Can they be installed vertically as a sidelite?
The frame is engineered for horizontal transom orientation. Alternate orientations are reviewed during quote review.
Documents
- Type Utility Fixed Window
- SKU SW-WIN-PW-UTIL-7210WH
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
