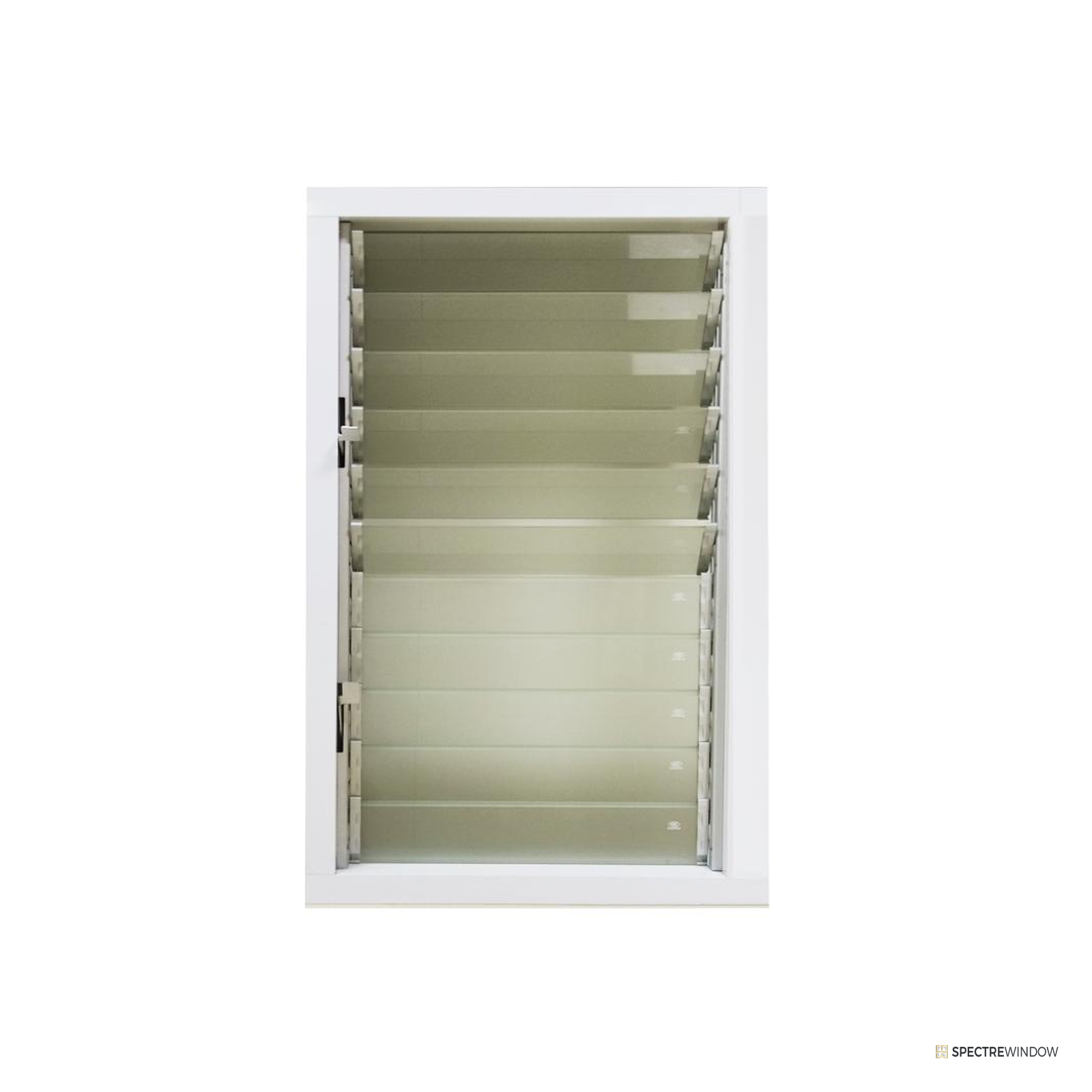

Spectre Window 76 Series Glass Louver Window with Frosted Blades
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Blades ride in an extruded aluminum frame and tilt together from center stile lever operators; the factory states the system provides constant ventilation and can be rainproof at the same time, since partly opened blades shed water outward while passing air. Frosted blades give built in privacy with soft daylight, and clear glass is quoted on request. The factory builds single bay and two bay frames. This is a platform product: no profile dimensions or size run are printed for the series, so frame details and dimensions are engineered per opening and confirmed during quote review. Every unit is finished in one of eight standard colors.
Highlights
- Glass louver (jalousie style) window with blades that tilt in unison
- Constant ventilation with rainproof operation, per the factory
- Frosted blades for privacy with soft daylight

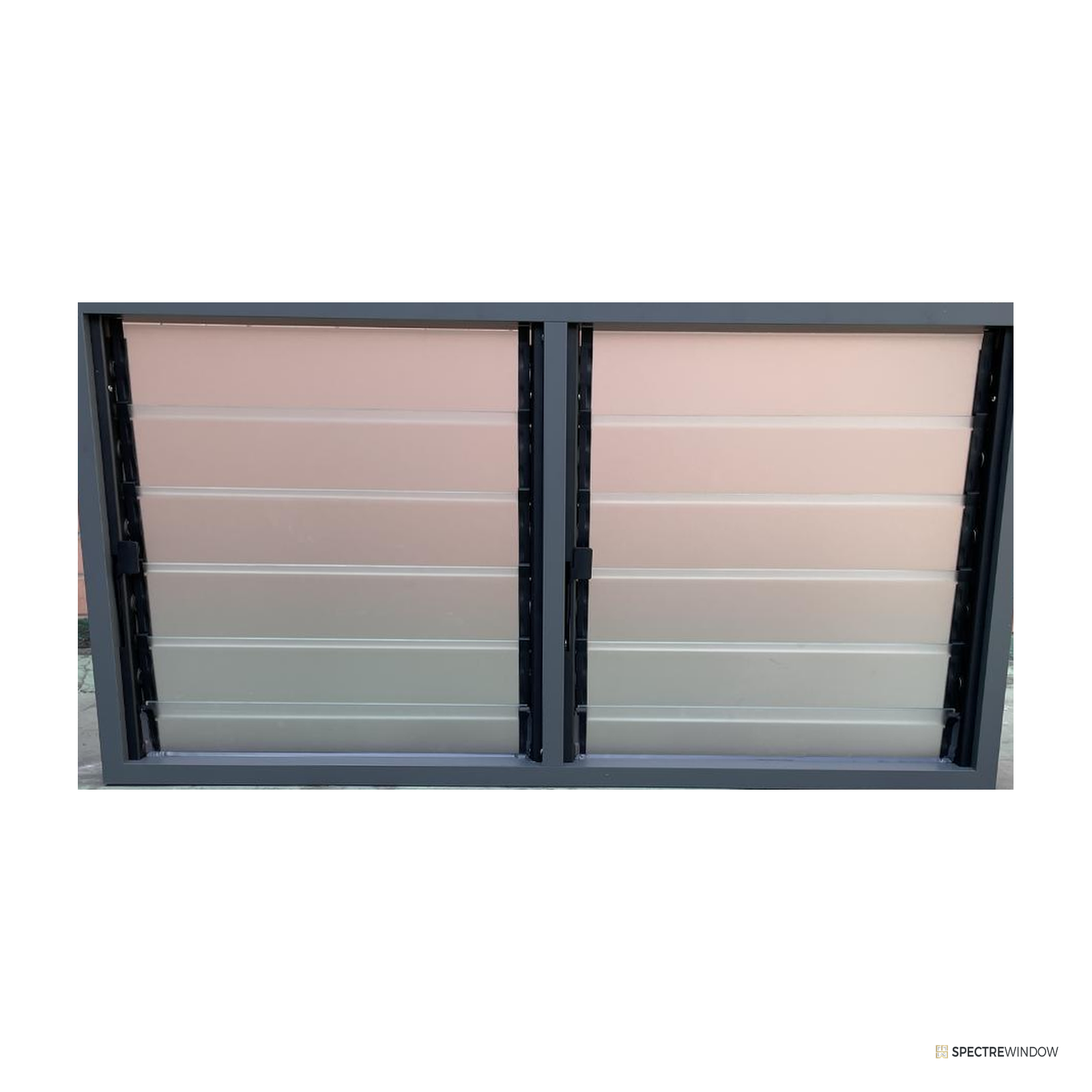

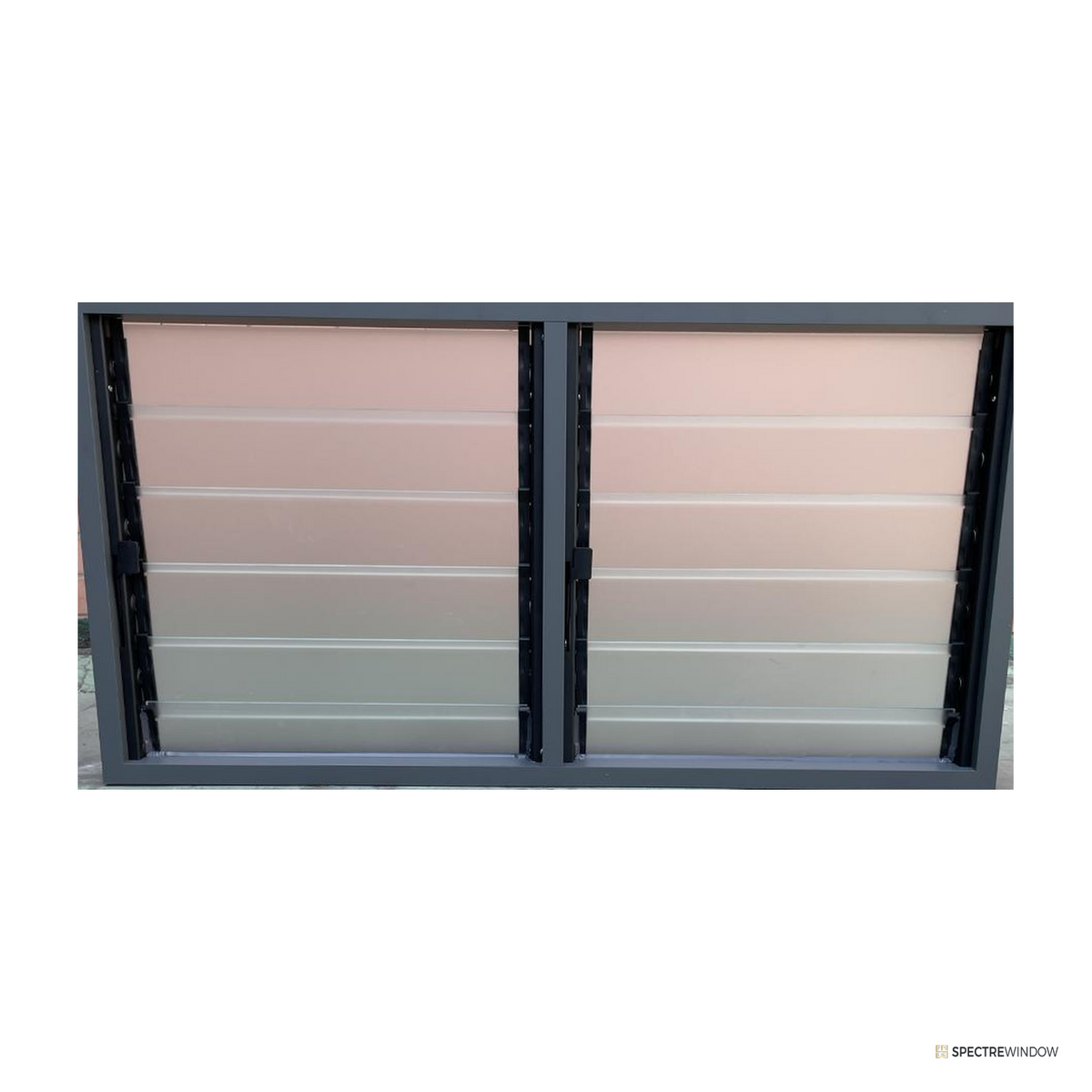

- Single bay and two bay frame layouts
- Center stile lever operators
- Dimensions engineered per opening during quote review
- Eight standard fluorocarbon and woodgrain finishes
Specification Table
| Configuration | Single bay or two bay louver frame |
| System sizing | Quote configured; dimensions confirmed during quote review |
| Blade operation | Center stile lever tilts all blades in unison |
| Louver blades | Frosted glass shown by the factory; clear glass quoted on request |
| Ventilation | Constant ventilation with rainproof operation (factory claim) |
| Material | Extruded aluminum profiles |
| Installation | Surface mount or reveal fit, confirmed at order |
| Hardware | Center stile lever operators, finished to match |
| Finish system | Factory applied finish program in eight standard colors: five solid fluorocarbon coated tones and three woodgrain films |
| Representative weight | About 166 lb (75.4 kg) per representative 27.6 x 55.1 in bay (engineering estimate) |
| Warranty | Confirmed during quote review |
Included Equipment
- Aluminum louver frame with frosted glass blade set
- Center stile lever operators
- Installation fasteners and shim guidance
Installation Notes
- Verify the opening is square, sound, and dimensionally stable before release.
- Dimensions and frame details are engineered per opening; exact sizes are confirmed during quote review.
- Anchor the frame to structure and seal fastener penetrations on exterior walls.
- Set the frame plumb and level so blades close evenly along the full stack.
- Installation should be completed by a licensed contractor.
Warranty and Support
- Warranty coverage is confirmed during quote review before release.
- Quote packages include hardware adjustment guidance and finish care notes.
Frequently Asked Questions
What is a jalousie window?
A window made of parallel glass slats that tilt open and shut in unison, also called a louvre window. This series is the aluminum framed version with frosted blades.
Does it really keep rain out while open?
The factory states the system provides constant ventilation and can be rainproof at the same time: partly opened blades angle outward, shedding water while air passes between them. Driving storms still warrant closing the blades.
Can I get clear glass instead of frosted?
The factory photographs frosted blades on this series, and clear glass is quoted on request during quote review.
Is this an energy efficient window?
No. Louver windows trade sealed performance for airflow. Use it where ventilation is the point, and use the thermally broken casement or slider series for conditioned envelopes.
Documents
- Type Louver Window
- SKU SW-WIN-SHUT-GL76-1B-MB
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
