Name: Spectre Window 80 Series Aluminum Casement Window with Built In Insect Screen Panel
Brand: Spectre Window
SKU: SW-WIN-SPC-NET80-78-MB

The 80 mm frame carries the glazed panel on the outside and the screen panel on the inside at a 0.055 in (1.4 mm) profile wall. Glazed panel sections come in 3.07 in (78 mm) or 3.50 in (89 mm), selected at order. Panels run 19.7 to 33.5 in wide (500 to 850 mm) at heights to 70.9 in (1800 mm), built as single units, fixed plus casement combinations with transoms, and arched top layouts. The interior handle operates the glazed sash through the screen line, so the screen stays closed while the window ventilates. Every unit is fabricated to the opening size and finished in one of eight standard colors.

Highlights

Glazed panel and built in insect screen panel in one 3.15 in (80 mm) frame
Glazed panel section choice of 3.07 in (78 mm) or 3.50 in (89 mm)
0.055 in (1.4 mm) profile wall
Panel widths 19.7 to 33.5 in (500 to 850 mm), heights to 70.9 in (1800 mm)
Small interior handle operates the window with the screen closed
Fixed, transom, and arched top combinations available
Eight standard fluorocarbon and woodgrain finishes

Specification Table

Configuration	Glazed panel outside, insect screen panel inside; combinations per layout
Panel sizing	19.7 to 33.5 in (500 to 850 mm) wide; heights to 70.9 in (1800 mm); fabricated to opening size
Frame section	3.15 in (80 mm)
Glazed panel section	3.07 in (78 mm) or 3.50 in (89 mm), selected at order
Profile wall thickness	0.055 in (1.4 mm)
Thermal break	None (non thermal integrated screen profile)
Material	Extruded aluminum profiles
Glazing	Single glazed panel; glass makeup confirmed during quote review
Screen	Built in insect screen panel, inside face
Hardware	Small interior handle, finished to match
Finish system	Factory applied finish program in eight standard colors: five solid fluorocarbon coated tones and three woodgrain films
Representative weight	About 260 lb (117.8 kg) as a 27.6 x 59.1 in unit with 78 mm panels (engineering estimate)
Warranty	Confirmed during quote review

Included Equipment

Aluminum integrated frame with perimeter gaskets
Glazed casement panel, factory hinged
Built in insect screen panel
Small interior handle hardware
Installation fasteners and shim guidance

Installation Notes

Verify the rough opening is square, level, and plumb before release; shim at hinge points.
Sized to your opening within the factory range; exact dimensions are confirmed during quote review.
On exterior walls integrate head flashing and a sealed sill joint per local code.
Confirm interior clearance for the inside screen panel before ordering.
Installation should be completed by a licensed contractor.

Warranty and Support

Warranty coverage is confirmed during quote review before release.
Quote packages include hardware adjustment guidance and finish care notes.

Frequently Asked Questions

Is this a thermally broken window?
No. The 80 Series is the non thermal, budget tier of the integrated screen family. For heated and cooled walls in demanding climates, the 108 Series and 135 Series carry thermal breaks and security steel mesh.

What is the screen made of?
A built in insect screen panel on the interior side of the frame. Unlike a clip on screen it lives in the frame permanently and the window operates without removing it.

Which glazed panel section should I choose?
The 78 mm section is standard for most openings; the 89 mm section adds stiffness for larger panels. Your sizes are reviewed against the section during quote review.

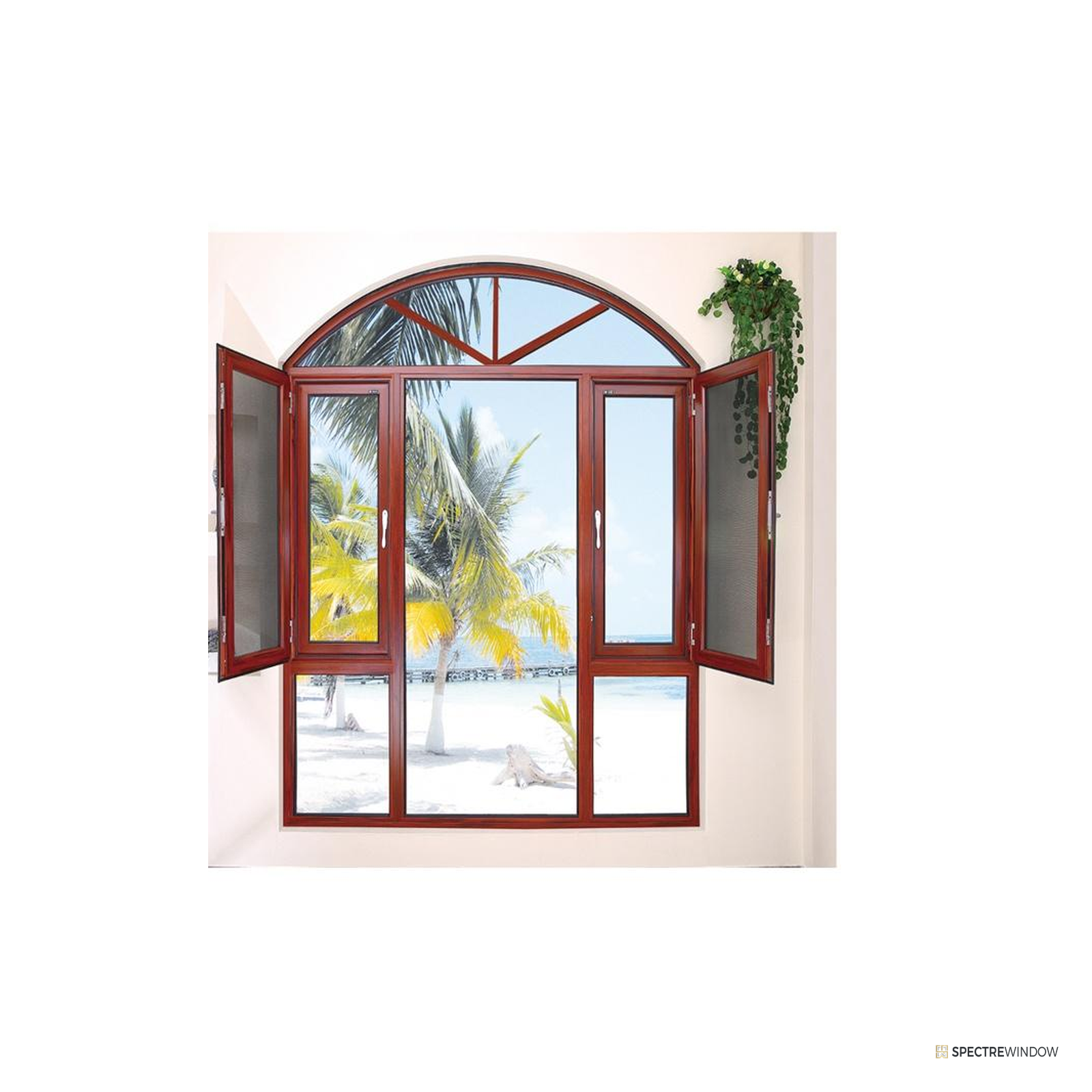

Can it be built with arched tops or transoms?
Yes. The factory shows fixed plus casement plus transom combinations and arched top units on this series. Layouts are configured during quote review.
