Spectre Window 84 Series Concealed Frame Aluminum Curtain Wall System
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

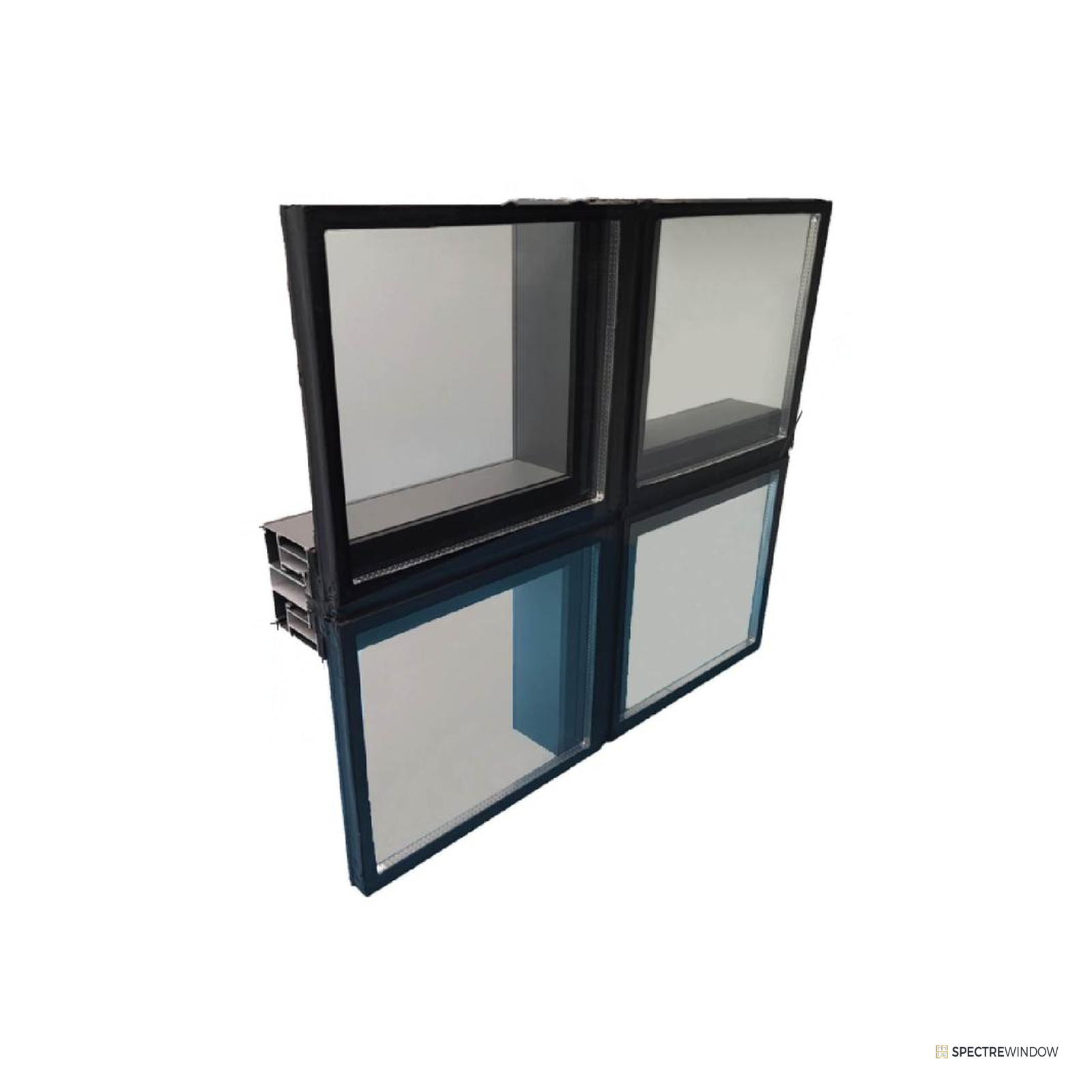

The system builds on 3.31 in (84 mm) face mullions with insulated glazing seated in a 25 mm glazing pocket; from outside the glass edges meet at slim joints and the aluminum stays hidden behind the glass line. Grid module, bay sizes, spans, and anchoring are engineered per elevation, and glass makeup, including tints and spandrel panels, is specified per project. Profiles are finished in one of eight standard colors, with the interior grid reading as the visible finish surface.
Highlights
- Concealed frame: flush all glass exterior, no exposed cover caps
- 3.31 in (84 mm) face mullion grid
- Insulated glazing in a 25 mm glazing pocket
- Storefront, office front, and feature wall applications
- Grid and bay sizes engineered per elevation
- Eight standard finishes on the interior grid
Specification Table
| System type | Concealed frame curtain wall (structurally glazed look) |
| Mullion face | 3.31 in (84 mm) |
| Module sizing | Quote configured; grid and bay sizes engineered per elevation |
| Material | Extruded aluminum mullions and transoms |
| Glazing | Insulated glazing shown, 25 mm glazing pocket; makeup specified per project |
| Glass retention | Concealed frame; glass conceals the grid from the exterior |
| Ventilation | Fixed lites standard; vent integration quoted per project |
| Applications | Storefronts, office fronts, feature walls |
| Finish system | Factory applied finish program in eight standard colors: five solid fluorocarbon coated tones and three woodgrain films |
| Representative weight | About 655 lb (297.1 kg) per representative 94.5 x 118.1 in module (engineering estimate) |
| Warranty | Confirmed during quote review |
Included Equipment
- Aluminum mullion and transom grid, cut and machined per shop drawings
- Glazing gaskets and setting blocks
- Structural glazing retention components per the project details
- Anchoring brackets per the project engineering package
- Assembly and installation hardware
Installation Notes
- Curtain wall systems are engineered per elevation; anchor layout, dead load brackets, and movement joints are settled in the project engineering package during quote review.
- Verify slab edge conditions, embed locations, and tolerances against the approved shop drawings before release.
- Glaze and seal per the released project details; keep pressure equalization and drainage paths clear.
- Installation must be completed by a qualified facade or glazing contractor.
Warranty and Support
- Warranty coverage is confirmed during quote review before release.
- Quote packages include hardware adjustment guidance and finish care notes.
Frequently Asked Questions
What does concealed frame mean?
The aluminum grid sits fully behind the glass line, so the exterior reads as a continuous glass plane with slim joints, the look the industry calls structural glazing. The exposed frame 130 Series is the captured alternative with visible cover caps.
What sizes and modules are available?
Grid module, bay sizes, and overall elevation are engineered per project. The factory does not publish fixed module limits for this series, so the layout is settled with the project engineering package during quote review.
What glass does it take?
Renders show insulated glazing seated in the 25 mm glazing pocket. The exact glass makeup, including coatings, tints, laminated or spandrel panels, is specified per project during quote review.
Which finishes are available?
Eight standard finishes: Matte Black, Slate Grey, Silver Grey, White, Champagne, Cherry Woodgrain, Golden Oak Woodgrain, and Walnut Woodgrain, applied over the extruded aluminum members.
Documents
- Type Curtain Wall
- SKU SW-WIN-CW-HID84-MB
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
