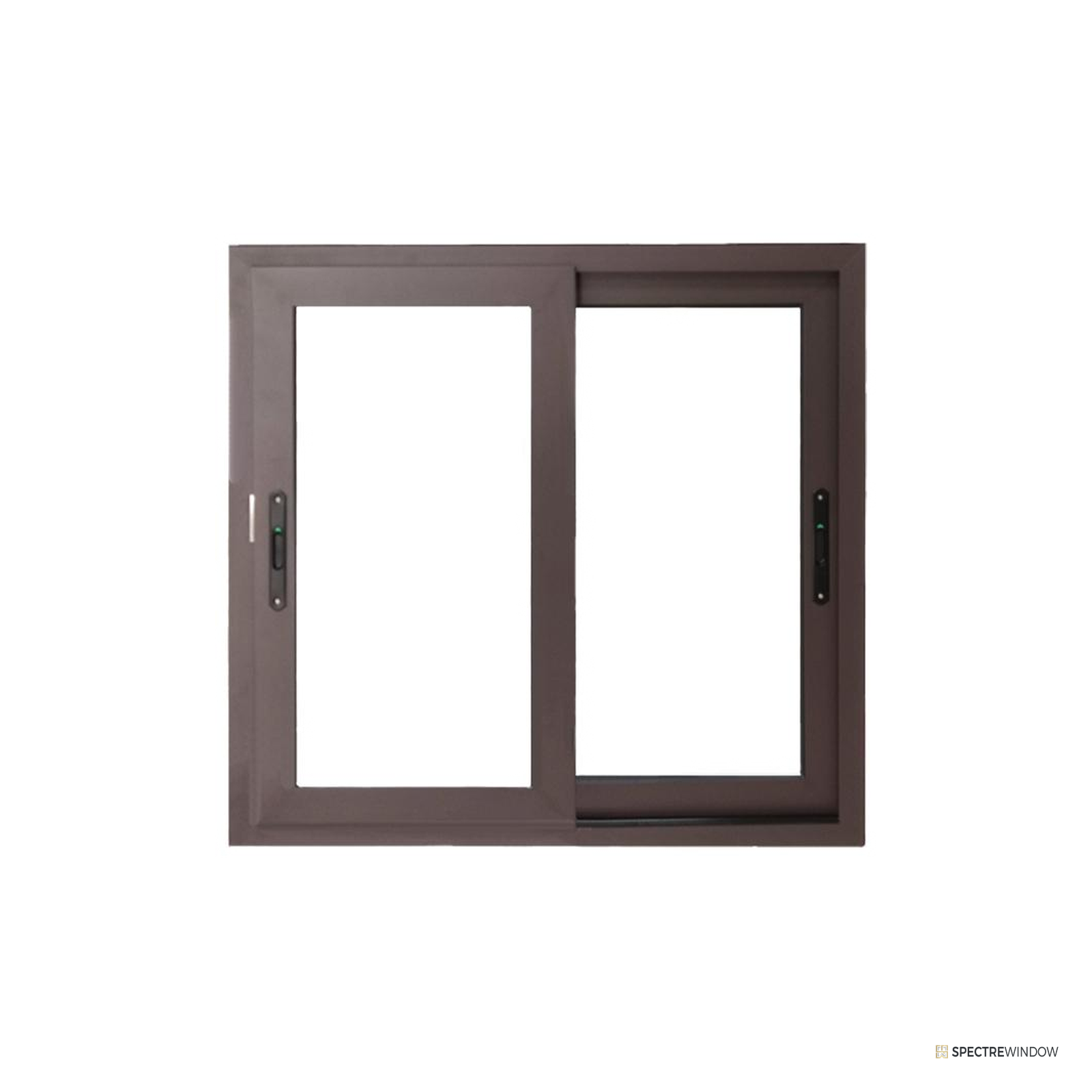

Name: Spectre Window 85 Series Three Track Aluminum Sliding Window with Screen Track
Brand: Spectre Window
SKU: SW-WIN-SL-ALU85-2P-MB

The 3.35 in (85 mm) three track frame carries 2.56 in (65 mm) glazed panels with a two pane insulated glass unit in the 25 mm glazing pocket, plus a woven security mesh panel on the dedicated screen track. The factory shows two panel and three panel glass layouts, both with the screen track. Flush pulls and crescent sash locks come fitted. This is a platform product: the factory does not publish a fixed size run for the series, so panel counts and dimensions are engineered per opening during quote review, with the profile wall gauge confirmed at the same step. Every unit is finished in one of eight standard colors.

Highlights

True three track frame: two glass tracks plus a dedicated screen track
Security steel mesh screen panel slides independently of the glass
3.35 in (85 mm) frame and 2.56 in (65 mm) panel sections
Insulated glass unit in a 25 mm glazing pocket

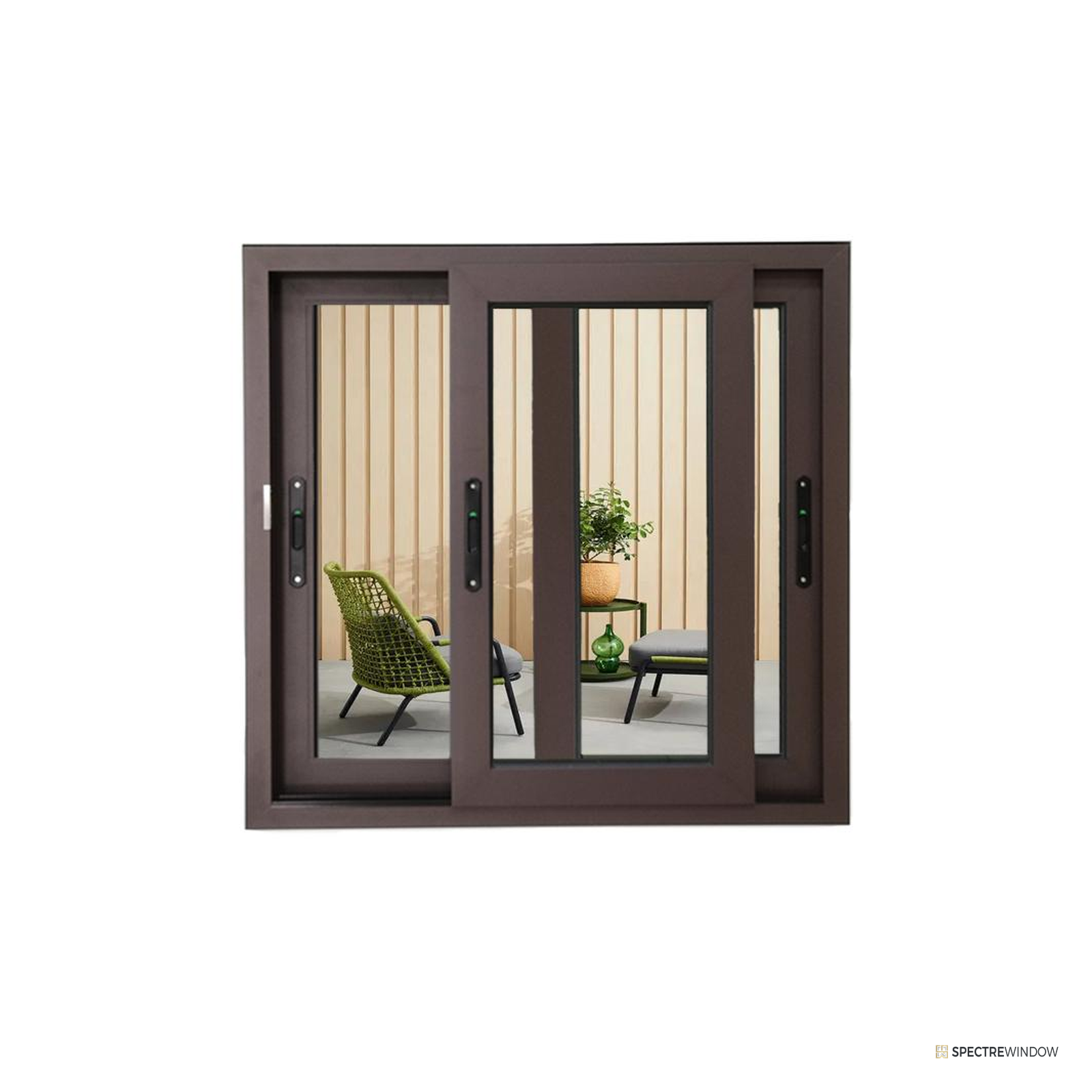

2 panel and 3 panel glass layouts shown by the factory
Flush pulls and crescent sash locks fitted
Eight standard fluorocarbon and woodgrain finishes

Specification Table

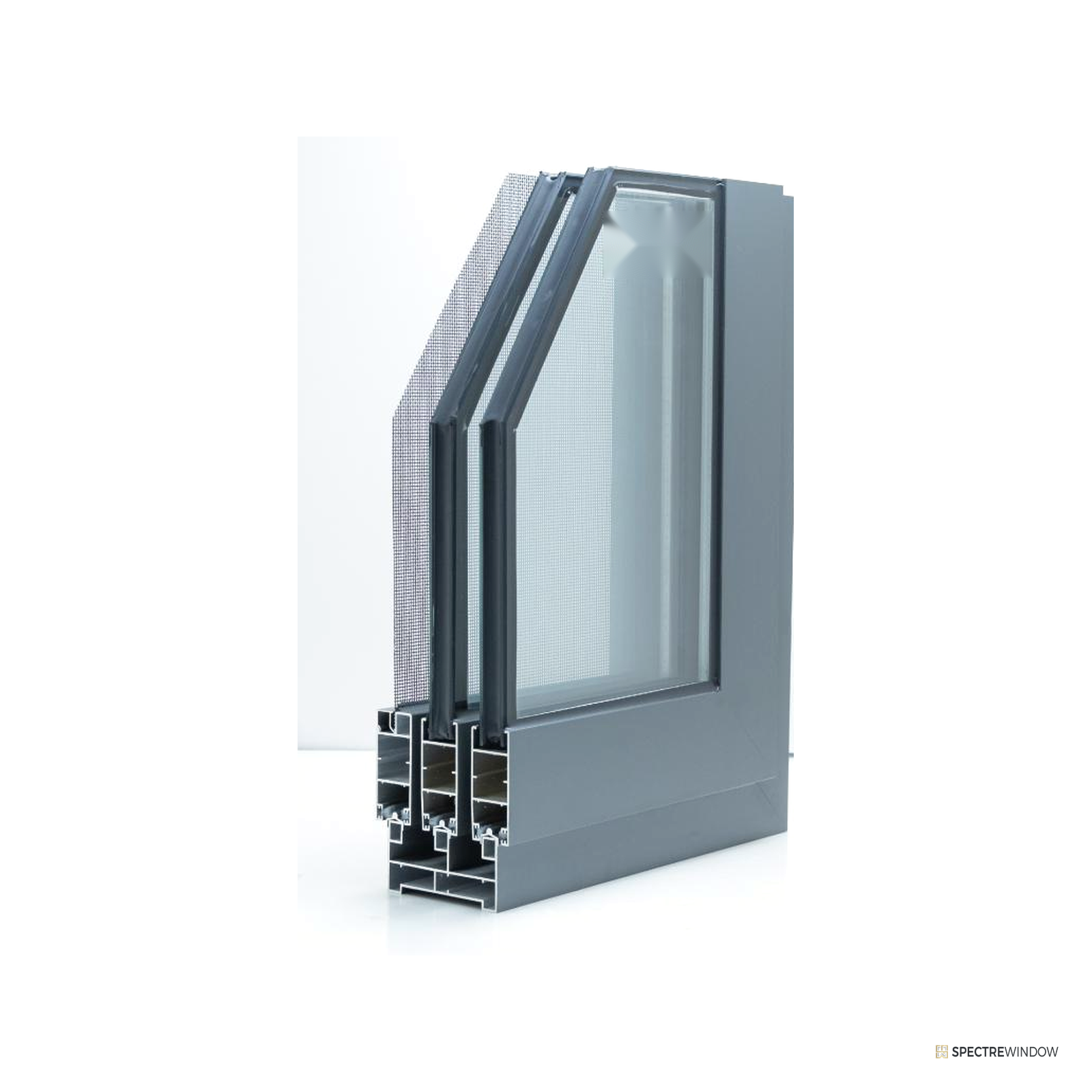

Configuration	2 or 3 glazed panels plus a security mesh screen panel on its own track
System sizing	Quote configured; panel layout engineered per opening
Frame section	3.35 in (85 mm), three track
Panel section	2.56 in (65 mm)
Profile wall thickness	Confirmed during quote review
Thermal break	None stated (ambient profile)
Material	Extruded aluminum profiles
Glazing	Insulated glass unit, 25 mm glazing pocket; final makeup confirmed during quote review
Screen	Security steel mesh panel, dedicated third track
Hardware	Flush pulls and crescent sash locks, finished to match
Finish system	Factory applied finish program in eight standard colors: five solid fluorocarbon coated tones and three woodgrain films
Representative weight	About 451 lb (204.7 kg) as a 2 panel with screen module at 35.4 x 59.1 in panels (engineering estimate)
Warranty	Confirmed during quote review

Included Equipment

Three track aluminum frame set with head, sill, and interlocks
Glazed sliding panel set with insulated glass
Security steel mesh screen panel on the dedicated track
Flush pull and crescent lock hardware
Installation fasteners and shim guidance

Installation Notes

Verify the rough opening and sill support before release; the three track sill must bear on a continuous, level surface.
Panel layout and dimensions are engineered per opening; exact sizes are confirmed during quote review.
On exterior walls integrate head flashing and a sealed sill joint per local code; keep sill weeps clear.
Set the frame plumb, level, and square so glass and screen panels glide and lock without lift.
Installation should be completed by a licensed contractor.

Warranty and Support

Warranty coverage is confirmed during quote review before release.
Quote packages include hardware adjustment guidance and finish care notes.

Frequently Asked Questions

What does the third track do?
It is a dedicated channel for the security mesh screen panel. The screen slides independently of the glass, stays in the frame year round, and never has to be unclipped to open the window.

Is the screen ordinary insect mesh?
No. The factory fits woven security steel mesh, which keeps insects out while resisting impact and cutting well beyond fiberglass mesh.

What sizes can it be built to?
The series is quote configured. The factory does not publish a fixed size run, so panel counts and dimensions are engineered to your opening during quote review.

How does it compare with the 72 Series slider?
The 72 Series is a two track slider with the screen sharing the frame line. The 85 Series adds a true third track dedicated to the screen, which is the cleaner arrangement when the screen stays in daily use.
