Spectre Window 95.5 in. x 47.5 in. Vinyl Sliding Window with Low-E Insulated Glass

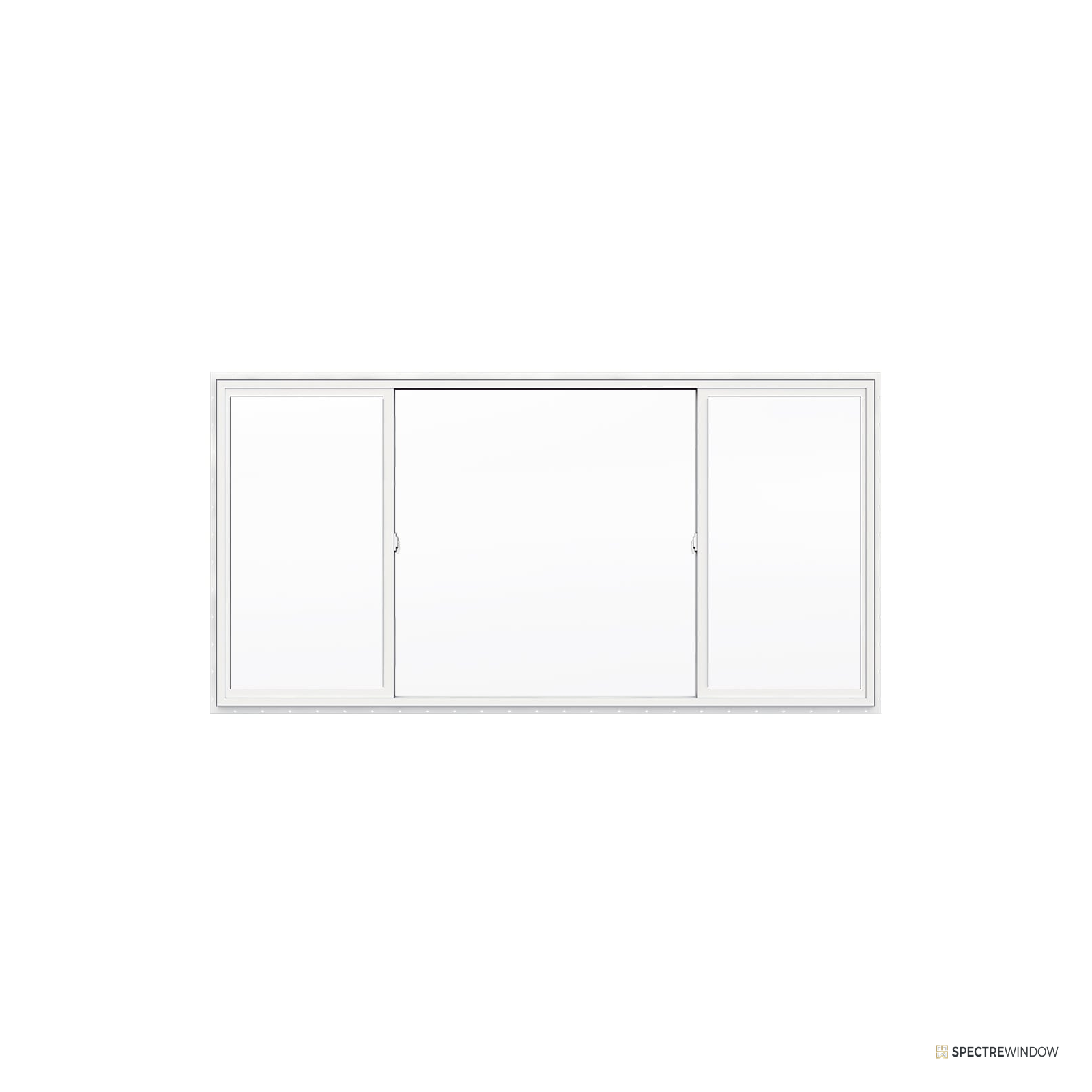

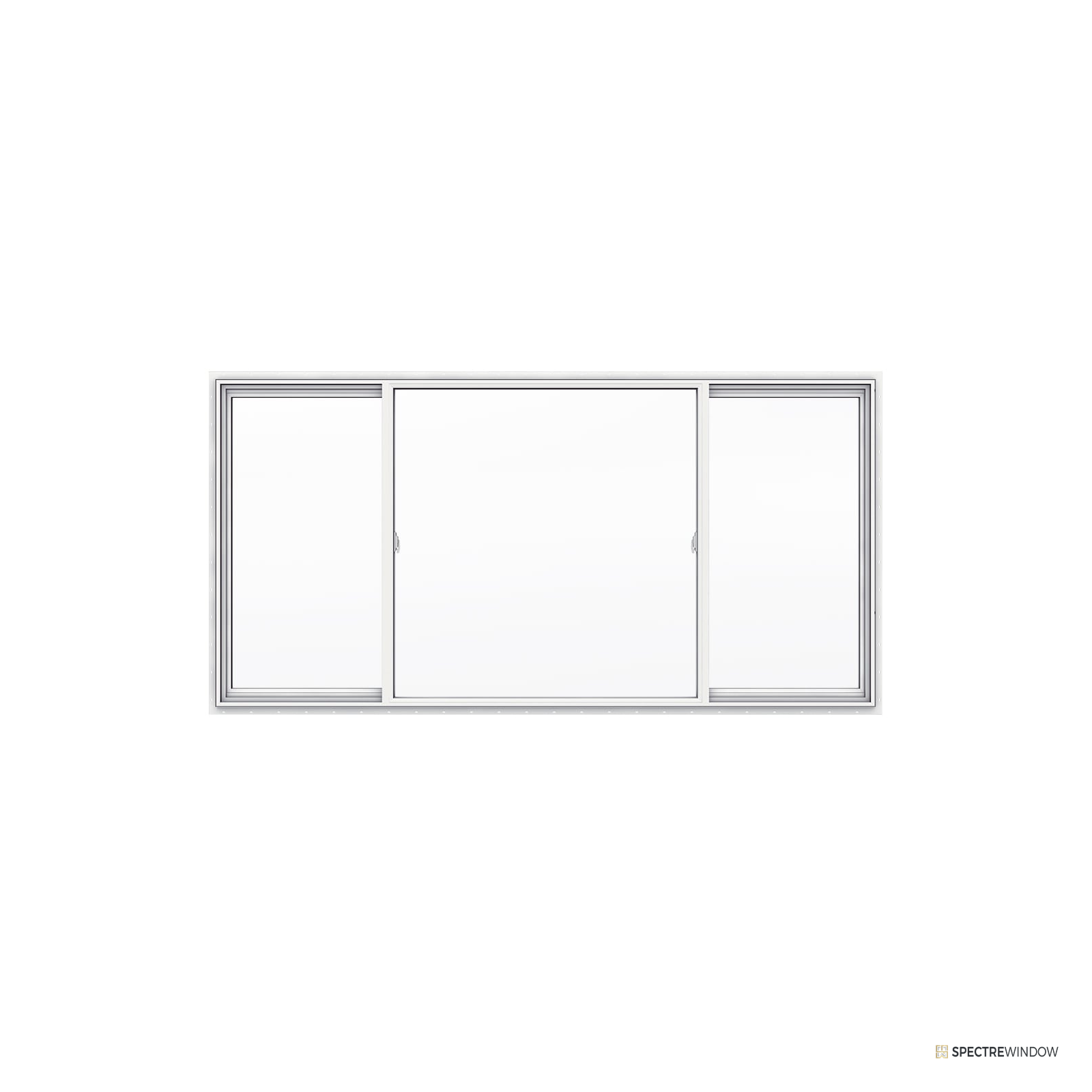

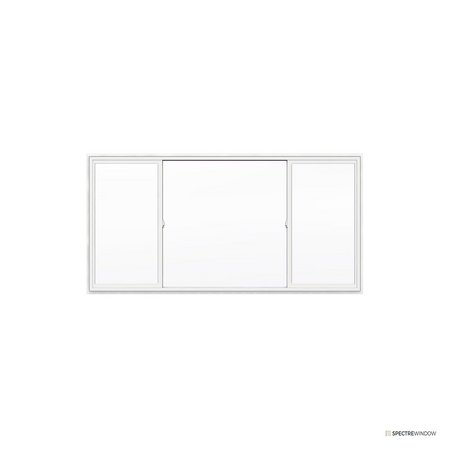

Sashes ride machined polymer rollers on a raised rail track, so wide panels glide without lifting or racking, and a cam lock pulls the meeting rail tight against full perimeter weatherstripping. The glass package is double pane with a Low-E coating and argon fill, in double strength or annealed panes depending on the size run. Frames are extruded vinyl in white, black exterior over white interior, or desert sand, and never need paint. A 1.25 in. pre-punched integral nailing fin surrounds the frame for weathertight new construction installs, and the same unit is regularly used in full-frame replacement work. Two lite sizes run one fixed and one sliding sash, handed left or right as stocked; the 95.5 in. wide unit runs a 3 lite layout with a fixed center panel and an operable sliding sash at each end.

Highlights

• Nine stocked sizes from 35.5 x 11.5 in. to 95.5 x 47.5 in.
• Double pane Low-E insulated glass with argon fill
• U-factor 0.29 and SHGC 0.23 as documented for the flagship size
• Egress verified in the 95.5 x 47.5, 71.5 x 47.5, 59.5 x 35.5, and 47.5 x 47.5 in. sizes
• Machined polymer rollers on a raised rail track for smooth glide
• Full fiberglass mesh screen with extruded frame included
• 1.25 in. pre-punched integral nailing fin for weathertight installs
• White, black exterior, and desert sand frame colors, no painting

Specification Table

Included Equipment

• Assembled vinyl sliding window with insulated glass
• Full fiberglass mesh screen in extruded frame

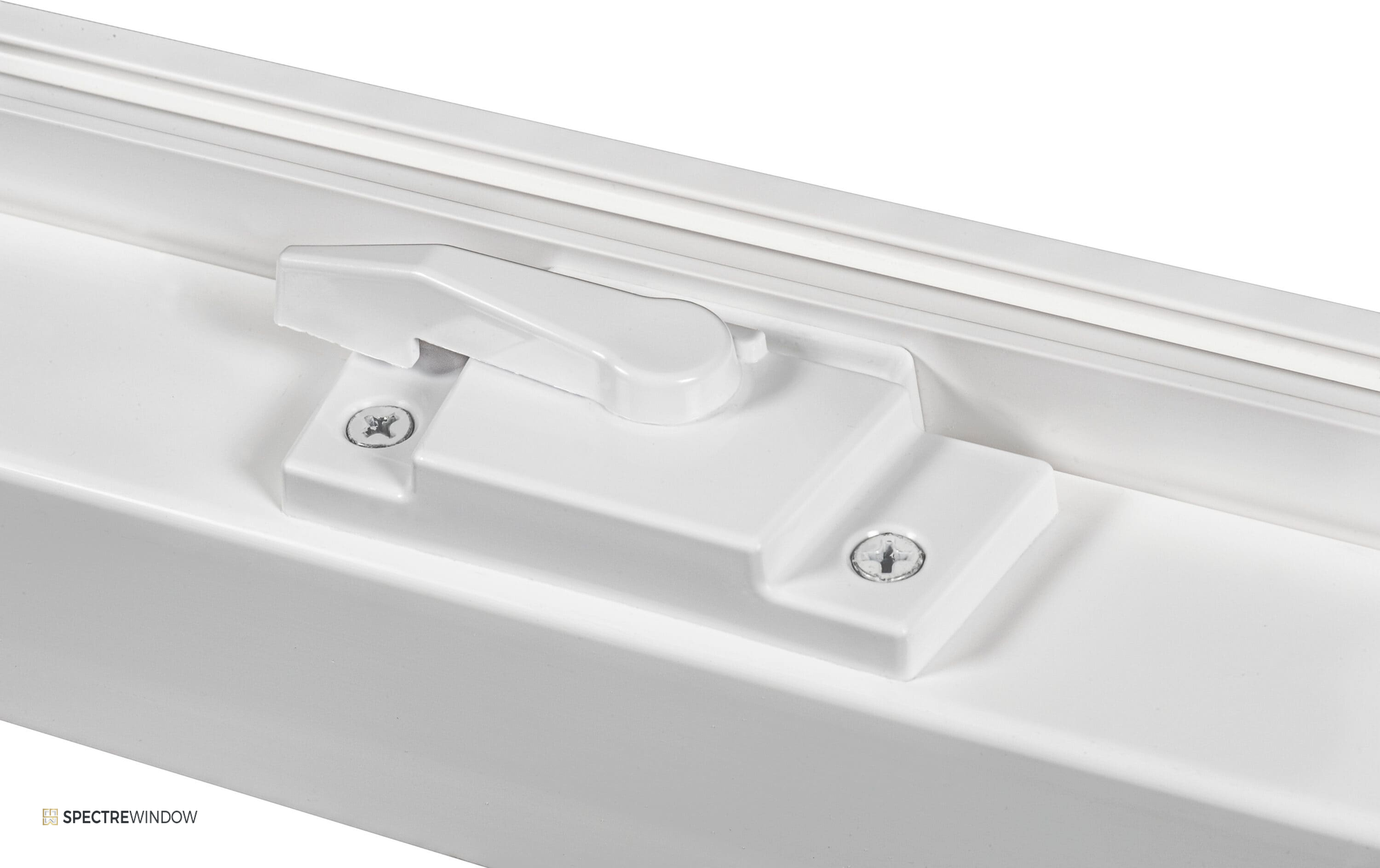

• Cam lock hardware, factory fitted
• 1.25 in. pre-punched integral nailing fin around the frame perimeter

Installation Notes

• Verify the rough opening is 0.5 in. wider and taller than the unit, square within 0.25 in., with a level, structurally supported sill before setting the window.
• Set the unit plumb and level, shim behind the jambs at lock and roller points, and check that sashes glide and the cam lock engages before fastening off.
• Integrate the nailing fin with the weather barrier in shingle fashion: sill flashing first, then jambs, then head, and keep sill weep paths clear.
• Do not fasten through the sill track; water management depends on an unbroken sill pan and weep system.
• Where a bedroom or habitable room requires an egress opening, confirm the selected size against the local code officer before release.

Warranty and Support

• Limited manufacturer-backed warranty program on frame and glass, confirmed during quote review.
• Exterior color finishes carry a separate multi-year finish warranty, confirmed during quote review.
• Quote packages include glide adjustment and screen care guidance.

Frequently Asked Questions

Which sizes satisfy bedroom egress?
The 95.5 x 47.5, 71.5 x 47.5, 59.5 x 35.5, and 47.5 x 47.5 in. sizes are documented egress configurations; the flagship provides a 6.7 sq ft clear opening at each operable end. Always confirm the clear opening against your local code.

What does left operable versus right operable mean?
Handing is viewed from the exterior: a left operable unit has the sliding sash on the left and the fixed sash on the right. The 95.5 in. wide unit is dual operable, with sliding sashes on both ends and a fixed center lite.

Is this window for new construction or replacement?
It ships with a 1.25 in. pre-punched integral nailing fin for new construction, and crews regularly use the same unit for full-frame replacement where the opening is stripped to the framing.

Are grids or privacy glass available?
Colonial style internal grids and obscure privacy glazing are stocked on select sizes and quoted on request; tell us the size and pattern when you request your quote.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
