Spectre Window 95.5 in. x 35.25 in. Vinyl Casement Bow Replacement Window

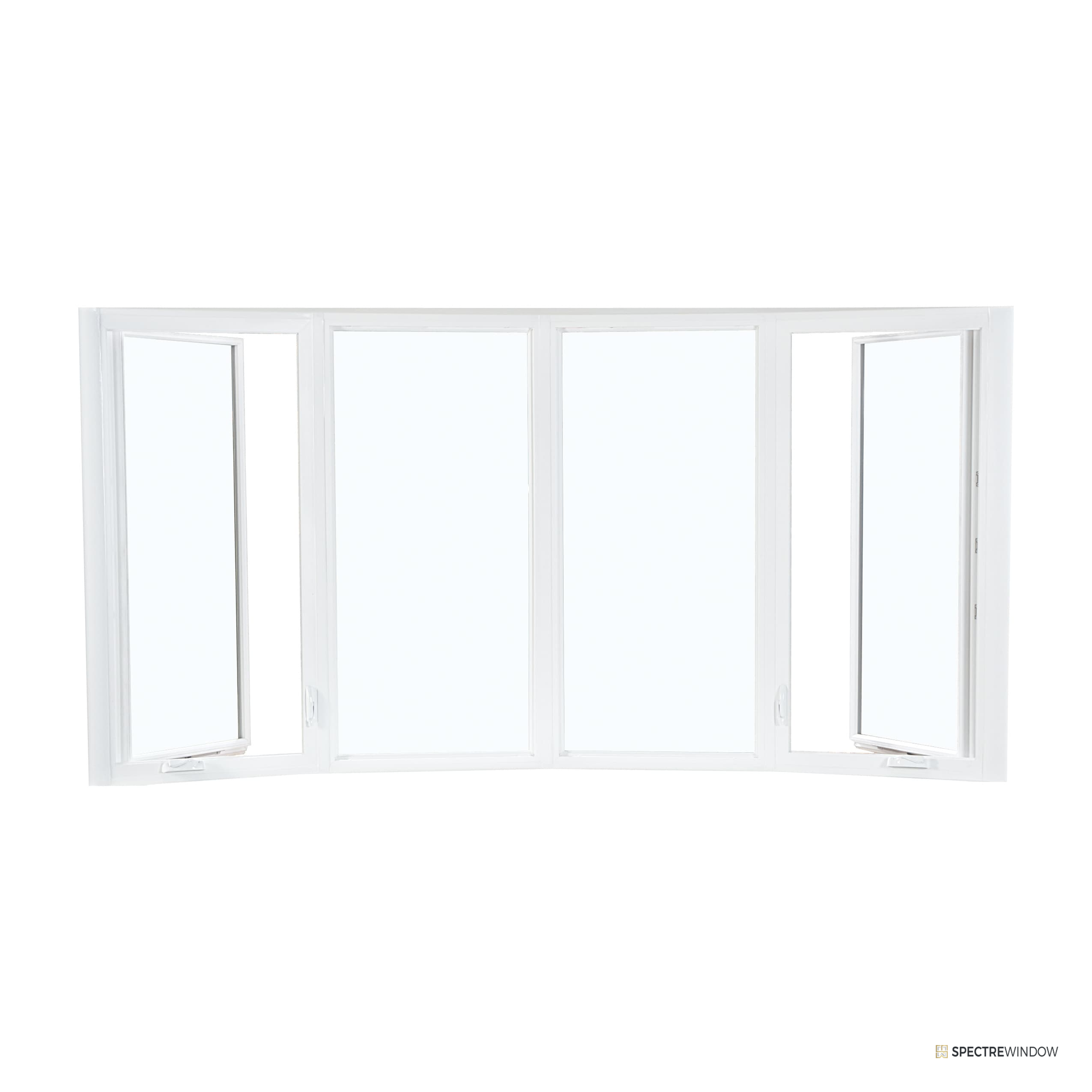

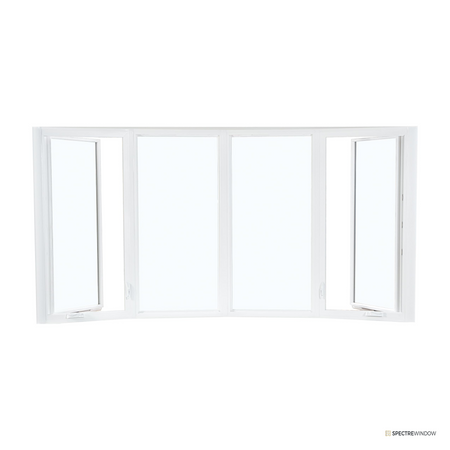

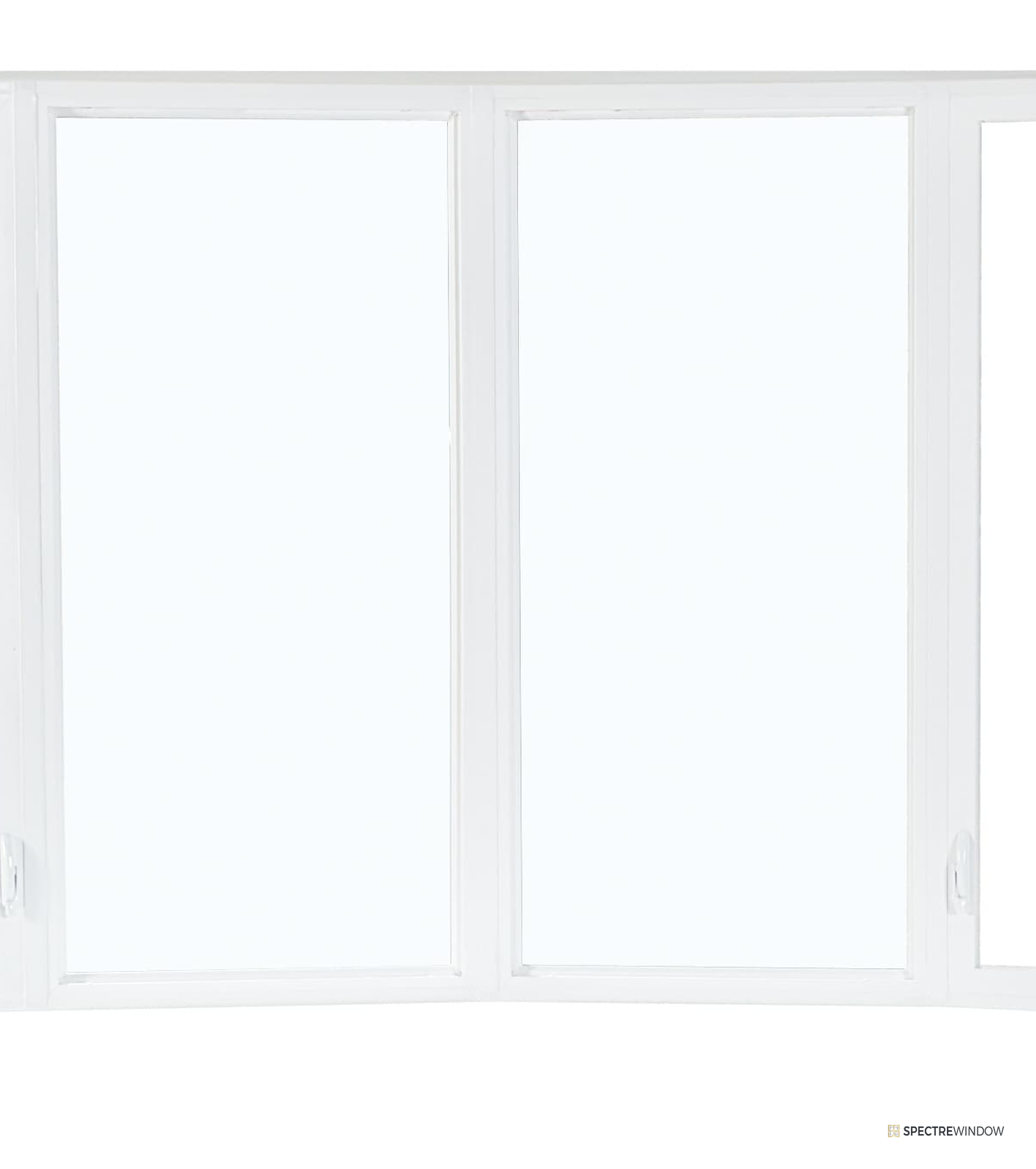

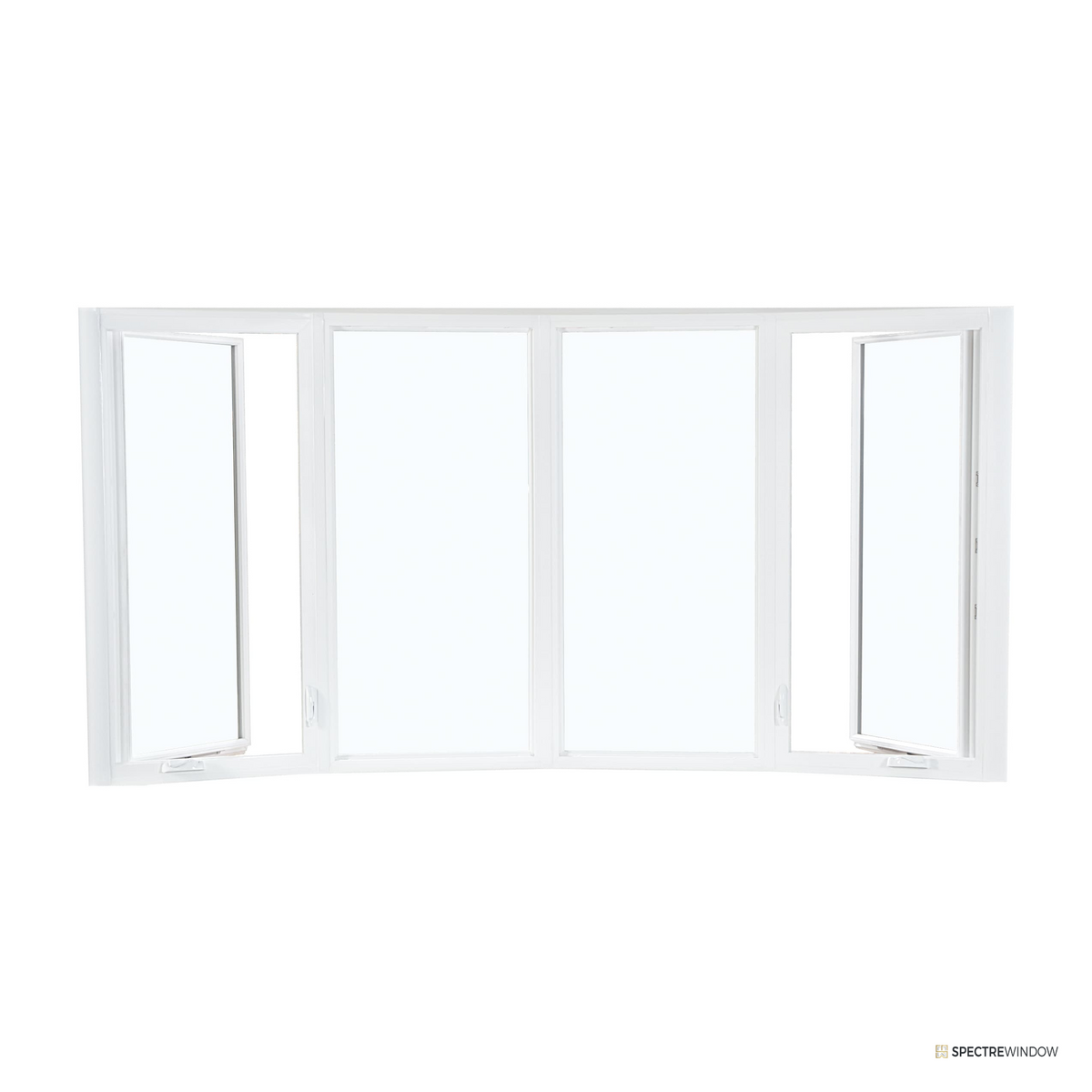

The bow arrangement joins equal casement lites into a continuous curve that projects softly from the wall plane, adding daylight from multiple angles and an interior ledge line. Each operating lite opens on a crank mechanism, which keeps sash control easy even over a deep interior sill. The white vinyl frame system is sized for a 96 in. x 36 in. rough opening as a replacement unit, installing into an existing prepared opening without disturbing the exterior cladding. As a heavy multi frame assembly, the unit is supported during installation and carried by the opening structure once fastened; lite count, projection, glazing makeup, and support accessories are confirmed during quote review.

Highlights

• Curved bow arrangement of joined casement lites across an 8 ft opening
• Crank operated casement ventilation along the arc
• White vinyl frame system for replacement openings
• Sized for a 96 in. x 36 in. rough opening, unit 95.5 in. x 35.25 in.
• Heavy assembly; support requirements reviewed with every quote

Specification Table

Included Equipment

• Factory joined casement bow assembly

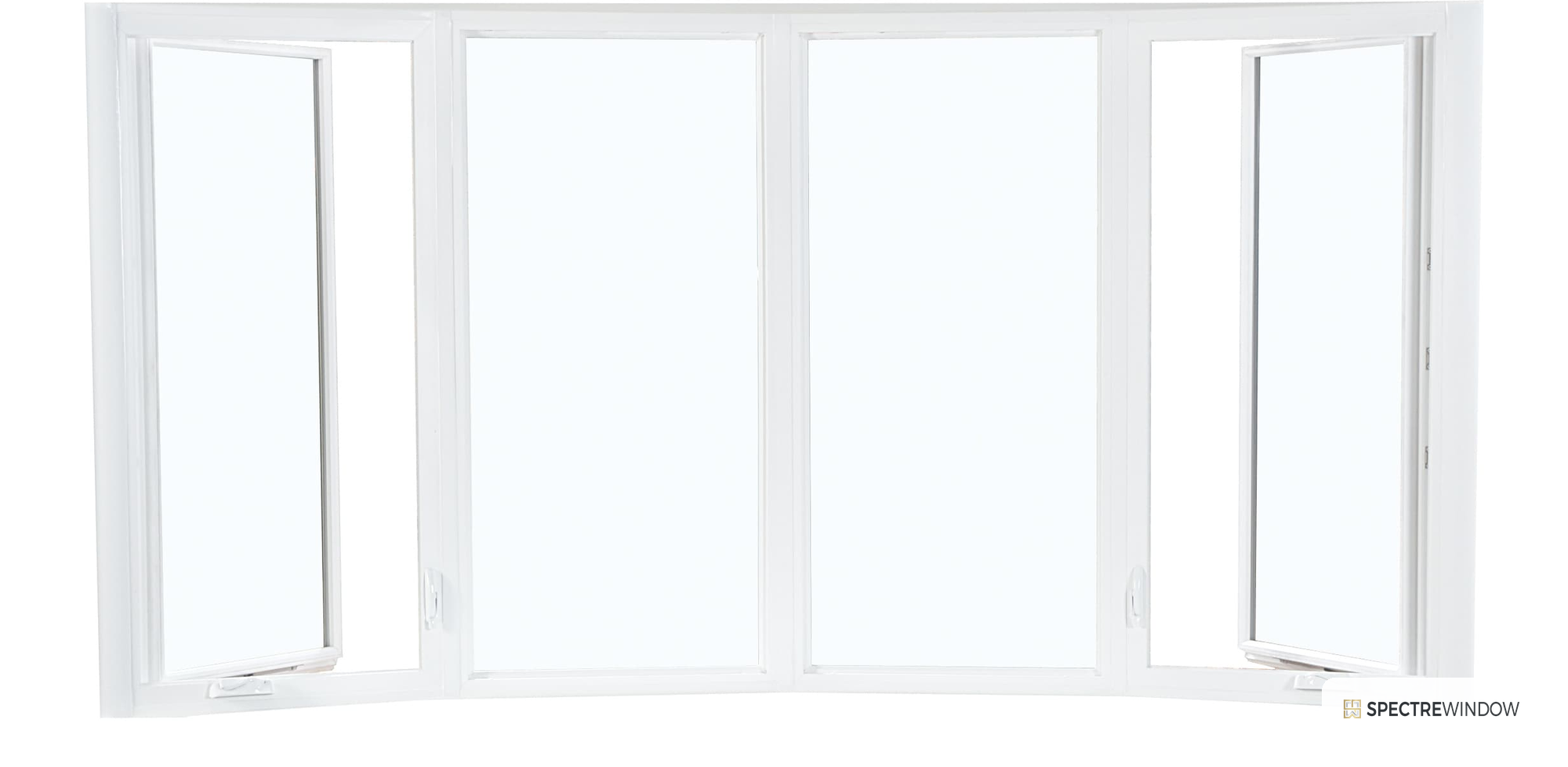

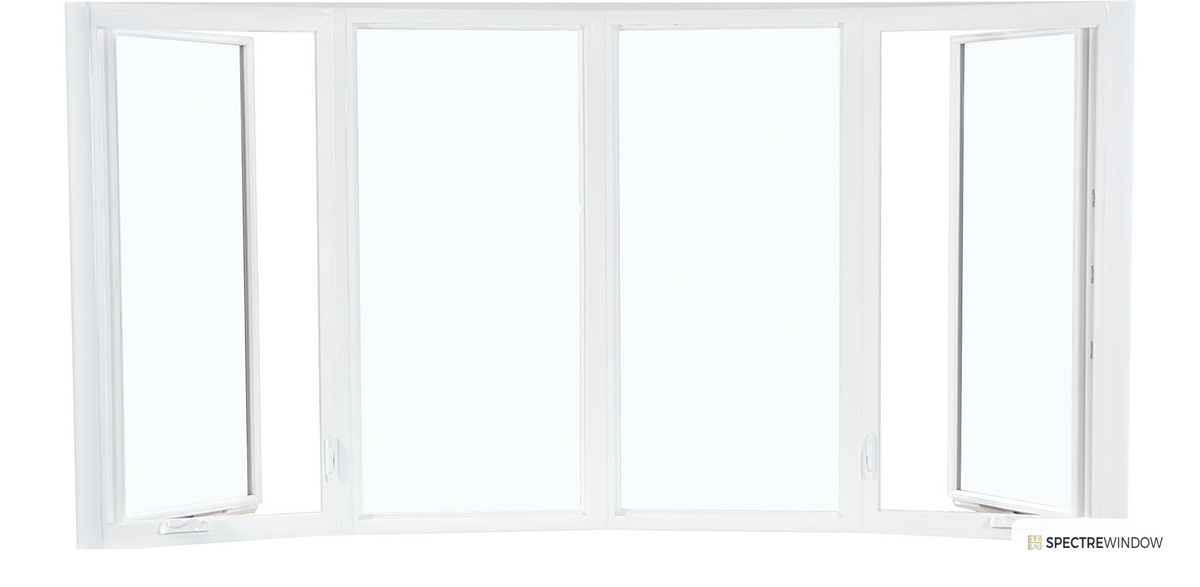

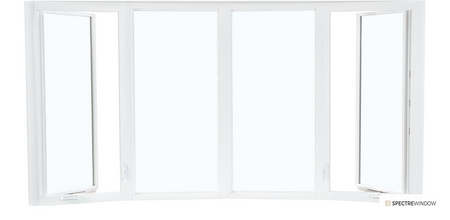

• Crank operators and locking hardware, factory installed

Installation Notes

• Verify the existing opening measures 96 in. x 36 in., is square, and has a sound, level sill before ordering.
• Plan support for the projected assembly: knee brackets below the seat line or cable supports from the header, sized during quote review.
• Lift with adequate crew; the assembly weighs on the order of 117 lb before accessories.
• Shim each frame joint so the arc stays true, then operate every casement lite before fastening off.
• Seal head and jambs per the released details and insulate the seat and head cavities before interior trim.

Warranty and Support

• Warranty coverage is confirmed during quote review before release.
• Quote packages include sizing review and installation guidance for each opening.

Frequently Asked Questions

How many casement lites make up the bow?
The arc is built from equal casement lites joined at the factory. The exact lite count for this footprint is confirmed during quote review.

Is this a new construction or replacement unit?
This unit is configured for replacement: it installs into an existing prepared 96 in. x 36 in. opening without a nailing fin.

Does it come with screens?
Screen configuration for the operating lites is confirmed during quote review.

Does the bow need support brackets?
Usually yes. Projected assemblies of this size are typically supported with knee brackets or cable kits; the right approach for your wall is settled during quote review.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
