Vanguard Shade 3.5 in. Fabric Vertical Blind, Custom Cut Width
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

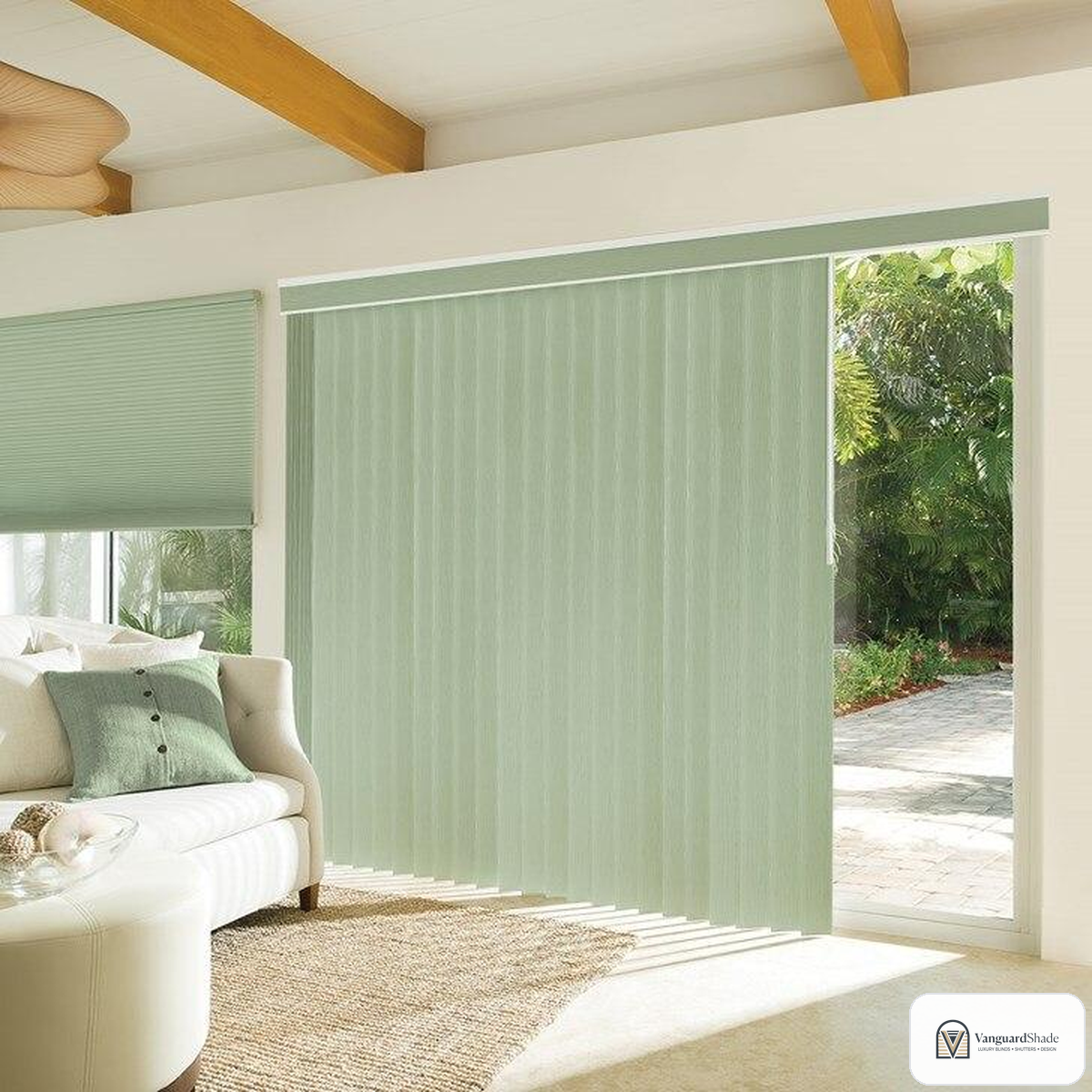

This specifier-ready summary covers a fabric vertical blind with traversing headrail and wand control, cut to the quoted width and length. Add the product to the quote list and include the window schedule in the quote note, with opening sizes measured to the nearest 1/8 in. and the mount type identified for each opening, and each unit is cut and confirmed during quote review before release.
Highlights
- Woven 3.5 in. fabric vanes give a soft, drapery-like face
- Light filtering weave keeps rooms bright while screening the view
- Wand control rotates and draws the vanes with no accessible cords or chains
- Cut-to-width program from 6 in. to 120 in. for sliding doors and wide windows
- Vanes draw fully to one side for clear door access
- Inside, ceiling, or outside wall mount with hardware included
Specification Table
| Vane size | 3.5 in. |
| Material | Woven polyester fabric, stiffened backing |
| Control | Wand, rotates and traverses |
| Headrail | Aluminum traversing headrail with self-aligning glides |
| Cut width range | 6 in. to 120 in., cut to 1/8 in. |
| Length range | 9 in. to 120 in. |
| Inside mount deduction | Approximately 1/4 in. width, 1/2 in. height |
| Minimum inside mount depth | 2 3/4 in., 4 in. for fully recessed |
| Minimum outside mounting surface | 2 in. flat surface |
| Mount | Inside, ceiling, or outside wall mount |
| Light control | Light filtering |
| Application | Sliding doors and wide windows |
| Warranty | Limited lifetime warranty with online registration |
| Unit weight (nominal) | Approximately 18.1 lb at the reference size; final weight scales with the quoted cut size |
Included Equipment
- Aluminum traversing headrail cut to quoted width
- 3.5 in. fabric vanes cut to quoted length
- Color-matched valance
- Wand control
- Mounting brackets and screws
- Installation and care guide
Installation Notes
- Measure the opening width and height to the nearest 1/8 in. before quote submission.
- Inside or recessed mounts require 2 3/4 in. minimum depth, 4 in. for a fully recessed headrail.
- For sliding doors, set vane length to clear the floor by about 1/2 in.
- Confirm stack direction, left, right, or split, in the quote note so door access stays clear.
- Fabric vanes should hang free of baseboard heaters and floor vents.
- Review the final cut dimensions and stack direction during quote review before order release.
Warranty and Support
- Published warranty coverage: limited lifetime warranty with online registration
- Replacement brackets, wands, and glide components are supported through quote review
- Final warranty registration and coverage documents are confirmed during quote review
Frequently Asked Questions
How do I order a custom width?
Add the blind to your quote list and include the opening sizes to the nearest 1/8 in., the mount type, and the stack direction in the quote note. Each unit is cut and confirmed during quote review.
How does fabric compare with PVC vanes?
Fabric vanes filter light for a softer daytime glow and quieter feel, while PVC vanes block more light and wipe down more easily. Many projects mix both by room.
Can vanes be replaced later?
Yes. Vanes hang individually from glide stems and replacements are quoted through the same program.
Documents
- Type Vertical Blind
- SKU VS-WCV-VRB-35-FAB-LOWH
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
