Vanguard Shade 9/16 in. Single Cell Cordless Cellular Shade, Blackout, Custom Cut
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
This specifier-ready product summary covers a 9/16 in. single cell cellular shade with blackout fabric and a cordless lift, cut to the quoted width and length. Inside mounts carry a small edge light gap that can be reviewed for light-sensitive rooms. Add the shade to your quote list and include the window schedule with each opening measured to the nearest 1/8 in. and the mount type for each opening in the quote note. Each shade is cut to the quoted width and length and confirmed during quote review before release. Additional colorways are quoted on request.
Highlights
- 9/16 in. single cell honeycomb with coated blackout fabric
- Blocks incoming light through the fabric body for darker rooms
- Cordless design removes accessible operating cords
- Honeycomb cells trap air and add an insulating layer at the glass in summer and winter
- White exterior backing for a uniform appearance from outside
- Cut-to-size program from 18 in. to 120 in. wide
- Inside or outside mount with hardware included
Specification Table
| Cell size | 9/16 in. single cell |
| Material | Spun-bonded polyester honeycomb |
| Opacity | Blackout |
| Lift system | Cordless |
| Mount types | Inside or outside mount |
| Cut width range | 18 in. to 120 in., cut to 1/8 in. |
| Cut length range | 18 in. to 144 in. |
| Minimum inside mount depth | 1/2 in. (2 1/8 in. for fully recessed) |
| Inside mount deduction | Approximately 3/8 in. total |
| Insulation | Honeycomb cells trap air and add an insulating layer at the glass |
| Warranty | Limited lifetime warranty with online registration |
| Unit weight (nominal) | Approximately 4.0 lb at the reference size; final weight scales with the quoted cut size |
Included Equipment
- Blackout cellular shade cut to quoted width and length
- Color-matched headrail and bottom rail
- Installation brackets and screws
- Mounting hardware for inside or outside mount
- Installation and care guide
Installation Notes
- Measure each opening width and height to the nearest 1/8 in. before quote submission.
- Inside mount requires 1/2 in. minimum depth; allow 2 1/8 in. for a fully recessed headrail.
- Inside mounts show a small edge light gap; outside mount improves room darkening.
- Outside mount should overlap the opening at least 1 1/2 in. per side for light control.
- Review the final cut dimensions and mount type during quote review before order release.
Warranty and Support
- Published warranty coverage: limited lifetime warranty with online registration
- Replacement brackets and lift components are supported through quote review
- Final warranty registration and coverage documents are confirmed during quote review
Frequently Asked Questions
How do I order a custom size?
Add the shade to your quote list and include the window schedule with opening sizes to the nearest 1/8 in. and the mount type for each opening in the quote note. Each shade is cut and confirmed during quote review before release.
Will this shade make the room fully dark?
The blackout fabric blocks light through the body of the shade. Some light can enter around the edges on inside mounts, so outside mount is recommended for the darkest result.
Is this shade suitable where children or pets are present?
The cordless design removes accessible operating cords from the front and back of the shade.
What if I need a colorway that is not listed?

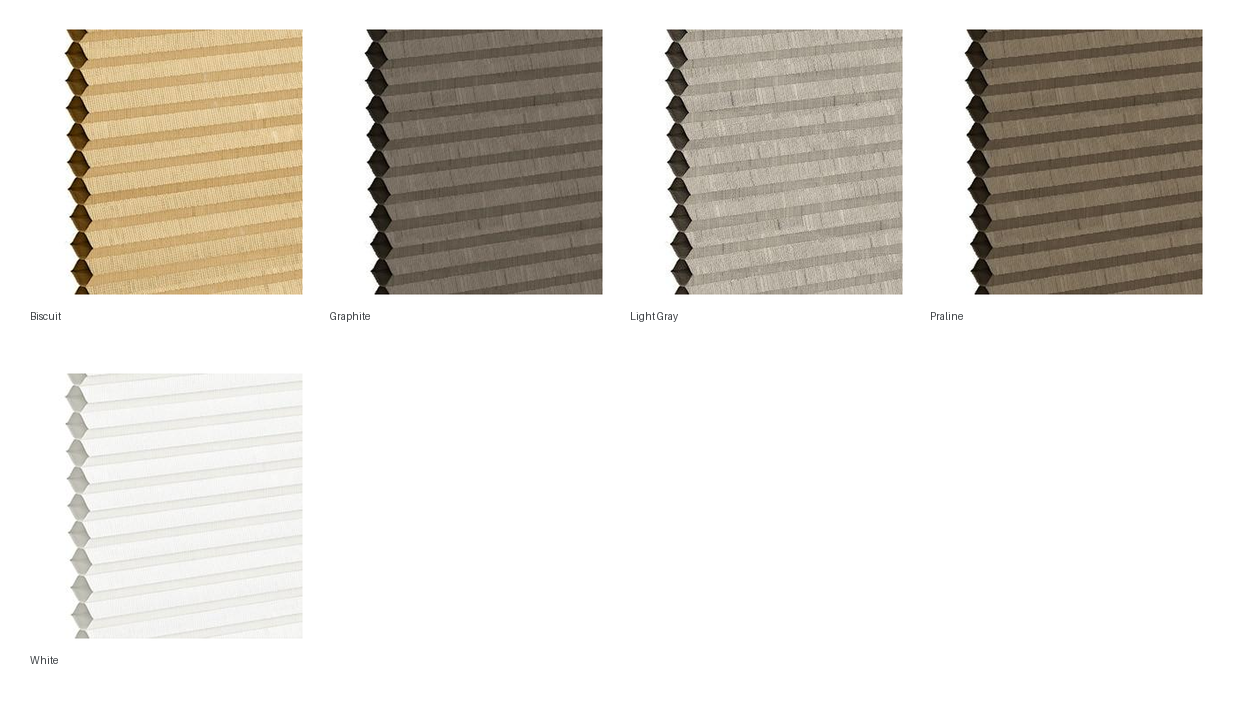

Additional colorways are quoted on request. Note the requested color in the quote note and it is confirmed during quote review.
Documents
- Type Cellular Shade
- SKU VS-WCV-CEL-916-BO-CDLS-WHIT
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
