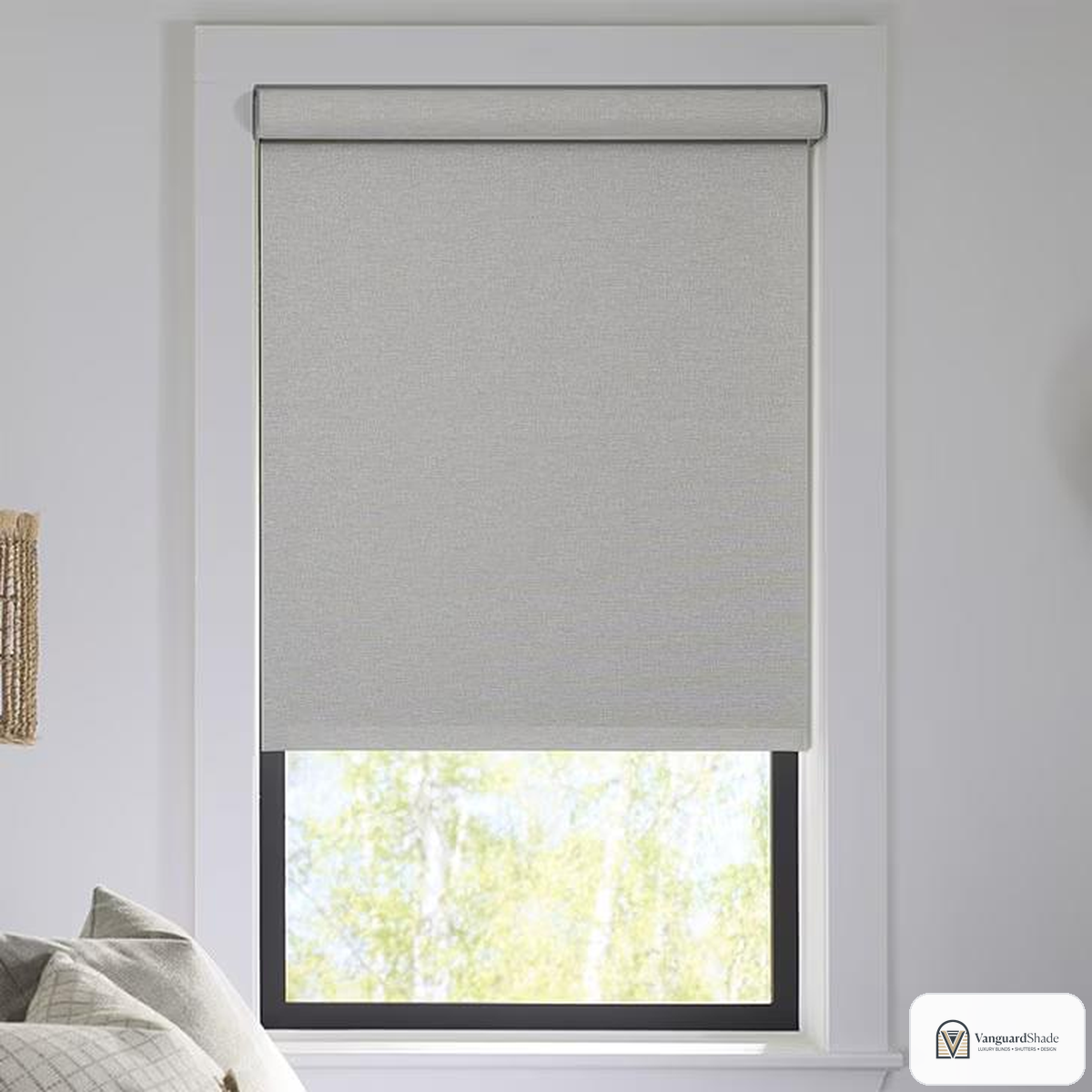

Vanguard Shade Fabric Roller Shade, Light Filtering, Custom Cut
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

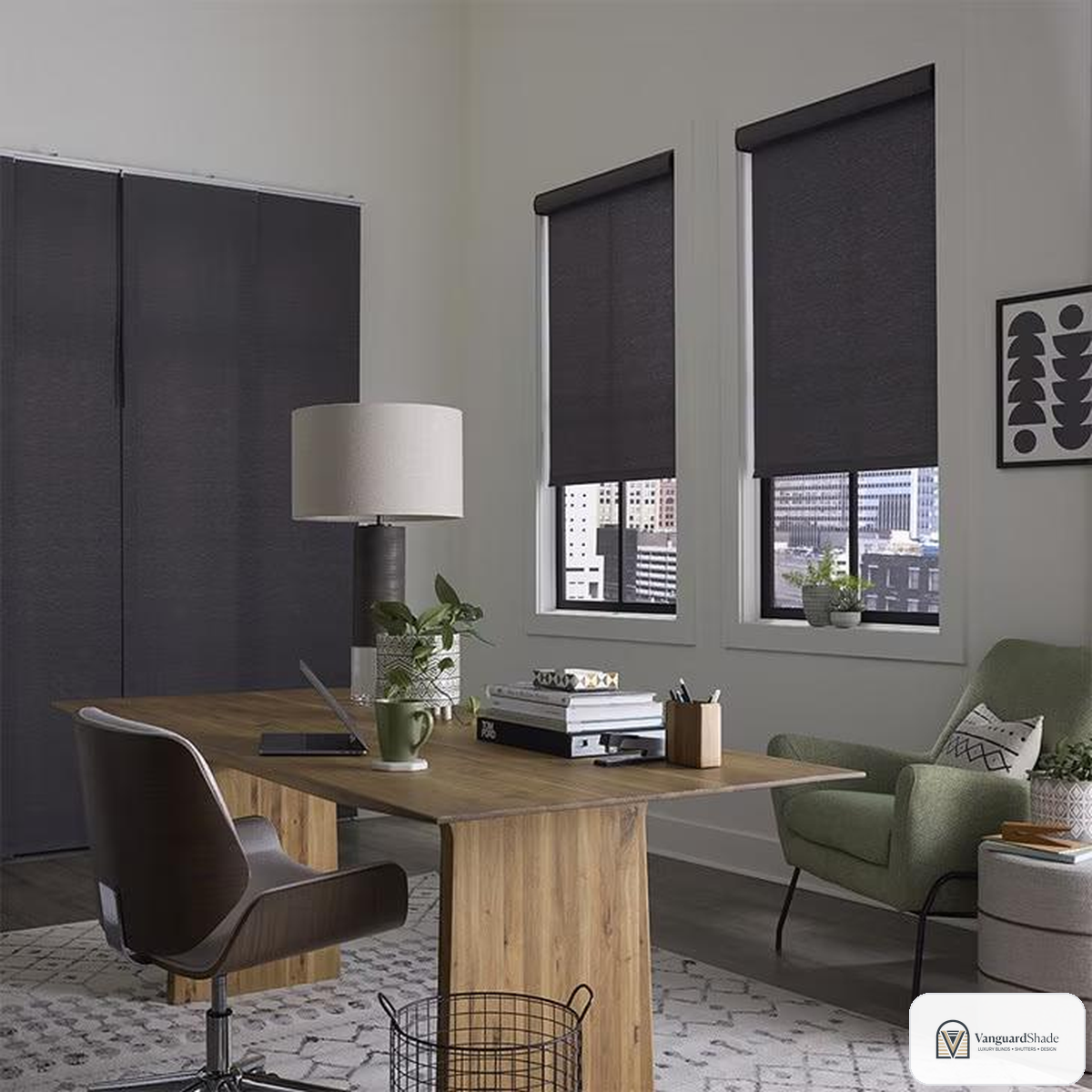

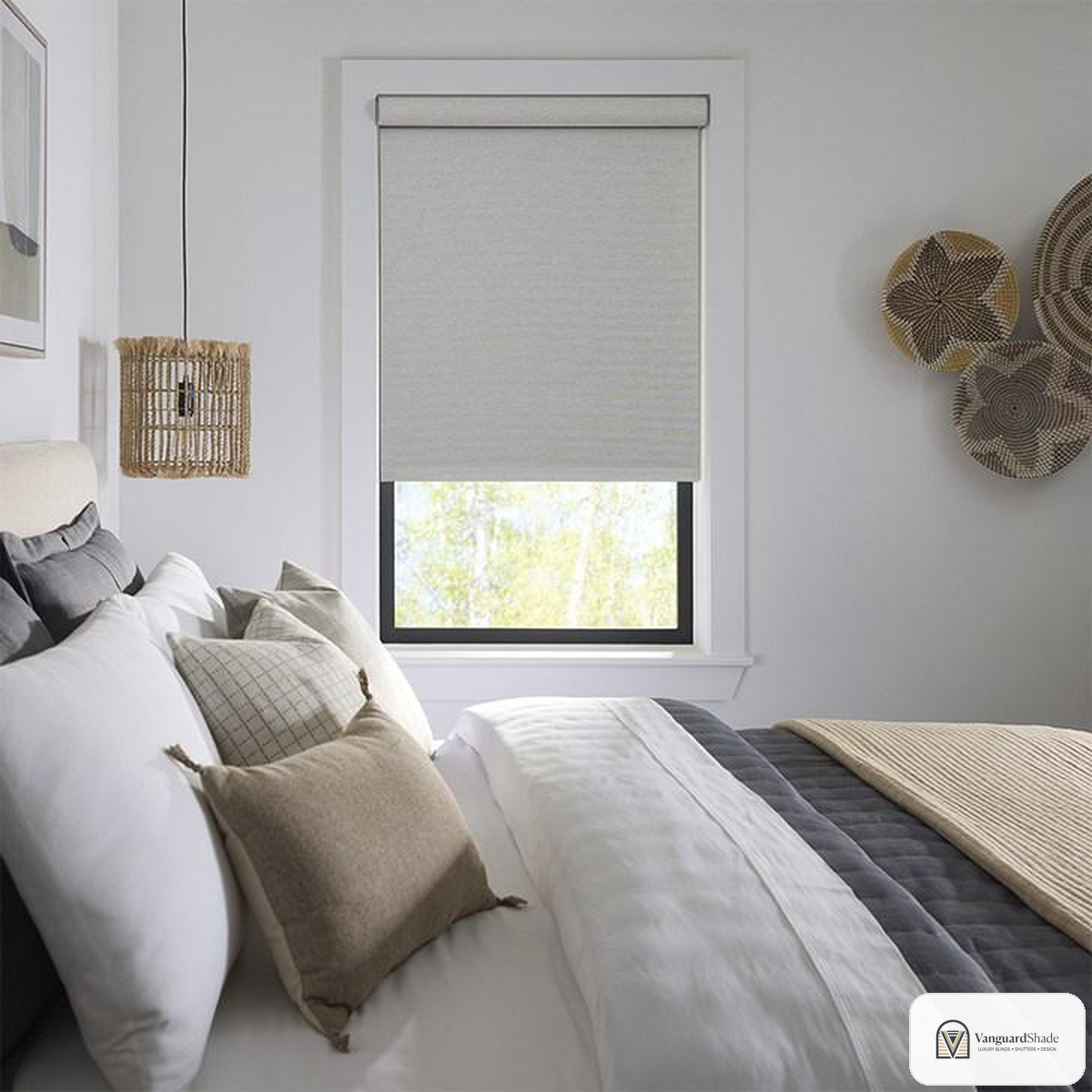

This specifier-ready product summary covers a light filtering fabric roller shade with a continuous loop lift and tension device, cut to the quoted width and length. Add the shade to your quote list and include the window schedule with each opening measured to the nearest 1/8 in. and the mount type for each opening in the quote note. Each shade is cut to the quoted width and length and confirmed during quote review before release. Additional colorways are quoted on request.
Highlights
- Woven polyester fabric filters daylight into a soft, even glow
- Slim roll profile with minimal side gaps for better coverage
- Continuous loop lift with a child-safe tension device anchored to the frame
- Cut-to-size program from 14 in. to 120 in. wide

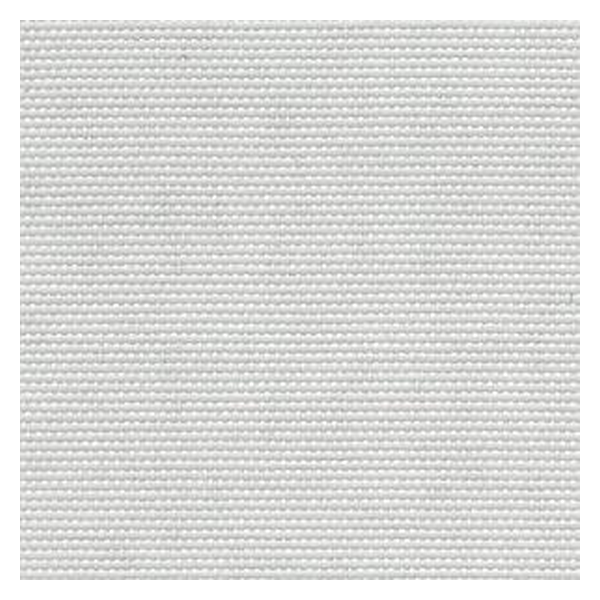

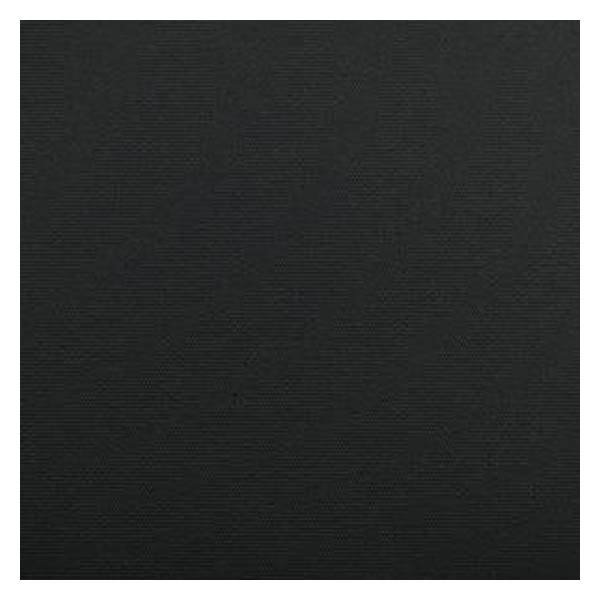

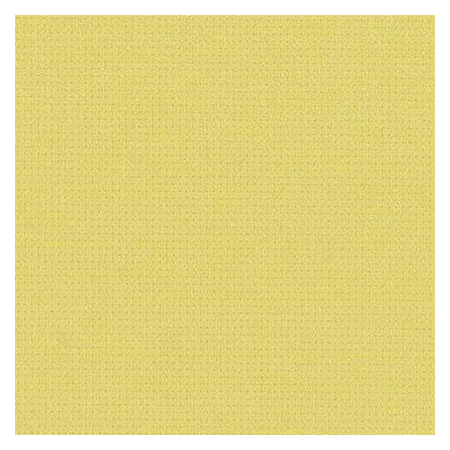

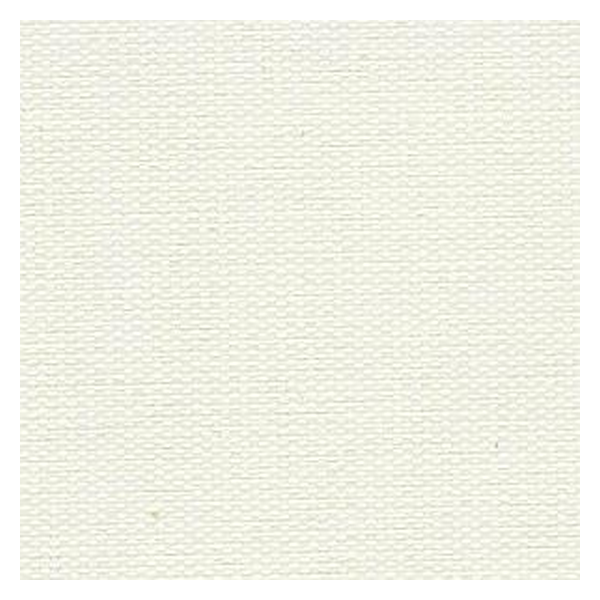

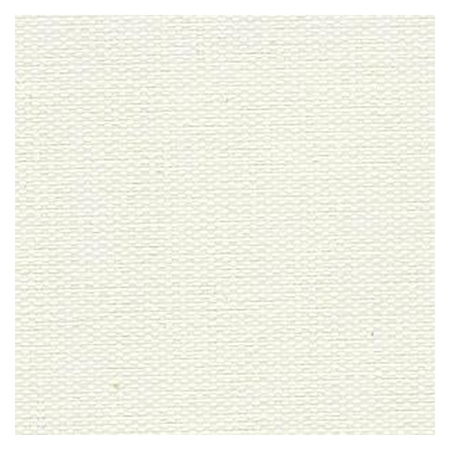

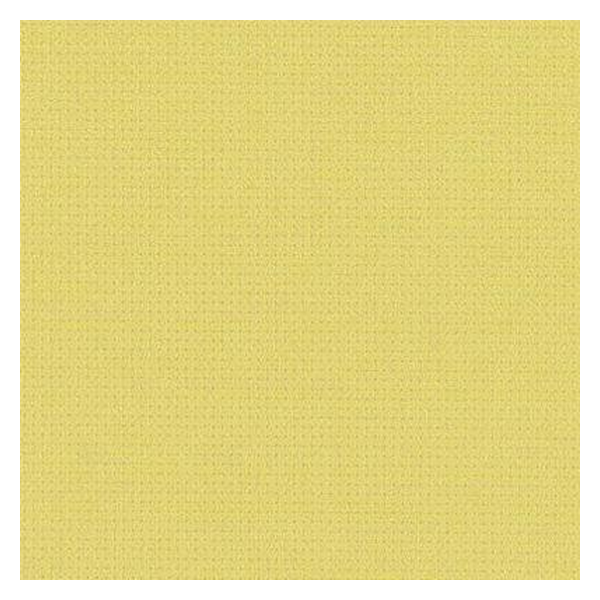

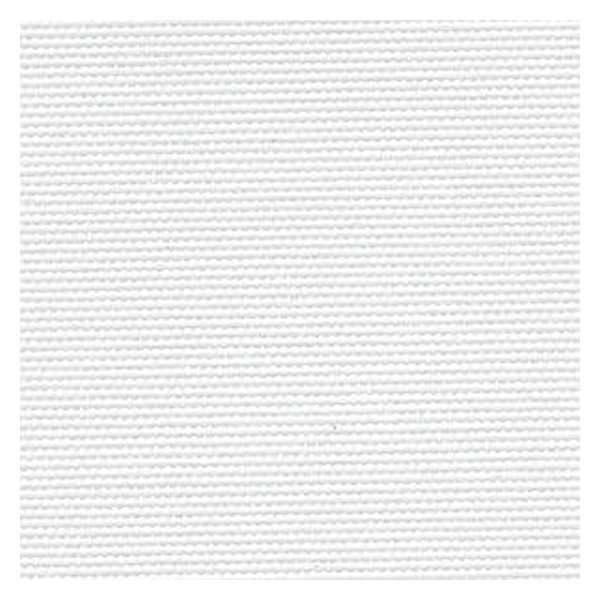

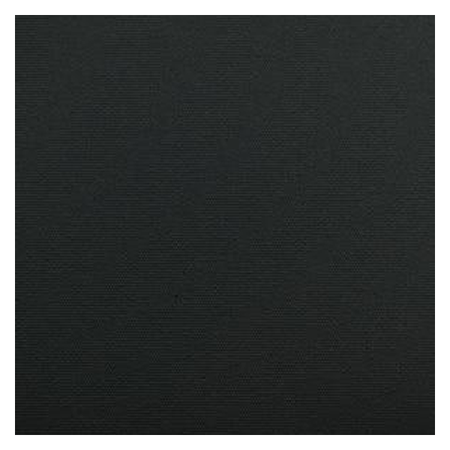

- Curated neutral colorways from white to gray
- Inside or outside mount with hardware included
Specification Table
| Fabric | Woven polyester, light filtering coating |
| Material | Polyester fabric |
| Opacity | Light filtering |
| Lift system | Continuous loop with tension device |
| Mount types | Inside or outside mount |
| Cut width range | 14 in. to 120 in., cut to 1/8 in. |
| Cut length range | 12 in. to 120 in. |
| Minimum inside mount depth | 1 3/8 in. (2 1/8 in. to 4 in. for flush mount) |
| Width deductions | Roller approximately 1/4 in.; fabric approximately 1 3/4 in. narrower |
| Warranty | Limited lifetime warranty with online registration |
| Unit weight (nominal) | Approximately 5.1 lb at the reference size; final weight scales with the quoted cut size |
Included Equipment
- Fabric roller shade cut to quoted width and length
- Roller tube with mounting brackets
- Continuous loop with tension device
- Installation screws and care guide
Installation Notes
- Measure each opening width and height to the nearest 1/8 in. before quote submission.
- Inside mount requires 1 3/8 in. minimum depth; allow 2 1/8 in. to 4 in. for a flush roll.
- Fabric width runs approximately 1 3/4 in. narrower than the ordered width; plan light coverage accordingly.
- The loop tension device must anchor to the frame or wall for child safety.
- Review the final cut dimensions and mount type during quote review before order release.
Warranty and Support
- Published warranty coverage: limited lifetime warranty with online registration
- Replacement brackets and lift components are supported through quote review
- Final warranty registration and coverage documents are confirmed during quote review
Frequently Asked Questions
How do I order a custom size?
Add the shade to your quote list and include the window schedule with opening sizes to the nearest 1/8 in. and the mount type for each opening in the quote note. Each shade is cut and confirmed during quote review before release.
Why is the fabric narrower than the width I order?
The roller mechanism occupies space at each end of the tube, so the fabric runs approximately 1 3/4 in. narrower than the ordered width. Outside mounts can be oversized to cover the difference.
What if I need a colorway that is not listed?
Additional colorways are quoted on request. Note the requested color in the quote note and it is confirmed during quote review.
Documents
- Type Roller Shade
- SKU VS-WCV-ROL-FAB-LF-SPWH
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
