Vanguard Shade Smart Shade Hub with RF Remote, App and Voice Ready
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
This specifier-ready product summary covers a compact USB powered hub that bridges RF shade motors to the home Wi-Fi network for app scheduling, scene control, and voice operation through leading voice assistants. Add the hub to your quote list and note the motorized shade count and room layout in the quote note; grouping is confirmed during quote review before release.
Highlights
- Bridges RF shade motors to Wi-Fi for app control
- Schedules, scenes, and room groups from the app
- Works with leading voice assistants
- Multi-channel RF remote included for manual control
- USB powered with adapter and cable in the box
- RF range up to about 65 ft indoors, layout dependent
Specification Table
| Shade link | RF to Vanguard Shade motorized shades |
| Network link | 2.4 GHz Wi-Fi |
| Voice control | Works with leading voice assistants |
| Power | USB, adapter included |
| RF range | Up to about 65 ft indoors, layout dependent |
| Remote | Multi-channel RF remote included |
| Warranty | Limited manufacturer warranty with registration |
| Unit weight (nominal) | Approximately 1.0 lb per unit as packaged |

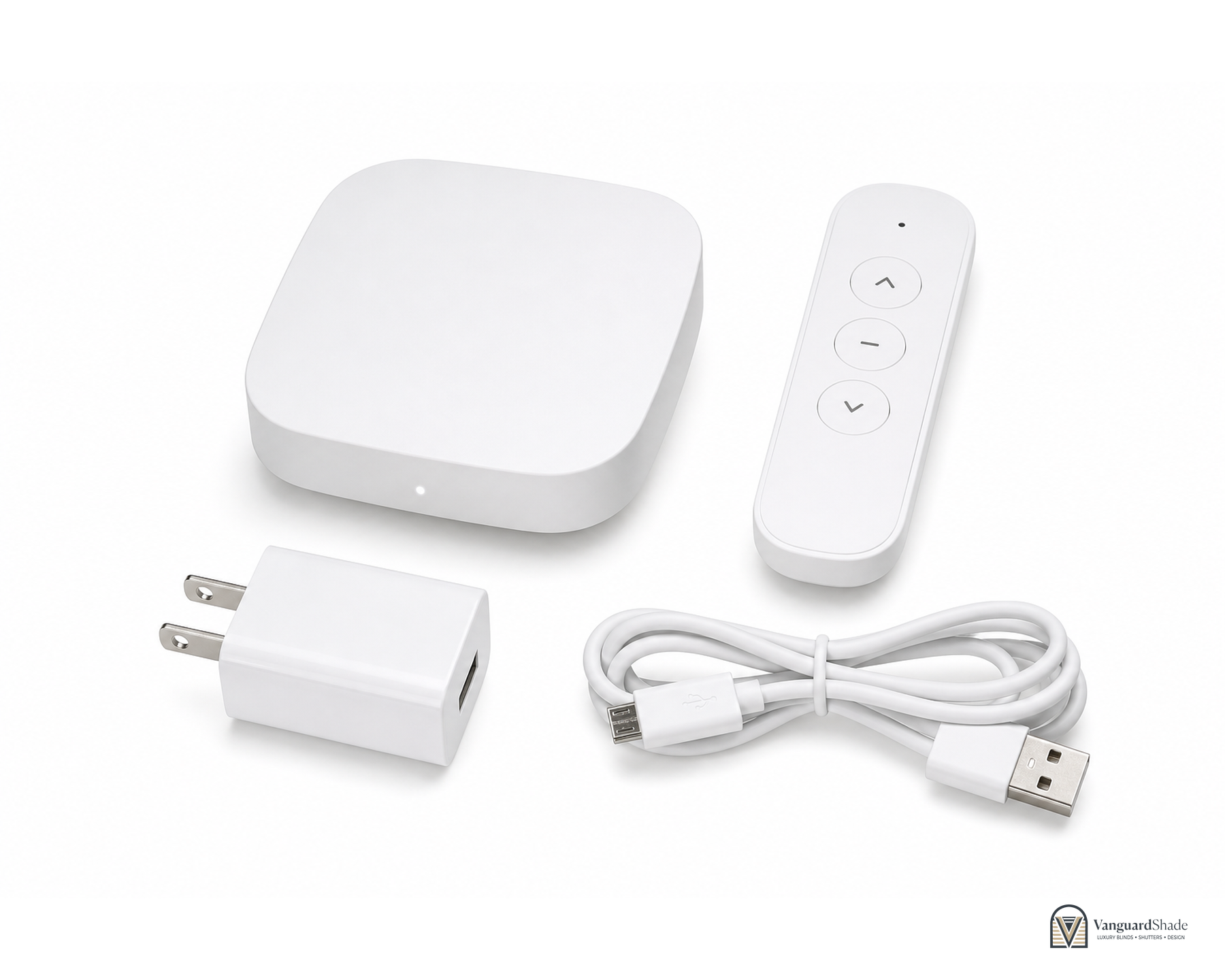

Included Equipment
- Smart shade hub
- Multi-channel RF remote
- USB power adapter and cable
- Quick start guide
Installation Notes
- Place the hub centrally among the motorized shades and within reach of a power outlet.
- Connect the hub to the 2.4 GHz band of the home network during app setup.
- Pair each shade motor to the hub individually, then build room groups and scenes.
- Concrete walls and metal surfaces reduce RF range; relocate the hub if far shades respond slowly.
- Review the shade count and grouping plan during quote review before order release.
Warranty and Support
- Published warranty coverage: limited manufacturer warranty with registration
- Replacement remotes, adapters, and cables are supported through quote review
- Final warranty registration and coverage documents are confirmed during quote review
Frequently Asked Questions
Do I need the hub to use motorized shades?
No. Shades run from the RF remote on their own. The hub adds app control, schedules, scenes, and voice operation.
Which voice systems does it support?
It works with leading voice assistants; final compatibility notes ship with the setup guide and are confirmed during quote review.
How many shades can it manage?
The hub manages multiple shades individually or in rooms and scenes; note your shade count in the quote note so the layout is confirmed during quote review.
Does it need a wired network connection?
No. The hub joins the home network over 2.4 GHz Wi-Fi and only needs USB power.
Documents
- Type Shade Motorization
- SKU VS-WCV-MOT-HUB
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
