Vanguard Shade Top Down Bottom Up Cordless Cellular Shade, Blackout, Custom Cut
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
This specifier-ready product summary covers a cordless top down bottom up cellular shade with blackout honeycomb fabric and dual operating rails, cut to the quoted width and supplied in 48 in., 64 in., or 72 in. standard lengths. Add the shade to your quote list and include the window schedule with each opening measured to the nearest 1/8 in. and the mount type for each opening in the quote note. Each shade is cut to the quoted width, matched to the standard length for the opening, and confirmed during quote review before release. Additional colorways are quoted on request.
Highlights

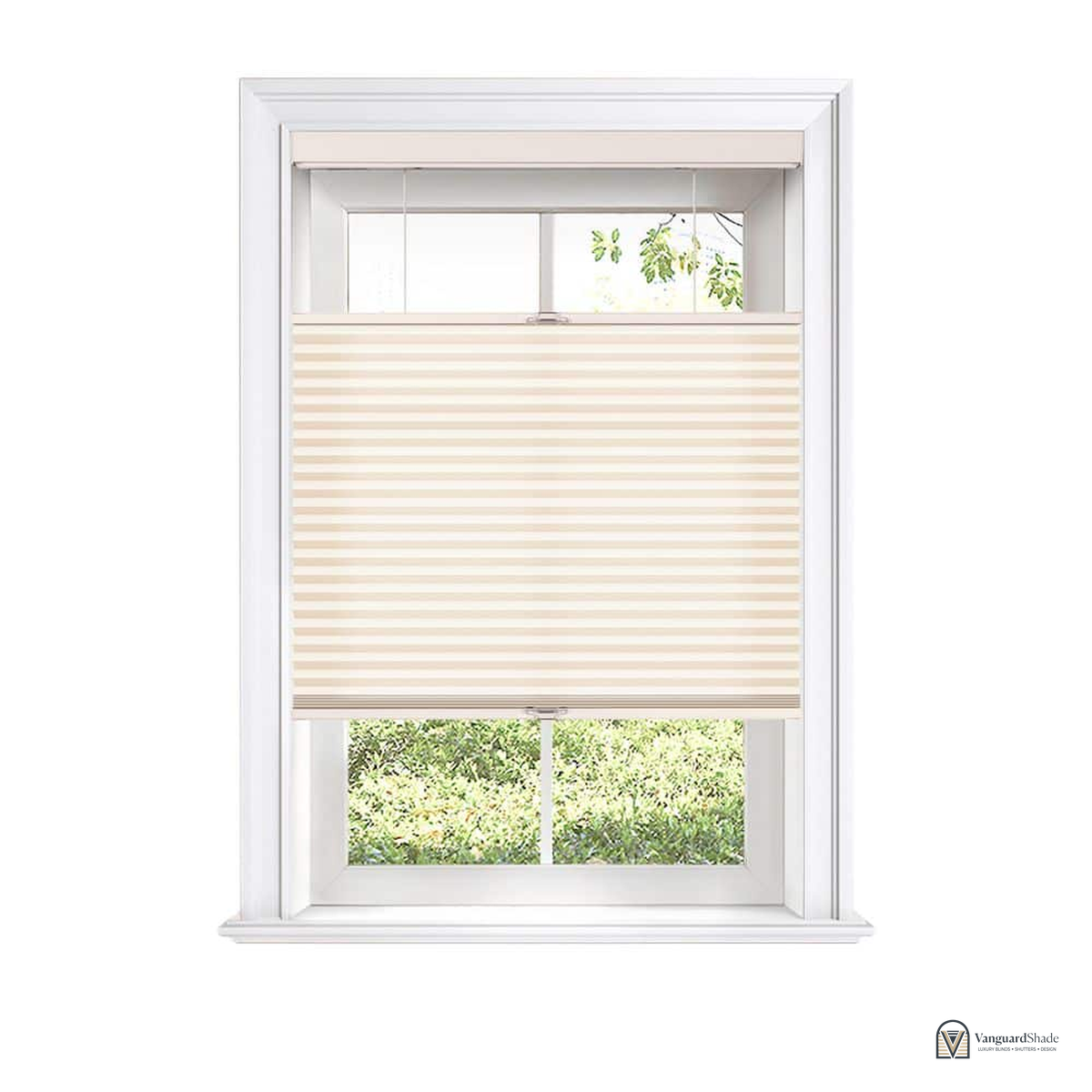

- Top down bottom up operation sets the shade at any split position
- Blackout honeycomb fabric blocks light through the fabric body
- Cordless dual-rail design removes accessible operating cords
- Honeycomb cells trap air and add an insulating layer at the glass in summer and winter
- Vent daylight at the top of the window while the room below stays dark
- Cut-to-width program from 17 in. to 72 in., in 1/8 in. increments
- Inside or outside mount with hardware included
Specification Table
| Cell size | 9/16 in. single cell |
| Material | Spun-bonded polyester honeycomb |
| Opacity | Blackout |
| Lift system | Cordless top down bottom up |
| Mount types | Inside or outside mount |
| Cut width range | 17 in. to 72 in., in 1/8 in. increments |
| Cut length range | Stock lengths 48 in., 64 in., 72 in. |
| Minimum inside mount depth | 1 1/2 in. (1 3/4 in. for fully recessed) |
| Inside mount deduction | Approximately 3/8 in. total |
| Insulation | Honeycomb cells trap air and add an insulating layer at the glass |
| Warranty | Limited lifetime warranty with online registration |
| Unit weight (nominal) | Approximately 5.1 lb at the reference size; final weight scales with the quoted cut size |
Included Equipment
- Top down bottom up blackout cellular shade cut to quoted width in the selected standard length
- Color-matched headrail, middle rail, and bottom rail
- Installation brackets and screws
- Mounting hardware for inside or outside mount
- Hold-down brackets
- Installation and care guide
Installation Notes
- Measure each opening width and height to the nearest 1/8 in. before quote submission.
- Inside mount requires 1 1/2 in. minimum depth; allow 1 3/4 in. for a fully recessed headrail.
- Lower the bottom rail before lowering the middle rail; raise the middle rail before raising the bottom rail.
- For outside mounts, add 4 in. to the width and height of the shade for optimum light control and privacy.
- Review the final cut dimensions and mount type during quote review before order release.
Warranty and Support
- Published warranty coverage: limited lifetime warranty with online registration
- Replacement brackets and lift components are supported through quote review
- Final warranty registration and coverage documents are confirmed during quote review
Frequently Asked Questions
How do I order a custom size?
Add the shade to your quote list and include the window schedule with opening sizes to the nearest 1/8 in. and the mount type for each opening in the quote note. Width is cut to 1/8 in.; length is supplied in 48 in., 64 in., or 72 in. standard lengths and matched to the opening during quote review before release.
Will this shade make the room fully dark?
The blackout fabric blocks light through the body of the shade. Some light can enter around the edges and at the middle rail on inside mounts, so outside mount is recommended for the darkest result.
Is this shade suitable where children or pets are present?
The cordless design removes accessible operating cords from the front and back of the shade.
What if I need a colorway that is not listed?

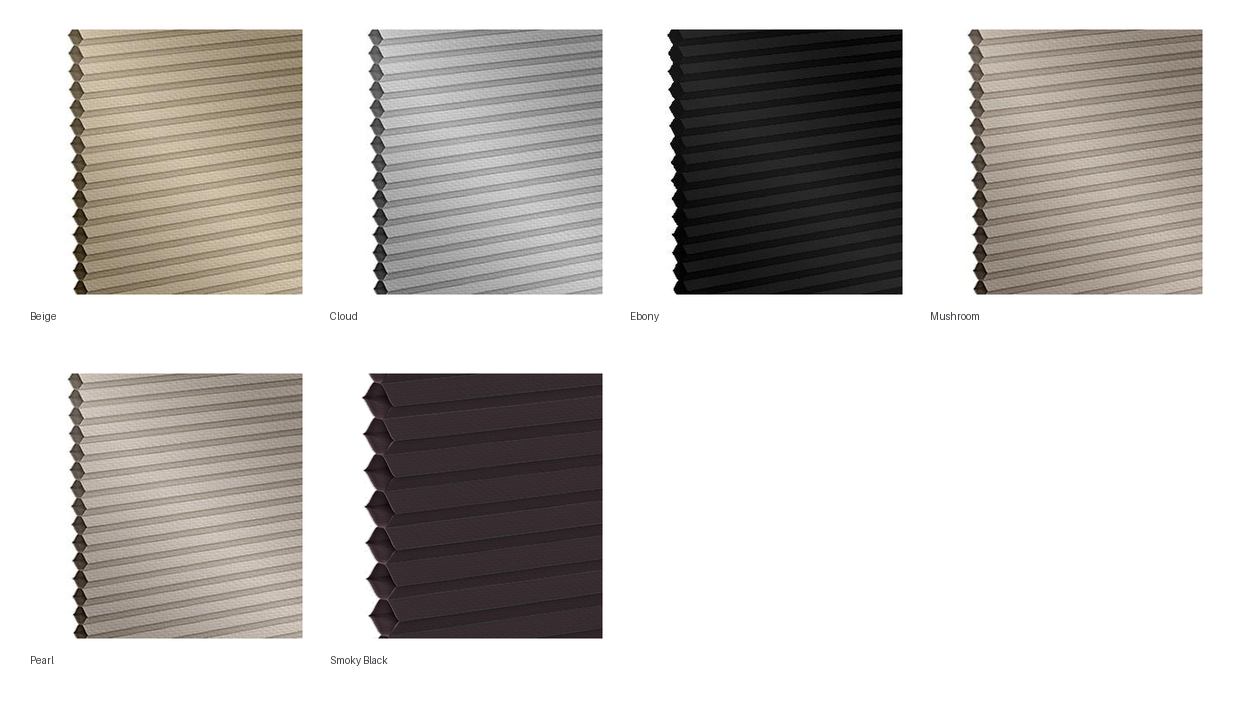

Additional colorways are quoted on request. Note the requested color in the quote note and it is confirmed during quote review.
Documents
- Type Cellular Shade
- SKU VS-WCV-CEL-TDBU-BO-CLOU
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
